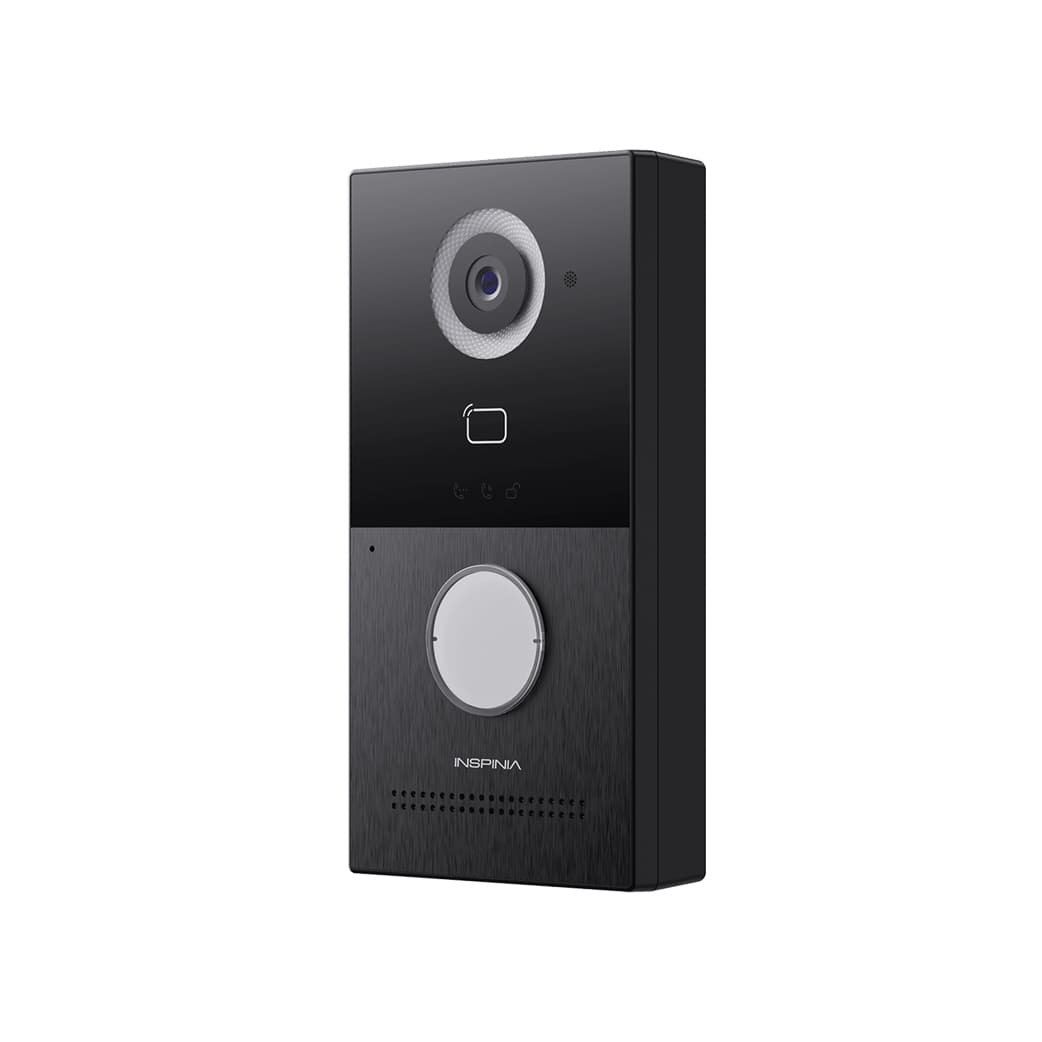

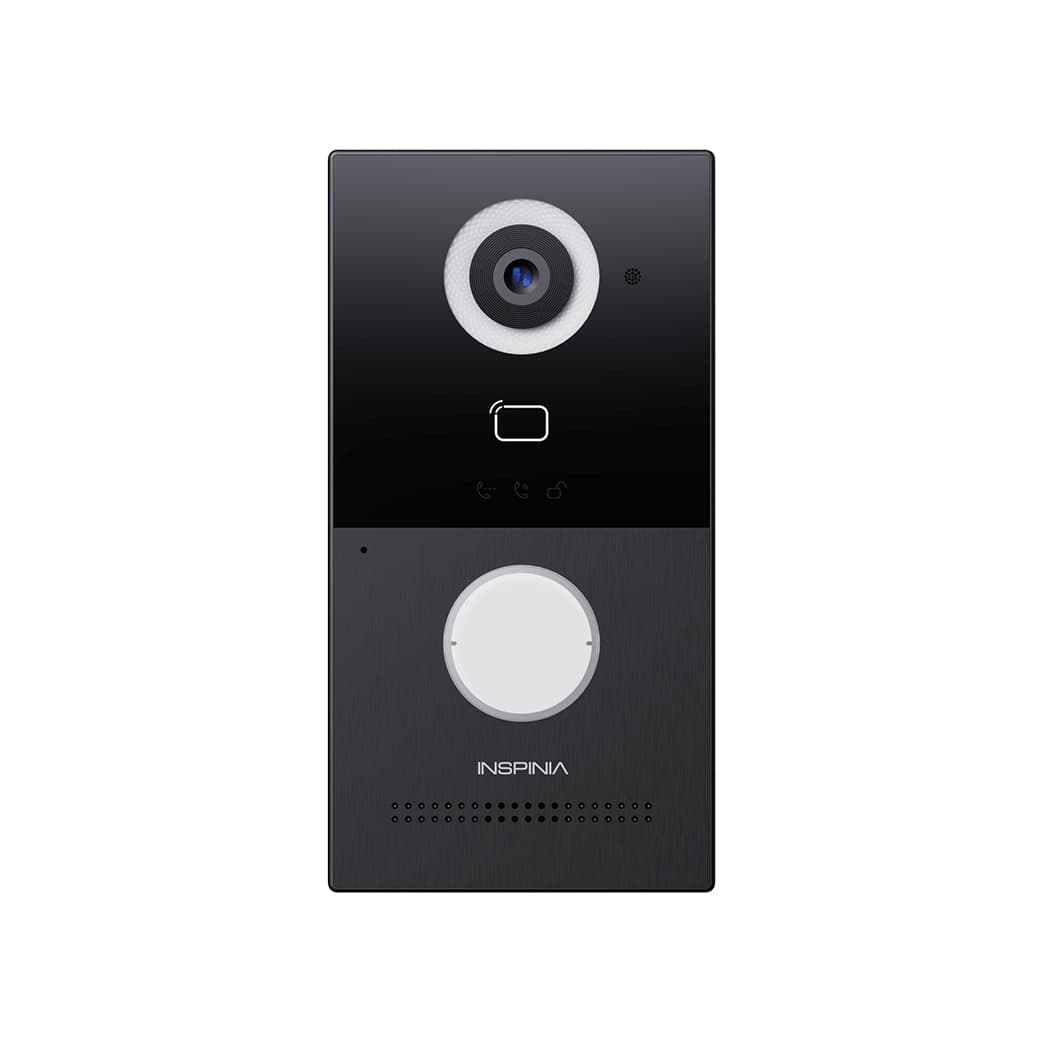

The Inspinia INS-SB24 is a compact single-button outdoor VoIP intercom for residential and commercial entrances. A 2MP CMOS camera (720p, H.264) with LED white-light compensation, built-in microphone and speaker (G.711, echo cancellation), and IC/ID card readers provide video entry and credential-based access on one surface-mounted station.

The aluminum-front station supports SIP, ONVIF, and RTSP for integration with IP monitors, mobile clients, and recorders. Two relay outputs, a tamper alarm, IP65 weather protection, and IK06 impact resistance suit exposed door locations. Power is via PoE (802.3af) or DC 12 V / 2 A.

Key Features — Single-Button SIP Entry

Video and Audio

• 2MP CMOS camera: 1280 × 720 (720p), H.264, LED white-light compensation.
• Viewing angle: 110° (H) / 60° (V) / 125° (D).
• Two-way audio: Built-in microphone and speaker; G.711 with echo cancellation.
• Call button: Single mechanical call control with status LEDs (call, talk, unlock).

Access and Security

• Card readers: IC (13.56 MHz) and ID (125 kHz).
• Relay outputs: 2 relays for door locks or gates.
• Tamper alarm: Alerts on unauthorized enclosure access.
• Linux platform: 64 MB RAM / 128 MB ROM.

Network

• Ethernet: 1 × RJ45 10/100 Mbps (adaptive).
• Protocols: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP.

At a Glance

Specification	Detail
Product type	Single-button outdoor SIP video door station
Order code	INS-SB24
Camera	2MP CMOS, 720p, H.264
Access methods	IC (13.56 MHz), ID (125 kHz), call button
Relay outputs	2
Power	PoE 802.3af or DC 12 V / 2 A
Protection	IP65, IK06
Product size (W × H × D)	88 × 168 × 32.5 mm
Mounting	Surface; optional 86 mm / 118 mm boxes (datasheet)

Full ratings, mounting variants, and wiring are under Technical Specifications. Datasheet and certificates are under Downloads.

Applications and System Integration

• Single-family and small commercial entries: One-button video intercom with card access where a keypad display is not required.
• SIP / ONVIF ecosystems: Register to IP-PBX, indoor monitors, or VMS alongside automation logic.
• Centralized building logic: Pair with the Inspinia MNSRV Mini Server for KNX/Modbus/Zigbee bridging and SkyPlatform management.
• Indoor stations: Complement with INS4SQ, INS8SQ, or INS10SQ touch panels.
• Full keypad station: For PIN, 4.3″ display, and three relays, specify the INS-K4A24 Keypad Outdoor Intercom.

Choosing Inspinia Outdoor Intercoms

The INS-SB24 fits compact entrances needing one call button, card readers, and two relays. The INS-K4A24 adds a mechanical keypad, 4.3″ TFT, and a third relay. Both share Linux firmware, IP65/IK06 rating, SIP/ONVIF support, and PoE or 12 V DC power.
