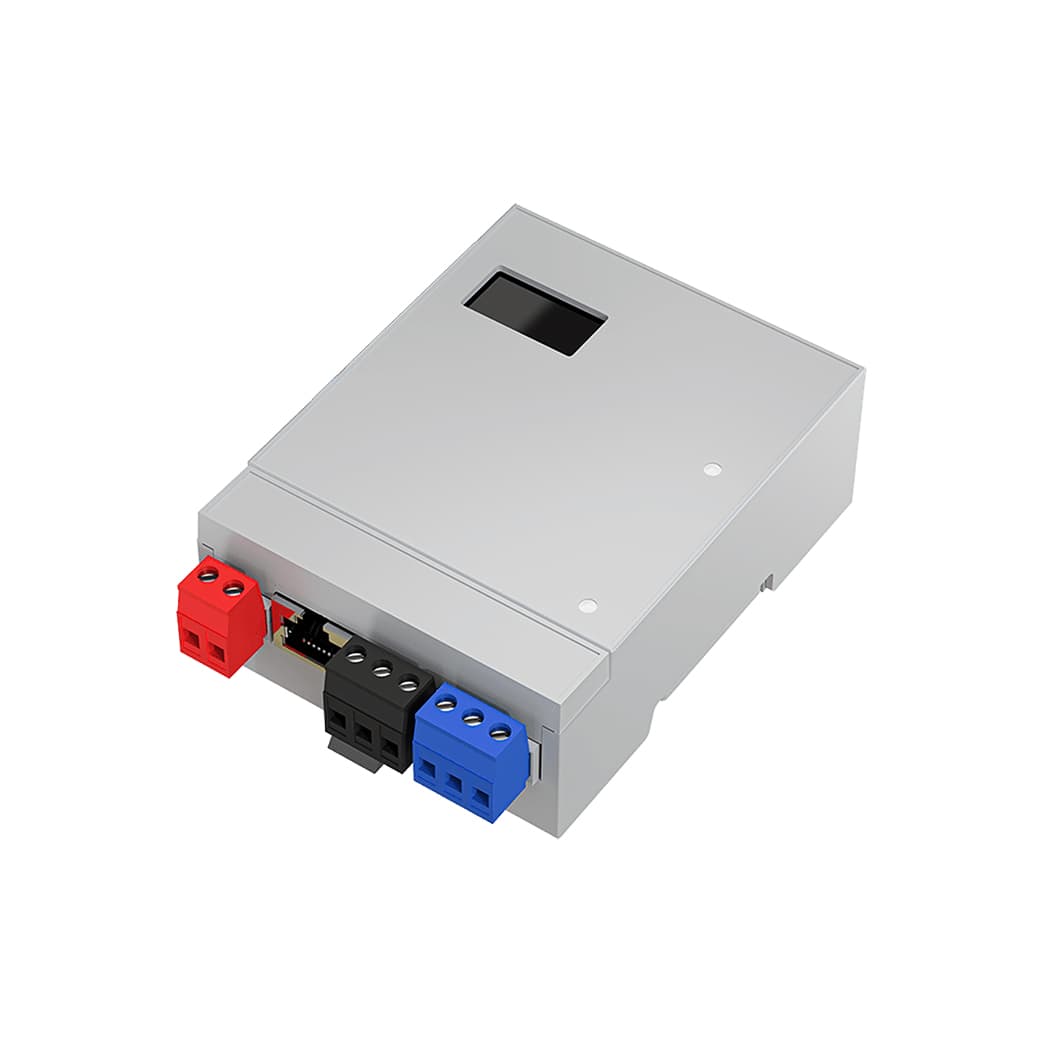

The Inspinia MNSRV Mini Server is a DIN-rail automation hub for smart homes and commercial buildings. Running Linux 3.4 with the Inspinia application, it centralizes up to 2000 objects and 1000 UI objects (300 BMS points on the initial license) without requiring a wall touch panel at the core of the installation.

The compact server includes a 1″ OLED status display, 1 × LAN, and two add-on ports for optional protocol modules (KNX TP, Zigbee 3.0, Modbus RS485, Bticino SCS, iNELS Bus, VRF). Power is 24 V DC or passive PoE (PPOE) with maximum consumption of 2.5 W. It integrates with Inspinia touch panels, intercoms, and SkyPlatform for unified building control.

Key Features — Central Logic Gateway

Processing and Licensing

• ARM A7 1.2 GHz with 128 MB DDR3 RAM and 256 MB NAND flash.
• BMS capacity: Up to 2000 objects; initial license 300 BMS points (expandable per Inspinia licensing).
• UI objects: Up to 1000 user-interface objects in the Inspinia application.
• Local display: 1″ mono OLED for diagnostics and status at the cabinet.

Connectivity and Expansion

• Ethernet: 1 × RJ45 10/100 Mbps.
• Add-on ports: 2 × optional interface slots for field-bus modules.
• Optional protocols: KNX TP (A-KNX), Bticino SCS (A-SCS), iNELS Bus (A-iBUS), galvanically isolated RS485 Modbus (A-GRS4), VRF (A-VXX), Zigbee 3.0 (A-ZGB).

Installation

• DIN-rail mounting with standard apparatus per datasheet drawing.
• Low power: Max 2.5 W — suitable for always-on gateway roles.
• Operating range: −10 °C to +60 °C; 5–90 % RH at 25 °C.

At a Glance

Specification	Detail
Product type	Building automation mini server / gateway
Order code	MNSRV
Processor	ARM A7 1.2 GHz, 128 MB RAM, 256 MB NAND
OS / application	Linux 3.4, Inspinia app (2000 objects / 1000 UI max)
Initial BMS license	300 points
Display	1″ OLED mono
Power	24 V DC or passive PoE (PPOE), max 2.5 W
Ethernet	1 × RJ45 10/100 Mbps
Add-on ports	2
Mounting	DIN rail

Dimension drawing and port tables are under Technical Specifications and the datasheet under Downloads.

Applications and System Integration

• Head-end gateway: Aggregate KNX, Modbus, Zigbee, and VRF add-ons when touch panels alone are not sufficient for system logic.
• Touch panel backbone: Serve INS4SQ, INS8SQ, and INS10SQ installations from a single DIN-rail controller.
• Intercom and access: Coordinate INS-SB24 and INS-K4A24 outdoor stations with indoor UI and building schedules.
• SkyPlatform / BMS: Cloud and multi-protocol supervision per Inspinia SkyPlatform and hospitality/BMS solutions.

Choosing Inspinia Controllers

Use MNSRV when the project needs a headless DIN-rail logic engine with dual add-on buses. For room or lobby user interfaces, add INS4SQ (4″), INS8SQ (8″), or INS10SQ (10″) panels — each can run localized UI while the mini server handles wider object counts and protocol bridging.
