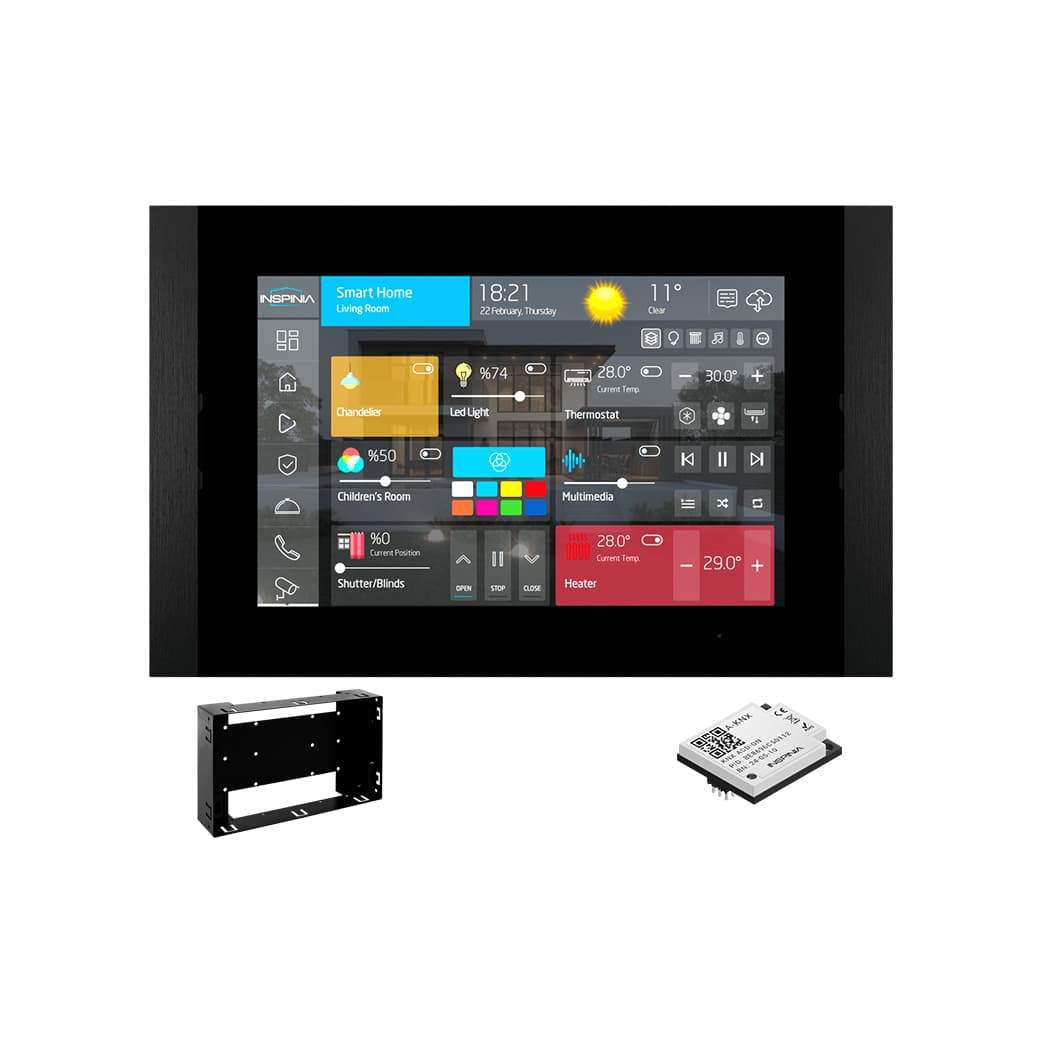

The Inspinia INS8SQ is an 8″ horizontal touch panel for smart-home and building-management UI. A 1280 × 800 IPS display (300 cd/m², 5-point capacitive) runs Android 7.1 with the Inspinia application, supporting up to 2000 BMS points and 1000 UI objects (500 points on the initial license).

Built-in 2 × 2 W speakers, microphone input, five digital inputs, two dry-contact outputs (2 A / 24 V DC), a uni-port, and two add-on ports suit lobby, suite, and common-area control. Power is 24 V DC or PoE (802.3at) (max 12 W). Optional modules add KNX TP, Modbus RS485, Zigbee, VRF, Bticino, iNELS, or infrared (IRGW-UP) interfaces.

Key Features — 8″ BMS Touch Hub

Display and Processing

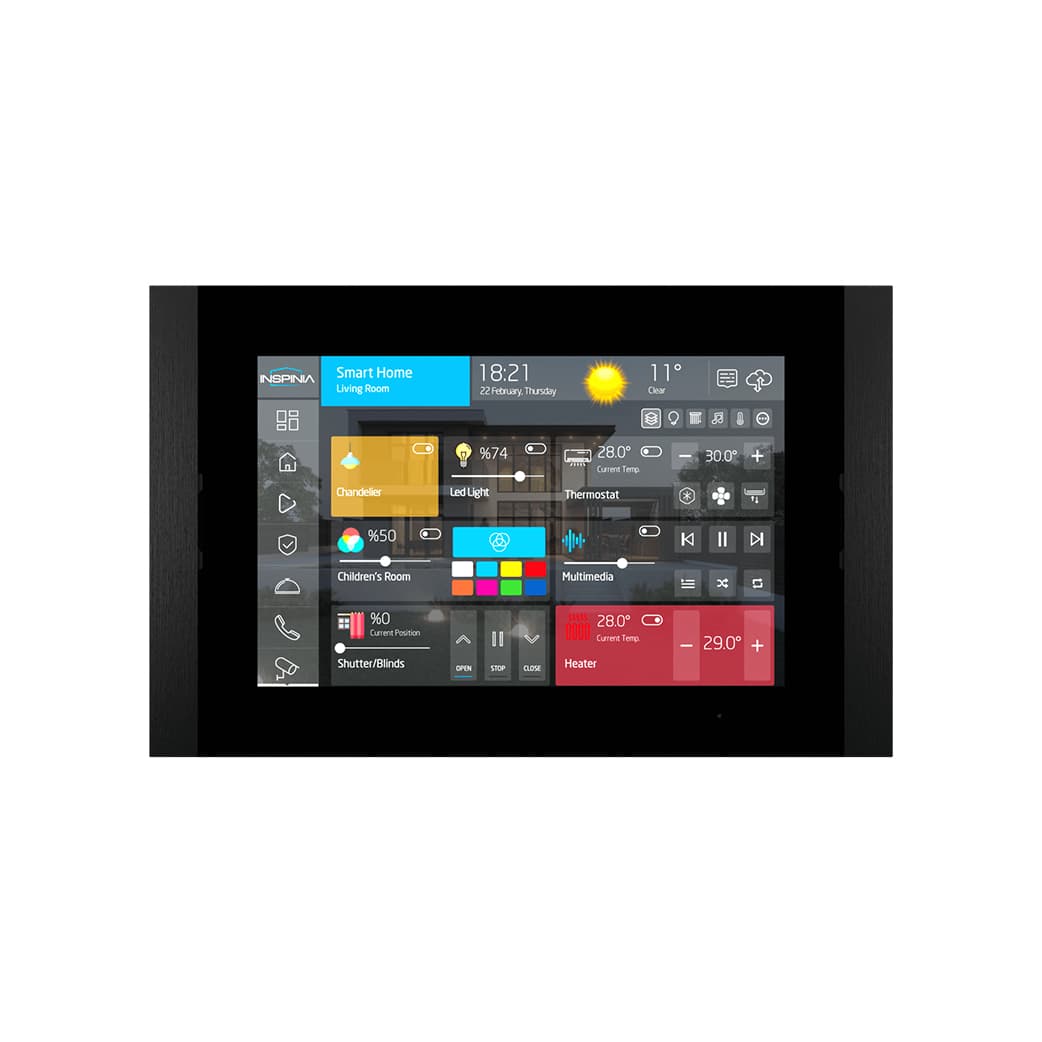

• 8″ IPS display: 1280 × 800, 300 cd/m², horizontal orientation, 5-point capacitive touch.
• Processor / storage: Quad-core 1.2 GHz, 1 GB DDR3, 8 GB NAND flash.
• Multimedia: 2 × 2 W speakers, 1 × microphone input — intercom and door-station UI.

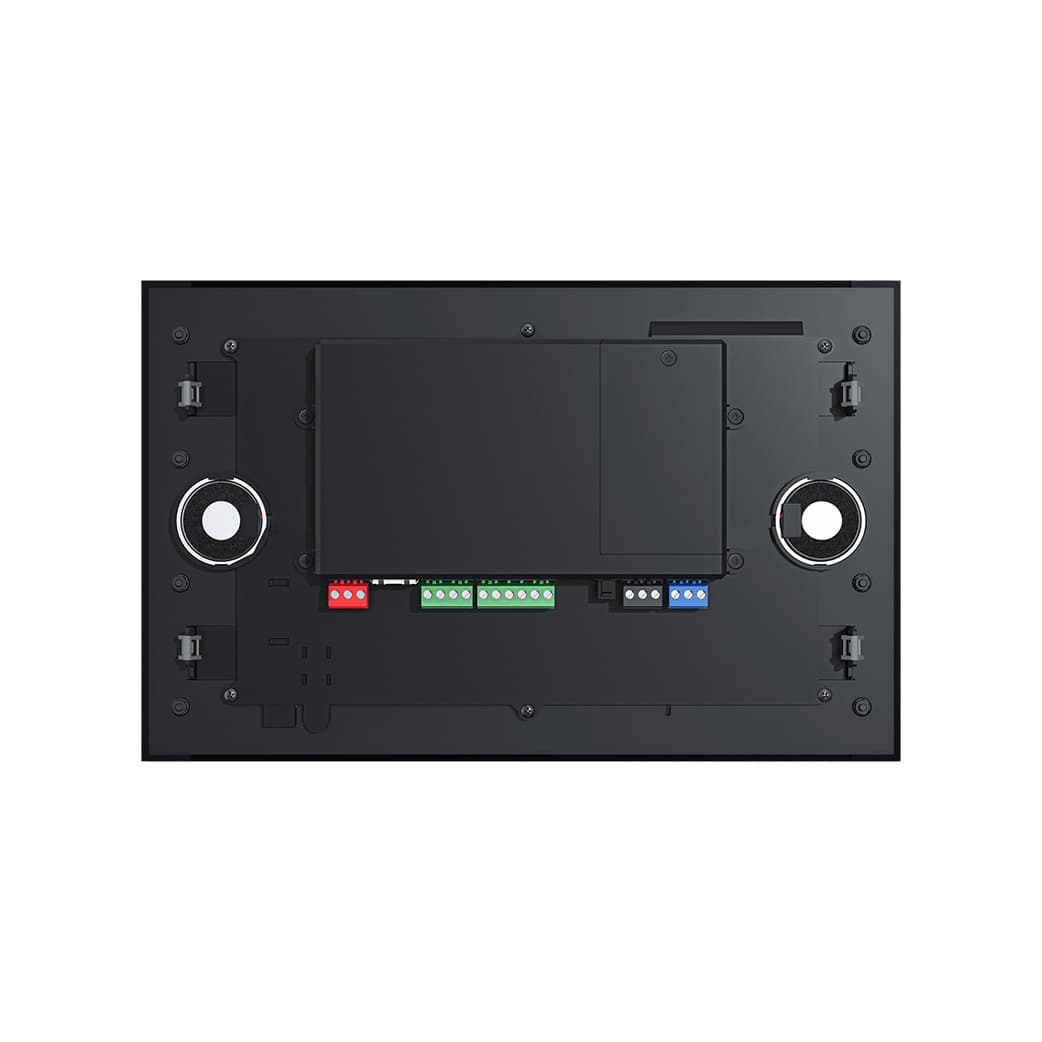

Onboard I/O

• LAN: 1 × RJ45 10/100 Mbps.
• Digital I/O: 5 × digital in; 2 × digital out (dry contact 2 A / 24 V DC).
• Uni-port and environmental sensors (temperature −40 °C to +125 °C; humidity 0–100 % RH).

Optional Add-On Protocols

• KNX TP (A-KNX), Bticino SCS (A-SCS), iNELS Bus (A-iBUS), RS485 Modbus (A-GRS4), VRF (A-VXX), Zigbee 3.0 (A-ZGB).
• Infrared: IRGW-UP / UPort with 6 IR LEDs (reference).

At a Glance

Specification	Detail
Product type	8″ SQ touch panel / room controller

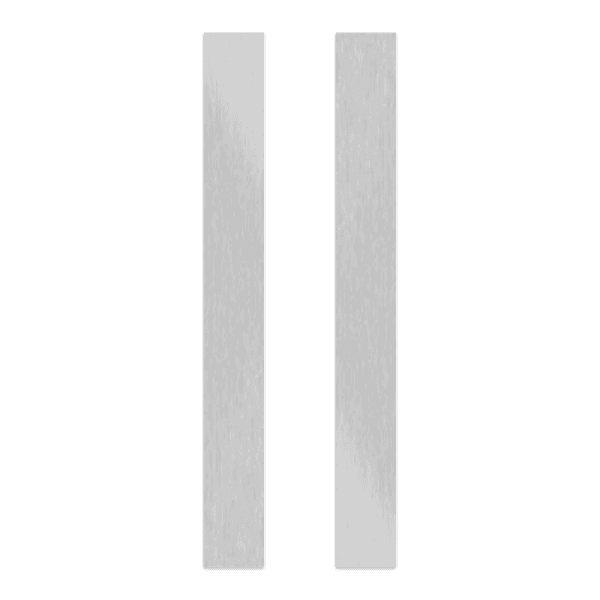

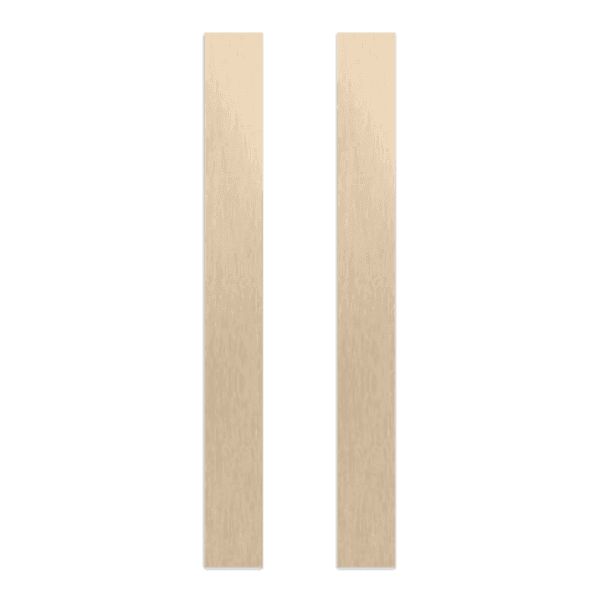

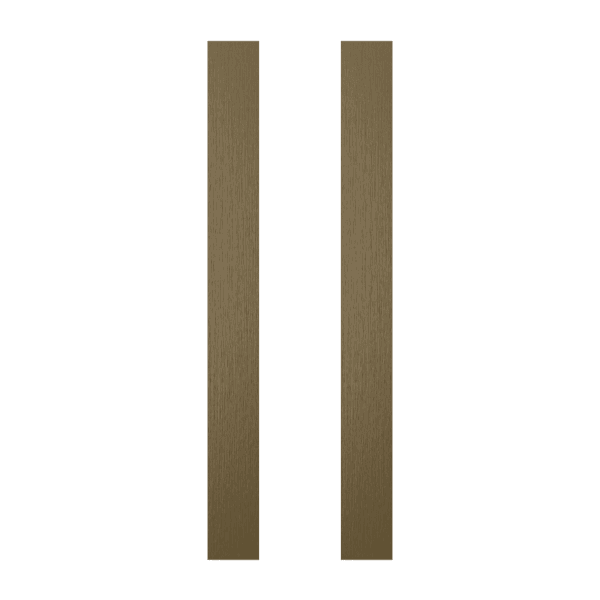

Order codes	INS8SQ.B (black bars), INS8SQ.S (silver), INS8SQ.G (gold)
Display	8″ IPS 1280 × 800, horizontal
BMS points (max / initial)	2000 / 500
Power	24 V DC or PoE 802.3at (max 12 W)
Digital I/O	5 in / 2 out (2 A dry contact)
Add-on ports	2
Operating temperature	−10 °C to +60 °C

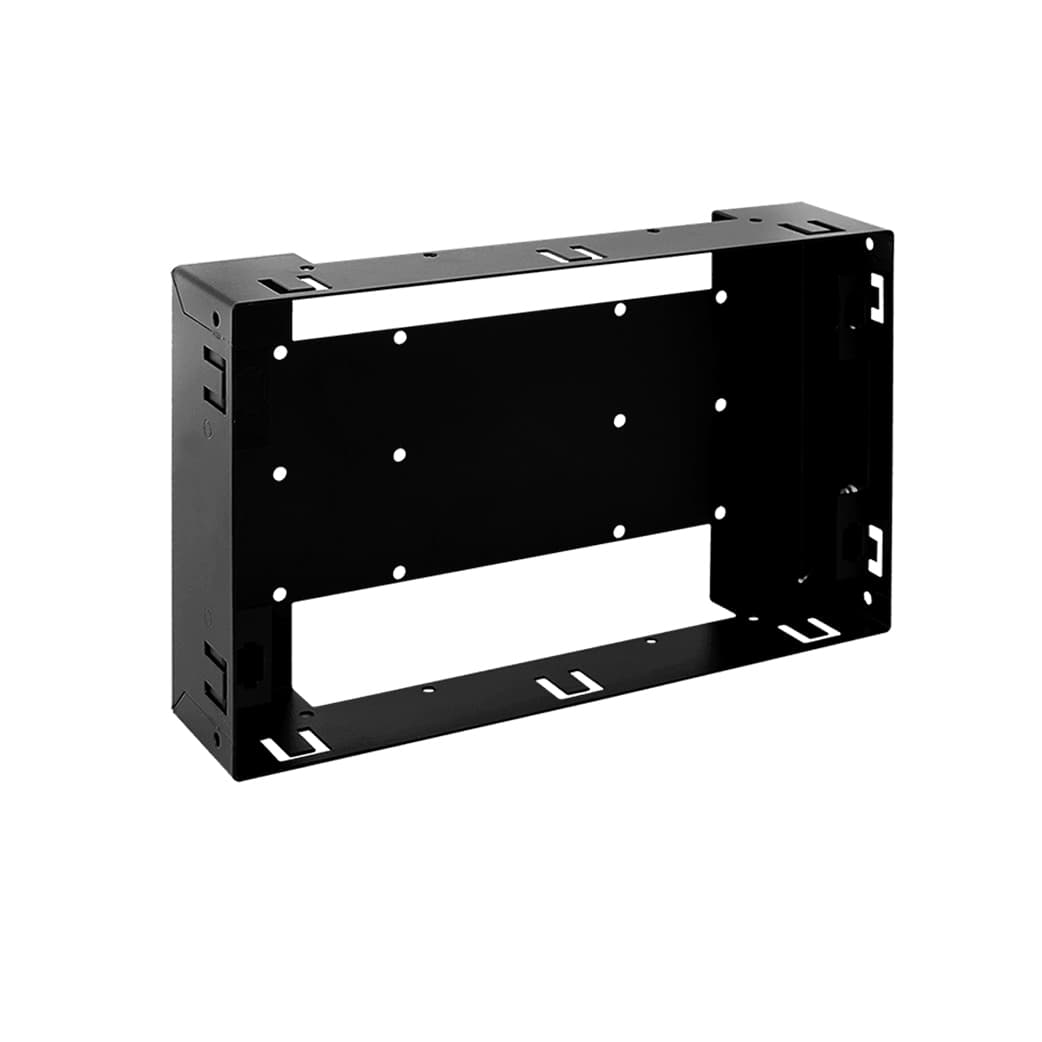

Product and back-box dimensions are in the datasheet under Technical Specifications and Downloads.

Applications and KNX Integration

• Common-area and suite control: Lighting, HVAC, scenes, and intercom on one landscape panel.

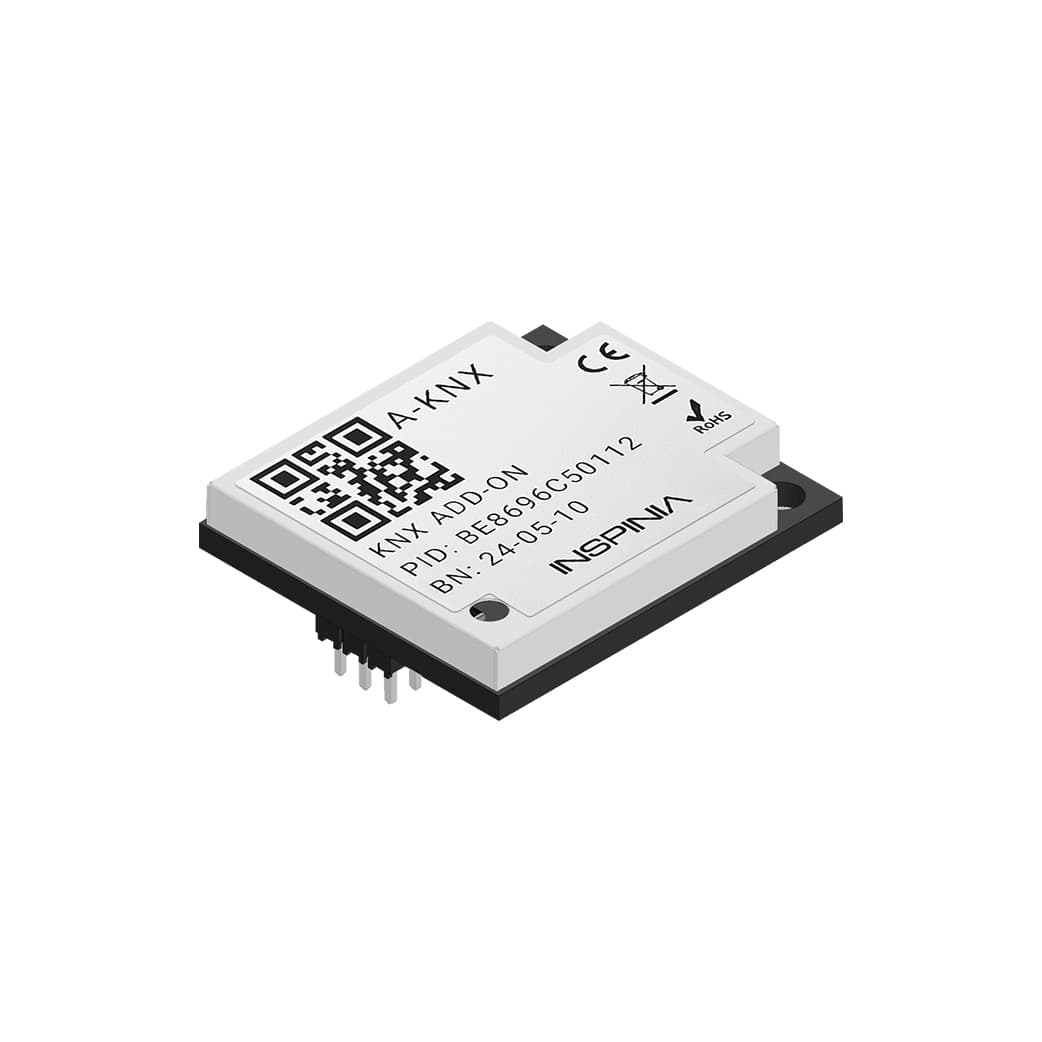

• KNX TP: Install A-KNX on an add-on port to couple the panel to KNX actuators and sensors.
• Smaller rooms: Use INS4SQ 4″ controllers in bedrooms; INS8SQ in living areas or corridors.
• Larger UI: Specify INS10SQ 10″ where a larger display is required (14 W PoE budget).
• System head-end: Combine with MNSRV Mini Server for DIN-rail logic and multi-protocol gateways.
• Outdoor entry: Link to INS-K4A24 or INS-SB24 intercom stations.

Choosing Inspinia SQ Touch Panels

The INS8SQ balances 8″ UI, dual add-on buses, and five digital inputs for mid-size zones. Choose INS4SQ for compact 4″ room control (200-point initial license) or INS10SQ for a 10″ display with the same I/O layout and higher PoE draw.
