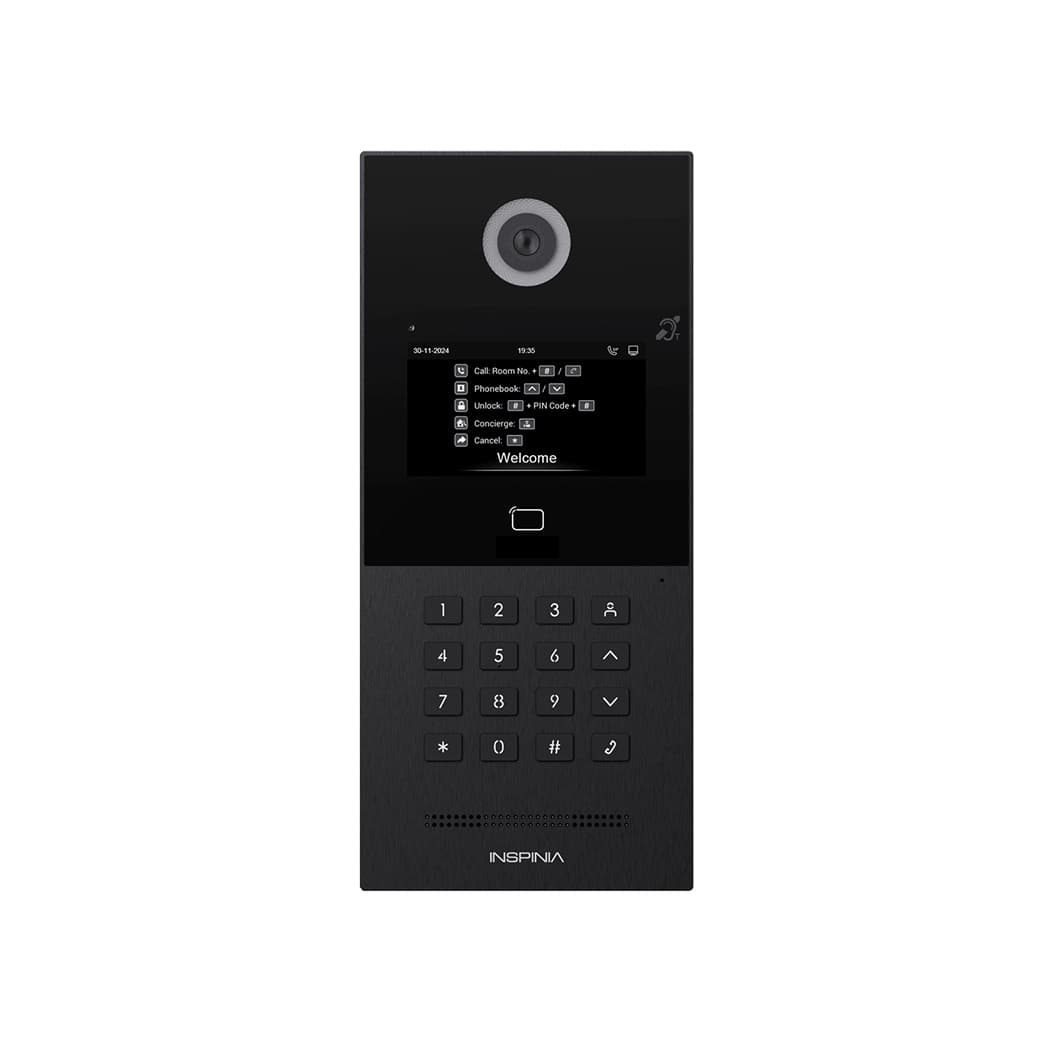

The Inspinia INS-K4A24 is a surface-mounted 4.3″ keypad outdoor intercom for residential and commercial entrances. It combines a 4.3-inch TFT LCD, mechanical keypad, and 2MP CMOS camera (720p, H.264) so visitors can be identified and granted access via PIN, card, or optional Bluetooth while building staff communicate over the network.

The station is built for exposed outdoor use: aluminum front panel, IP65 weather protection, and IK06 impact resistance. Power is via PoE (802.3af) or DC 12 V / 2 A. Three relay outputs, Wiegand, and RS485 support door locks, gates, and third-party access control. Network protocols include SIP, ONVIF, and RTSP for integration with VoIP monitors, NVRs, and the wider Inspinia automation ecosystem.

Key Features — Multi-Method Outdoor Entry

Video, Display, and Audio

• 2MP CMOS camera: 1280 × 720 (720p) with H.264 compression for efficient streaming.
• Wide viewing angle: 115° (H) / 75° (V) / 125° (D) for entrance coverage.
• 4.3-inch TFT LCD: On-station display for calls, menus, and visitor interaction.
• Two-way audio: Built-in microphone; 8 Ω / 1 W speaker; G.711 codec with echo cancellation.

Access Control and Security

• Credential options: IC card (13.56 MHz), ID card (125 kHz), PIN via mechanical keypad, optional Bluetooth.
• Three relay outputs: Independent control of multiple door locks, gates, or auxiliary loads.
• Tamper alarm: Alerts on unauthorized enclosure interference.
• Wiegand and RS485: Standard ports for linkage with existing access controllers.
• Inclusive design: Induction loop (hearing aid) and braille dots per manufacturer specification.

Connectivity and Integration

• Ethernet: 1 × RJ45 10/100 Mbps.
• Protocols: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP.
• SIP intercom: Register to IP-PBX or compatible indoor monitors and mobile clients.
• ONVIF / RTSP: Video stream to VMS or recording platforms.
• Lift control: Compatible with lift-call interfaces within Inspinia and partner ecosystems.

Hardware and Environment

• Linux-based firmware on an aluminum-front outdoor chassis.
• Operating range: −40 °C to +55 °C; 10–90 % RH (non-condensing).
• Enclosure size (datasheet): 133 × 295 × 41 mm (W × H × D); optional flush-mount back box 63.5 mm deep.

At a Glance

Specification	Detail
Product type	4.3″ keypad outdoor IP intercom / door station
Order code	INS-K4A24
Display	4.3-inch TFT LCD
Camera	2MP CMOS, 720p, H.264
Viewing angle	115° H / 75° V / 125° D
Access methods	PIN, IC (13.56 MHz), ID (125 kHz), Bluetooth (optional)
Relay outputs	3
Power	PoE 802.3af or DC 12 V / 2 A
Ethernet	1 × RJ45 10/100 Mbps
Protocols	SIP, ONVIF, RTSP, HTTP, DHCP, and related IP stack
Protection	IP65, IK06
Dimensions (W × H × D)	133 × 295 × 41 mm
Flush-mount depth (with back box)	63.5 mm
Hole-cutting size (flush)	124 × 289 × 56 mm
Mounting	Surface; optional 86 mm box flush mount; optional rain hood

Full electrical ratings, port pinouts, and installation guidance are listed under Technical Specifications. Datasheet and brochure are under Downloads.

Applications and System Integration

• Multi-tenant residential: PIN and card access for lobbies, car parks, and secondary gates with three independent relays.
• Commercial entrances: SIP video calls to reception desks, concierge apps, or IP indoor monitors.
• Surveillance integration: ONVIF and RTSP streams to recorders alongside dedicated intercom workflows.
• Building automation hub: Pair outdoor stations with the Inspinia MNSRV Mini Server for centralized logic, KNX/Modbus/Zigbee bridging, and SkyPlatform management.
• Indoor touch interfaces: Complement entry points with INS4SQ 4″ SQ Room Controller, INS8SQ 8″ SQ Touch Panel, or INS10SQ 10″ Touch Screen for in-unit or common-area control.
• Alternative outdoor station: Where a single call button suffices, specify the INS-SB24 SIP Video Door Station (2 relays, no keypad display).

Choosing Inspinia Outdoor Intercoms

The INS-K4A24 is the full-featured choice when users need an on-wall keypad, 4.3″ display, and three relays at the entrance. Choose the INS-SB24 for a compact single-button SIP door station with dual relays and no mechanical keypad. Both share Inspinia’s Linux platform, IP65/IK06 outdoor rating, IC/ID readers, SIP/ONVIF support, and PoE or 12 V DC power — select by required UI, relay count, and access methods at each door.
