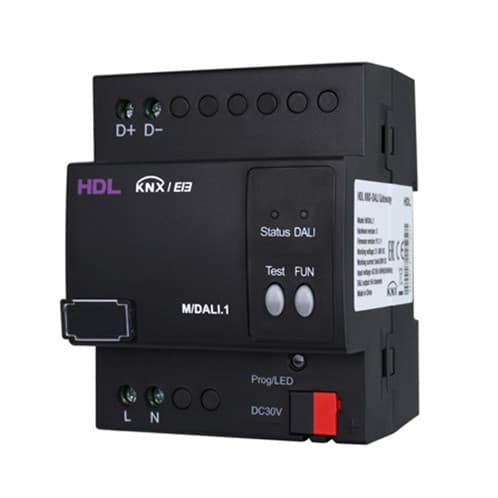

The HDL M/DALI.1 KNX DALI Gateway integrates a DALI lighting line into a KNX building automation system. It connects up to 64 DALI devices (electronic control gear, LED drivers, and ballasts) on a single DALI bus and includes a built-in DALI power supply — eliminating the need for a separate DALI PSU in the cabinet.

The gateway provides real-time failure detection for ballast and lamp faults, with status reported on the KNX bus. It supports broadcast, channel, group, and scene control — including DT8 colour-temperature control for tunable-white luminaires — and is configured via ETS together with the HDL KNX Assistant Software for DALI addressing and group/scene management.

Key Features — KNX ↔ DALI Gateway

DALI Line Management

• 64 DALI devices: Single DALI bus line with integrated power supply.
• 64 DALI channels: Individual channel-oriented control from KNX.
• Real-time diagnostics: Ballast failure, lamp failure, and communication status detection.
• Built-in DALI PSU: No external DALI power supply required within rated limits.
• Online update: Firmware updates supported.

Control Modes

• Target control: Broadcast, channel, group, scene, staircase light, sequence, and emergency light control.
• Per channel/group: Switch on/off, relative dimming, absolute dimming, status response.
• Colour temperature: DT8 tunable-white control via broadcast, channel, group, and scene.
• Group scenes: Configured and managed via HDL KNX Assistant Software.

Front Panel

• TEST and FUN buttons: Ballast test, broadcast on/off, address reassignment, and address clearing.
• DALI LED: Green when operating; red flash on DALI communication.
• Status LEDs: Red/green indicators for broadcast and ballast test modes.

At a Glance

Specification	Detail
Product type	KNX DALI Gateway (master)
Model	HDL-M/DALI.1
Order code	HDL-M/DALI.1
DALI devices (max)	64 on one bus
DALI channels	64
DALI power supply	Integrated
Mains input	100–240 V AC, 50/60 Hz
KNX bus	21–30 V DC — 5 mA consumption
Configuration	ETS + HDL KNX Assistant Software
Dimensions (H × W × D)	72 × 90 × 64 mm
Weight	241 g
Mounting	35 mm DIN rail
Protection	IP 20 (EN 60529)

Full electrical ratings and button/LED functions are listed under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Commercial office lighting: Control DALI luminaire groups from KNX switches, presence detectors, and schedules.
• Tunable white: DT8 colour-temperature control for circadian and hospitality lighting.
• Maintenance alerts: Ballast and lamp fault reporting on the KNX bus for BMS dashboards.
• Entertainment lighting: For DMX moving heads and LED fixtures, use the HDL M/DMX512.1 DMX Recorder Module.
• Phase dimming alternative: For phase-dimmable loads, use HDL MOSFET dimming actuators.
• EAE comparison: For EAE DALI gateways with integrated PSU and 16-group control, see the EAE DA100.

Choosing HDL Gateways

The M/DALI.1 is HDL's KNX-to-DALI gateway for standard DALI installations up to 64 devices. Pair with the M/DMX512.1 when the project also requires DMX512 show lighting, or with M/R16.10.1 switch actuators for conventional on/off circuits on the same KNX installation.
