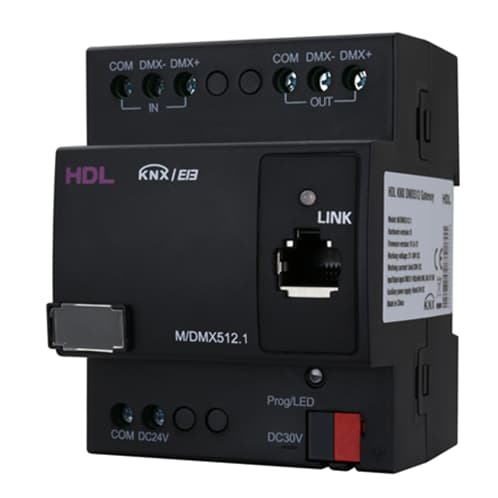

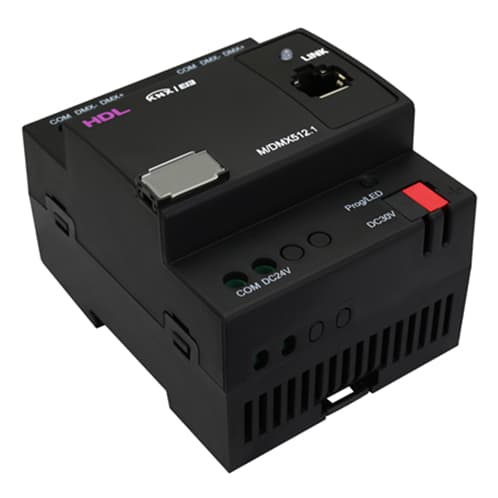

The HDL M/DMX512.1 KNX DMX Recorder Module is a DIN-rail gateway that connects a KNX/EIB installation to DMX512 lighting equipment. It supports two-way control — KNX commands can drive DMX fixtures, and DMX signals can control KNX group objects — and functions as a DMX program recorder with up to 24 stored programs and a maximum recording time of 4 hours.

The module supports DMX512-1990, ArtNet DMX, and HDL NET DMX protocols. It is designed for entertainment and architectural applications: moving heads, laser lights, LED colour changers, and other fixtures with a built-in DMX port. An additional 24 V DC auxiliary supply (40 mA) is required for the DMX interface.

Key Features — KNX ↔ DMX512 Gateway and Recorder

Three Operating Modes

• DMX recorder mode: Record, store, play back, and delete DMX programs from ETS or a KNX wall panel — up to 24 programs, 4 hours total recording time. Recording from DMX line or Art-Net supported.
• DMX dimming mode (KNX → DMX): Switching or dimming for up to 48 DMX channels from the KNX system.
• DMX to KNX mode: Switching or absolute dimming for up to 48 KNX channels from DMX input signals (1-bit / 1-byte data points).

DMX Input Control Functions

• Sequence control, scene control, switch control
• Relative and absolute dimming

Connections

• DMX512-1990: Dedicated line-in and line-out terminals.
• ArtNet DMX and HDL NET DMX: Network DMX protocols supported.
• KNX bus: 21–30 V DC, 5 mA static / < 15 mA dynamic.
• Auxiliary power: 24 V DC, 40 mA required for DMX interface.
• DMX cable terminals: 1–2.5 mm² for line in/out.

At a Glance

Specification	Detail
Product type	KNX DMX512 Gateway and Recorder
Model	HDL-M/DMX512.1
Order code	HDL-M/DMX512.1
Operating modes	Recorder, KNX→DMX dimming, DMX→KNX conversion
DMX channels (max)	48 (dimming / conversion modes)
Stored programs	Up to 24 (4 h total recording)
Protocols	DMX512-1990, ArtNet DMX, HDL NET DMX
KNX bus	21–30 V DC — 5 mA (static)
Auxiliary supply	24 V DC, 40 mA (DMX interface)
Dimensions (H × W × D)	72 × 90 × 64 mm
Weight	189 g
Mounting	35 mm DIN rail
Protection	IP 20 (EN 60529)

Full electrical ratings, wiring diagram, and installation notes are listed under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Entertainment venues: Control moving heads, lasers, and LED fixtures from KNX touch panels and scenes.
• Hotel and event spaces: Record and playback DMX shows triggered by KNX logic or schedules.
• Architectural RGB: Bridge KNX building automation with DMX colour-control fixtures.
• DALI alternative: For standard DALI luminaires in offices and hotels, use the HDL M/DALI.1 KNX DALI Gateway.
• System power: Supply KNX bus power and a separate 24 V DC auxiliary supply for the DMX port; use an HDL M/P960.1 Power Supply for the KNX segment.

Choosing HDL Lighting Gateways

The M/DMX512.1 is for DMX512 show and effect lighting with recording capability. The M/DALI.1 covers conventional DALI commercial lighting. For phase-dimmed circuits, use HDL MOSFET dimming actuators on the same KNX installation.
