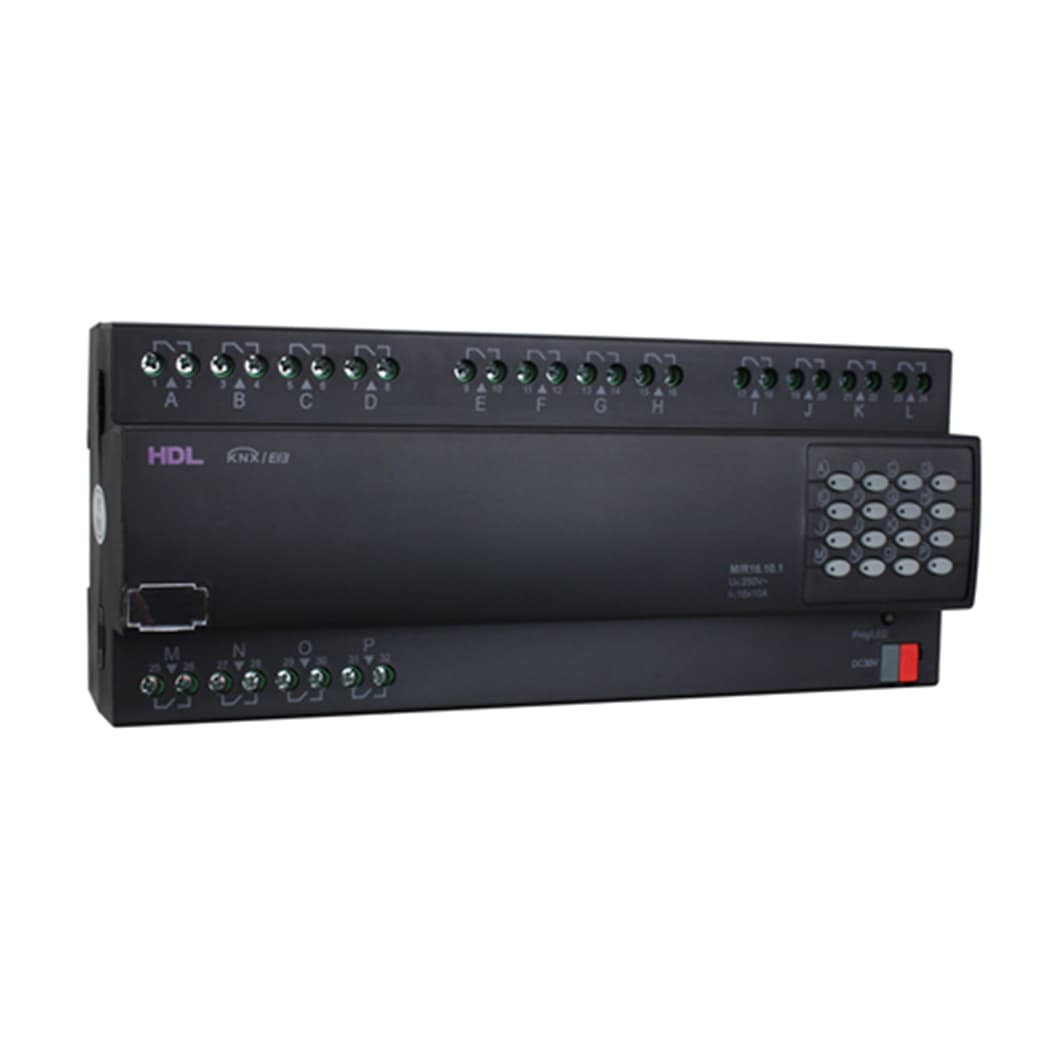

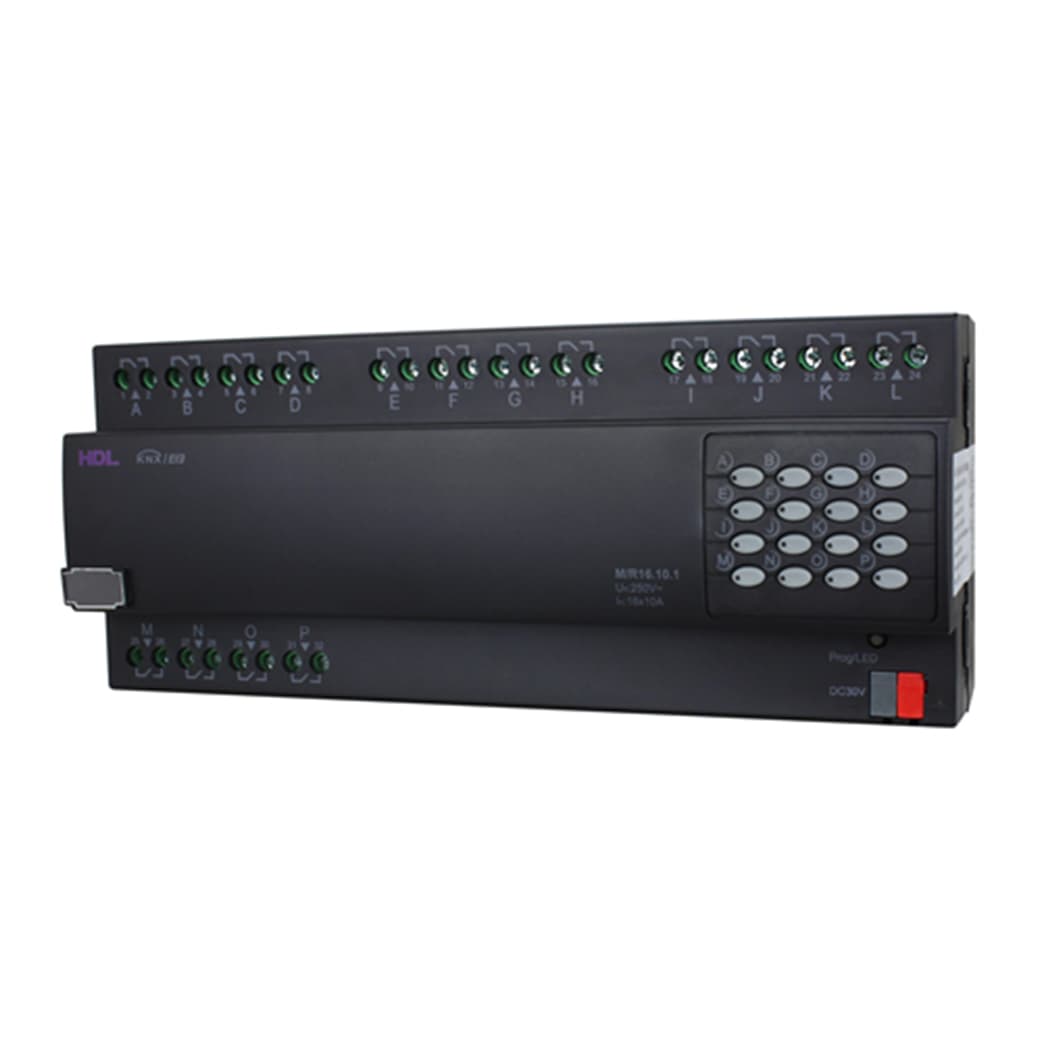

The HDL-M/R16.10.1 KNX 16CH 10A High Power Switch Actuator is a high-density DIN-rail relay module for switching up to sixteen independent 10 A lighting circuits. Each channel handles a rated 10 A lighting load with maximum inrush current of 500 A, making it suitable for commercial and large residential projects where many switched loads must be consolidated in one distribution board.

Part of HDL's 10 A high-power switch actuator family (also available in 4CH, 8CH, and 12CH variants), the M/R16.10.1 offers advanced KNX logic functions — including AND, OR, XOR, and Gate — alongside staircase, scene, threshold, and curtain control. The series supports three-phase mains connection for balanced load distribution across L1, L2, and L3.

Key Features — 16 × 10 A Relay Switching

Output Capacity

• 16 channels: Independent relay outputs at 10 A per channel.
• Rated switch current: 10 A lighting load; max inrush 500 A.
• Operating life: > 100,000 switching cycles.
• Capacitive load: < 300 μF per channel (per HDL specification).
• Three-phase wiring: Channels distributed across L1/L2/L3 for balanced loading.
• Protection: Fuse or circuit breaker > 10 A recommended per channel.

Control and Logic Functions (ETS)

• Logic functions: AND, OR, XOR, Gate.
• Automation: Staircase light, flashing, ON/OFF delay, protection delay, scene control, threshold function, curtain control.
• Heating function: PWM control output (1-bit / 1-byte).
• Monitoring: Statistical ON time, status response, status recall.

At a Glance

Specification	Detail
Product type	KNX high-power switch actuator — 16-fold
Model	HDL-M/R16.10.1
Order code	HDL-M/R16.10.1
Output channels	16 × 10 A relay
Rated switch current	10 A lighting load (500 A max inrush)
Mains input	120/240 V AC, 50/60 Hz (3-phase capable)
KNX bus	21–30 V DC Class 2 — 15 mA consumption
Operation times	> 100,000
Dimensions (H × W × D)	90 × 216 × 64 mm
Weight	830 g
Mounting	35 mm DIN rail
Protection	IP 20 (EN 60529)

Full electrical ratings, three-phase wiring diagram, and installation steps are listed under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Commercial lighting: Switch sixteen lighting circuits from KNX presence detectors, schedules, and touch panels.
• Curtain and HVAC: Curtain control and PWM heating output per channel for integrated room automation.
• Logic-heavy projects: Built-in AND/OR/XOR/Gate functions reduce external logic modules.
• Dimming alternative: For phase-dimmable loads, use the HDL-M/DM06.1 6CH MOSFET Dimming Actuator or M/DM04.1 4CH Dimming Actuator.
• DALI installations: For DALI luminaire control, use the HDL M/DALI.1 KNX DALI Gateway.
• System power: Supply the KNX bus from an HDL M/P960.1 960 mA Power Supply.

Choosing HDL Switch Actuators

The M/R16.10.1 is the highest-density 10 A switch actuator in the HDL range — sixteen channels in one 216 mm module. For smaller panels, HDL offers M/R4.10.1, M/R8.10.1, and M/R12.10.1 variants with the same 10 A per-channel rating and logic feature set.
