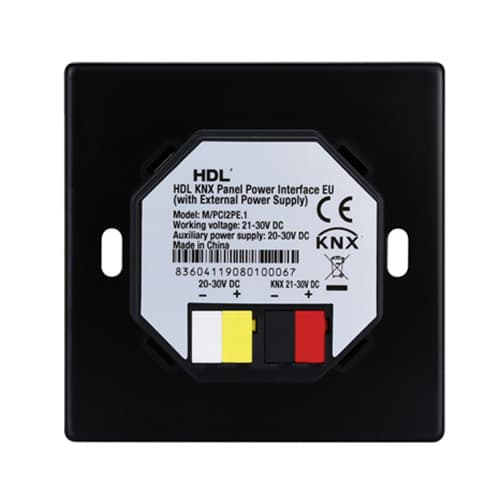

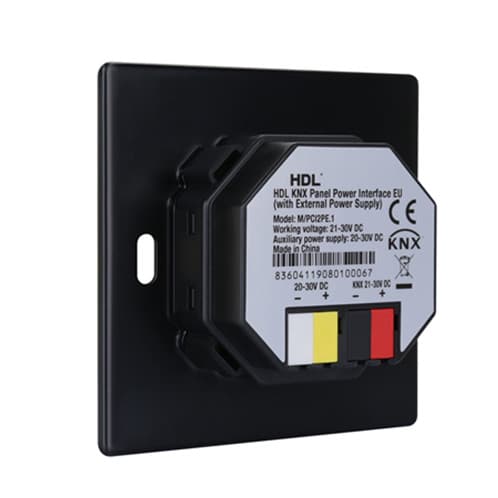

The HDL M/PCI2PE.1 KNX Panel Power Interface EU is the mandatory back-box for HDL KNX touch panels such as the M/PTL4.1 Granite Display. It provides two power interfaces: a standard KNX bus connection (communication + bus power) and an auxiliary DC input (20–30 V) from an external supply for panel backlight and electronics.

The display panel slides into the interface mounting slots after the interface is fixed in a flush wall box. EU form factor is 80 × 80 mm; HDL also offers a US variant (M/PCI2PU.2) at 110.5 mm width for North American boxes.

Key Features — Dual Power for KNX Panels

Interfaces

• KNX bus port: Standard KNX/EIB twisted pair — working voltage 21–30 V DC.
• Auxiliary power port: 20–30 V DC external supply input for matching panels.
• Panel connector: Mechanical and electrical mate to Granite and compatible HDL displays.
• Wall-box mount: Fixed with supplied screws (M4 × 28 mm and M4 × 50 mm per datasheet).

At a Glance

Specification	Detail
Product type	KNX panel power interface — EU, with external auxiliary supply
Model	HDL-M/PCI2PE.1
KNX working voltage	21–30 V DC
Auxiliary supply	20–30 V DC (external)
Dimensions EU (W × H × D)	80 × 80 × 28.5 mm
Weight EU	78 g
Mounting	Flush wall box
Protection	IP 20 (EN 60529)

Installation with Granite Display, KNX cable guide, and US-variant dimensions are under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Granite Display projects: One M/PCI2PE.1 per M/PTL4.1 — auxiliary feed can use spare KNX cable pairs (yellow/white) with a 20–30 V DC supply (~108 mA at 24 V for the panel).
• Bus planning: Count panel auxiliary current separately from standard 10 mA device loads when sizing M/P960.1 supplies.
• Multi-floor IP: Commission panels on coupled lines via M/IPRT.1 IP Router.
• Sensor lines: Same interface family supports HDL KNX panels and sensors that require auxiliary power.

Choosing Panel Infrastructure

The M/PCI2PE.1 is required infrastructure for EU-format HDL KNX displays — not optional for the Granite panel. Order one interface per panel location. For DIN-rail system equipment (PSU, router, actuators), use M/P960.1 and M/IPRT.1 in the distribution board.
