The HDL M/IPRT.1 KNX net/IP Router connects a KNX TP1 twisted-pair line to a KNXnet/IP Ethernet backbone. It exchanges telegrams between the IP network and the bus, supports ETS download and monitoring, and can operate as a line or backbone coupler with filter-table control for segmented installations.

Fast data caching, delivery validation, and up to 4 debugging/monitoring channels make the router suitable for commissioning and diagnostics. A front-panel function key temporarily disables data filtering for troubleshooting; filtering restores automatically after a preset time. Six dual-colour LEDs indicate LAN, KNX, and routing status.

Key Features — KNXnet/IP Routing and Tunneling

Network Functions

• KNXnet/IP routing: Fast telegram exchange between KNX net/IP (LAN) and KNX TP1 bus.
• ETS access: Data download and bus monitoring via ETS through the IP connection.
• Filter control: Function key stops filtering temporarily; auto-restore after preset timeout.
• Data integrity: Fast caching with reliable delivery and validation.
• Debug channels: Up to 4 channels for ETS or third-party monitoring tools.

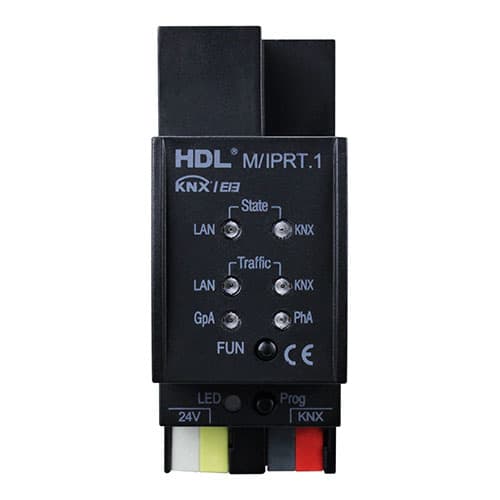

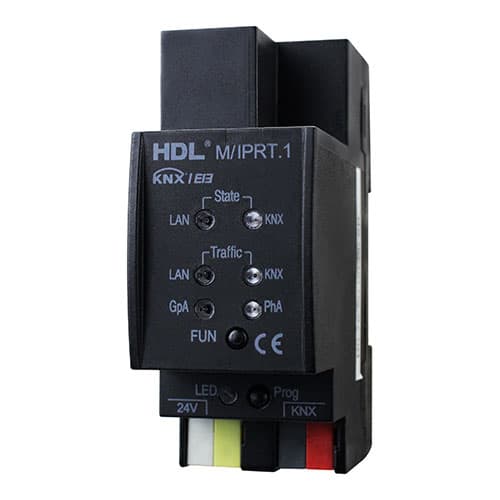

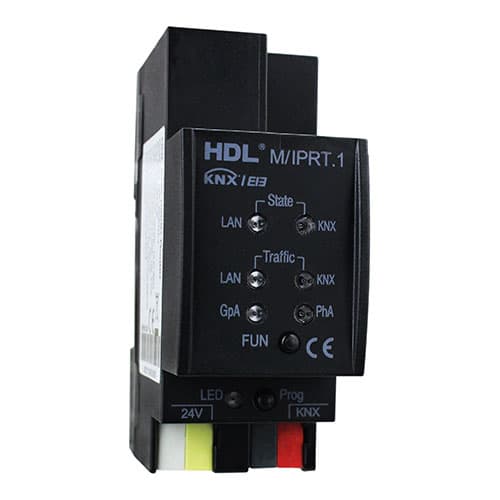

Front Panel

• 6 dual-colour LEDs: LAN status/traffic, KNX bus/traffic, routing group and physical-address telegrams.
• Ethernet port: RJ45 connector for IP backbone (multicast 224.0.23.12 per KNXnet/IP spec).
• Programming: KNX programming button/LED; red/black bus terminal.

At a Glance

Specification	Detail
Product type	KNX net/IP router — routing and tunneling
Model	HDL-M/IPRT.1
KNX bus	21–30 V DC — 5 mA at 30 V DC
Power consumption	typ. 520 mW, max. 800 mW
Dimensions (H × W × D)	90 × 36 (2 SU) × 70 mm
Weight	66 g
Mounting	35 mm DIN rail
Protection	IP 20 (EN 60529)

Wiring diagram, coupler filter settings, and compliance notes are listed under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Multi-line buildings: Couple TP sub-lines to an IP backbone instead of long TP trunk runs.
• Remote ETS commissioning: Program and monitor devices on distant lines via LAN.
• Large actuator panels: Pair with M/P960.1 960 mA Power Supply and M/R16.10.1 switch actuators on each segment.
• Touch panel networks: Commission Granite Display panels on coupled lines from a central ETS workstation.
• EAE comparison: For another KNX IP router with filter table and galvanic isolation, see the EAE IPR200 KNX IP Router.
• ABB comparison: For KNXnet/IP Secure backbone, see ABB IPR/S3.5.1 KNX IP Router Secure.

Choosing HDL IP Infrastructure

The M/IPRT.1 is HDL's compact 2 SU IP router for standard KNXnet/IP routing and ETS tunneling. Supply each TP segment from an M/P960.1 or smaller PSU sized to bus load. For TP-only line coupling without Ethernet, use HDL line couplers in the same KNX system-devices family.
