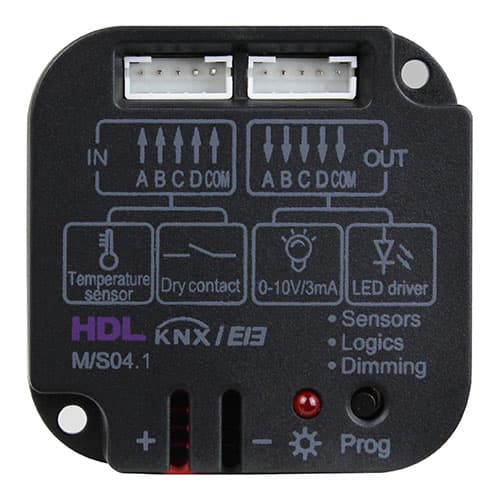

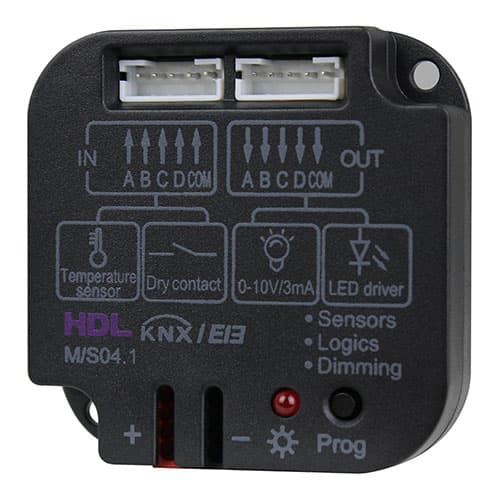

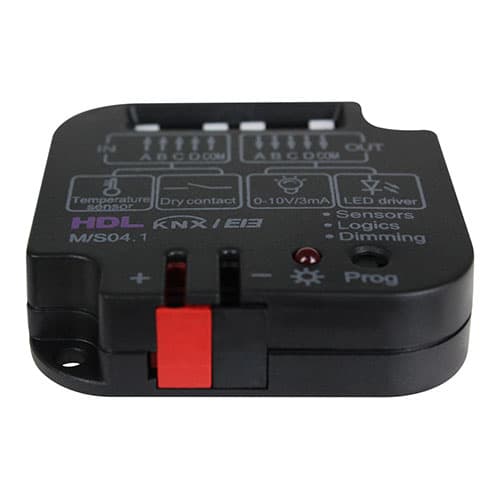

The HDL M/S04.1 KNX 4-Zone Dry Contact Module is a compact flush-mount interface with four input channels and four output channels. Inputs accept dry-contact triggers (push buttons, contacts) or the dedicated HDL TTS/APR1.0 temperature sensor; outputs deliver 0–10 V DC dimming to ballasts/drivers or drive channel LED status indicators.

Three ETS working modes — sensor, logic, and 0–10 V dimming — support switch, dimming, shutter, scene, sequence, threshold, PWM, and combination control types. The module fits standard switch boxes at just 50 × 50 × 13 mm and draws only 5 mA from the KNX bus.

Key Features — 4 Inputs, 4 Outputs, 0–10 V

Inputs

• 4 dry-contact inputs: Classic push buttons and potential-free contacts.
• Temperature input: Compatible with TTS/APR1.0 HDL temperature sensor (required for temp function).
• Sensor mode: Dry-contact and temperature sensor control.

Outputs

• 0–10 V dimming: 0–10 V DC output at 3 mA per channel for 0–10 V LED drivers and ballasts.
• LED status drive: Outputs can indicate channel switch state on external LEDs.
• Dimming mode: Dedicated 0–10 V control behaviour in ETS.
• Logic mode: Combine inputs for complex automation.

At a Glance

Specification	Detail
Product type	KNX 4-zone dry contact + 0–10 V interface
Model	HDL-M/S04.1
Inputs	4 × dry contact / temperature (TTS/APR1.0)
Outputs	4 × 0–10 V or LED status
KNX bus	21–30 V DC — 5 mA at 30 V DC
Dimensions (W × H × D)	50 × 50 × 13 mm
Weight	24 g
Mounting	Switch box (flush)
Protection	IP 20 (EN 60529)

Wiring with TTS/APR1.0, hand-in-hand KNX bus notes, and full control-type list are under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Retrofit push buttons: Bring existing wall switches into KNX without replacing plates.
• 0–10 V lighting: Drive fluorescent or LED drivers that accept 0–10 V — complement phase dimming actuators where 0–10 V is required.
• Room temperature: Feed TTS/APR1.0 values to HVAC logic alongside M/IS05.1 sensors.
• Panel feedback: Drive LED rings on multigang switches via channel status outputs.
• System power: Size lines with M/P960.1; commission from Granite Display or other KNX panels.

Choosing HDL Input Modules

The M/S04.1 combines four dry contacts and four 0–10 V outputs in one 50 mm module — ideal when both conventional inputs and analogue dimming are needed in a single wall box. For PIR/lux sensing, add M/IS05.1 or M/WS05.1; for IR control, use M/IRAC.1.
