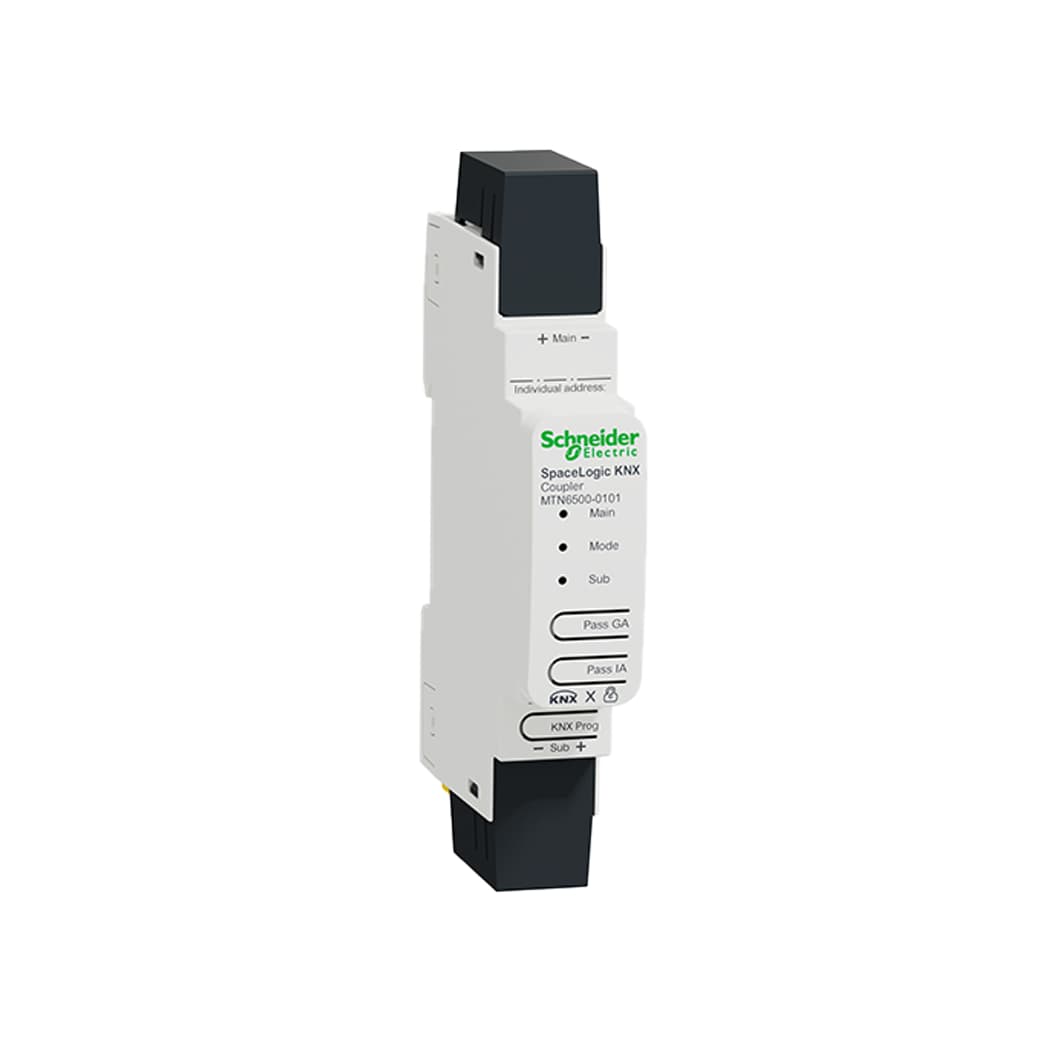

The Schneider Electric MTN6500-0101 is a SpaceLogic KNX coupler for DIN-rail mounting. It provides logical coupling and galvanic isolation between two KNX twisted-pair segments — typically a main line and a sub-line, or backbone and line — with an 8 kB filter table for group-oriented traffic management.

The device supports KNX Security for protected device access and secure forwarding of secured and unsecured telegrams. It can be configured in ETS 5.7.3 or higher as an area coupler, line coupler, or line repeater, and supports KNX long frames. Power is drawn from the KNX bus on both connected segments; size each line with a SpaceLogic PSU such as MTN684064, MTN6513-1202, or MTN6513-1203. For IP backbone routing instead of TP coupling, use MTN6500-0103.

Key Features — Line Coupling with KNX Security

Routing and Filtering

• Filter table: 8 kB table with extended main groups 0–31 (ETS-generated).
• Galvanic isolation: Electrical separation between main line and sub-line.
• Operating modes: Area/line coupler or line repeater (ETS parameterised).
• Long frames: Compatible with KNX long-frame telegrams for secure programming paths.

Commissioning and Diagnostics

• Front-panel test: Two push-buttons to bypass filters (Pass GA / Pass IA) for commissioning.
• Status LEDs: Main line, sub-line, mode, and programming indication.
• KNX Security: Optional secure line coupler operation and protected device access.
• Factory default address: 15.15.0 (line coupler addressing x.y.0, backbone x.0.0).

At a Glance

Specification	Detail
Order code	MTN6500-0101
ETS application	Coupler secure 7117/1.1
Bus medium	KNX TP (main line ↔ sub line)
Current consumption	< 5 mA (main line), < 3 mA (sub line)
Device width	1 module (18 mm)
Dimensions (L × W × D)	110 × 18 × 66 mm
ETS compatibility	ETS 5.7.3 or higher

Full electrical and mechanical data are listed under Technical Specifications. Official Schneider documentation and the ETS application file are under Downloads.

Applications and KNX Integration

• Multi-line buildings: Structure KNX installations with filtered sub-lines per floor, wing, or tenant zone — combine with MTN6500-0103 when the backbone is IP-based.
• Bus load management: Limit group traffic between main and sub lines using hierarchy and filter tables; monitor consumption with MTN6600-0603 energy meters on fed circuits.
• Secure projects: Deploy KNX Security on couplers that forward secured and unsecured telegrams; extend secure switching with MTN6705-0008S switch masters on sub-lines.
• Line extension: Repeater mode for segmenting long KNX lines (address form x.y.z, z ≠ 0).
• Downstream actuators: Fan-coil and HVAC zones on sub-lines often use MTN645094; general loads use MTN6700-0104 / MTN6700-0108 hybrid actuators.

Choosing Schneider SpaceLogic System Devices

Use MTN6500-0101 when you need a compact TP line/area coupler with filtering, galvanic isolation, and KNX Security on a single 18 mm module. For IP-based backbone coupling and ETS tunneling, choose MTN6500-0103 instead. Ensure each coupled segment has adequate bus power from MTN684064 or the MTN6513-1202 / MTN6513-1203 range.
