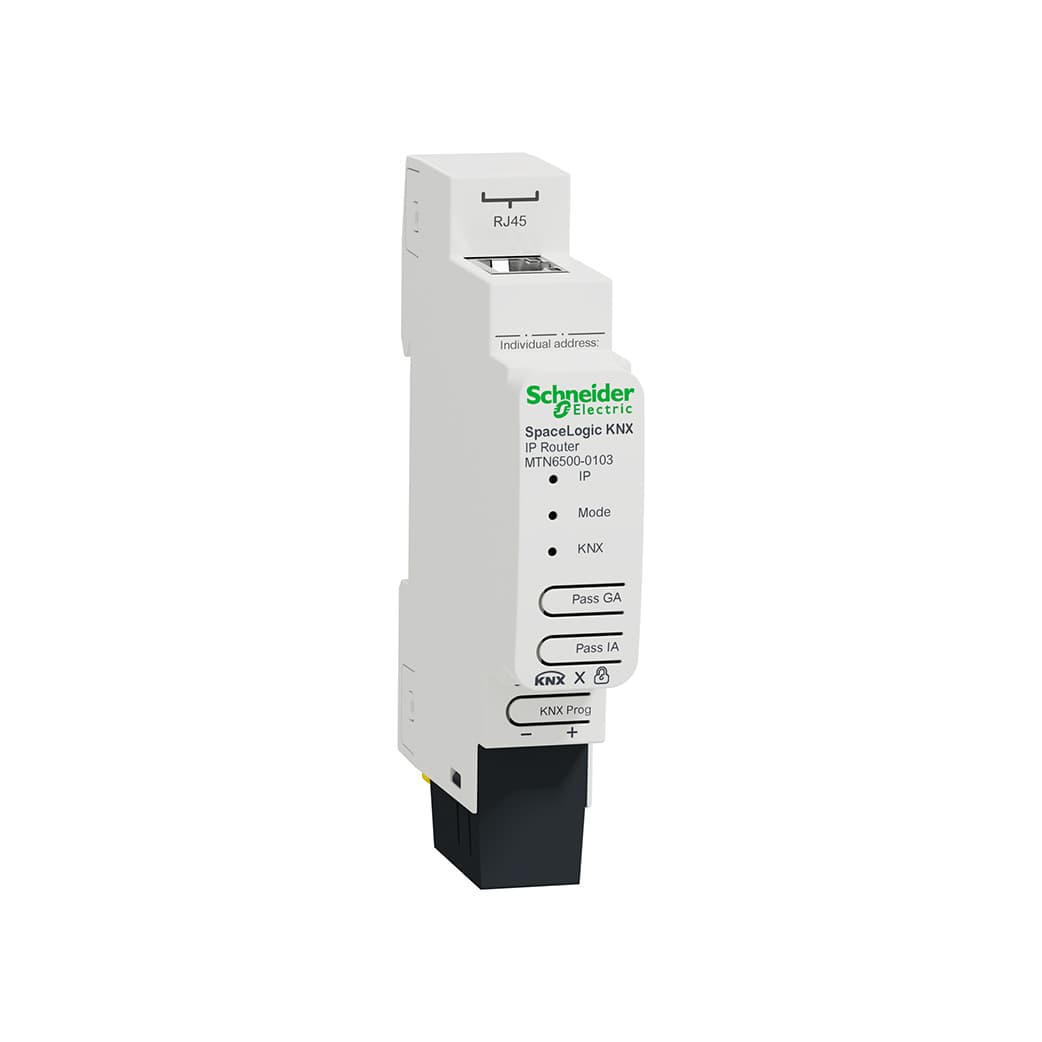

The Schneider Electric MTN6500-0103 is a SpaceLogic KNX IP router for DIN-rail mounting. It forwards telegrams between KNX twisted-pair lines over a LAN (KNXnet/IP), forming a high-speed IP backbone and providing up to eight ETS tunneling channels for programming and visualisation.

The router supports KNX IP Secure and KNX Data Secure, coupling secured and non-secured TP segments onto a protected IP network. An extended filter table (main groups 0–31) and internal buffer (150 telegrams) manage bus load. Power is drawn from the KNX bus (≈ 12 mA); supply the line with MTN684064 or MTN6513-1202. For TP-only line coupling without IP, use MTN6500-0101; for bus programming without routing, use MTN6502-0105.

Key Features — Secure IP Backbone

Routing and Tunneling

• KNXnet/IP: Core, device management, tunneling, and routing per KNX specification.
• Tunneling: Up to 8 simultaneous channels for ETS, visualisation, or logic servers.
• Filter table: Extended — main groups 0–31 (ETS-generated).
• KNX Security: IP Secure backbone; forwards secured and unsecured telegrams.
• IP addressing: DHCP or manual configuration via ETS.

Commissioning and Diagnostics

• Front-panel test: Two push-buttons for commissioning tests.
• Status LEDs: Power and communication indication (3 LEDs).
• ETS application: IP Router secure 7127/1.2 — ETS 5.7.3 or higher.
• Factory default address: 15.15.0.

At a Glance

Specification	Detail
Order code	MTN6500-0103
Connection	RJ45 (Ethernet) ↔ KNX TP
Tunneling channels	Up to 8
Bus current	≈ 12 mA (typical)
Device width	1 module (18 mm)
ETS compatibility	ETS 5.7.3 or higher

Full electrical and mechanical data are under Technical Specifications. Official Schneider documentation and the ETS application are under Downloads.

Applications and KNX Integration

• IP backbone: Replace multiple TP couplers with LAN routing between areas — pair with LSS100200 or LSS100100 on the network.
• Remote ETS: Tunnel programming sessions over VPN without a USB interface at each cabinet.
• Multi-line buildings: Route between sub-lines fed by MTN6500-0101 couplers on each TP segment.
• Secure projects: Deploy KNX IP Secure on the backbone; extend secure switching with MTN6705-0008S on field lines.
• Load monitoring: Meter circuits on routed lines with MTN6600-0603.

Choosing IP Router vs Coupler vs IP Interface

Use MTN6500-0103 when you need routing and filtering between KNX lines over IP. Choose MTN6500-0101 for TP-to-TP coupling only. Choose MTN6502-0105 when you only need ETS tunneling to one line without inter-area routing.
