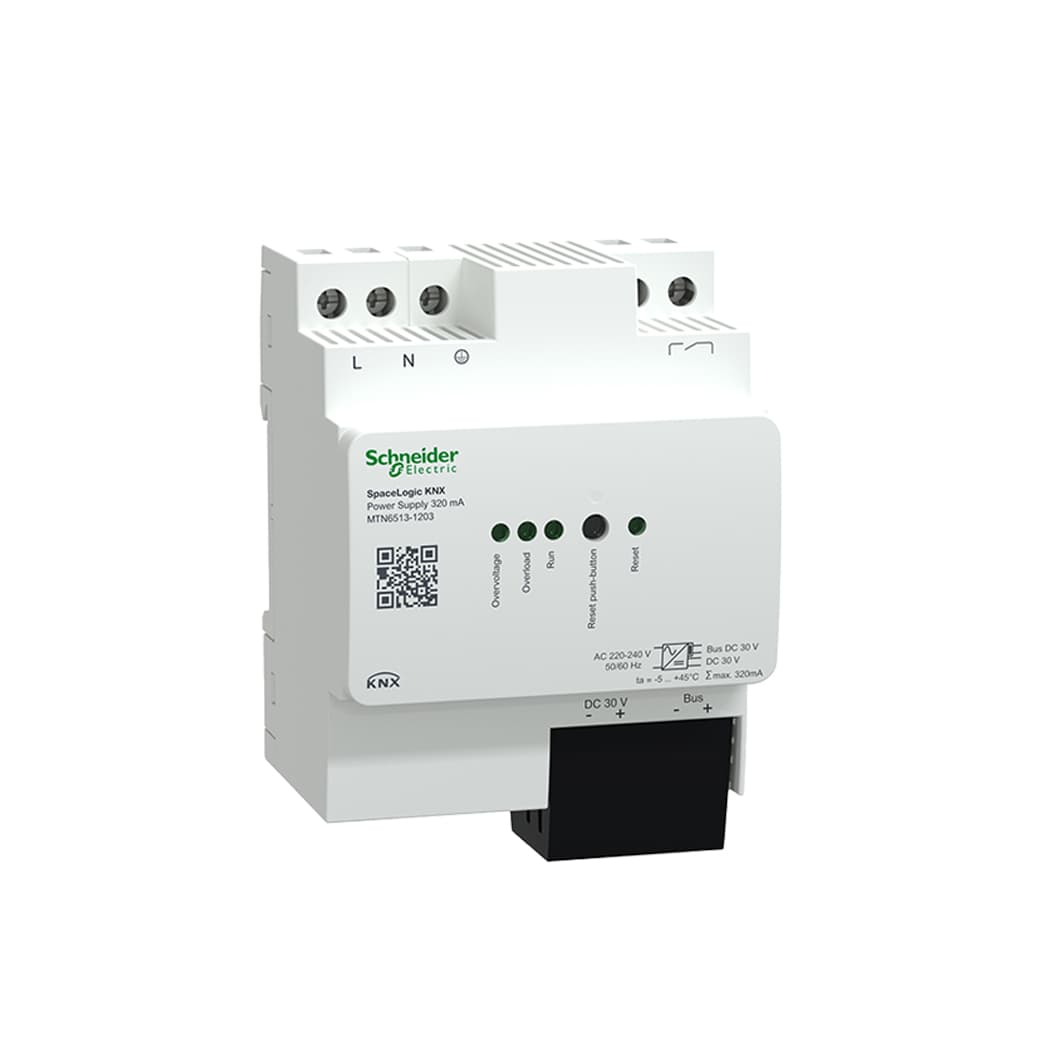

The Schneider Electric MTN6513-1203 is a SpaceLogic KNX power supply rated at 320 mA for small to medium KNX lines. Finished in white (RAL 9003), it delivers regulated 30 V DC on a choked bus output and provides a 30 V DC auxiliary output for local peripherals.

Two units can be connected in parallel for up to 640 mA on one line. Front LEDs indicate RUN, overload, and bus voltage; a floating signaling contact supports remote monitoring. For bus-only 320 mA without aux output, compare MTN684032; for 640 mA see MTN6513-1202 or MTN684064.

Key Features — Scalable 320 mA Supply

Power and Diagnostics

• Bus output: 320 mA at 30 V DC with integrated choke.
• Parallel operation: Two MTN6513-1203 units → up to 640 mA.
• Auxiliary output: 30 V DC for additional cabinet devices.
• Status LEDs: RUN, overload, and bus voltage indication.
• Signaling contact: External monitoring of supply state.

At a Glance

Specification	Detail
Order code	MTN6513-1203
Output current	320 mA (parallel to 640 mA)
Colour	White (RAL 9003)
Bus voltage	30 V DC SELV

Full electrical and mechanical data are under Technical Specifications. Official Schneider documentation is under Downloads.

Applications and KNX Integration

• Residential and small commercial: Dedicated lines for a floor or wing with MTN6212 and MTN6700-0104.
• Sub-line zones: Power segments behind MTN6500-0101 line couplers.
• Growth path: Parallel a second MTN6513-1203 or upgrade the line PSU to MTN6513-1202.
• Fan-coil rooms: Size for MTN645094 (~12 mA) plus sensors and actuators.

Choosing MTN6513-1203 vs MTN684032

Use MTN6513-1203 when auxiliary 30 V, signaling contact, and parallel expansion are required. Choose MTN684032 for a compact 320 mA bus-only supply in light grey.
