The Schneider Electric MTN6212 is a System M flush-mounted KNX room station: push-button 2-gang plus with integrated room temperature control unit (RTCU), white backlit display, and four parameterisable keys. One device covers lighting, blinds, scenes, and HVAC setpoints — reducing wall clutter in residential and commercial rooms.

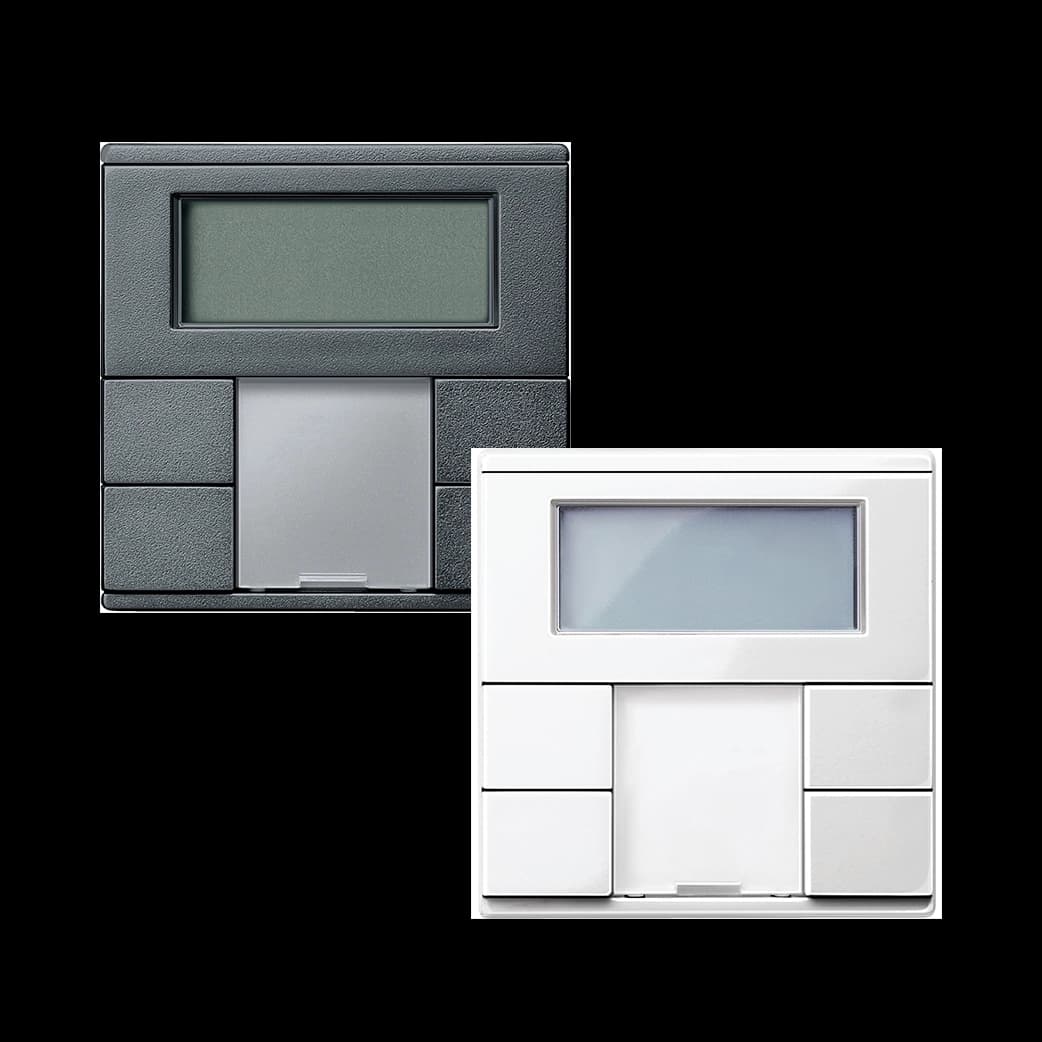

Choose a finish at checkout — all three stocked variants share the same KNX application and RTC logic:

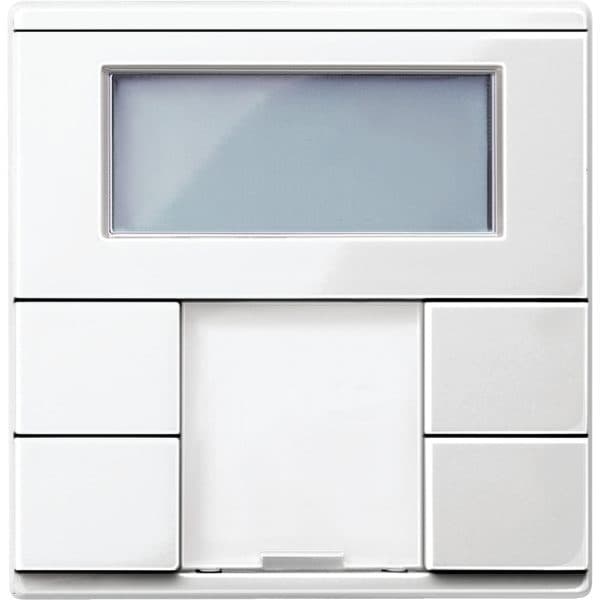

• MTN6212-0319: Polar White, Glossy
• MTN6212-0325: Active White, Glossy

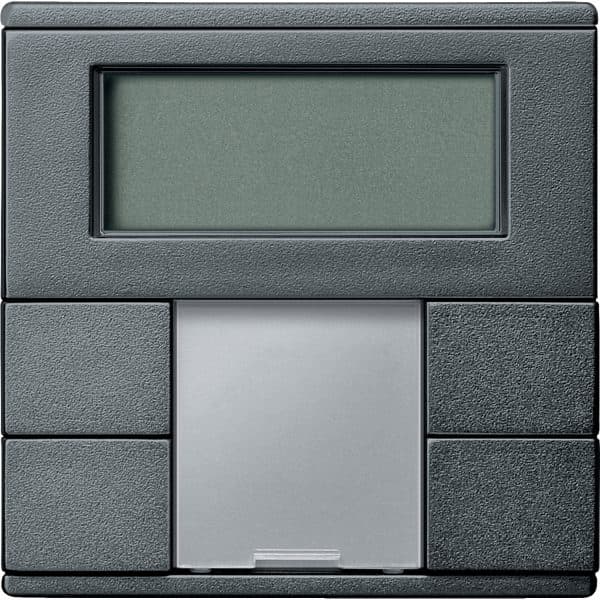

• MTN6212-0414: Anthracite

Key Features — Room Control and RTCU

Push-buttons and Display

• Four keys: Configured as dual-surface pairs or single push-buttons — switching, dimming, blinds (absolute/relative), scenes, 8-bit regulators, fan control, notifications.
• Display: White backlit LCD for time, date, temperature, operating mode; brightness adjustable; can act as orientation light.
• Status: Five red LEDs; menu-driven operation.
• Bus: Integrated KNX bus coupler; connection via bus connecting terminal (no separate room bus device).

Room Temperature Control

• Controller types: 2-step, continuous PI, switching PI (PWM); output 0–100 % or ON/OFF.
• Modes: Comfort, comfort extension, standby, night reduction, frost/heat protection.
• HVAC pairing: Drives KNX valve actuators or switch/heating actuators — coordinate with MTN645094 fan coil, MTN6700-0104 hybrid channels, or MTN6700-0304 for high-current valve circuits.
• Presence: Combine with MTN6303-0019 or MTN6300-0019 for occupancy-based setback.

At a Glance

Specification	Detail
Product family	MTN6212 (System M, 2-gang plus + RTCU)
Stocked order codes	MTN6212-0319, MTN6212-0325, MTN6212-0414
ETS application	MTN6212-03xx-00 (knxprod, ETS 4/5.x)
Mounting	Flush-mounted System M; protective hood for plaster
Material	Thermoplastic brilliant (finish-specific colour)

Full characteristics are under Technical Specifications. Official Schneider documents are under Downloads (per-finish datasheets, operating instructions, ETS application, CAD library).

Applications and KNX Integration

• Hotel and office rooms: Single wall station for lights, blinds, and setpoint; bus power via MTN684064, MTN6513-1202, or MTN6513-1203.
• Fan-coil zones: Room setpoints to MTN645094; larger UI alternative MTN6215-0410S.
• 8-button variant: MTN6214 (4-gang plus, IR receiver) for denser control.
• Line structure: MTN6500-0101 coupler, MTN6500-0103 IP router on multi-floor sites.
• Load actuation: MTN6700-0108, MTN6710-0102S dimming, MTN6705-0008S + MTN6805-0008 for secure blinds.

Choosing MTN6212 vs MTN6214 and Touch Panels

Use MTN6212 when four keys plus RTCU and display are enough. Choose MTN6214 for eight keys and IR; choose MTN6215-0410S for KNX Secure visualization. Match the frame finish to other System M mechanisms on the same plate.
