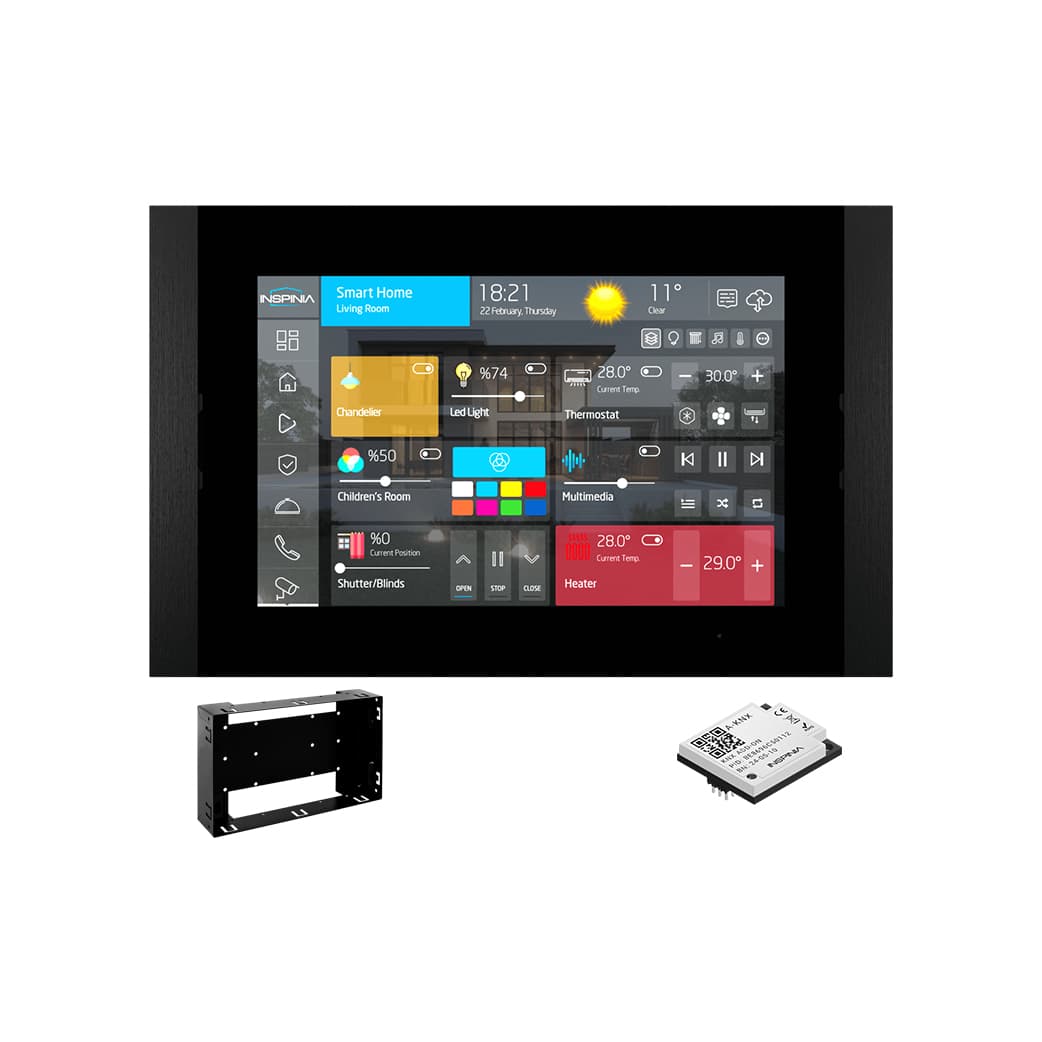

The Inspinia INS10SQ is a 10″ horizontal touch panel for demanding smart-building and luxury residential UI. Its 1280 × 800 IPS display (300 cd/m², 5-point capacitive) runs Android 7.1 with the Inspinia application, managing up to 2000 BMS points and 1000 UI objects (500 points on the initial license).

The platform matches the INS8SQ I/O layout: five digital inputs, two dry-contact outputs, uni-port, dual add-on ports, 2 × 2 W speakers, and microphone input — with a larger display and 14 W maximum power on 24 V DC or PoE (802.3at). Optional KNX, Modbus, Zigbee, VRF, Bticino, iNELS, and infrared modules extend protocol reach.

Key Features — 10″ BMS Command Panel

Display and Processing

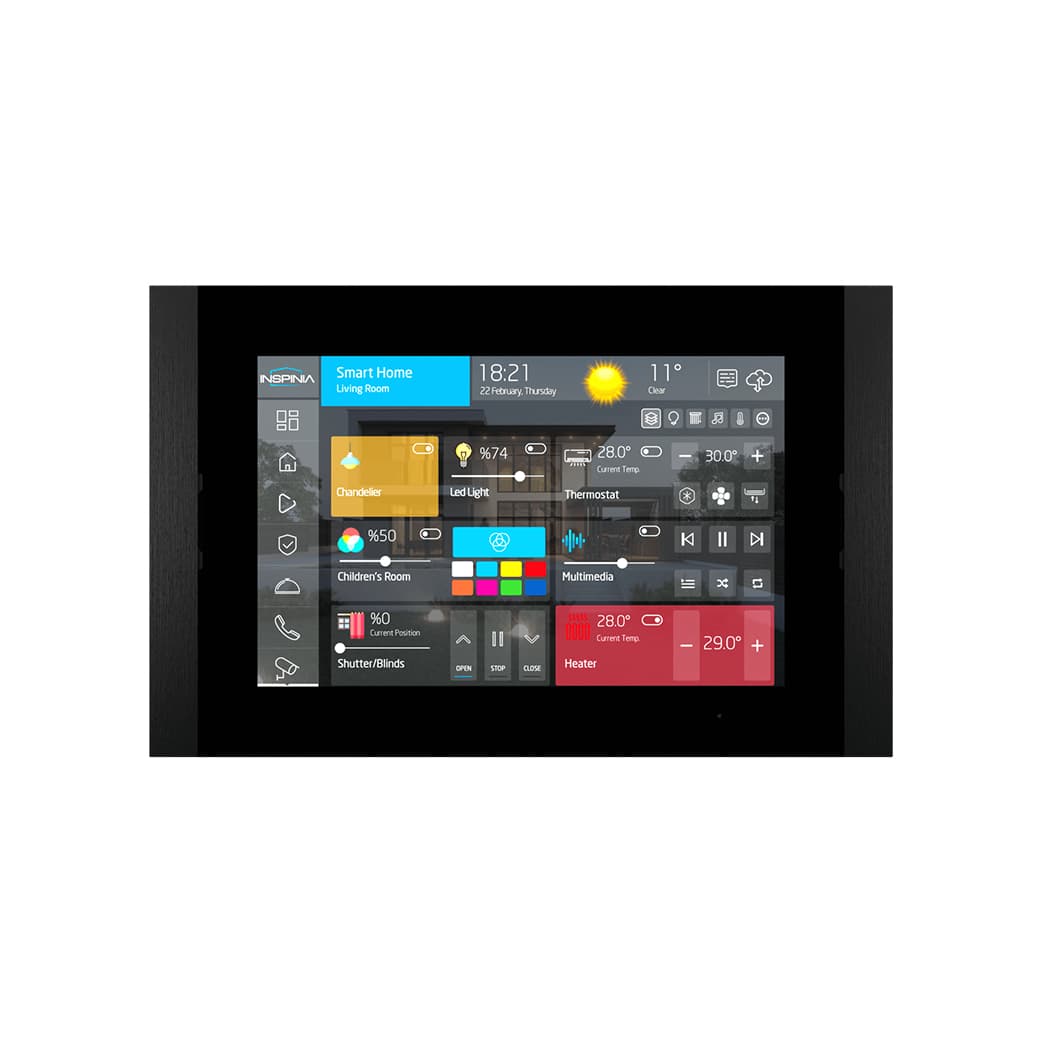

• 10″ IPS display: 1280 × 800, 300 cd/m², horizontal orientation, 5-point capacitive touch.
• Processor / storage: Quad-core 1.2 GHz, 1 GB DDR3, 8 GB NAND flash.
• Intercom-ready audio: 2 × 2 W speakers and microphone input for door-station workflows.

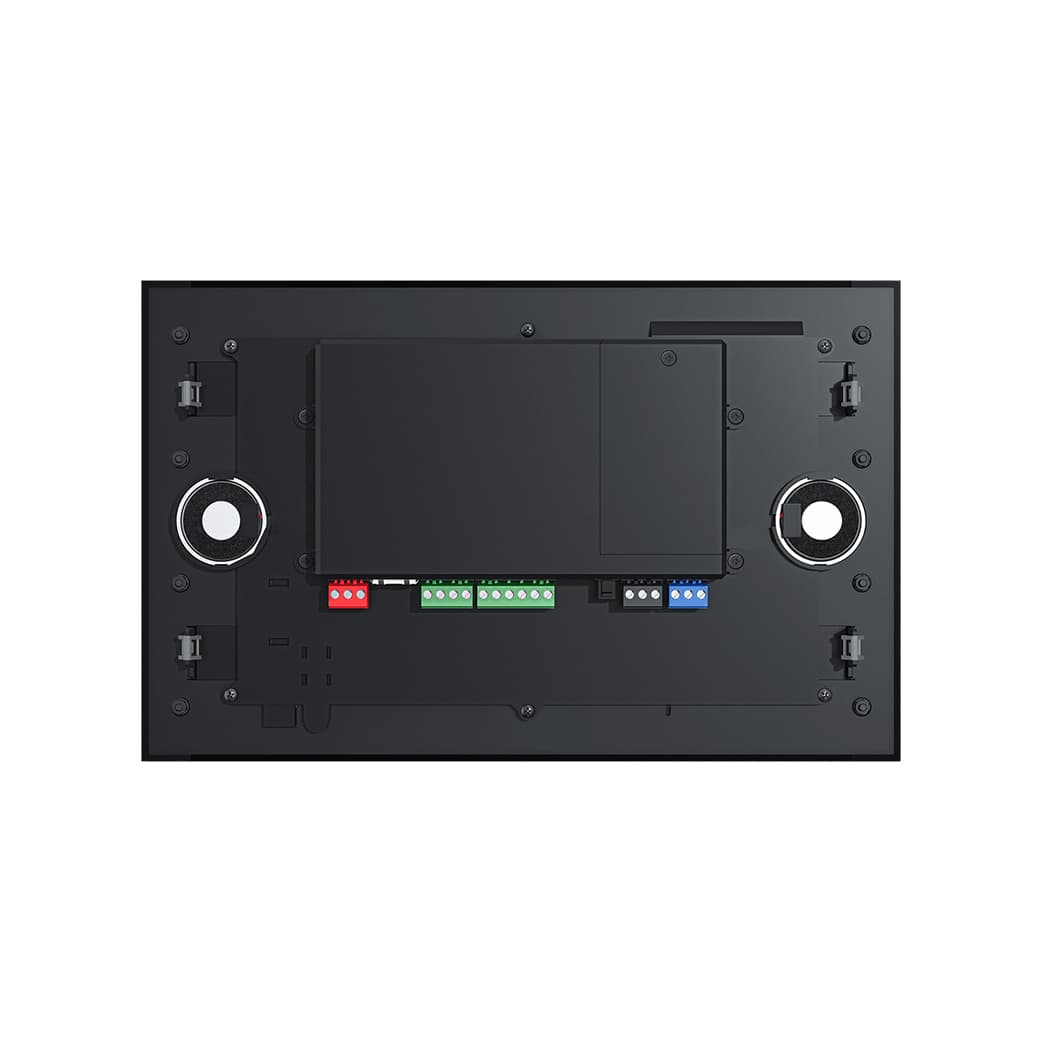

Onboard I/O and Expansion

• LAN: 1 × RJ45 10/100 Mbps.
• Digital I/O: 5 × digital in; 2 × digital out (dry contact 2 A / 24 V DC).
• Two add-on ports for KNX TP, Modbus, Zigbee, VRF, Bticino, iNELS, or IRGW-UP infrared.
• Environmental sensors: Temperature and humidity for climate automation.

At a Glance

Specification	Detail
Product type	10″ SQ touch panel / BMS controller
Order codes	INS10SQ.B · INS10SQ.S · INS10SQ.G · INS10SQ.BR
Display	10″ IPS 1280 × 800, horizontal
BMS points (max / initial)	2000 / 500
Power	24 V DC or PoE 802.3at (max 14 W)
Digital I/O	5 in / 2 out (2 A dry contact)
Add-on ports	2
Operating temperature	−10 °C to +60 °C

Dimension drawings and port tables are under Technical Specifications; datasheet and installation guide under Downloads.

Order Codes — Frame Variants

Frame	Order code
Black	INS10SQ.B

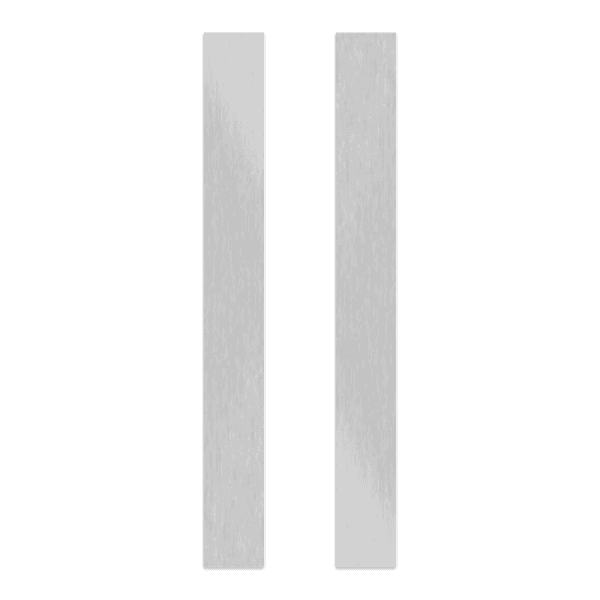

Silver	INS10SQ.S

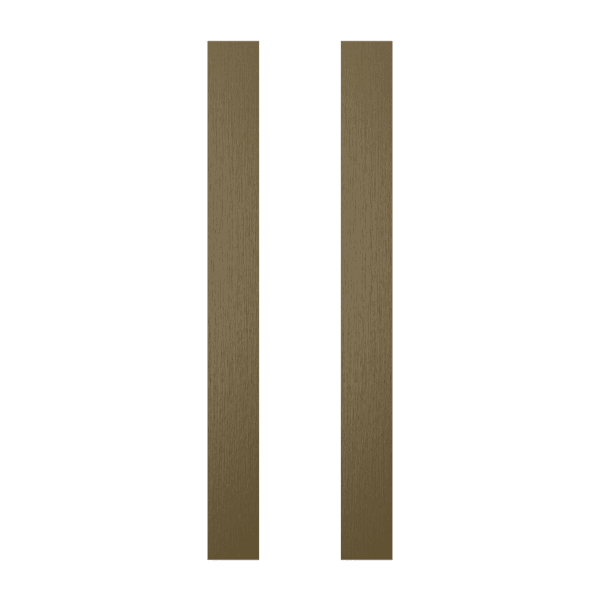

Gold	INS10SQ.G

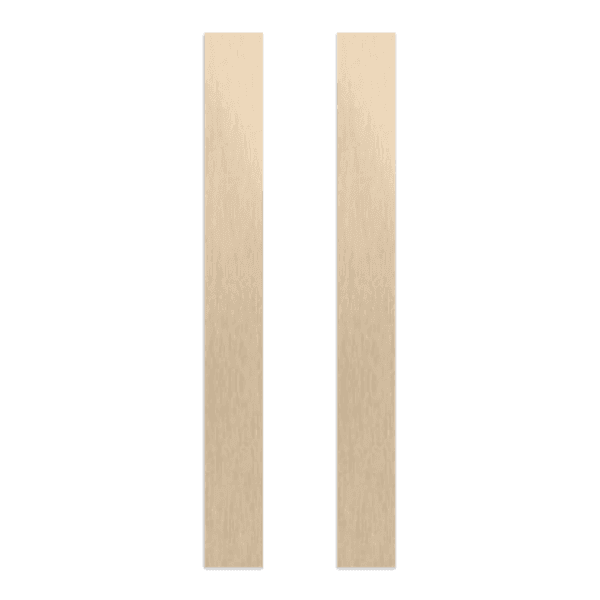

Bronze	INS10SQ.BR

Applications and KNX Integration

• Lobby, penthouse, and commercial zones: High-visibility control of lighting, HVAC, shading, and security.

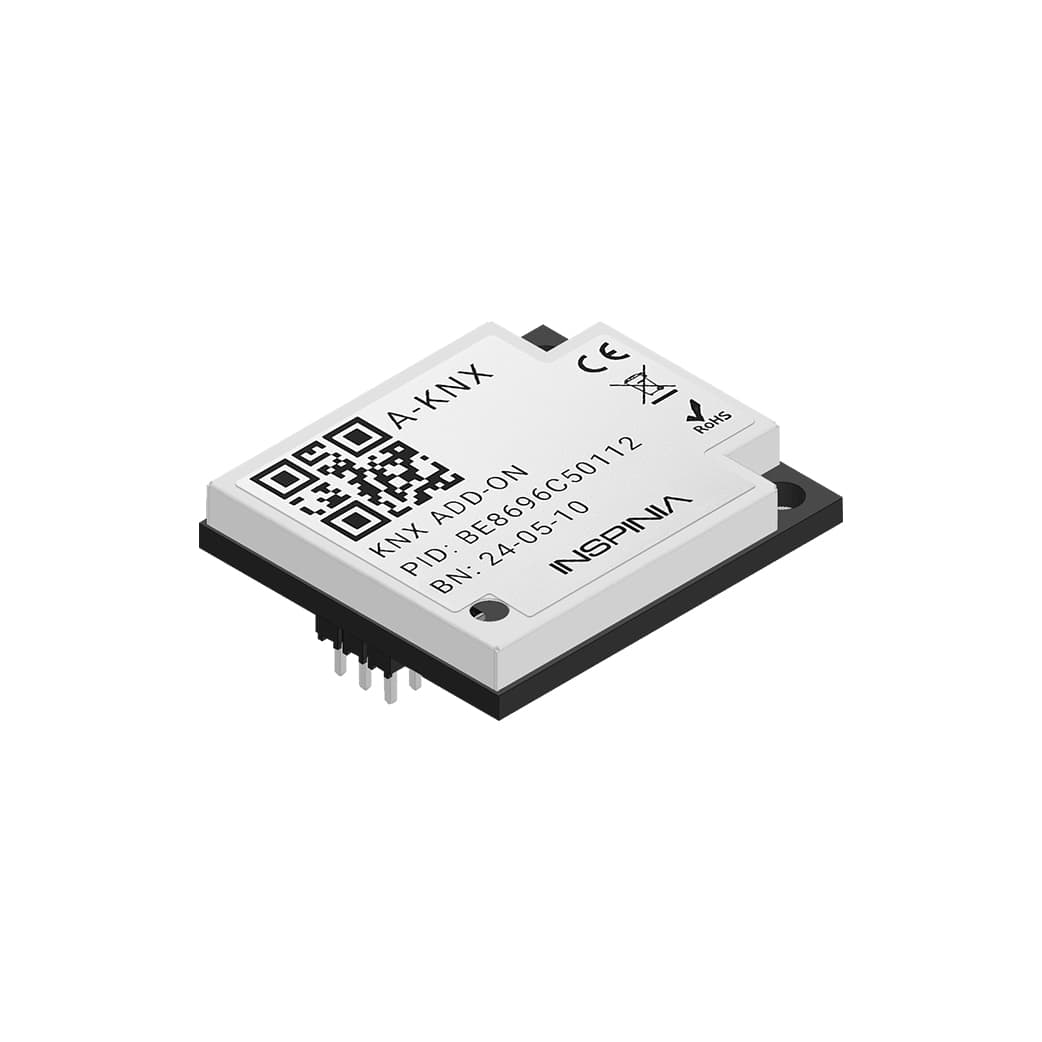

• KNX integration: A-KNX add-on for KNX TP coupling to the wider installation.
• Panel sizing: Use INS4SQ in bedrooms, INS8SQ where 8″ suffices, and INS10SQ for flagship UI positions.
• Gateway: Pair with MNSRV Mini Server for head-end logic and licensing scale.
• Intercom: Integrate INS-K4A24 / INS-SB24 outdoor stations for entry video and door release.

Choosing Inspinia SQ Touch Panels

The INS10SQ is the largest SQ panel with the same I/O and dual add-on architecture as INS8SQ, suited when display area drives the specification. For smaller budgets or openings, specify INS8SQ (12 W PoE) or INS4SQ (4″ Linux room controller, 200-point initial license).
