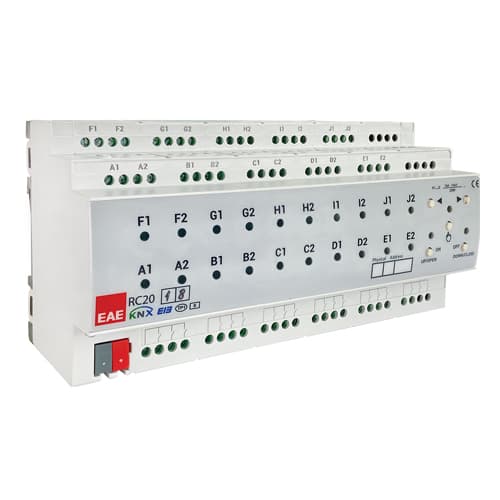

The EAE RCU2018 KNX Room Control Unit is an all-in-one DIN-rail actuator for hotel rooms, apartments, and commercial spaces. The flagship EAE Room Control Unit: 20 × 16 A relay outputs and 18 universal input channels in five output groups — maximum single-module room I/O for GRMS and luxury hospitality.

From a single module it controls lighting, blinds, fan coils, and optional dry-contact inputs where fitted. The RCU2018 is bus-powered (no external auxiliary supply required) and switches resistive, capacitive, and inductive loads in accordance with EN 60669, including fluorescent lamp loads at 16 A / 250 V AC.

Key Features — 20x16A Outputs + 18 Digital Inputs

Output Configuration

• 20 × 16 A relay outputs: Grouped into 5 independent output channel groups.
• Per-group modes: Switching (×4), AC blind (×2), DC blind (×1), 2-point valve (×2), 3-point valve (×1).
• Manual control: On-device manual override per channel.
• Switching rating: 16 A at 250 V AC — 6 × 10³ ops (resistive) per datasheet.

Universal Input Channels

• 18 galvanically isolated inputs: Each operates as a universal KNX interface.
• Switch / push-button input: Conventional wall switches and push-buttons.
• Shutter / blind control: Manual blind operation from standard inputs.
• Dimmer control: Analogue dimming commands from connected controls.
• Value transfer / pulse counter: Metering and pulse-count applications.
• Scene control: Scene recall from local buttons.
• Dry contact inputs: Card holders, window contacts, and other dry contacts.

Room Functions

• Light switch: On/off lighting control.
• AC/DC blind control: Shutter and blind positioning.
• Fan control: Ventilation switching.
• Fan coil control: 2- and 3-point valve HVAC control.
• Dry contact inputs: Card holder, window contact, and other dry inputs (where inputs fitted).

Logic Functions

• Staircase, external logic, priority, threshold, operating hour, sweep.

At a Glance

Specification	Detail
Product type	Room Control Unit — 20 outputs + 18 universal inputs
Order code	RCU2018 (SMP RCU2018)
Relay outputs	20 × 16 A
Universal inputs	18 galvanically isolated channels
Output channel groups	5 independent configurable groups
Load standard	EN 60669 (resistive, capacitive, inductive, fluorescent)
Power supply	KNX bus — no auxiliary supply required
Configuration	ETS — KNX Room Control Unit v2.0
Dimensions (H × W × D)	66 × 180 × 90 mm (10 MW)
Mounting	35 mm DIN rail (EN 60715)

Full electrical ratings are listed under Technical Specifications. Datasheet, product manual, installation manual, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Hotel guest rooms: Central room controller for lighting, blinds, and fan coil — ideal for GRMS integration.
• Residential apartments: Single-module control of a room's lighting, shading, and HVAC.
• Commercial spaces: Meeting rooms and individual offices with mixed load types.
• Flagship hotel suites: Maximum I/O density for GRMS integration — card holder, window contacts, multiple switch positions, and full load actuation from one module.
• Separate actuators: Where only switching or dimming is needed, use the EAE SW108 Switch Actuator or SD110 Dim Actuator.

Choosing EAE Room Control Units

The RCU2018 is the top of the RCU range (20+18). For output-only at 20 relays, choose RCU2000. For compact-line rooms, the RCU1212 (12+12) may suffice. For 20 outputs without inputs, choose the EAE RCU2000. Entry-level room control starts with the RCU0800 (8 outputs).

EAE naming: RCUXXYY where XX = output count and YY = input count (0 = output-only). All models share the KNX Room Control Unit v2.0 ETS application.
