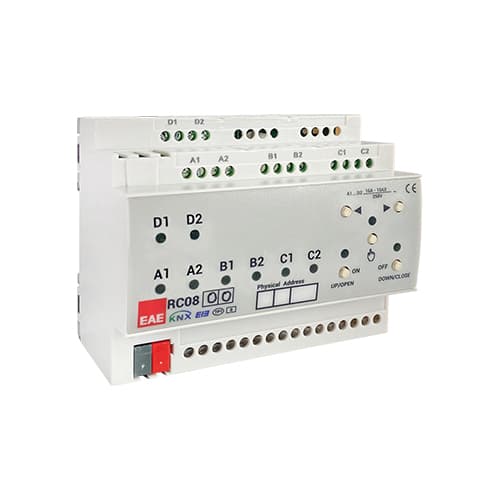

The EAE RCU0800 KNX Room Control Unit is an all-in-one DIN-rail actuator for hotel rooms, apartments, and commercial spaces. From a single module it controls lighting, blinds, fan coils, and optional dry-contact inputs — reducing the number of separate actuators and simplifying room-level wiring.

The RCU0800 provides 8 × 16 A relay outputs grouped into two independent output channels, each configurable for different operating modes. It is bus-powered (no external auxiliary supply required) and switches resistive, capacitive, and inductive loads in accordance with EN 60669, including fluorescent lamp loads.

Key Features — 8 × 16 A Room Control

Output Modes

Eight relay outputs are allocated across two channel groups. Each group can be configured for:

• Switching outputs (×4): On/off control of lights and general loads.
• AC blind control (×2): Motorised AC blinds and shutters.
• DC blind control (×1): DC-powered blind motors.
• 2-point valve (×2): Two-pipe fan coil valve control.
• 3-point valve (×1): Three-pipe fan coil valve control.

Room Functions

• Light switch: On/off lighting control.
• AC/DC blind control: Shutter and blind positioning.
• Fan control: Ventilation switching.
• Fan coil control: 2- and 3-point valve HVAC control.
• Dry contact inputs: Optional card-holder, window contact, or other dry inputs.

Logic Functions (per output channel)

• Staircase: Timed lighting for circulation areas.
• External logic: Integration with external logic signals.
• Priority: Command priority levels.
• Threshold: Condition-based switching (e.g. daylight threshold).
• Operating hour: Runtime counting for maintenance.
• Sweep: Pre-warning sequence before switch-off.

At a Glance

Specification	Detail
Product type	Room Control Unit — output-only actuator
Order code	RCU0800 (SMP RCU0800)
Relay outputs	8 × 16 A
Output channel groups	2 independent configurable groups
Load standard	EN 60669 (resistive, capacitive, inductive, fluorescent)
Power supply	KNX bus — no auxiliary supply required
Configuration	ETS
Dimensions (H × W × D)	66 × 108 × 90 mm (6 MW)
Mounting	35 mm DIN rail

Full electrical ratings are listed under Technical Specifications. Datasheet, product manual, installation manual, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Hotel guest rooms: Central room controller for lighting, blinds, and fan coil from one DIN-rail module — ideal for GRMS projects.
• Residential apartments: Single-module control of a room's lighting, shading, and HVAC.
• Small commercial spaces: Meeting rooms and individual offices with mixed load types.
• Larger rooms: For 12 outputs, choose the EAE RCU1200 Room Control Unit; for 8 outputs plus inputs, see the EAE RCU0808.
• Separate actuators: Where only switching or dimming is needed without HVAC, use the EAE SW108 Switch Actuator or SD110 Dim Actuator.

Choosing EAE Room Control Units

The RCU0800 is the entry-level output-only room controller with 8 × 16 A relays — no universal inputs on this model. Step up to RCU0808 (8 outputs + 8 inputs), RCU1200 (12 outputs), or RCU2018 (20 outputs + 18 inputs) as room complexity grows. All share the EAE Room Control Unit ETS application family.
