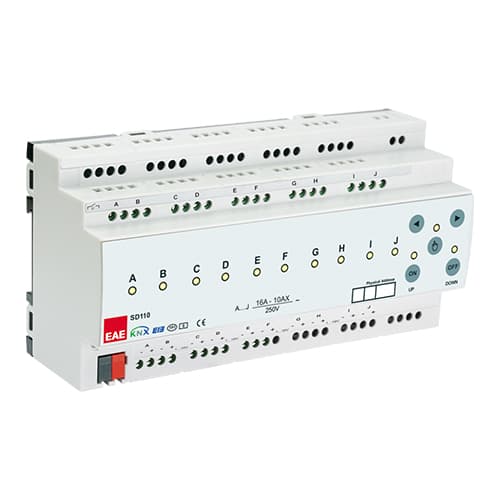

The EAE SD110 KNX 1–10 V Dim Actuator is a high-density DIN-rail module for analogue dimming of fluorescent ballasts, ECGs, and LED drivers from KNX. It provides 10 independent channels, each with a 1–10 V dimming output and an integrated 16 A relay for complete load disconnection — eliminating standby consumption when lights are off.

Each channel is fully parameterized in ETS4/ETS5 and offers local membrane-switch manual control for commissioning and testing. The SD110 is bus-powered and does not require an additional auxiliary supply, simplifying distribution-board wiring.

Key Features — 10 × 16 A 1–10 V Dimming

Channel Outputs

• 10 channels: Independent 1–10 V dimming outputs, each with integrated relay.
• 16 A relay per channel: Complete switch-off of the load — zero standby loss when off.
• 1–10 V interface: Standard analogue dimming for ballasts, ECGs, and compatible LED drivers.
• Manual override: Membrane switches on the enclosure for each channel.
• Bus-powered: No external auxiliary power supply required.

Per-Channel Functions (ETS)

• Staircase: Timed auto-off for circulation areas.
• Scene: Integration into KNX lighting scenes.
• Operating hour: Runtime counting for predictive maintenance.
• Forced operation: Override mode for emergency or maintenance.
• Recovery behaviour: Configurable state after bus voltage return, failure, or ETS download.

At a Glance

Specification	Detail
Product type	1–10 V dim actuator — 10-fold with relay
Order code	SD110 (SMP SD110)
Channels	10 independent
Dimming interface	1–10 V (analogue)
Switching capacity	10 × 16 A (integrated relay per channel)
Power supply	KNX bus — no auxiliary supply required
Configuration	ETS4 / ETS5
Dimensions (H × W × D)	66 × 179 × 90 mm (10 MW)
Weight	0.5 kg
Mounting	35 mm DIN rail

Full electrical ratings are listed under Technical Specifications. Datasheet, product manual, installation manual, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Commercial office lighting: Dim banks of 1–10 V fluorescent or LED gear from KNX presence detectors and light sensors.
• Energy efficiency: Relay disconnect per channel removes standby draw from drivers when off.
• Phase dimming alternative: For trailing/leading-edge dimming of incandescent, halogen, or phase-dimmable LED, use the EAE UD106 Universal Dimmer Actuator.
• On/off loads: For pure switching without dimming, pair with or substitute using the EAE SW108 Switch Actuator.
• DALI installations: For DALI luminaire control, use an EAE DA100 or DA110 DALI Gateway instead.

Choosing EAE Dim Actuators

The SD110 suits projects with 1–10 V gear and high channel density (10 circuits in one module). The UD106 handles phase dimming with advanced fault detection and channel grouping for higher VA loads. Both are bus-powered and mount on standard DIN rail.
