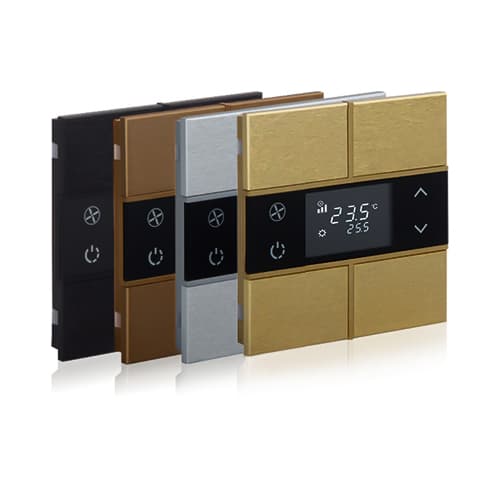

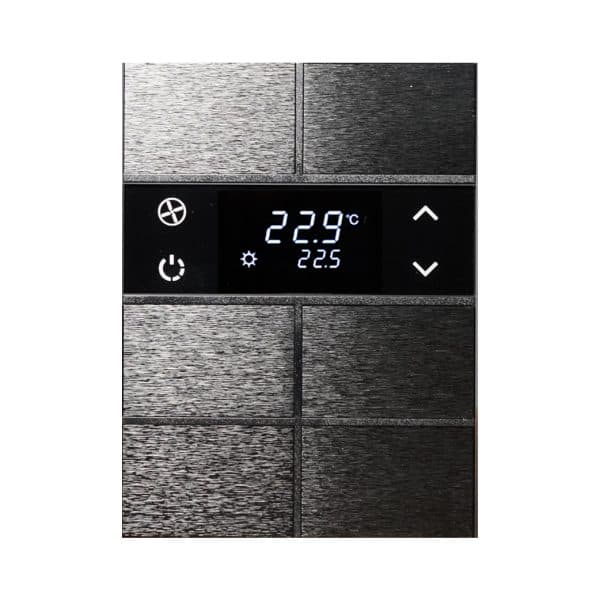

The Rosa Metal KNX Touch Thermostat merges a capacitive thermostat display with programmable touch buttons in a frameless 85 mm wide brushed-aluminium plate. Available with 4, 6, or 8 auxiliary keys (INT-RMT2 / RMT3 / RMT4), it controls HVAC setpoints and room functions — lighting, blinds, DND/MUR, and scenes — from one premium wall device.

The integrated sensor achieves ± 0.3 °C accuracy with automatic heating/cooling transition, fan speed control, and modes for Comfort, Night, Away, and Protection. HVAC outputs support fan coil, split AC, VRF/VRV, PI relative, and PI on/off (PWM).

Key Features — Frameless Metal Thermostat

Climate Control

• Capacitive thermostat screen: Setpoint, fan speed (1/2/3/Auto), and mode selection.
• Operation modes: Comfort, Night, Away, Off, Protection.
• Automatic heat/cool transition with multi-resource HVAC management.
• Integrated humidity sensor.

Touch Buttons

• Programmable touch keys beside the thermostat — short/long press.
• Functions: Switching, dimming, shutter/blind, value transfer, scene, status LEDs.
• Navigation LED for dark-room locating; feedback LEDs for load status.

At a Glance

Specification	Detail
Product type	KNX metal touch thermostat + switches
Order code family	INT-RMT2 / INT-RMT3 / INT-RMT4
Auxiliary keys	4, 6, or 8 touch keys
Finishes	Anthracite, Natural aluminium, Bronze, Gold
Temperature accuracy	± 0.3 °C
Mounting	Flush — 60 × 60 mm junction box
Front dimensions	85 × 85 mm (4-key) / 85 × 114 mm (6-key) / 85 × 143 mm (8-key)
Power supply	KNX bus 21 – 30 V DC — no auxiliary supply
Configuration	ETS 5/6 — TTx Rosa Thermostat v3.1

Full order-code matrix is below. Datasheet, manuals, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Luxury hotel guest rooms: Thermostat plus lighting, blind, and DND/MUR from one metal plate.
• High-end residential: Frameless design with full HVAC and switching integration.
• VRF/VRV systems: Native PI and PWM outputs for complex plant.
• Switches only: Choose Rosa Metal KNX Touch Switches without thermostat.
• Plastic alternative: See Oria KNX Thermostat Switch for polycarbonate Oria range.
• Room control: Pair with EAE RCU0808 for fan coil valve actuation.

Manufacturer Order Codes (FM)

Twelve order codes: three layouts × four finishes. Suffix B0 = status LEDs, no engraved icons.

Finish	4 keys (INT-RMT2)	6 keys (INT-RMT3)	8 keys (INT-RMT4)
Anthracite	INT-RMT2-0101B0	INT-RMT3-0101B0	INT-RMT4-0101B0
Natural	INT-RMT2-0401B0	INT-RMT3-0401B0	INT-RMT4-0401B0
Bronze	INT-RMT2-0501B0	INT-RMT3-0501B0	INT-RMT4-0501B0
Gold	INT-RMT2-0601B0	INT-RMT3-0601B0	INT-RMT4-0601B0
