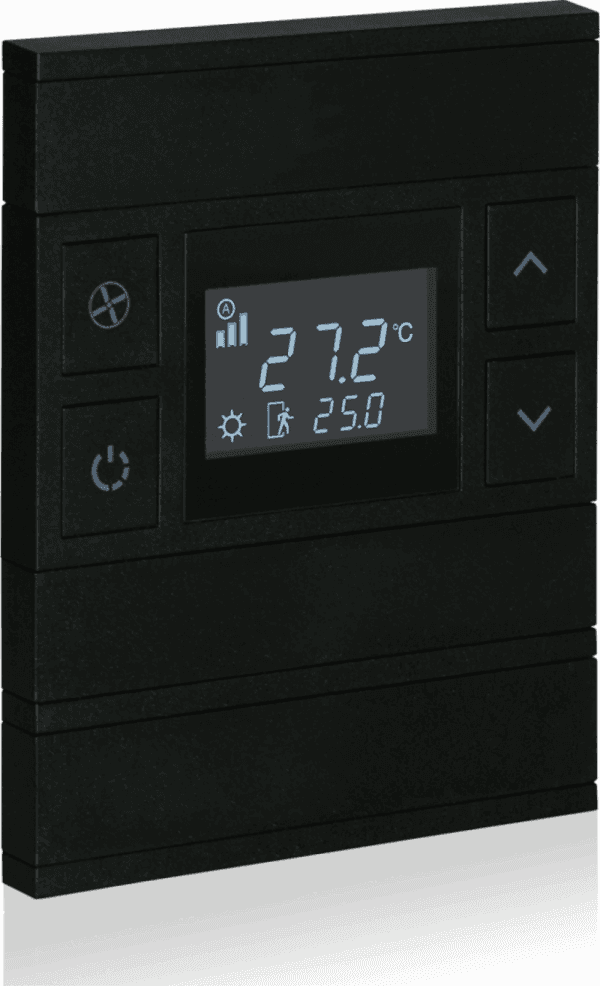

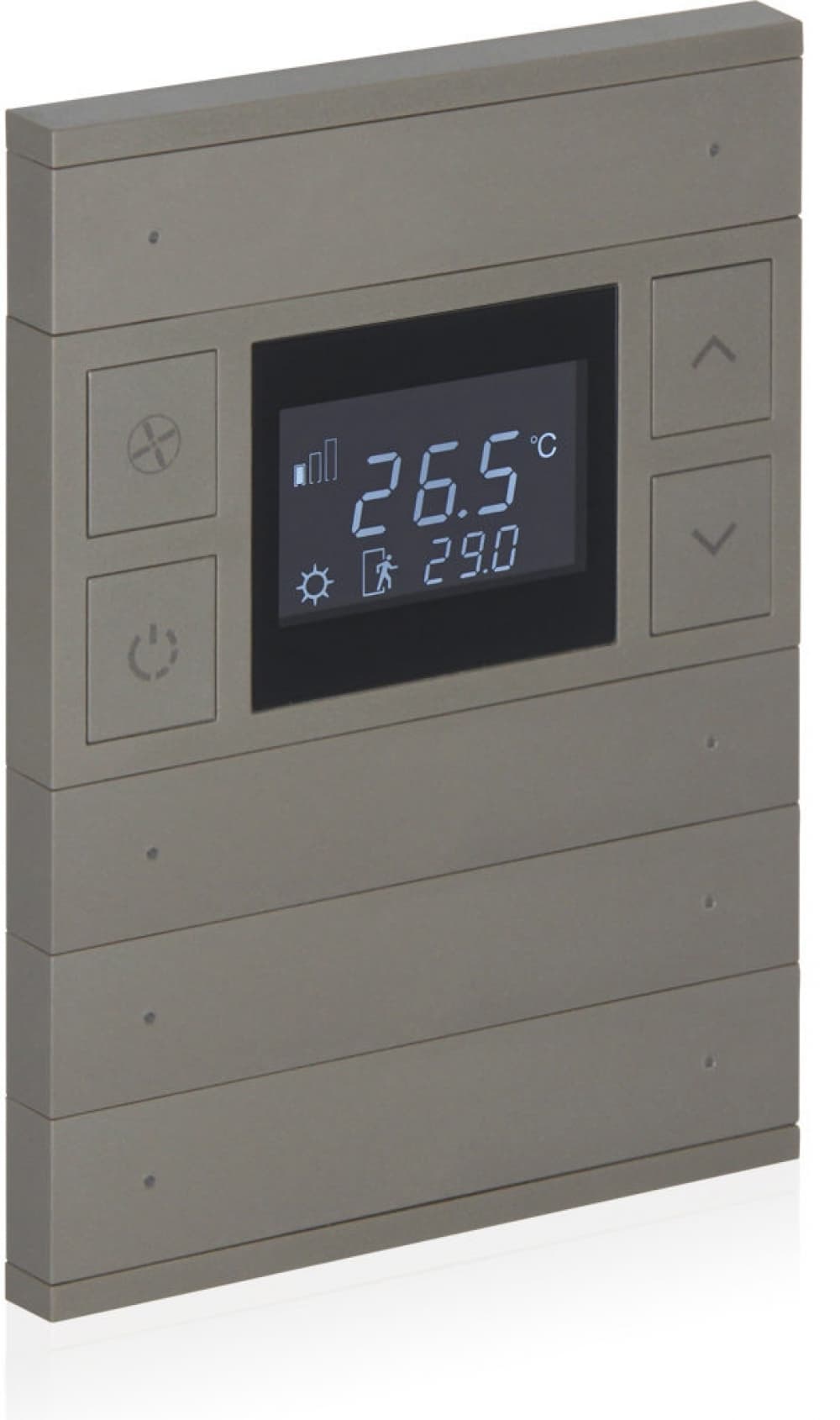

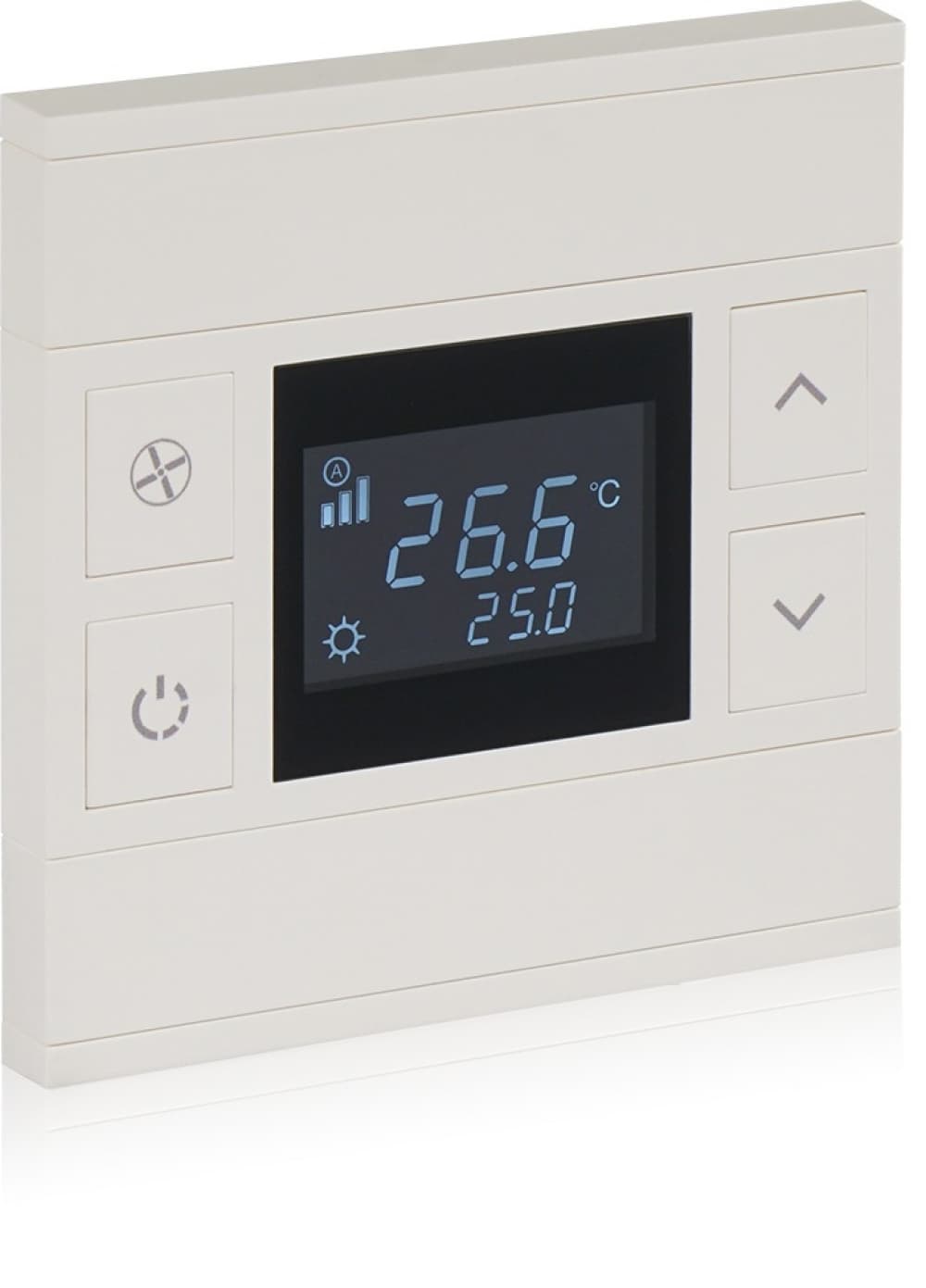

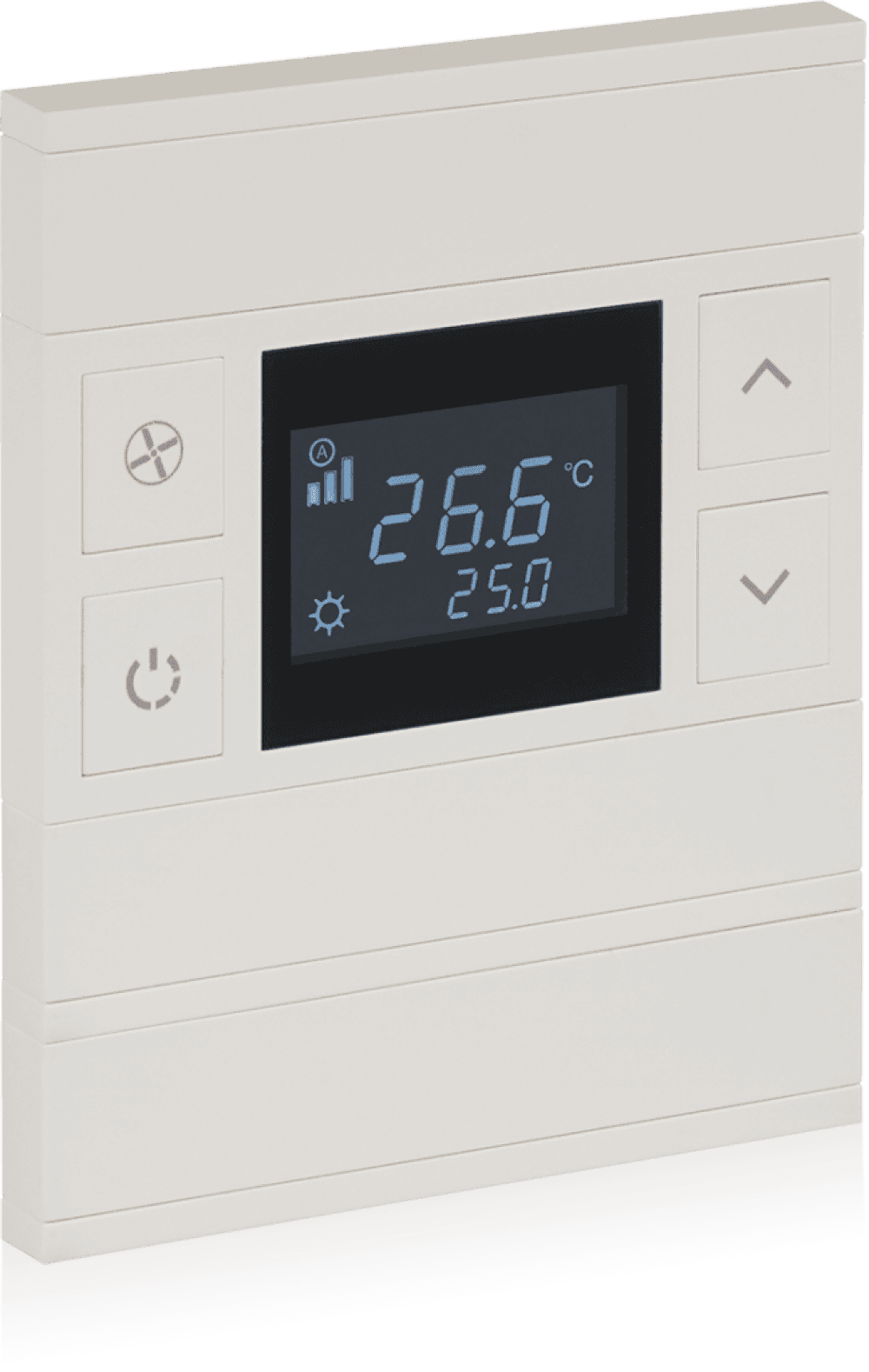

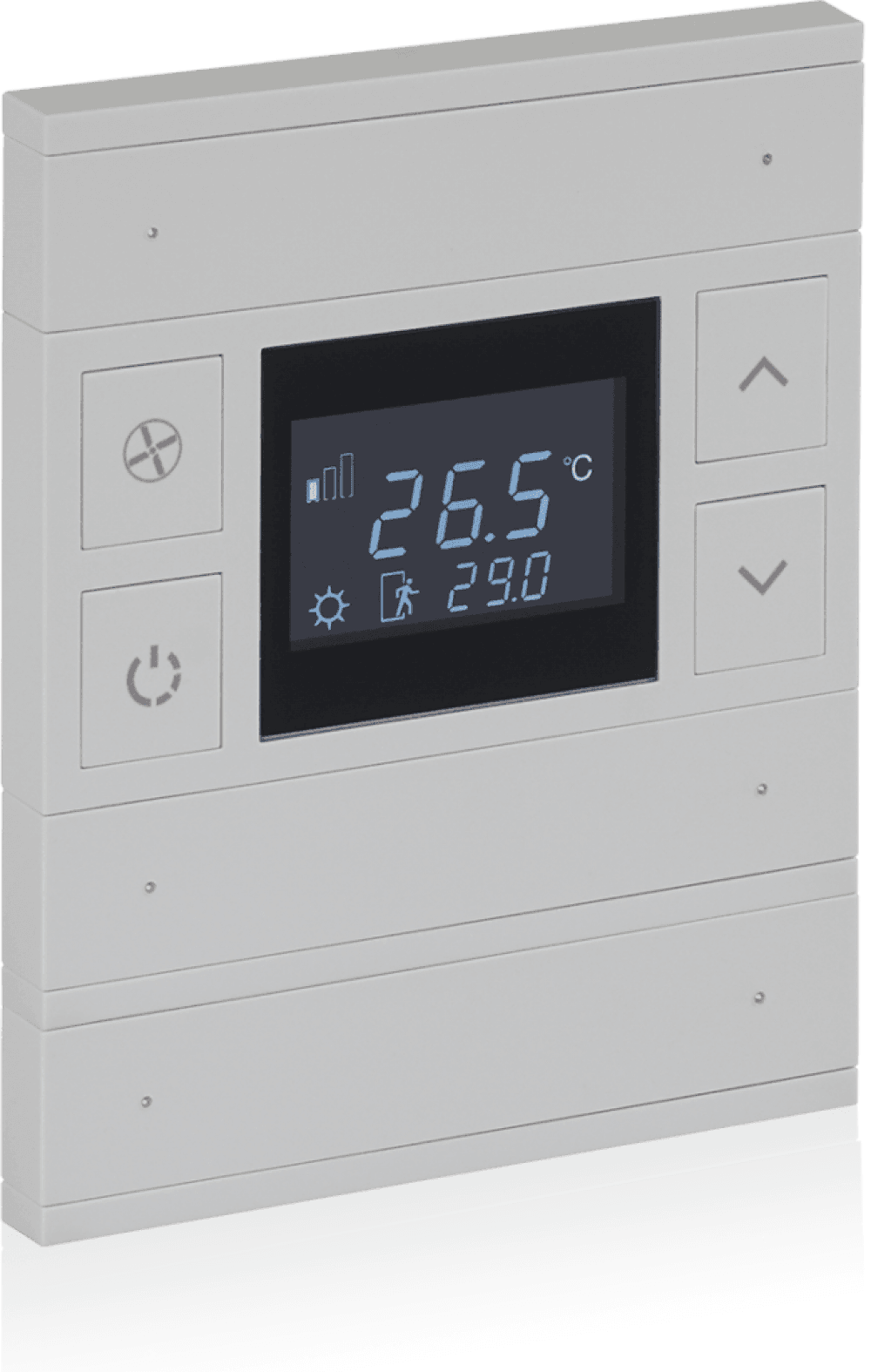

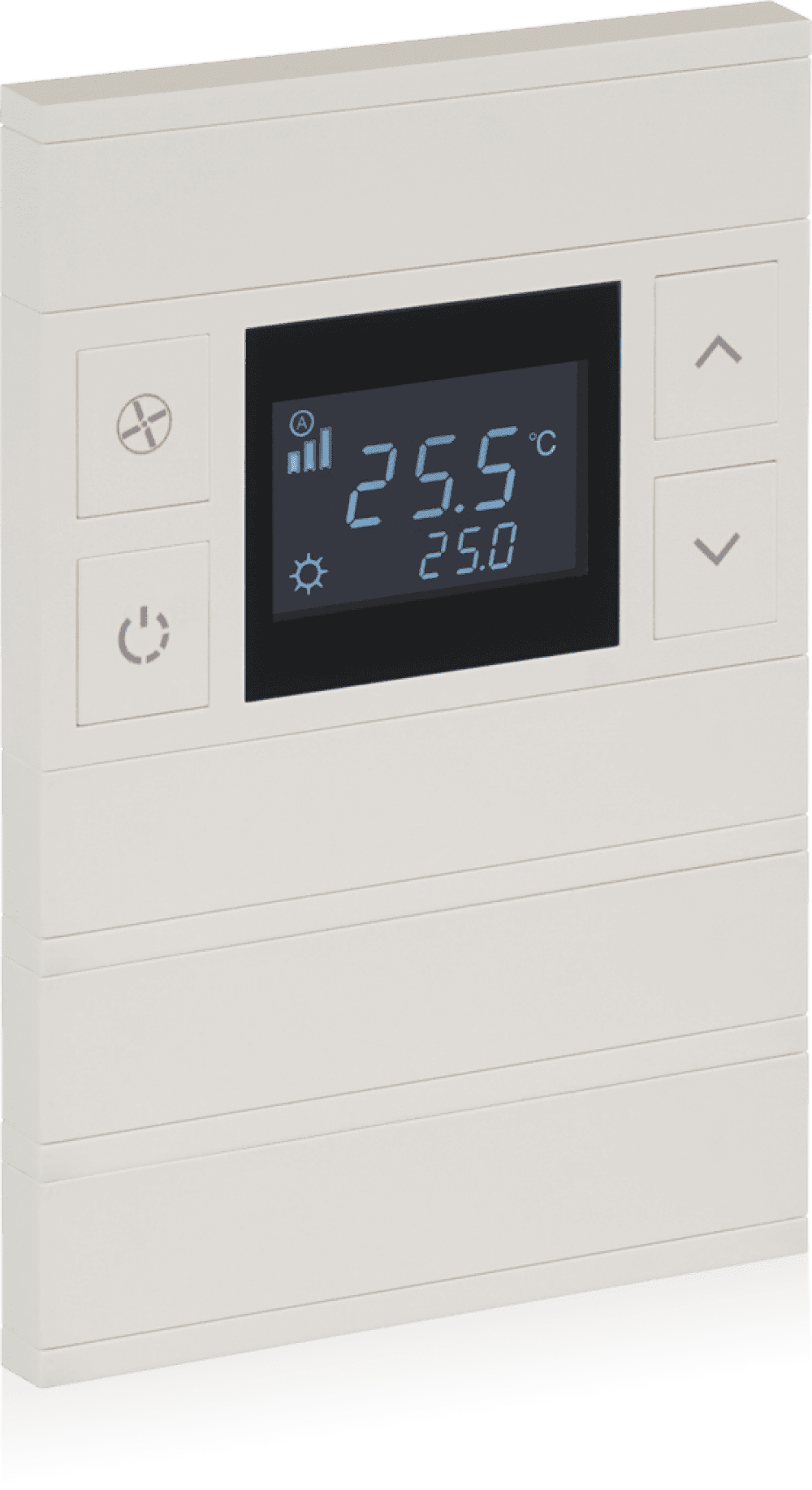

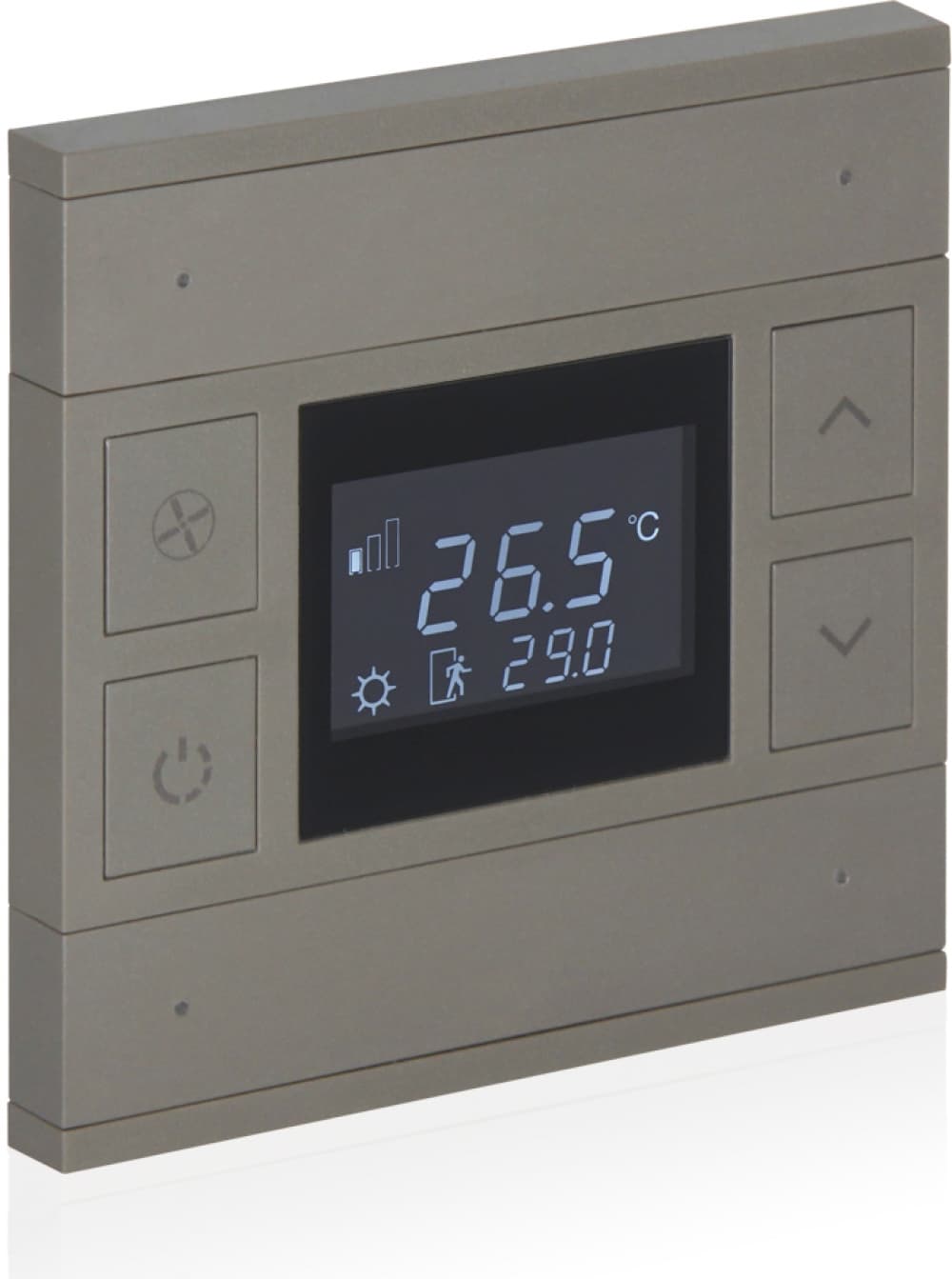

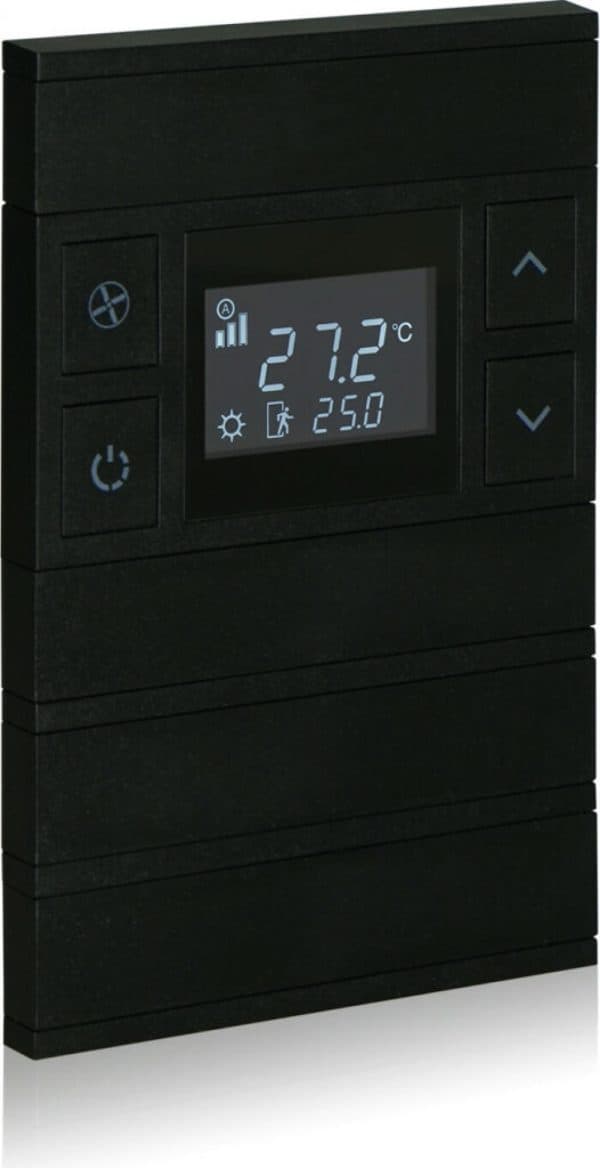

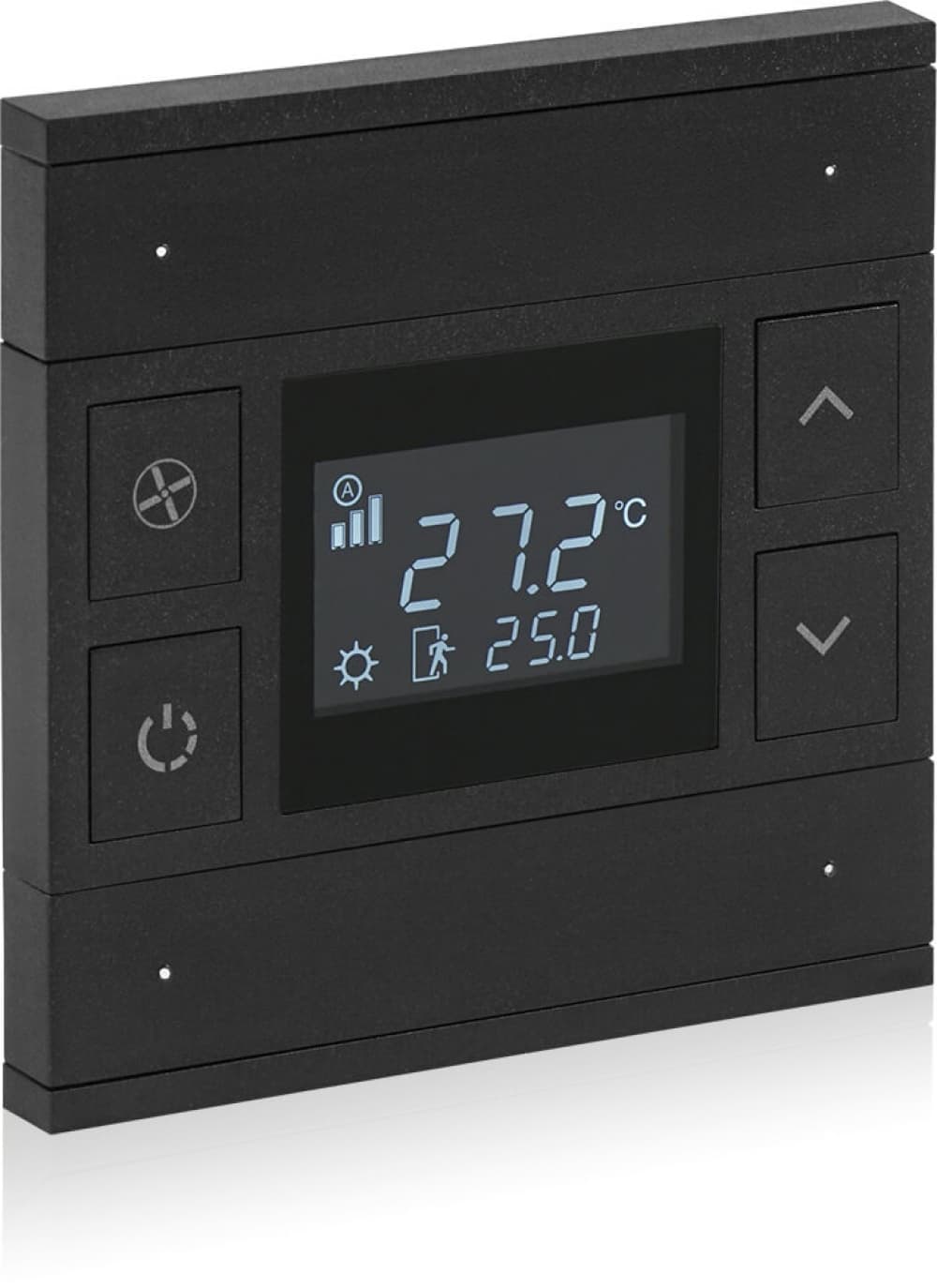

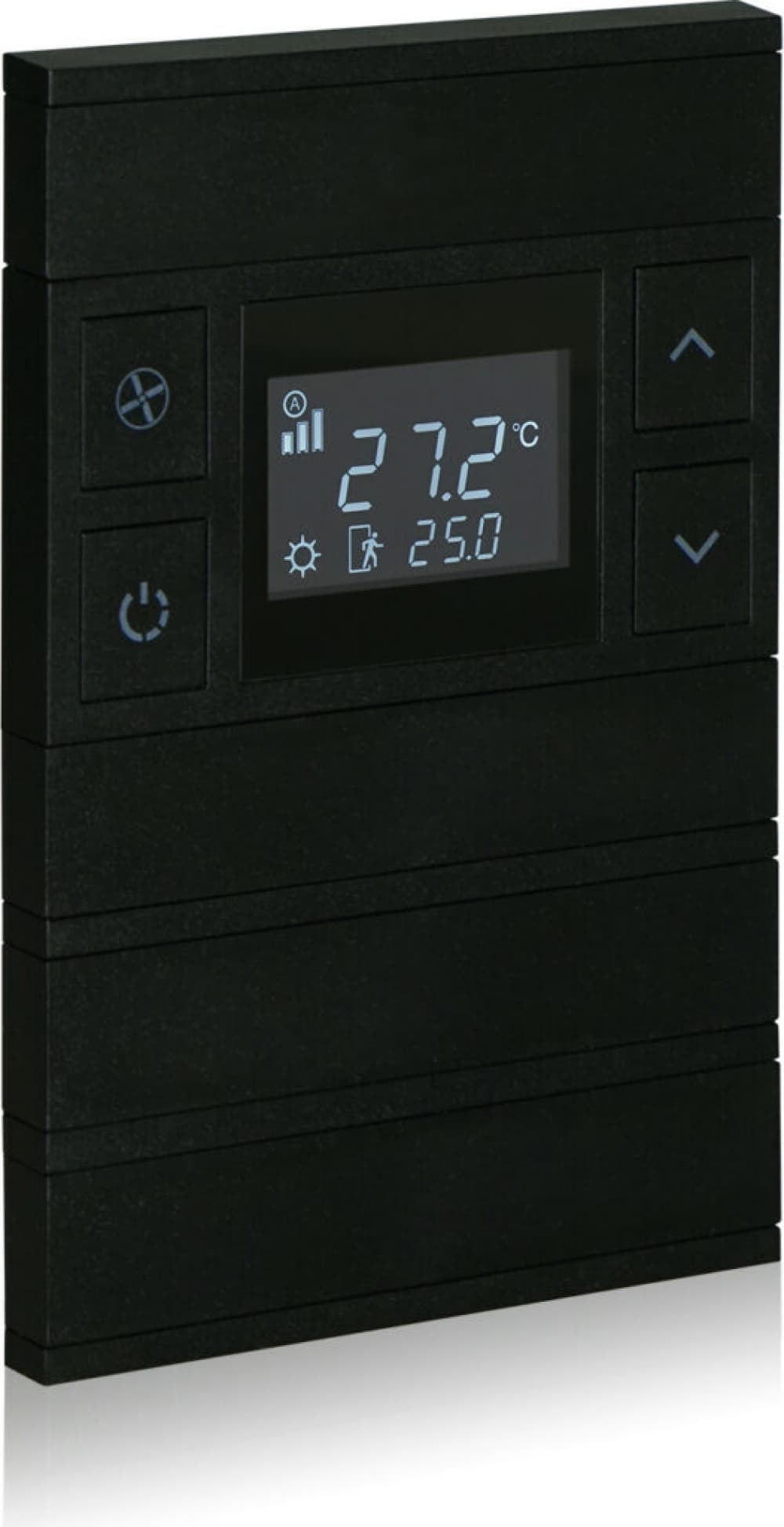

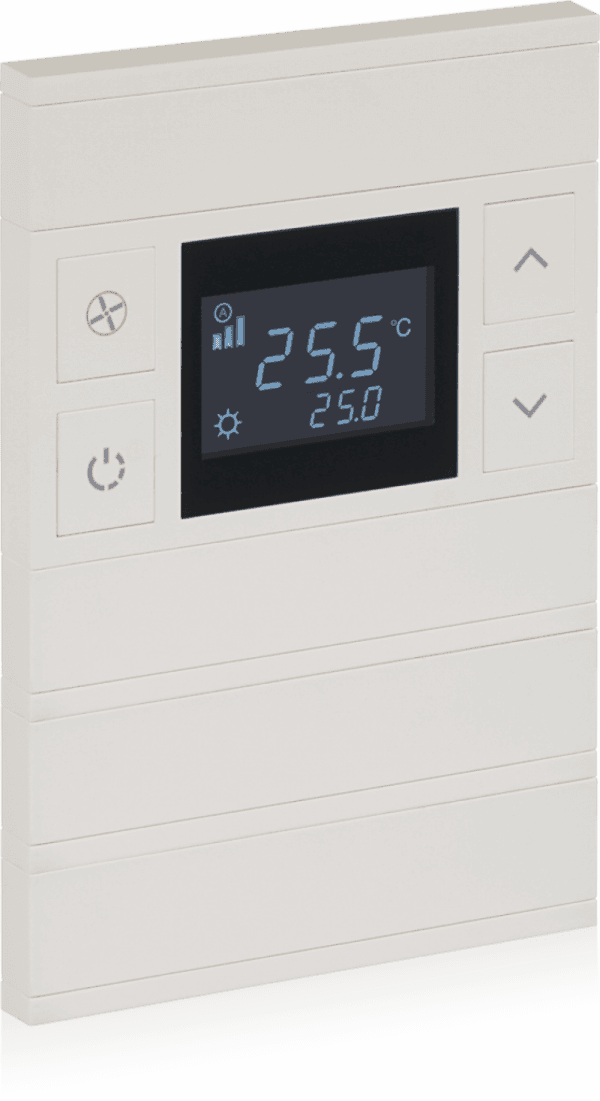

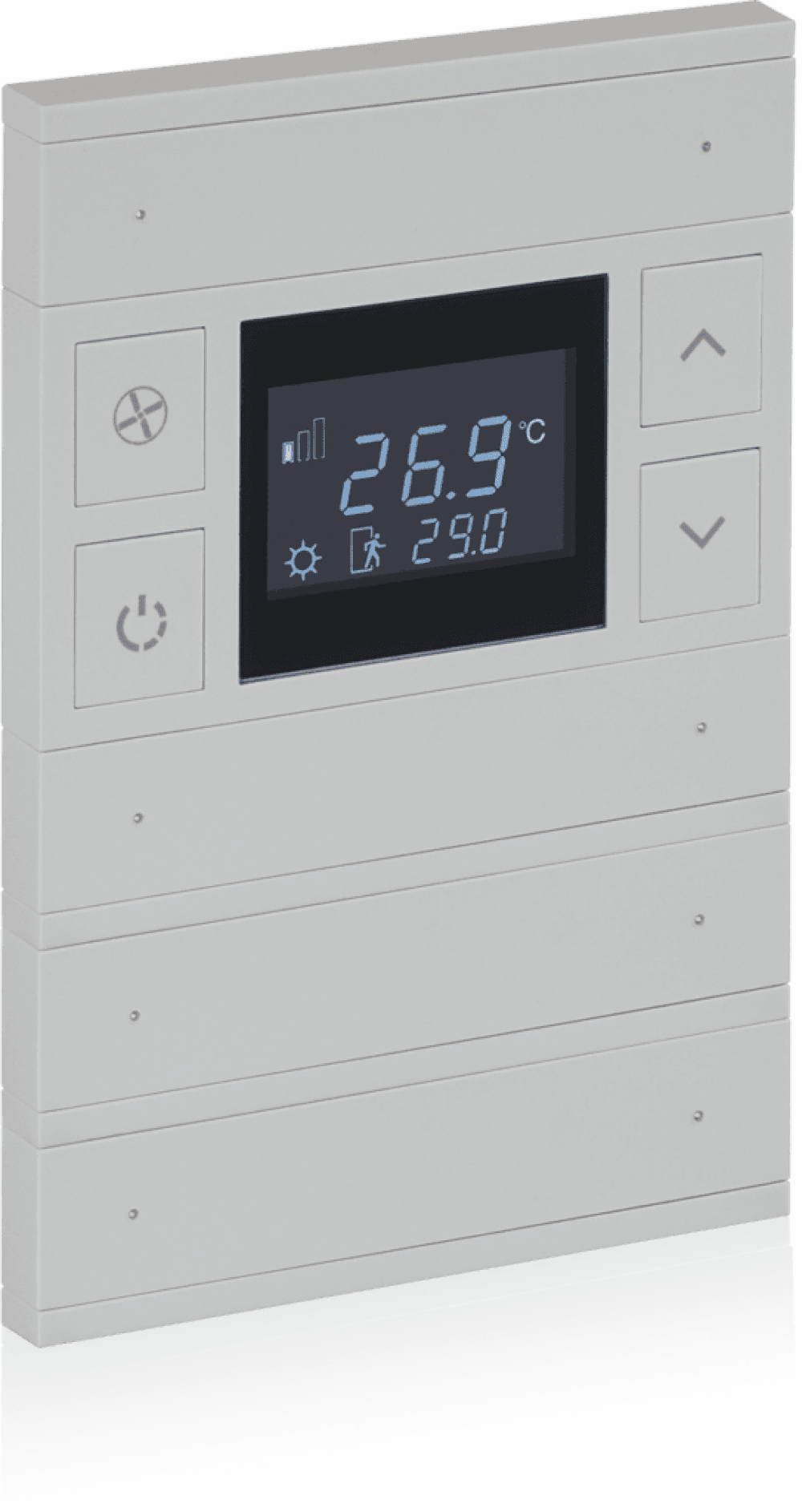

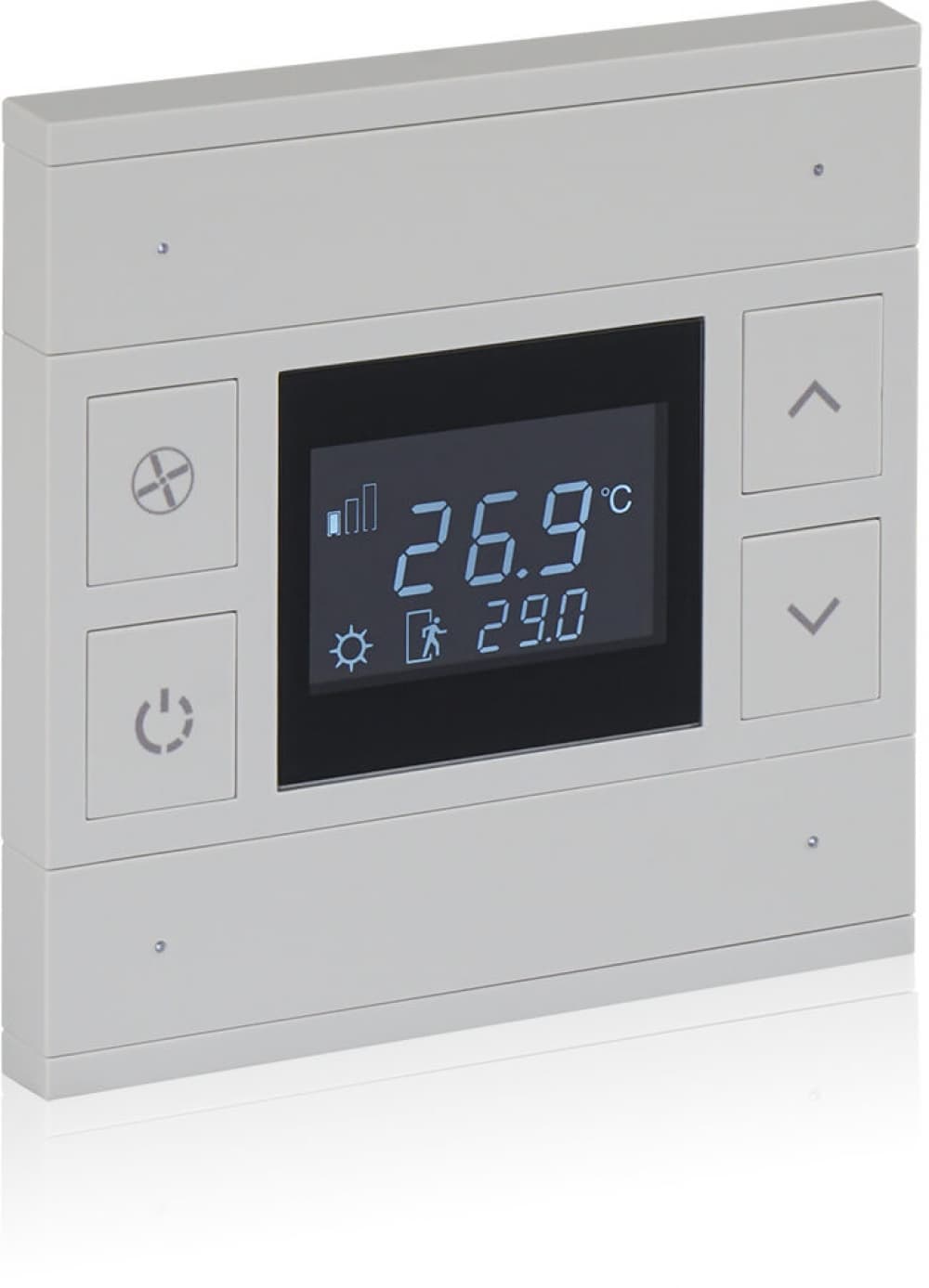

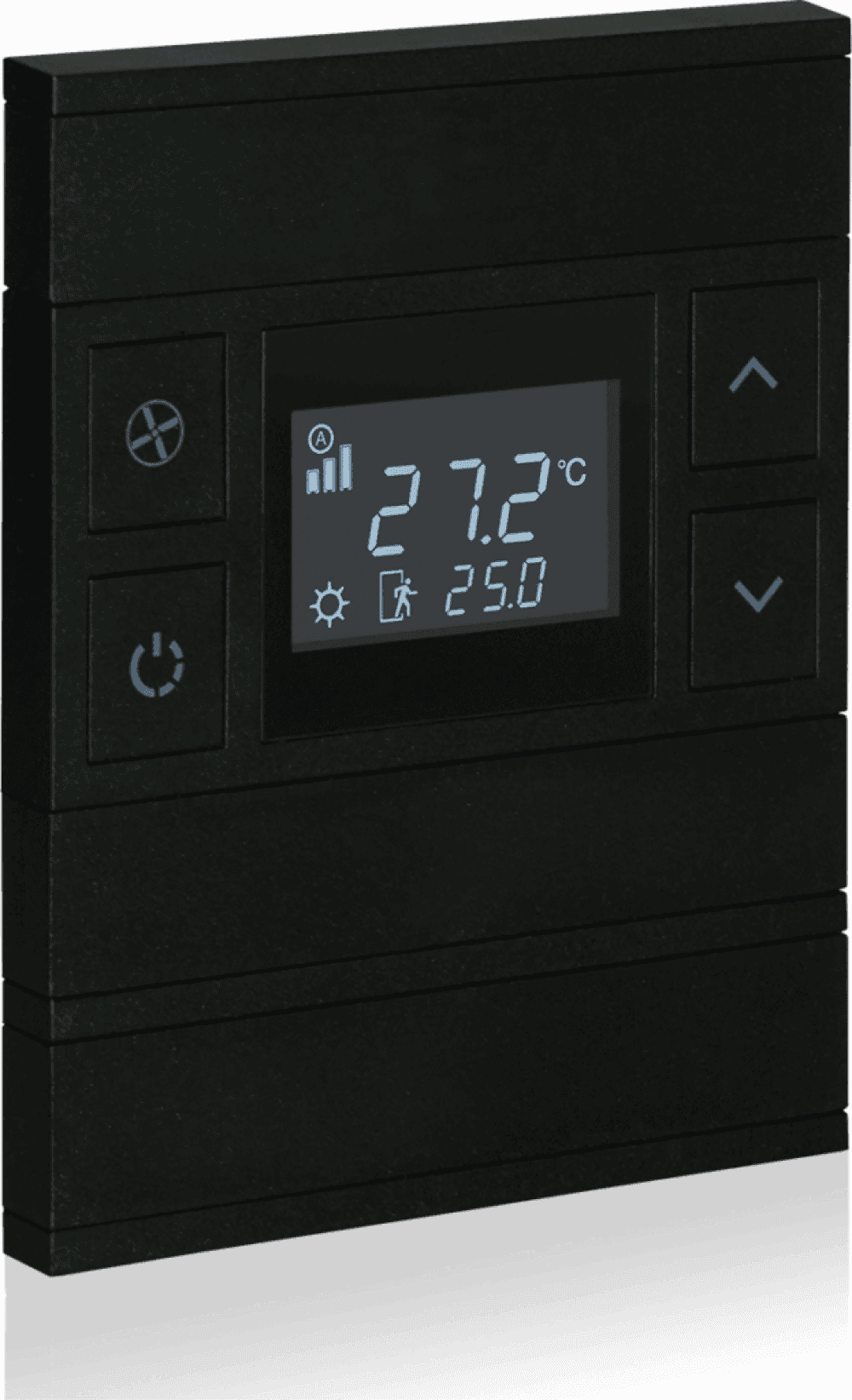

The EAE Oria KNX Thermostat Switch combines a digital LCD room thermostat with programmable KNX push-buttons in one flush-mounted plate. Available as 2-fold (4 keys), 3-fold (6 keys), or 4-fold (8 keys), it delivers climate control and room automation from a single 60 × 60 mm junction box — ideal for hotel guest rooms and residential zones.

The integrated temperature sensor achieves ± 0.3 °C accuracy with automatic heating/cooling transition. HVAC outputs support PI relative, PI on/off (PWM), on/off, fan coil, split unit, and VRF/VRV systems. Programmable buttons handle switching, dimming, blinds, scenes, and status LEDs alongside the thermostat display.

Key Features — All-in-One Thermostat & Switch

Climate Control

• Digital LCD: Setpoint adjustment in °C or °F with fan speed (1, 2, 3, Auto).
• Operation modes: Comfort, Night, Away, Off.
• Automatic heat/cool transition: Fully automatic operating mode for seasonal changeover.
• HVAC flexibility: Fan coil, split AC, VRF/VRV, PI relative, PI on/off (PWM), on/off.
• Integrated humidity sensor on board.

Programmable Buttons

• 2 dependent or 4 independent programmable buttons per button group.
• Functions: Switching, dimming, shutter/blind, value transfer, scene control, status LEDs.
• Extendable: Modular frames up to 4 folds (8 auxiliary keys on INT-OT4).
• Surface quality: Anti-fingerprint finish with lifetime surface guarantee.

At a Glance

Specification	Detail
Product type	KNX push thermostat + programmable switches
Order code family	INT-OT2 / INT-OT3 / INT-OT4
Layouts	4, 6, or 8 programmable keys (2 / 3 / 4 fold)
Finishes	Anthracite, Antique, Mustang gray, Pearl White
Temperature accuracy	± 0.3 °C
Mounting	Flush — 60 × 60 mm junction box
Front dimensions	90 × 90 mm
Power supply	KNX bus 21 – 30 V DC — no auxiliary supply
Configuration	ETS 5+ — TMx Oria Thermostat v3.1

Full ratings and order-code matrix are under Technical Specifications. Datasheet, manuals, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Hotel guest rooms: Thermostat plus lighting, blind, and scene keys from one plate.
• Residential living areas: Combined HVAC and switching without multiple wall devices.
• VRF/VRV projects: Native support for complex HVAC plant via PI and PWM outputs.
• Push-button only: For switching without a thermostat, choose the Oria KNX Push Button.
• Metal finish alternative: See the Rosa Metal KNX Touch Thermostat for frameless brushed-aluminium design.
• Room actuation: Pair with EAE RCU Room Control Units or SW108 actuators for load switching.

Choosing Oria Thermostat Layouts

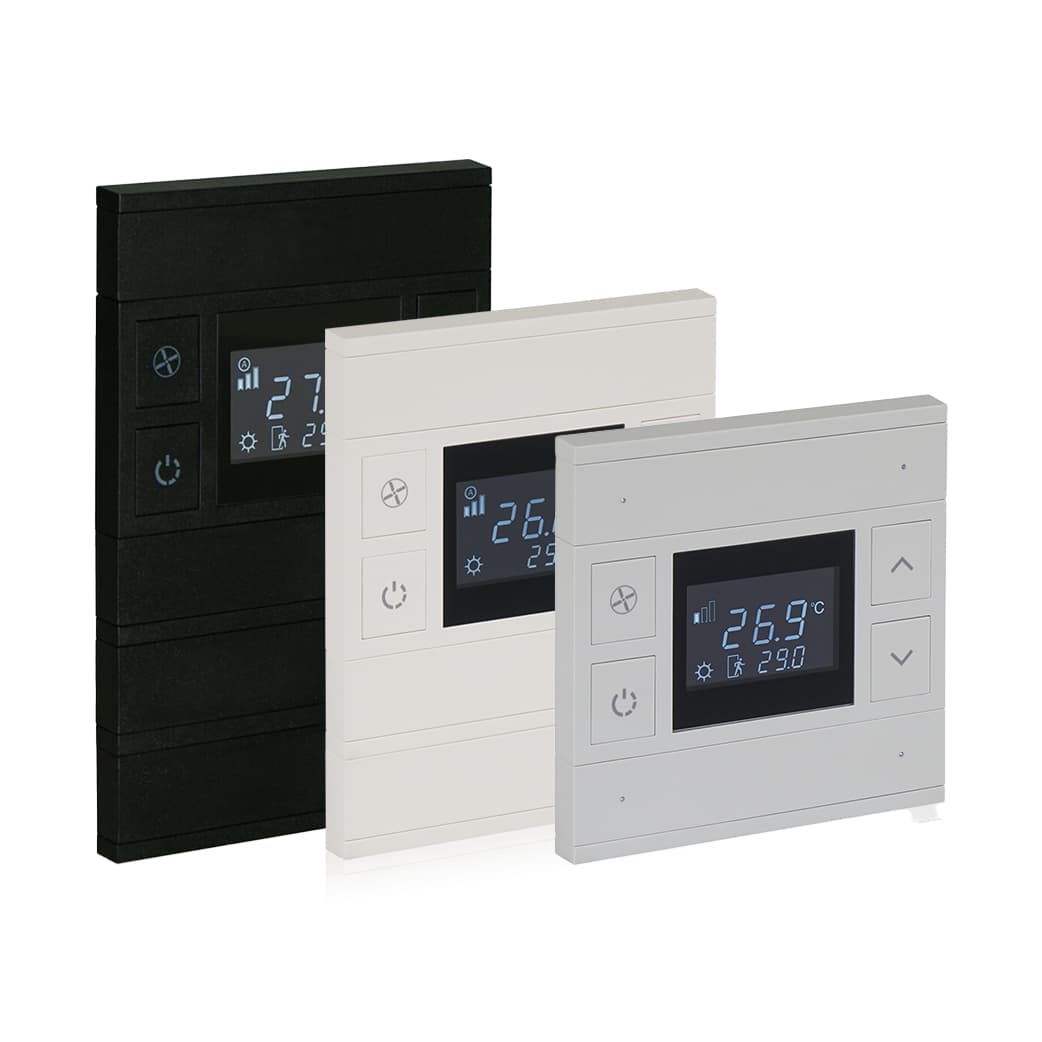

EAE offers three modular sizes — Oria 2-fold (4 keys, INT-OT2), 3-fold (6 keys, INT-OT3), and 4-fold (8 keys, INT-OT4). Select colour and key count below; all share the same ETS application and mounting depth.

Manufacturer Order Codes (FM)

Twelve order codes: three layouts × four finishes. Suffix F0 = standard icon set. All units flush-mounted.

Finish	4 keys (INT-OT2)	6 keys (INT-OT3)	8 keys (INT-OT4)
Anthracite	INT-OT2-0101F0	INT-OT3-0101F0	INT-OT4-0101F0
Antique	INT-OT2-0701F0	INT-OT3-0701F0	INT-OT4-0701F0
Mustang gray	INT-OT2-0301F0	INT-OT3-0301F0	INT-OT4-0301F0
Pearl White	INT-OT2-0201F0	INT-OT3-0201F0	INT-OT4-0201F0
