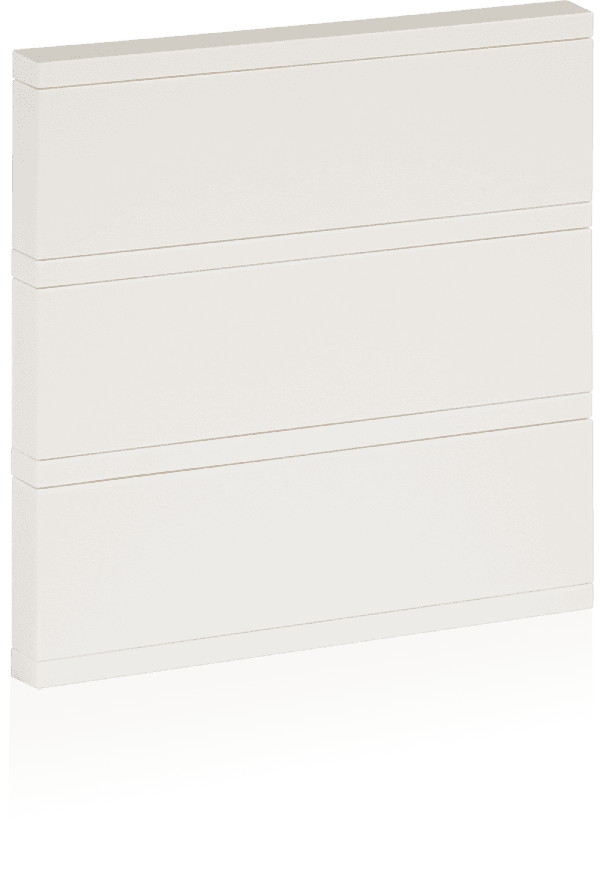

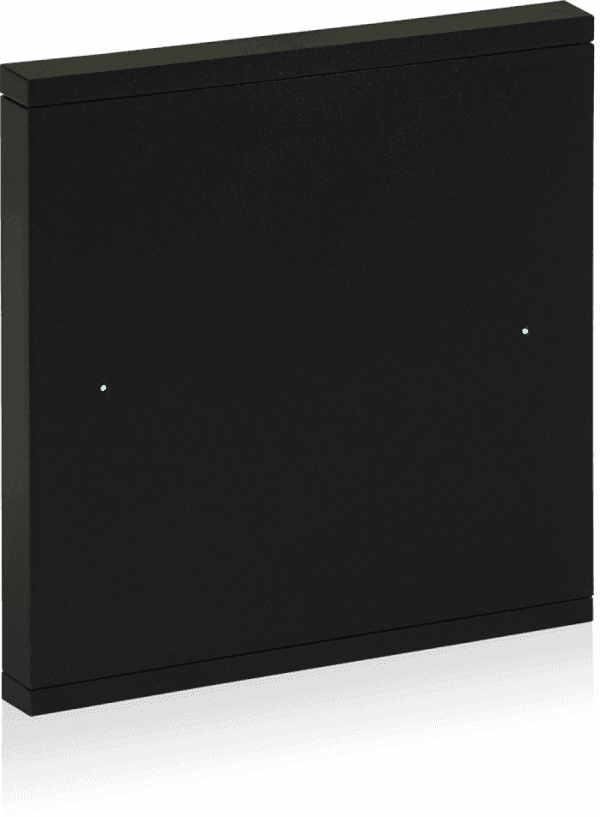

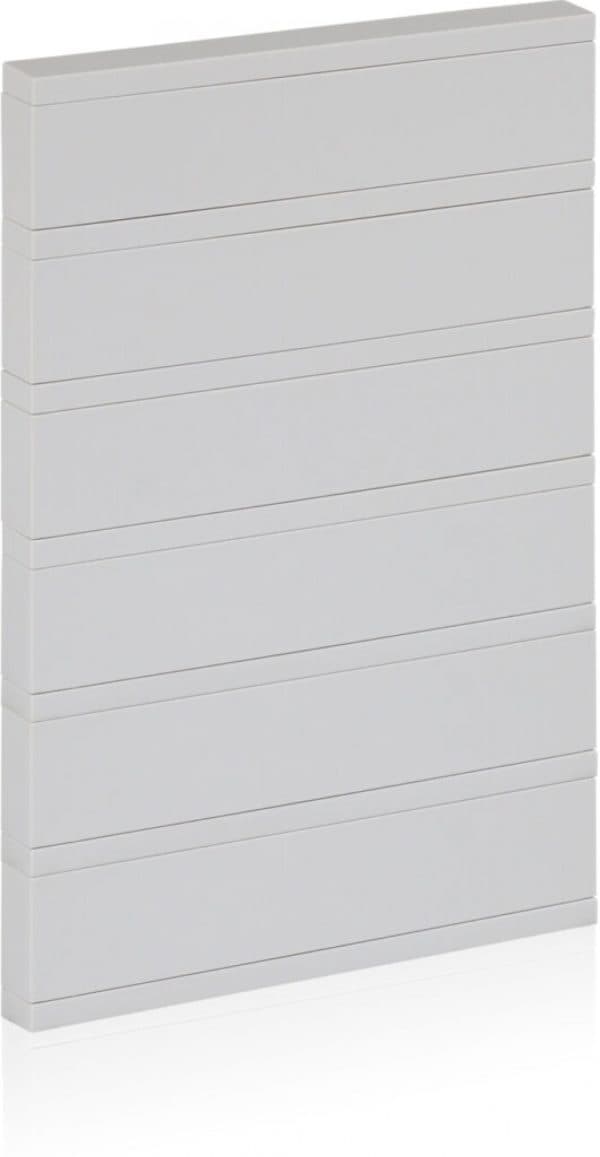

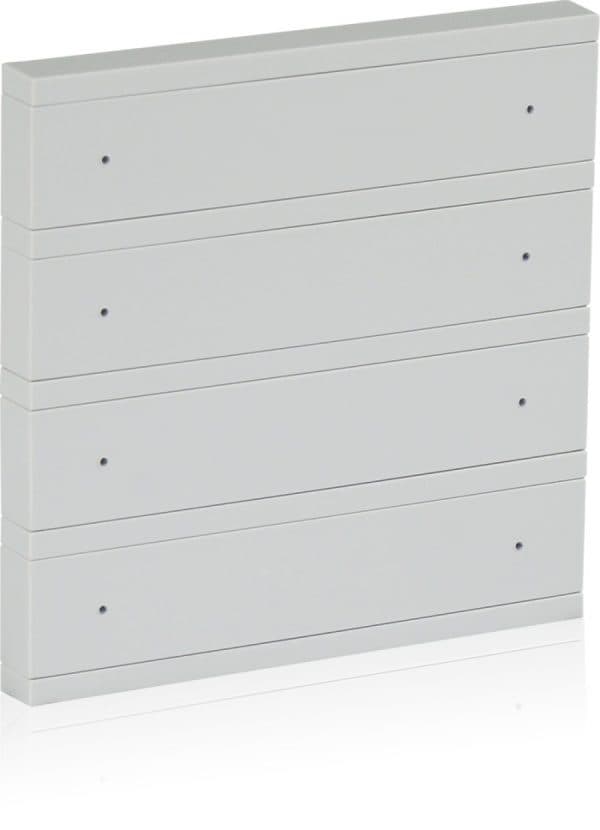

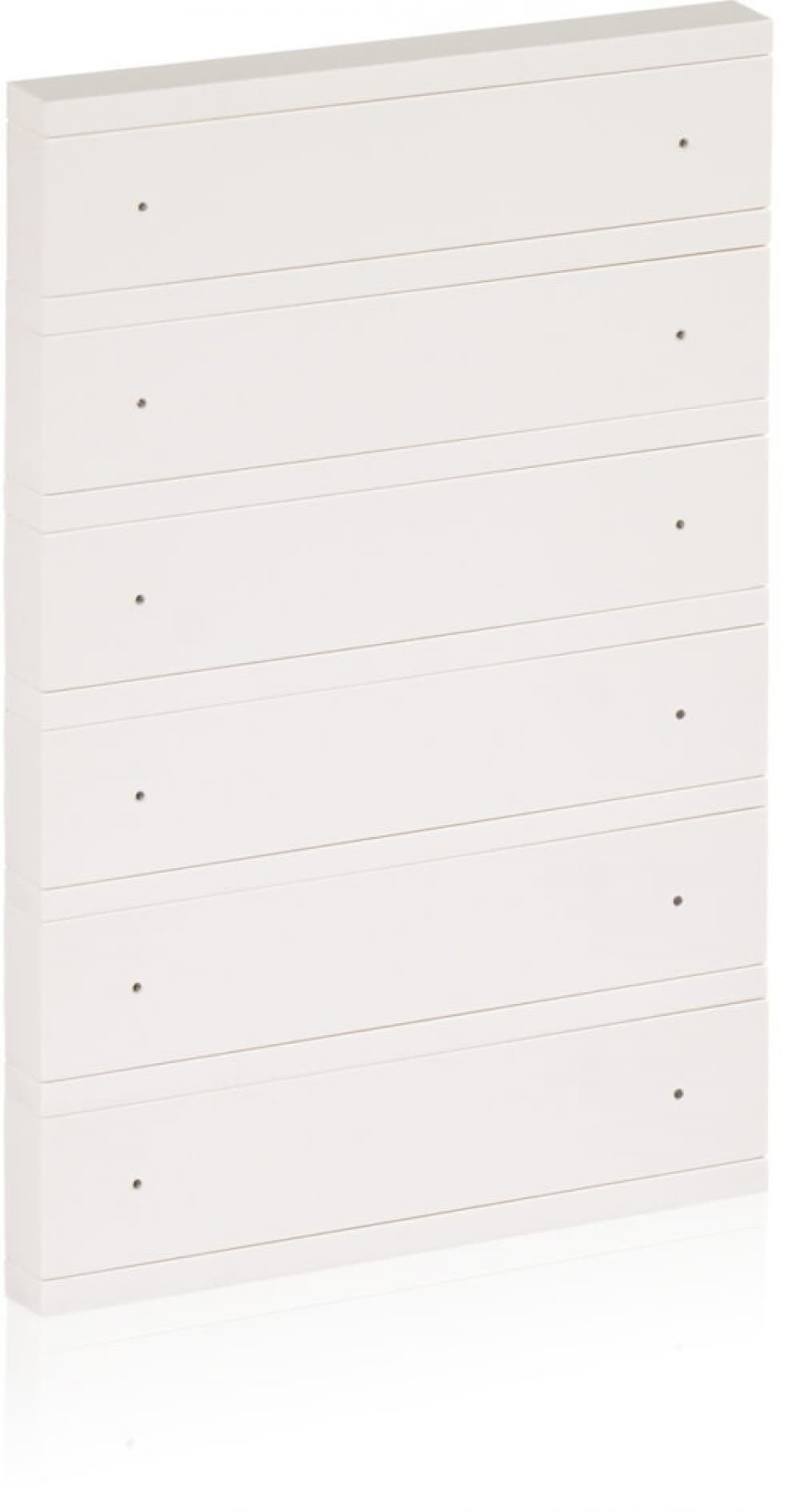

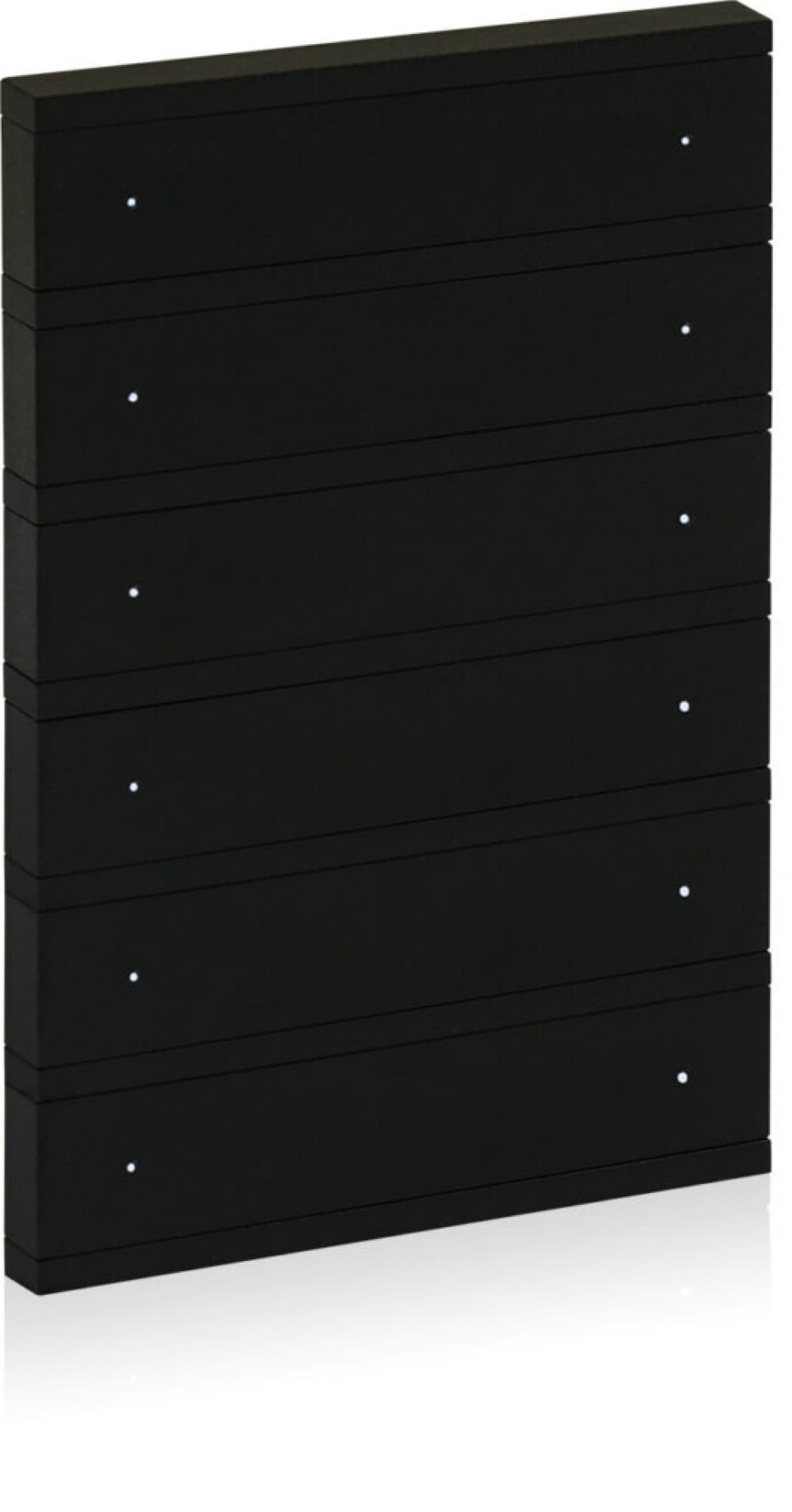

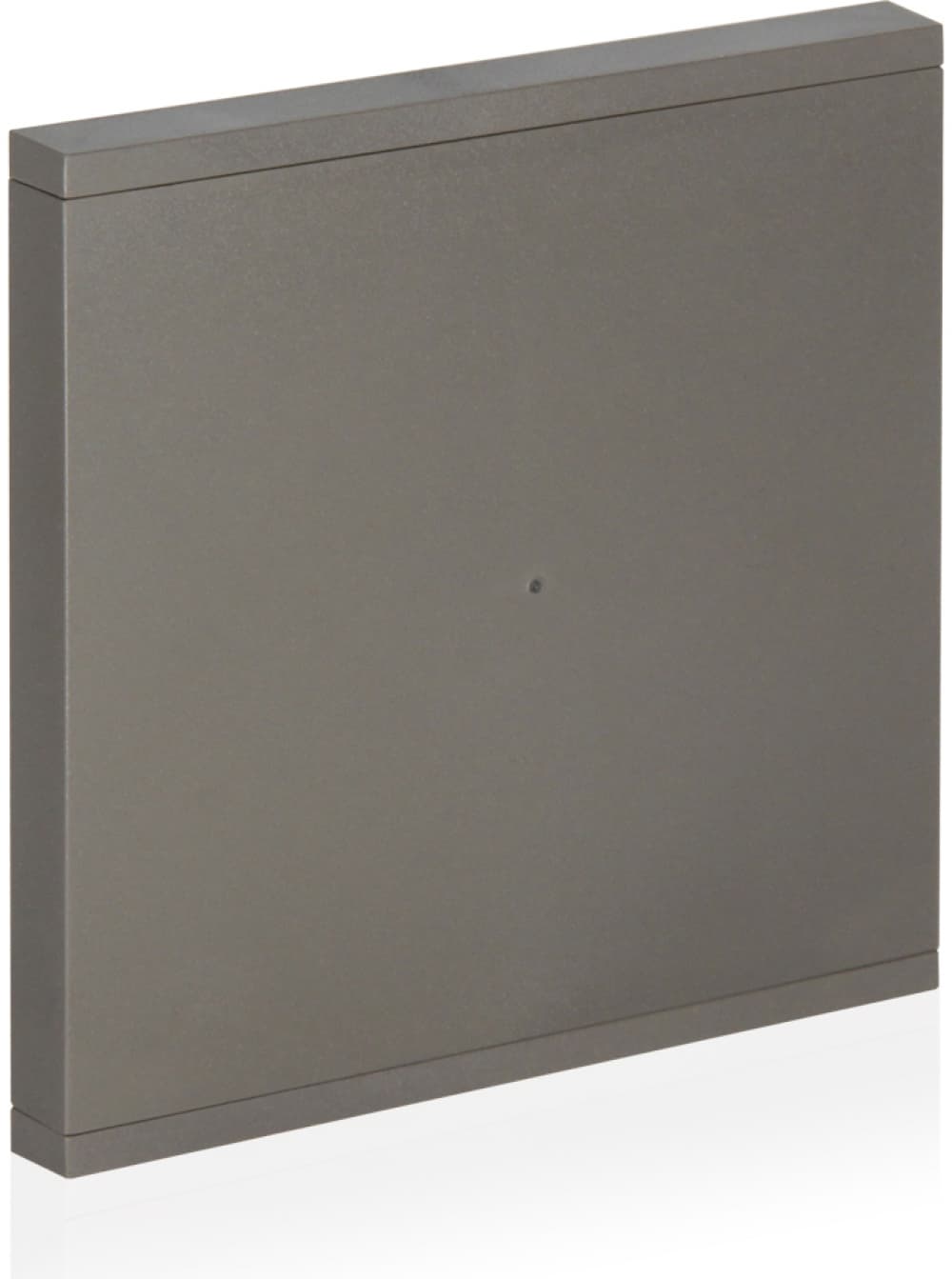

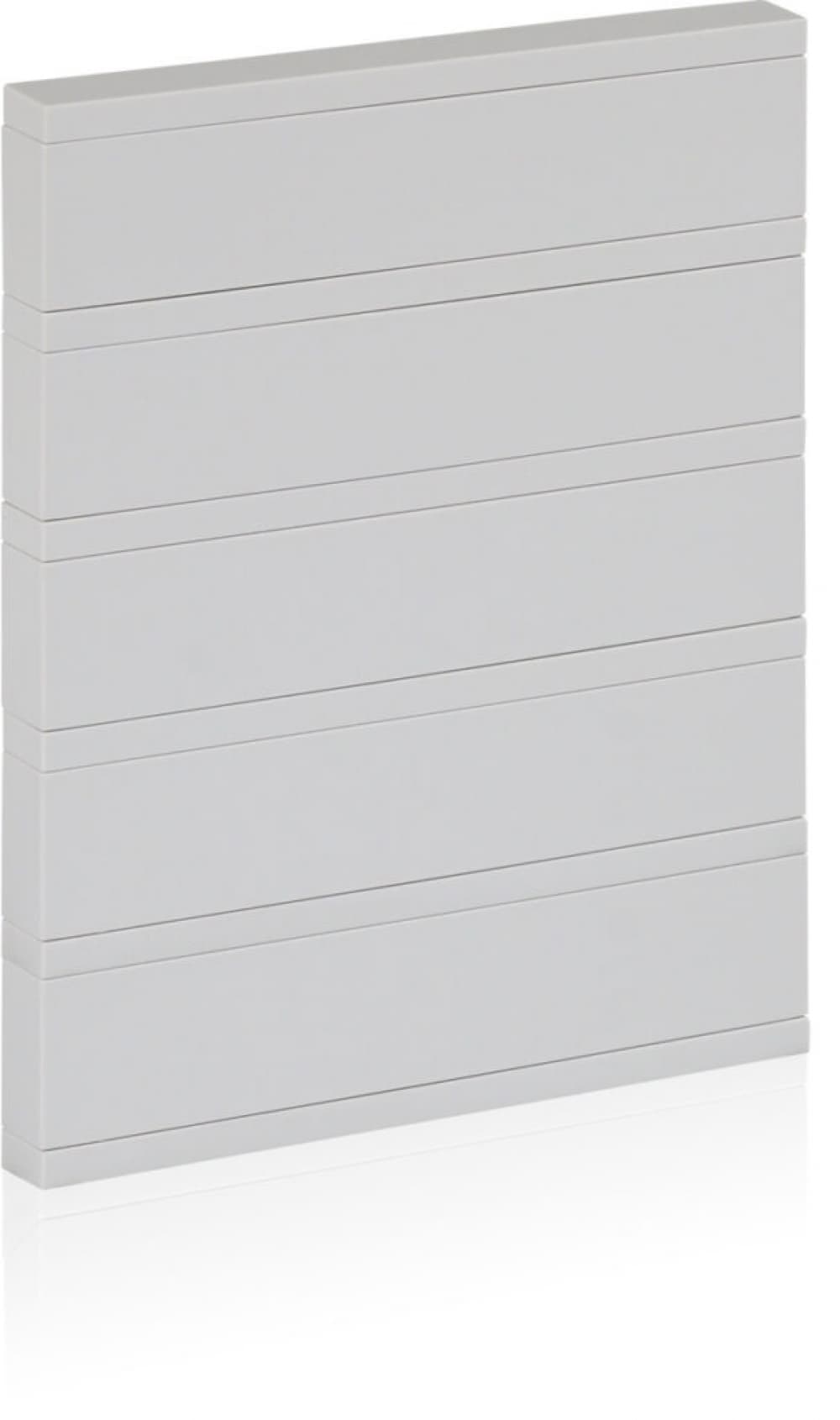

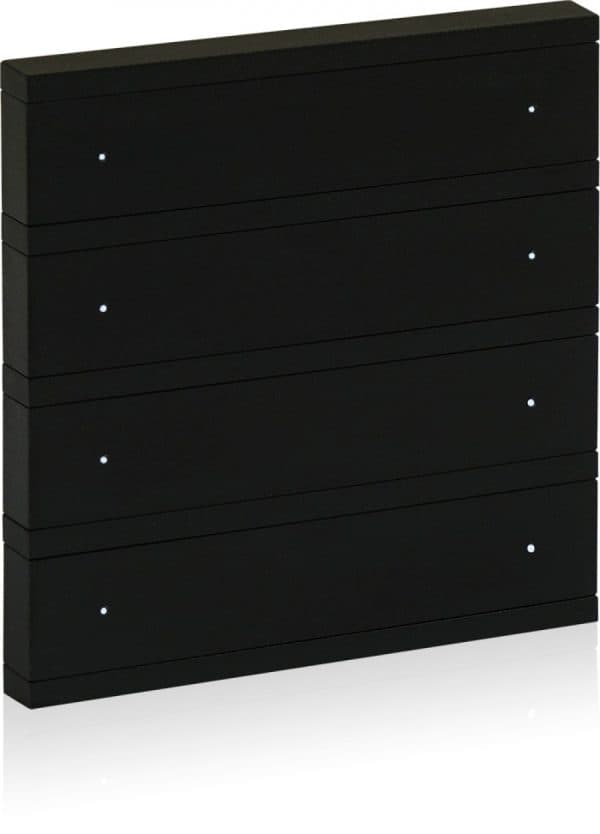

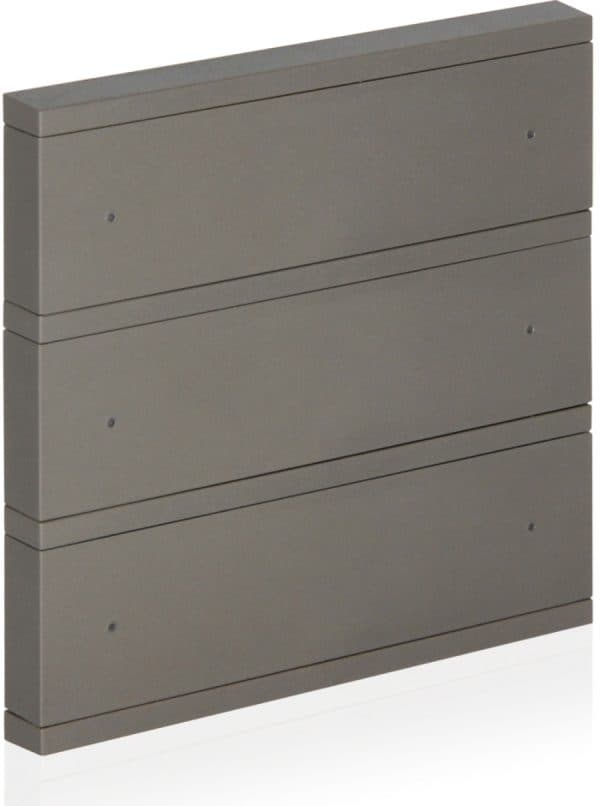

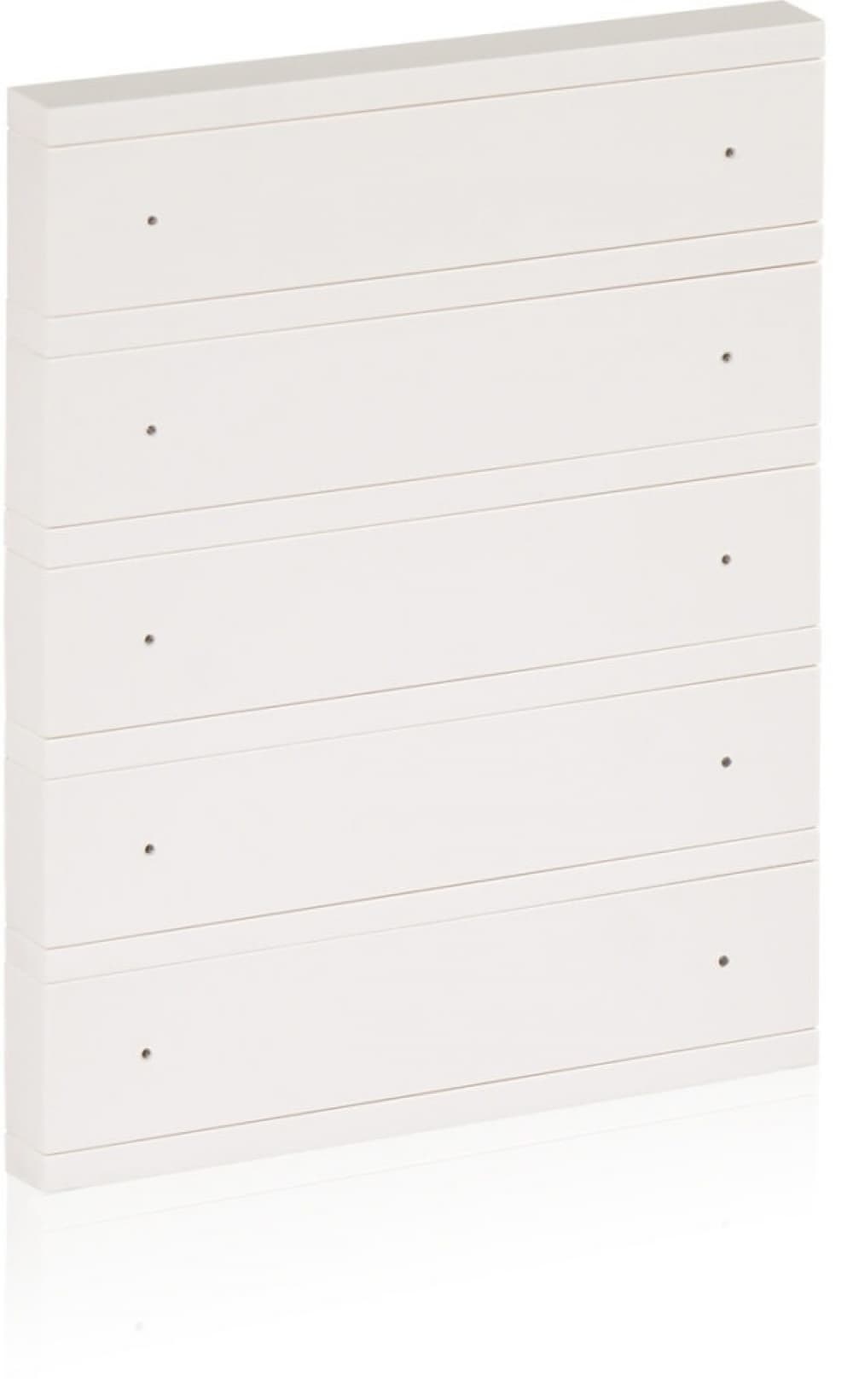

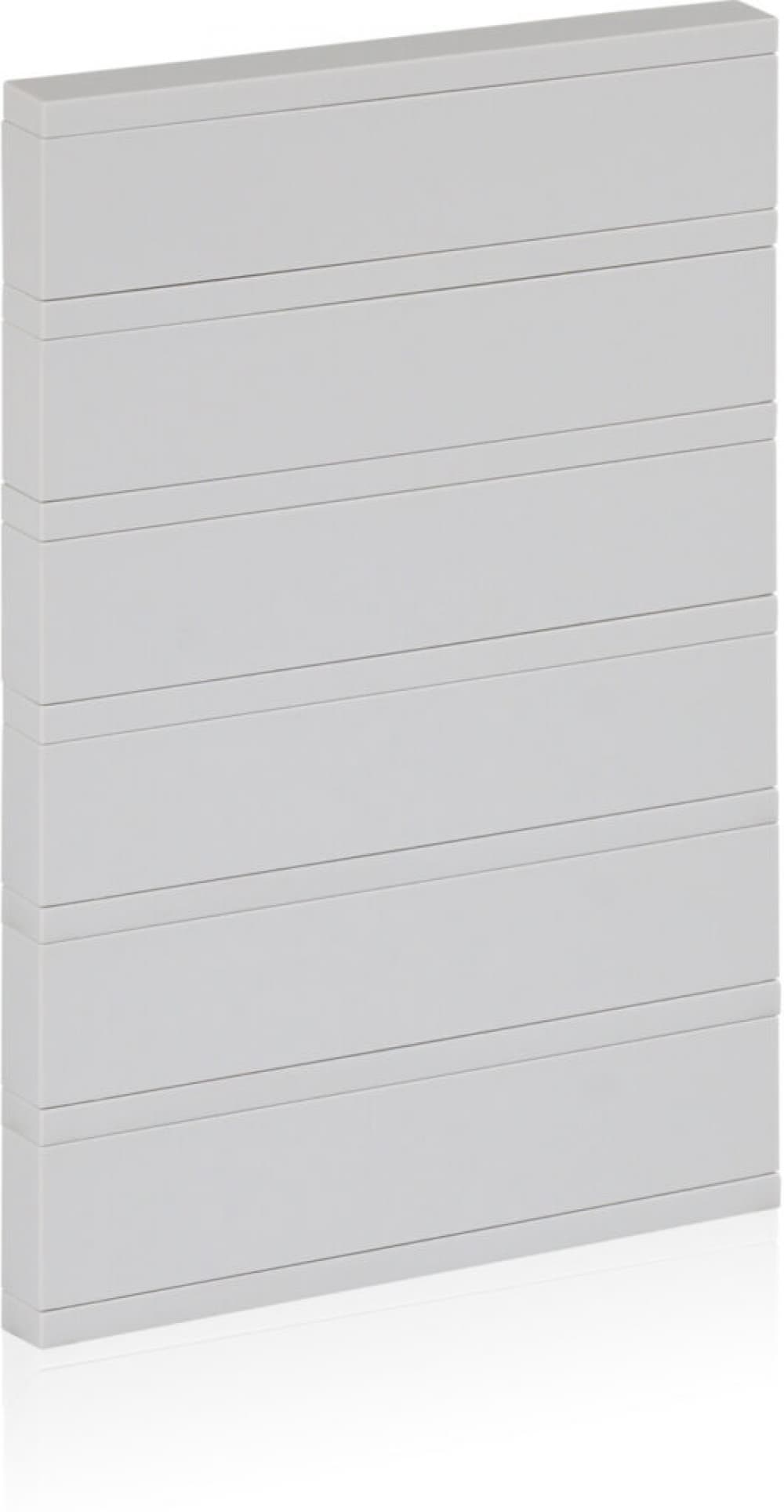

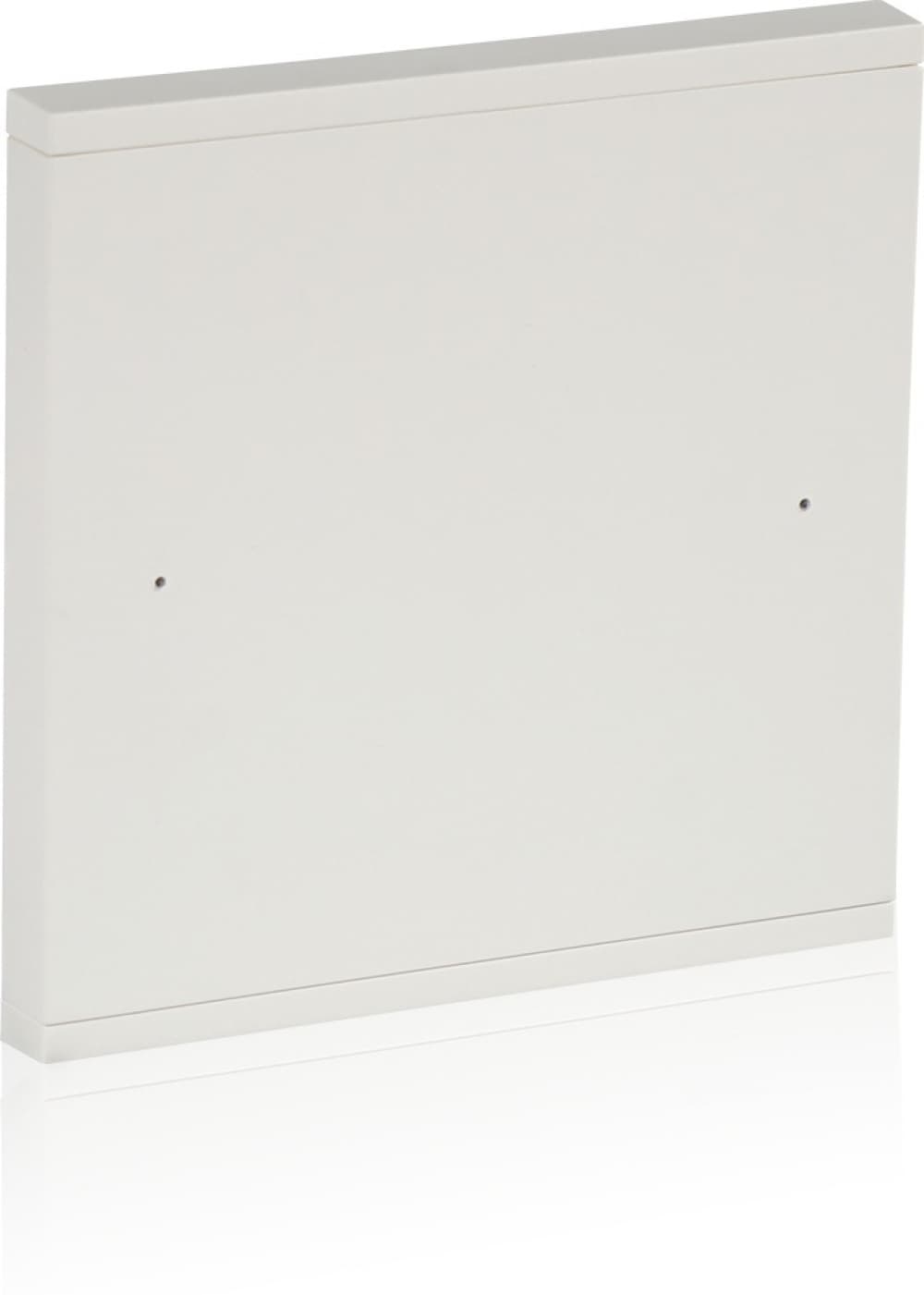

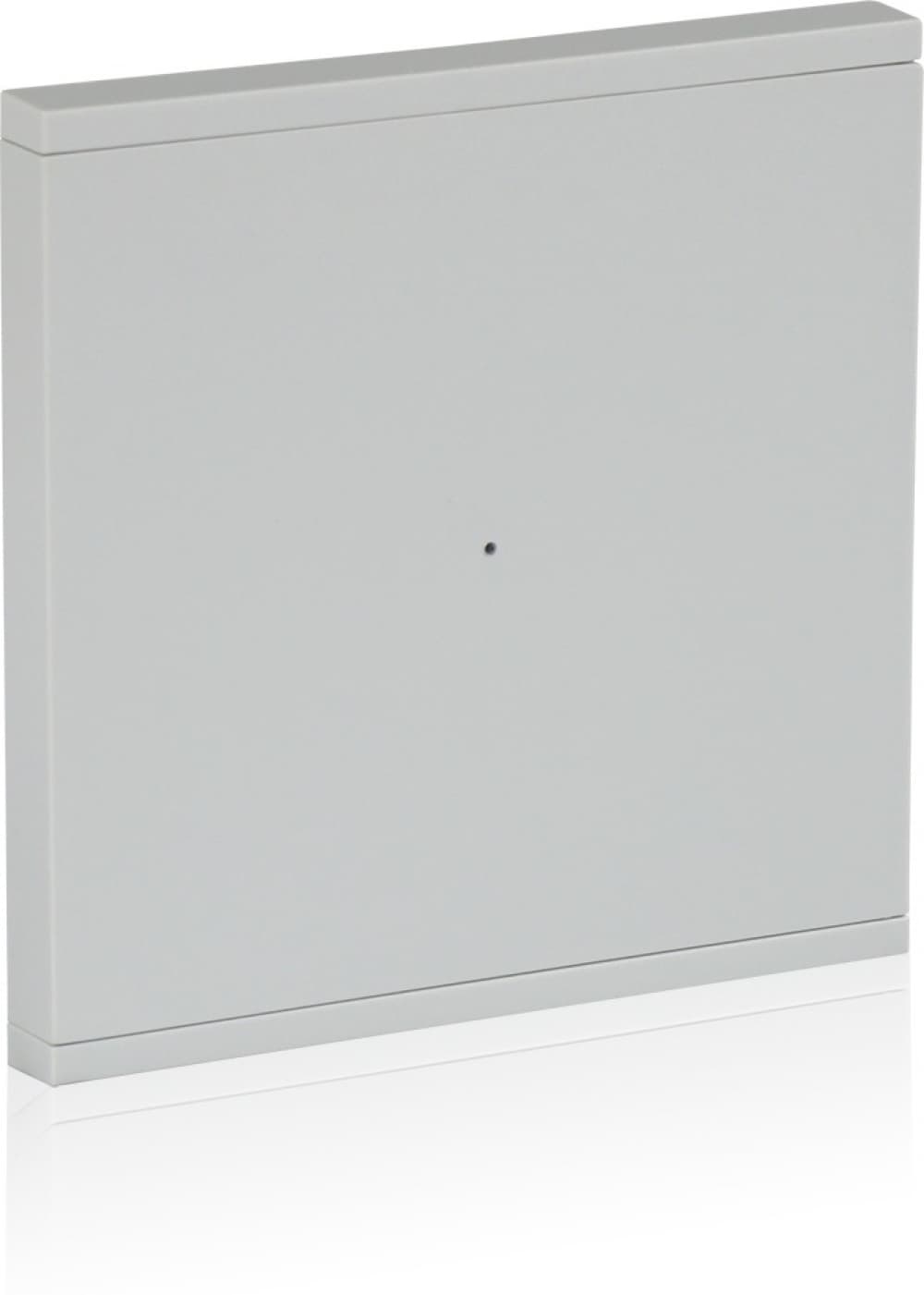

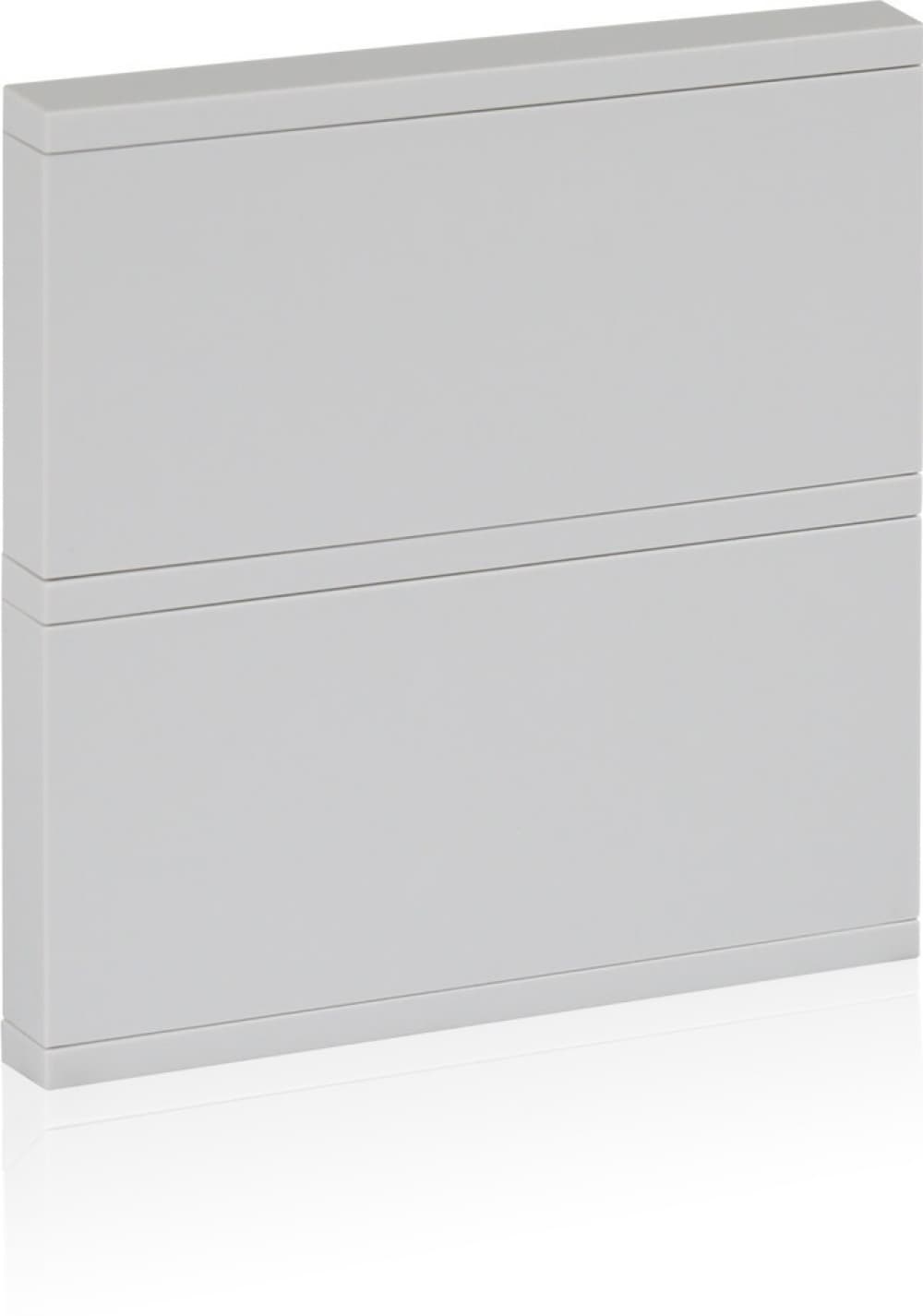

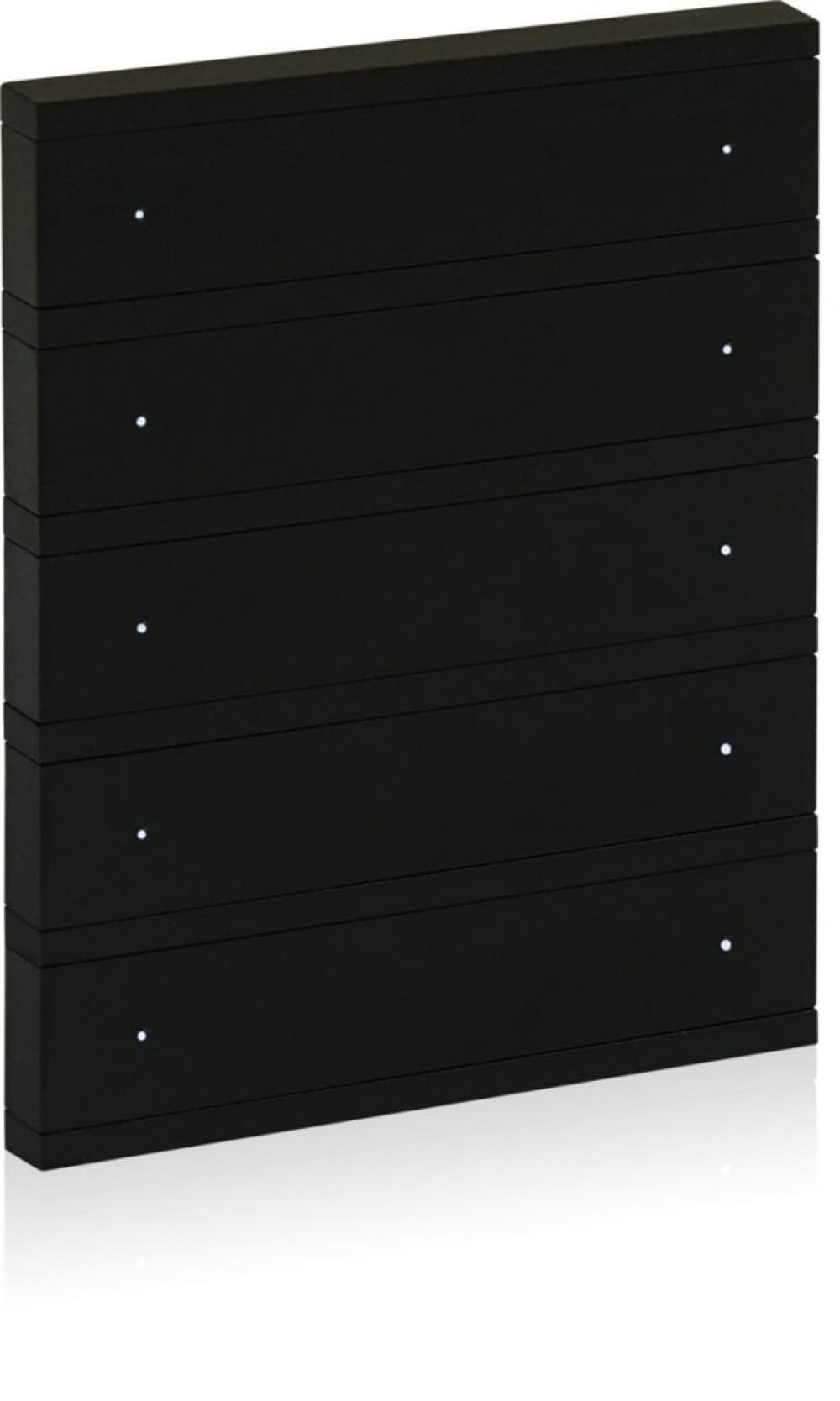

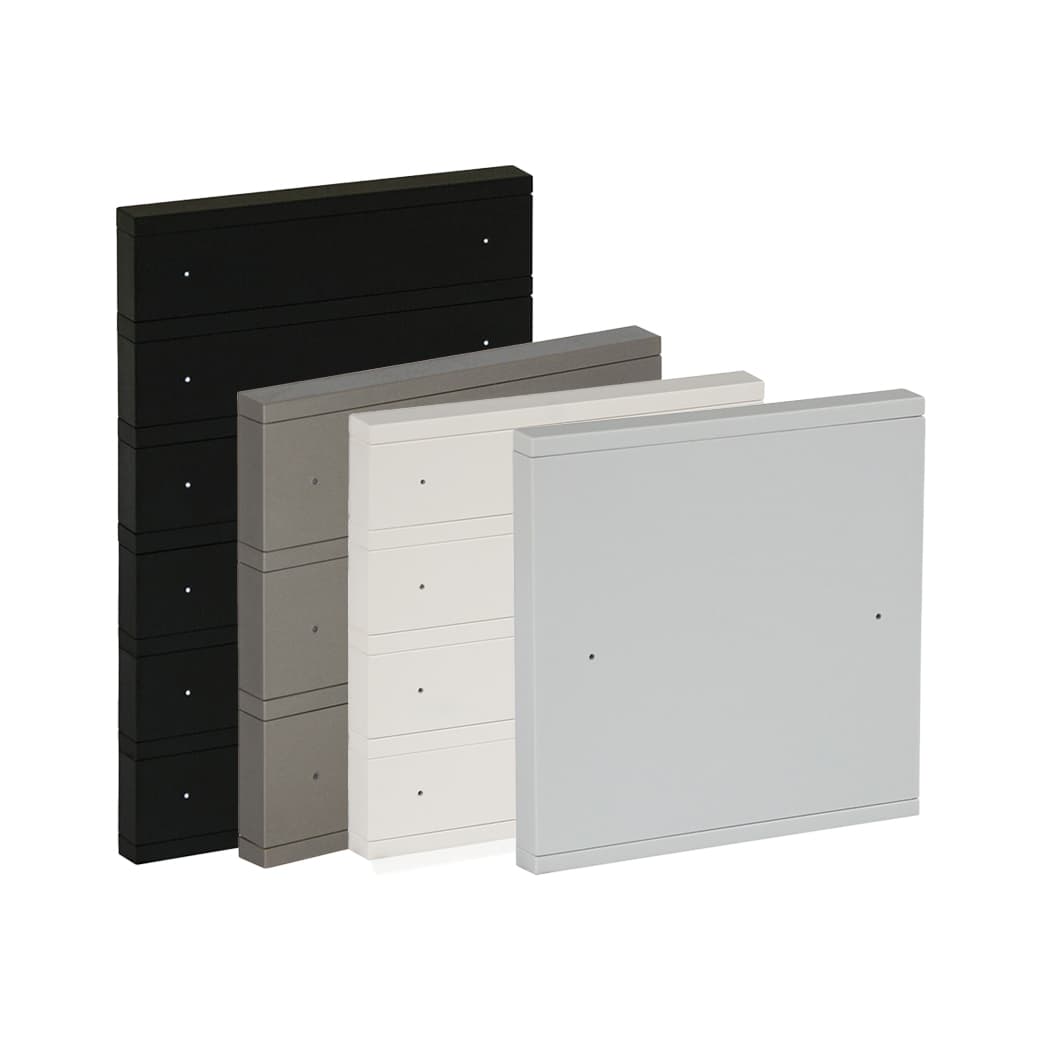

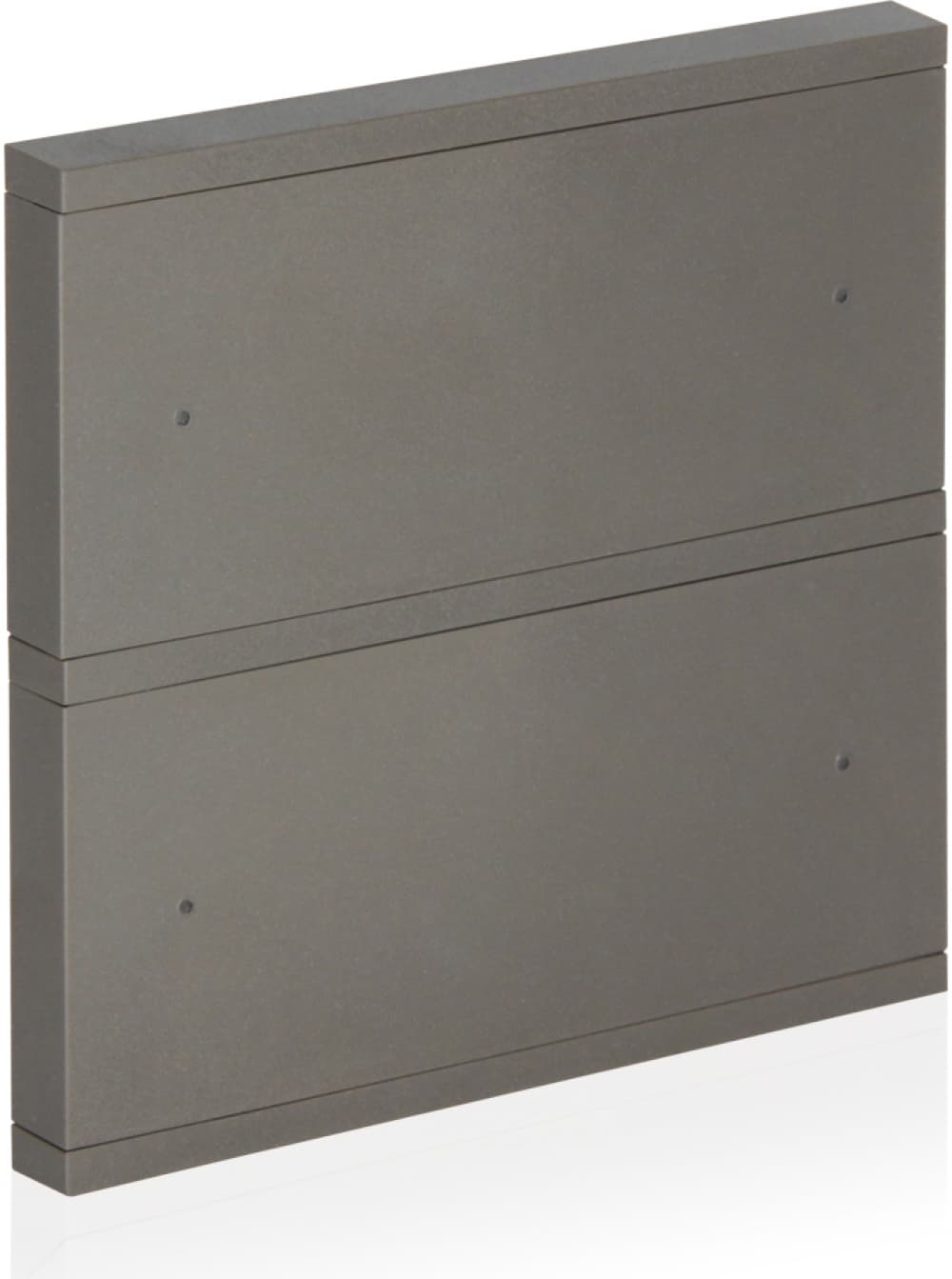

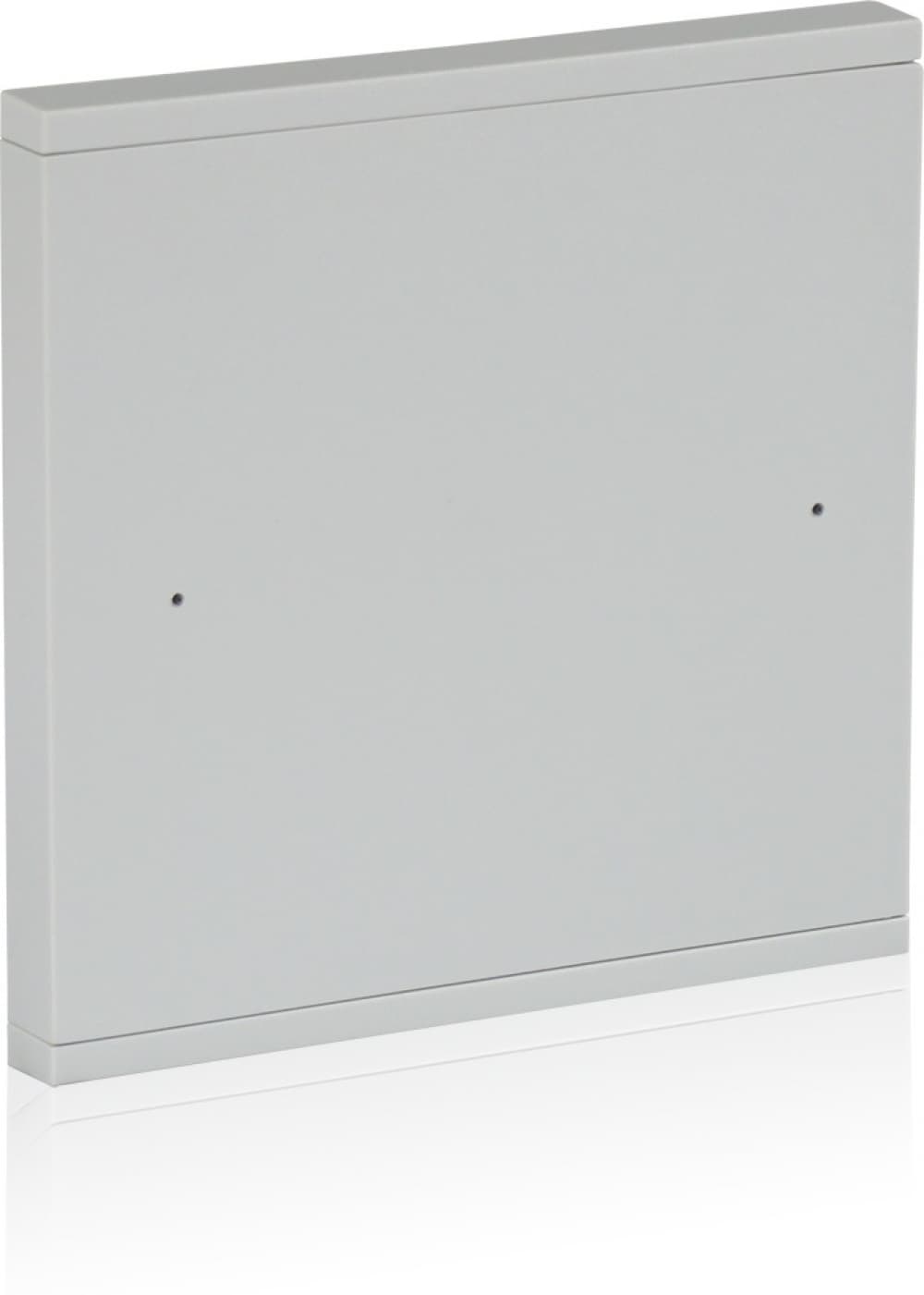

The Oria KNX Push Button is a modular KNX wall switch from the EAE Oria family. Frames extend from a single key up to 12 programmable buttons in one plate (INT-OS0 through INT-OS6), minimising wall clutter while maximising control density from standard 60 × 60 mm junction boxes.

Each button is independently configurable for switching, dimming, shutter/blind control, value transfer, scene recall, and status LEDs. Optional integrated temperature and humidity sensors feed climate data to the KNX bus. The anti-fingerprint surface carries a lifetime quality guarantee.

Key Features — Modular Push-Button Control

Button Functions

• Independent configuration per fold and per button.
• Press types: Short, long, double, and triple press.
• Functions: Switching, dimming, shutter/blind, value/priority, scene control.
• Feedback LEDs: Optional status indication per button.
• Logic blocks: 2 independent logic blocks.

Optional Sensing

• Temperature sensor: ± 0.4 °C accuracy (optional).
• Humidity sensor: ± 5 % accuracy (optional).

At a Glance

Specification	Detail
Product type	KNX modular push-button switch
Order code family	INT-OS0 – INT-OS6
Key counts	1, 2, 4, 6, 8, 10, or 12 programmable keys
Finishes	Anthracite, Antique, Mustang gray, Pearl White
Mounting	Flush — 60 × 60 mm junction box
Front dimensions	90 × 90 mm (modular frames extend vertically)
Weight	73 g (typical single module)
Power supply	KNX bus 21 – 30 V DC — no auxiliary supply
Configuration	ETS 5+ — SMx Oria Switch v2.1

Full order-code matrix is below. Datasheet, manuals, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Hotel corridors and rooms: High-density switching and scene control from one frame.
• Residential: Lighting, blinds, and audio control with optional temp/humidity sensing.
• Combined thermostat + switch: Choose the EAE Oria KNX Thermostat Switch when HVAC setpoint control is needed on the same plate.
• Metal finish alternative: See Rosa Metal KNX Touch Switches for frameless brushed aluminium.
• Actuators: Pair with EAE SW108 or RCU0800 for load and HVAC actuation.

Manufacturer Order Codes (FM)

Twenty-eight order codes: seven key layouts × four finishes. All flush-mounted.

Finish	1 key	2 keys	4 keys	6 keys	8 keys	10 keys	12 keys
Anthracite	INT-OS0-0100	INT-OS1-0100	INT-OS2-0100	INT-OS3-0100	INT-OS4-0100	INT-OS5-0100	INT-OS6-0100
Pearl White	INT-OS0-0200	INT-OS1-0200	INT-OS2-0200	INT-OS3-0200	INT-OS4-0200	INT-OS5-0200	INT-OS6-0200
Mustang gray	INT-OS0-0300	INT-OS1-0300	INT-OS2-0300	INT-OS3-0300	INT-OS4-0300	INT-OS5-0300	INT-OS6-0300
Antique	INT-OS0-0700	INT-OS1-0700	INT-OS2-0700	INT-OS3-0700	INT-OS4-0700	INT-OS5-0700	INT-OS6-0700
