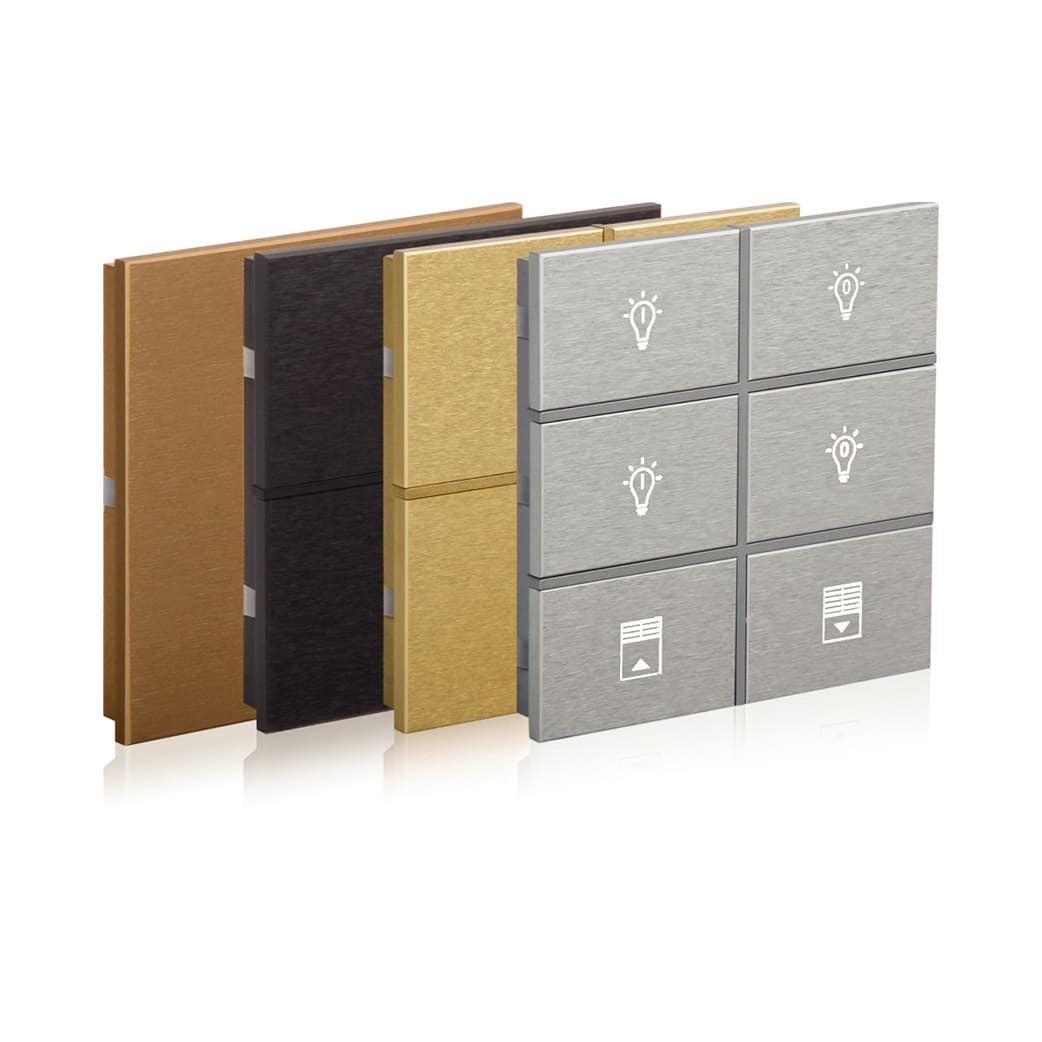

The EAE Rosa Metal KNX Touch Switches combine frameless brushed-metal aesthetics with capacitive touch operation. Built from 7000-series aluminium in an 85 × 85 mm plate, Rosa switches are available from 1 to 10 touch keys (INT-RMS0 – INT-RMS5) in four metal finishes — Anthracite, Natural, Bronze, and Gold.

Each touch zone is independently programmable with short/long press for dual functions. Optional built-in temperature sensor (± 0.4 °C) and humidity sensor (± 5 %) provide decentralised climate data. Navigation and feedback LEDs show switch status and guide users in the dark.

Key Features — Frameless Metal Touch Switches

Design and Operation

• Frameless 85 × 85 mm brushed metal plate — extends vertically with key count.
• Capacitive touch: Large touch zones with short/long press options.
• 7000-series aluminium construction.
• Custom icons: User-friendly and custom engraved/serigraphed designs.
• Navigation LED: Locates the plate in darkness.
• Feedback LEDs: Status for lighting, blinds, and HVAC at a glance.

At a Glance

Specification	Detail
Product type	KNX capacitive touch metal switch
Order code family	INT-RMS0 – INT-RMS5
Key counts	1, 2, 4, 6, 8, or 10 touch keys
Finishes	Anthracite, Natural aluminium, Bronze, Gold
Mounting	Flush — 60 × 60 mm junction box
Front dimensions	85 × 85 mm (extends with folds)
Power supply	KNX bus 21 – 30 V DC (≤ 10 mA)
Configuration	ETS 5+ — STx Rosa Switch v2.1

Full order-code matrix is below. Datasheet, manuals, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Premium residential and hotels: High-end metal finish with intuitive touch control.
• Decentralised temperature: Optional built-in sensor reduces separate wall probes.
• Combined thermostat + switch: Choose the Rosa Metal KNX Touch Thermostat when HVAC setpoint is needed.
• Plastic alternative: See Oria KNX Push Button for modular polycarbonate switches up to 12 keys.
• Actuators: Pair with EAE SW108 or RCU Room Control Units.

Manufacturer Order Codes (FM)

Twenty-four order codes: six layouts × four finishes. Suffix B0 = status LEDs, no engraved icons.

Finish	1 key	2 keys	4 keys	6 keys	8 keys	10 keys
Anthracite	INT-RMS0-0100B0	INT-RMS1-0100B0	INT-RMS2-0100B0	INT-RMS3-0100B0	INT-RMS4-0100B0	INT-RMS5-0100B0
Natural	INT-RMS0-0400B0	INT-RMS1-0400B0	INT-RMS2-0400B0	INT-RMS3-0400B0	INT-RMS4-0400B0	INT-RMS5-0400B0
Bronze	INT-RMS0-0500B0	INT-RMS1-0500B0	INT-RMS2-0500B0	INT-RMS3-0500B0	INT-RMS4-0500B0	INT-RMS5-0500B0
Gold	INT-RMS0-0600B0	INT-RMS1-0600B0	INT-RMS2-0600B0	INT-RMS3-0600B0	INT-RMS4-0600B0	INT-RMS5-0600B0

Note: Bronze and Gold finishes may show natural tone variation from the anodising process.
