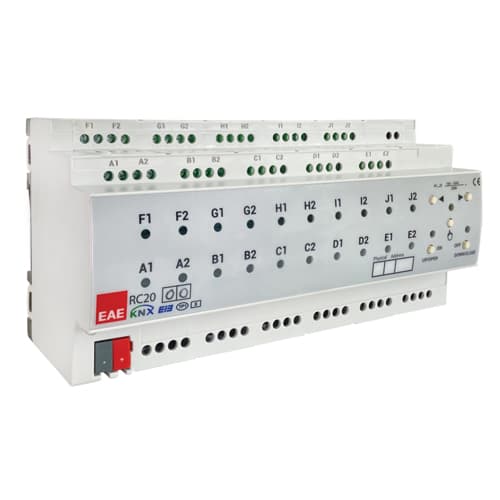

The EAE RCU2000 KNX Room Control Unit is an all-in-one DIN-rail actuator for hotel rooms, apartments, and commercial spaces. The highest output count in the output-only range: 20 × 16 A relay outputs in five independent output channel groups — for the most demanding single-room load lists.

From a single module it controls lighting, blinds, fan coils, and optional dry-contact inputs where fitted. The RCU2000 is bus-powered (no external auxiliary supply required) and switches resistive, capacitive, and inductive loads in accordance with EN 60669, including fluorescent lamp loads at 16 A / 250 V AC.

Key Features — 20x16A Outputs

Output Configuration

• 20 × 16 A relay outputs: Grouped into 5 independent output channel groups.
• Per-group modes: Switching (×4), AC blind (×2), DC blind (×1), 2-point valve (×2), 3-point valve (×1).
• Manual control: On-device manual override per channel.
• Switching rating: 16 A at 250 V AC — 6 × 10³ ops (resistive) per datasheet.

Room Functions

• Light switch: On/off lighting control.
• AC/DC blind control: Shutter and blind positioning.
• Fan control: Ventilation switching.
• Fan coil control: 2- and 3-point valve HVAC control.
• Dry contact inputs: Card holder, window contact, and other dry inputs (where inputs fitted).

Logic Functions

• Staircase, external logic, priority, threshold, operating hour, sweep.

At a Glance

Specification	Detail
Product type	Room Control Unit — 20 outputs (output-only)
Order code	RCU2000 (SMP RCU2000)
Relay outputs	20 × 16 A
Output channel groups	5 independent configurable groups
Load standard	EN 60669 (resistive, capacitive, inductive, fluorescent)
Power supply	KNX bus — no auxiliary supply required
Configuration	ETS — KNX Room Control Unit v2.0
Dimensions (H × W × D)	66 × 180 × 90 mm (10 MW)
Mounting	35 mm DIN rail (EN 60715)

Full electrical ratings are listed under Technical Specifications. Datasheet, product manual, installation manual, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Hotel guest rooms: Central room controller for lighting, blinds, and fan coil — ideal for GRMS integration.
• Residential apartments: Single-module control of a room's lighting, shading, and HVAC.
• Commercial spaces: Meeting rooms and individual offices with mixed load types.
• Complex commercial zones: Five output channel groups handle extensive lighting, multiple blind motors, and multi-circuit fan coil valve control.
• Separate actuators: Where only switching or dimming is needed, use the EAE SW108 Switch Actuator or SD110 Dim Actuator.

Choosing EAE Room Control Units

The RCU2000 maximises relay outputs without inputs. For 20 outputs plus 18 universal inputs, choose the RCU2018. For 16 outputs, see RCU1600. Need inputs as well? Choose the EAE RCU2018. For smaller wide-body rooms, the RCU1600 offers 16 outputs.

EAE naming: RCUXXYY where XX = output count and YY = input count (0 = output-only). All models share the KNX Room Control Unit v2.0 ETS application.
