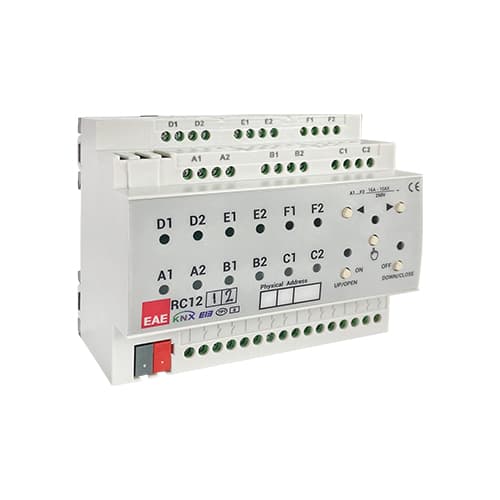

The EAE RCU1212 KNX Room Control Unit is an all-in-one DIN-rail actuator for hotel rooms, apartments, and commercial spaces. Pairs 12 × 16 A relay outputs with 12 universal input channels in the compact 108 mm width — the balanced choice for hotel rooms that need both actuation and conventional switch wiring.

From a single module it controls lighting, blinds, fan coils, and optional dry-contact inputs where fitted. The RCU1212 is bus-powered (no external auxiliary supply required) and switches resistive, capacitive, and inductive loads in accordance with EN 60669, including fluorescent lamp loads at 16 A / 250 V AC.

Key Features — 12x16A Outputs + 12 Digital Inputs

Output Configuration

• 12 × 16 A relay outputs: Grouped into 3 independent output channel groups.
• Per-group modes: Switching (×4), AC blind (×2), DC blind (×1), 2-point valve (×2), 3-point valve (×1).
• Manual control: On-device manual override per channel.
• Switching rating: 16 A at 250 V AC — 6 × 10³ ops (resistive) per datasheet.

Universal Input Channels

• 12 galvanically isolated inputs: Each operates as a universal KNX interface.
• Switch / push-button input: Conventional wall switches and push-buttons.
• Shutter / blind control: Manual blind operation from standard inputs.
• Dimmer control: Analogue dimming commands from connected controls.
• Value transfer / pulse counter: Metering and pulse-count applications.
• Scene control: Scene recall from local buttons.
• Dry contact inputs: Card holders, window contacts, and other dry contacts.

Room Functions

• Light switch: On/off lighting control.
• AC/DC blind control: Shutter and blind positioning.
• Fan control: Ventilation switching.
• Fan coil control: 2- and 3-point valve HVAC control.
• Dry contact inputs: Card holder, window contact, and other dry inputs (where inputs fitted).

Logic Functions

• Staircase, external logic, priority, threshold, operating hour, sweep.

At a Glance

Specification	Detail
Product type	Room Control Unit — 12 outputs + 12 universal inputs
Order code	RCU1212 (SMP RCU1212)
Relay outputs	12 × 16 A
Universal inputs	12 galvanically isolated channels
Output channel groups	3 independent configurable groups
Load standard	EN 60669 (resistive, capacitive, inductive, fluorescent)
Power supply	KNX bus — no auxiliary supply required
Configuration	ETS — KNX Room Control Unit v2.0
Dimensions (H × W × D)	66 × 108 × 90 mm (6 MW)
Mounting	35 mm DIN rail (EN 60715)

Full electrical ratings are listed under Technical Specifications. Datasheet, product manual, installation manual, ETS application, and certificates are under Downloads.

Applications and KNX Integration

• Hotel guest rooms: Central room controller for lighting, blinds, and fan coil — ideal for GRMS integration.
• Residential apartments: Single-module control of a room's lighting, shading, and HVAC.
• Commercial spaces: Meeting rooms and individual offices with mixed load types.
• Full room I/O: Twelve inputs for push-buttons, card holders, and window contacts alongside twelve relay outputs for loads and HVAC.
• Separate actuators: Where only switching or dimming is needed, use the EAE SW108 Switch Actuator or SD110 Dim Actuator.

Choosing EAE Room Control Units

The RCU1212 matches RCU1200 output capacity but adds 12 inputs. For 8+8 in a smaller package, see RCU0808. For 16 outputs, choose RCU1600 or RCU1616. For 12 outputs without inputs, choose the EAE RCU1200. For the largest compact-line room controller, compare with RCU0808 if 8+8 suffices.

EAE naming: RCUXXYY where XX = output count and YY = input count (0 = output-only). All models share the KNX Room Control Unit v2.0 ETS application.
