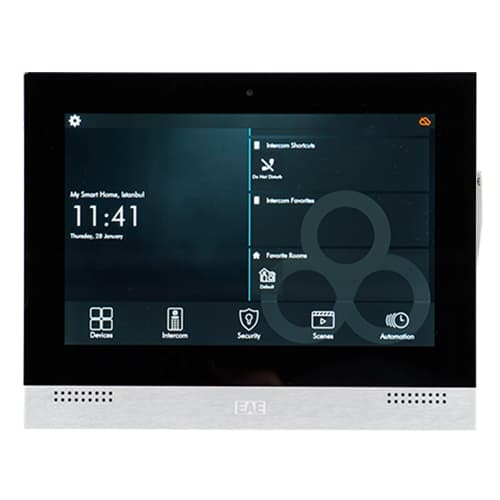

The EAE MIOLA 10″ KNX Touch Screen is a wall-mounted building control platform for hotels, multi-dwelling residential, and commercial projects. The 10.1-inch capacitive display (1280 × 800 px) runs Android 8.0 on EAE's EAEOS platform, connecting directly to the KNX-TP bus while offering dual Ethernet, SIP 2.0 intercom, and mobile app integration.

Unlike compact ETS-configured panels such as the TD4, MIOLA operates as a full KNX server-style HMI — supporting up to 254 accessories and 254 rooms, with complete data retention on power failure. Five onboard dry-contact digital inputs reduce peripheral hardware for door contacts, leak sensors, and fire inputs.

Key Features — 10.1″ KNX Building Controller

Display and Platform

• 10.1″ capacitive touch: 1280 × 800 px projected capacitive panel.
• Processor: PX30 chipset, 1 GB RAM, 8 GB eMMC storage.
• Operating system: Android 8.0 with EAEOS KNX drivers.
• Audio: Built-in microphone (echo cancellation) and 8 Ω / 2 W speaker.
• Trim options: Black aluminium, black plastic, or natural aluminium frame.

Connectivity and Integration

• KNX-TP bus connection: Direct twisted-pair integration.
• Dual LAN: Two Ethernet ports for segmented building/resident networks.
• 5 digital inputs: Dry-contact inputs on panel.
• Power: 12 – 30 V DC.
• Intercom: SIP 2.0 — outdoor units, inter-apartment, security, reception.
• Mobile app: Remote lighting, climate, blinds, alarms, and intercom via cloud.

Control Scope

• Lighting: On/off, dimming, grouping, and scene recall.
• HVAC: Air conditioning, floor heating, radiators, fan coils.
• Shading: Curtains and blinds.
• Security: Sensors, burglar alarm, IP camera integration.
• Site management: Announcements, events, and billing to residents.
• Scenarios: Custom scene creation and one-touch activation.

At a Glance

Specification	Detail
Product type	10.1″ KNX touch panel (MIOLA KNX-TP)
Order code	MIOLA-10
Display	10.1″ capacitive, 1280 × 800 px
System	Android 8.0, PX30, 1 GB / 8 GB eMMC
KNX connection	KNX-TP bus
Ethernet	2 × LAN (dual network)
Digital inputs	5 dry-contact
Intercom	SIP 2.0
Capacity	Max 254 accessories, 254 rooms
Power supply	12 – 30 V DC
On-wall dimensions	264 × 208 × 4 mm
Mounting box (accessory)	189 × 250 × 60 mm — sold separately

Full specifications are listed under Technical Specifications. Datasheet is under Downloads.

Applications and KNX Integration

• Hotels and GRMS: Central room HMI with lighting, HVAC, and guest services.
• Multi-unit residential: SIP intercom, site management, and per-unit climate control.
• Commercial buildings: Dual-LAN segmentation for BMS and tenant networks.
• Compact rooms: Where a smaller ETS panel suffices, consider the EAE TD4 4″ KNX Panel.
• Mounting: Requires the MIOLA 10″ Back Box for in-wall installation.
• System infrastructure: Power the KNX segment from an EAE PS640 Power Supply; extend lines with LC200 or connect IP via IPR200.
• Occupancy sensors: Pair with PD100 presence detectors for automated lighting and HVAC.

Choosing EAE Touch Panels

The MIOLA 10″ is EAE's flagship KNX HMI for scalable projects needing intercom, mobile access, and multi-room control. For single-room flush-mounted control configured in ETS, the TD4 is the compact alternative. EAE also offers a 7″ MIOLA variant for smaller installations.
