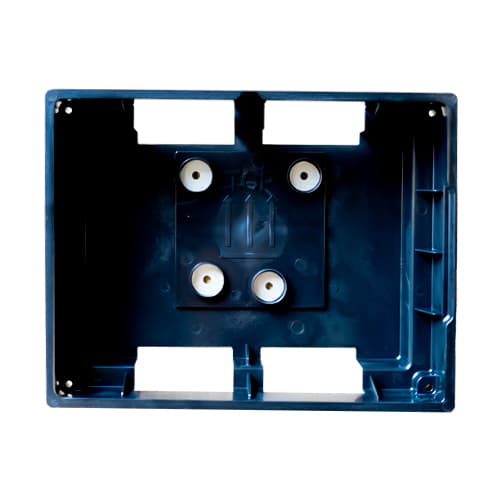

The EAE MIOLA 10″ KNX Touch Screen Back Box is the required in-wall mounting accessory for the EAE MIOLA 10″ KNX Touch Screen. The MIOLA panel is designed for flush in-wall installation only — this back box provides the recessed cavity for cabling, connectors, and the panel's rear electronics.

The mounting box is installed first, aligned vertically in the wall opening. Cables are connected to the panel connectors inside the box, magnets are adjusted for a flush fit, and the touch panel clips onto the front. The box is sold separately from the MIOLA panel.

Key Features — In-Wall Mounting Accessory

• Required for MIOLA 10″: Not optional — the standard MIOLA touch screen cannot be surface-mounted without this box.
• Recessed cable space: Accommodates KNX-TP, dual Ethernet, power (12–30 V DC), and digital input wiring.
• Magnetic panel attachment: Works with the MIOLA mounting magnet system for precise front-panel alignment.
• Vertical alignment: Box must be installed vertically per EAE installation instructions.

At a Glance

Specification	Detail
Product type	MIOLA 10″ in-wall mounting box (accessory)
Order code	50490
Compatible panel	EAE MIOLA 10″ KNX Touch Screen
Mounting box dimensions (W × H × D)	189 × 250 × 60 mm
Panel on-wall dimensions	264 × 208 × 4 mm (reference — panel, not box)
Installation	Flush in-wall — box first, then panel

Installation sequence and dimensional drawings are in the MIOLA datasheet under Downloads.

Installation Sequence

1. Insert the MIOLA 10″ mounting box into the wall opening — align vertically.
2. Switch off mains voltage before connecting cables.
3. Connect KNX-TP, Ethernet, power, and input cables to the panel connectors inside the box.
4. Adjust mounting magnets for a perfect flush fit.
5. Mount the MIOLA 10″ touch panel onto the box.

Choosing MIOLA Accessories

This back box is specific to the 10.1″ MIOLA KNX-TP panel. Order one box per panel. Power the KNX segment from an EAE PS640 Power Supply; the panel itself accepts 12–30 V DC auxiliary power. For a smaller ETS-configured alternative that does not require a separate back box, see the EAE TD4 4″ KNX Panel.
