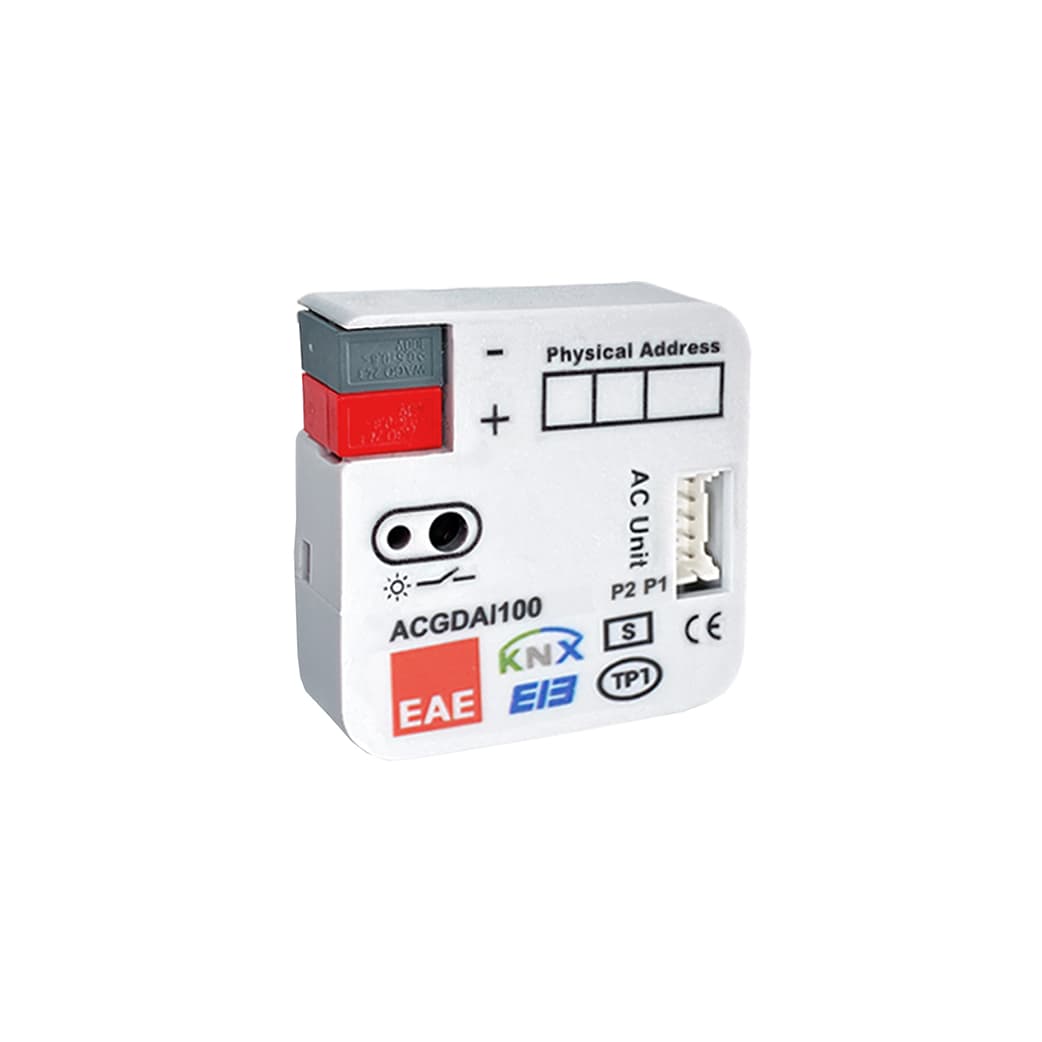

The ACGDAI100 Daikin KNX Gateway integrates Daikin air conditioners into a KNX building automation system. The gateway connects to the indoor unit via the Daikin P1/P2 HomeBus port (9–24 V DC) and communicates on the KNX twisted-pair bus, enabling centralized control of mode, setpoint, fan speed, and on/off from KNX switches, touch panels, schedules, and logic.

The controller supports configurable Master or Slave mode, allowing the AC unit to be managed by the original Daikin wall controller and the KNX bus simultaneously. An Energy Saving mode, scene functions, and built-in logic blocks support hotel GRMS, residential, and commercial HVAC strategies — including external reference temperature from KNX room sensors and automatic state restoration after a bus voltage interruption.

Key Features — Daikin HVAC Integration

Control and Operating Modes

• Master or Slave mode: Daikin thermostat and KNX can control the unit at the same time, with configurable priority.
• Customizable AC functions: Mode, setpoint, fan speed, and on/off mapped to KNX communication objects in ETS.
• Energy Saving mode: Dedicated savings profile to reduce consumption without removing guest comfort options.
• External reference temperature: Use KNX room sensors (e.g. EAE PD100) instead of the AC internal sensor for more accurate climate control.
• Remote control lock: Disable the Daikin IR remote to prevent unauthorized local overrides.
• State preservation: Restores the last AC state after KNX bus voltage returns.

Automation

• Scene function: Integrate HVAC into welcome, away, and check-out scenes alongside lighting and shading.
• Logic function: Conditional operation — for example disable AC when a window contact is open.
• Simultaneous control: Full Daikin wall-controller functionality retained alongside KNX commands.

At a Glance

Specification	Detail
Product type	Daikin AC KNX Gateway
Order code	ACGDAI100
Compatible AC brands	Daikin (see P1/P2 compatibility list in Downloads)
AC connection	P1/P2 HomeBus port — 9–24 V DC
KNX bus	Twisted pair (TP) — bus-powered
Operating modes	Master or Slave (ETS-configurable)
Power supply	22–30 V DC via KNX bus (≤ 10 mA)
Dimensions (L × W × H)	42.5 × 42.5 × 12.8 mm
Supplied cable	40 cm, 2 × 28 AWG — do not extend or shorten

Full electrical ratings, connection diagram, and compatible Daikin models are in Downloads. Verify unit compatibility against the P1/P2 AC Compatibility List before ordering.

Applications and KNX Integration

• Residential split and multi-split: Control Daikin indoor units from KNX touch panels such as the EAE TD4 or MIOLA 10″.
• Hotel GRMS: Pair with EAE RCU room controllers and KMG103 Modbus gateway for occupancy-based HVAC scenes.
• Window interlock: Use UI108 universal inputs for door/window contacts linked to AC logic.
• System infrastructure: Power the KNX segment from an EAE PS640 Power Supply.

Installation Notes

The gateway mounts in or near the Daikin indoor unit enclosure. Use only the supplied 40 cm P1/P2 cable — extending or shortening it can cause malfunction. Route the cable away from mains wiring and earth conductors. Confirm model compatibility in the P1/P2 Compatibility List before installation.
