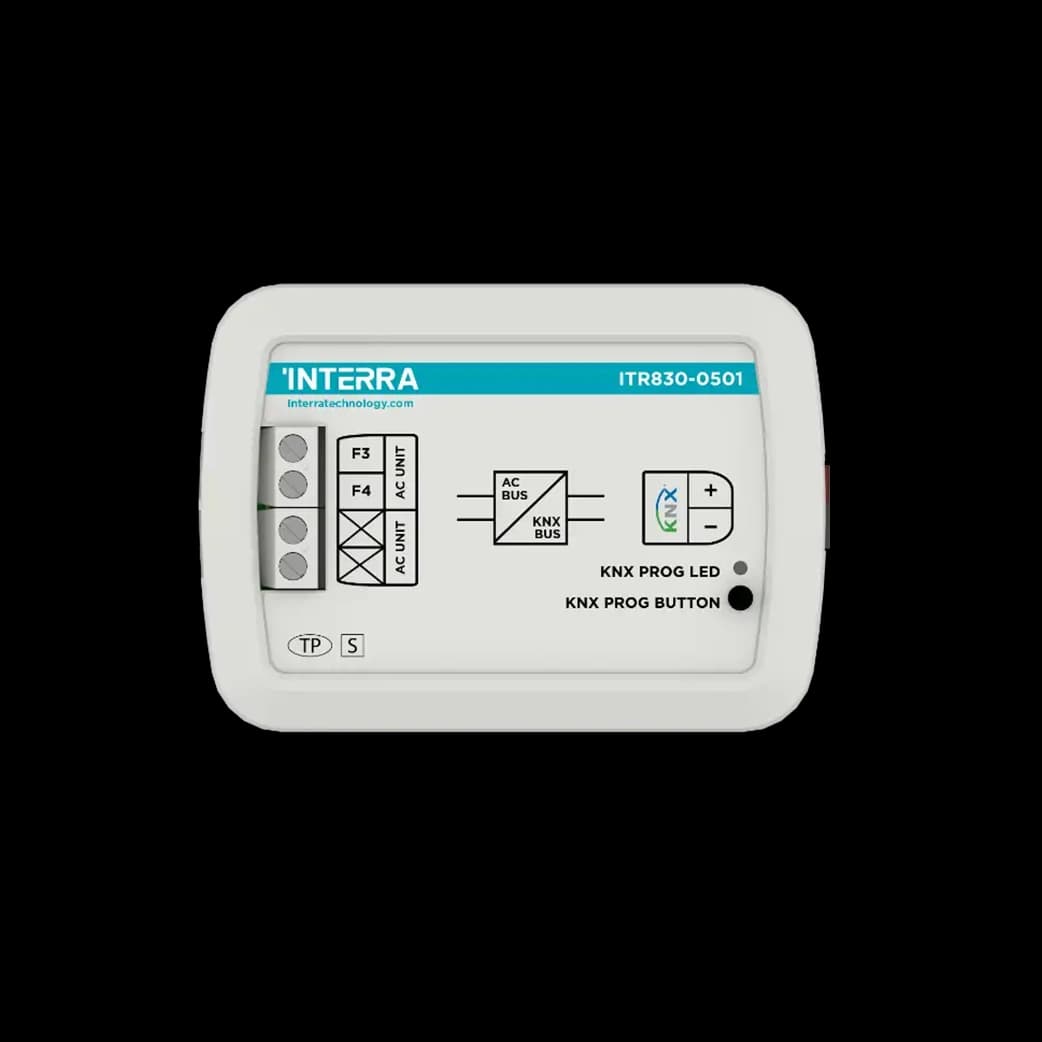

The Interra ITR830-0501 Samsung NASA AC KNX Gateway is an air-conditioning interface for monitoring and controlling the functional parameters of Samsung NASA indoor units over the KNX bus. One side connects to the indoor-unit electronics on the Samsung F3/F4 Home Bus; the other side connects directly to the KNX twisted-pair line for bidirectional integration with ETS, visualisation and hotel / commercial BMS.

The gateway can be installed inside the indoor unit or at a suitable remote location on the F3/F4 bus; Interra specifies a maximum AC-side cable distance of 300 m. According to Interra’s product page, Samsung NASA gateway codings in this family can control 1, 1–4, 4–8, 8–16 or 16–32 air conditioners depending on model number — either synchronously with multicast or independently. For larger groups, Interra documents indoor units 1–16 on port A and 16–32 on port B, with ports kept isolated from each other. On-board 4 logic blocks (AND / OR / XOR, up to 4 inputs each) and 8 converters support energy-saving routines, scenes and temperature limits. The Samsung unit reports error notifications on KNX. Note: the air conditioner must remain off during mode transitions between heating and cooling.

Key Features — Samsung NASA on KNX

• Bidirectional NASA integration: Monitor and control Samsung NASA operating parameters from KNX (modes, setpoints, fan and related objects per ETS application).
• F3/F4 Home Bus: Connects to the AC indoor F3/F4 terminal; may share the bus with optional wired remote controllers as shown in Interra diagrams.
• Multi-unit / multicast: Family supports multi-indoor control and synchronous multicast or independent addressing (confirm capacity for the ordered coding).
• Logic & converters: 4 logical advanced parameters + 8 converter parameters for scenes, limits and energy logic in ETS.
• Fault feedback: AC error notifications published on the KNX bus.
• Compact, bus-powered: 88 × 62 × 27 mm (W × H × D); typical current consumption 10 mA; IP20; KNX certified; S-Mode commissioning; light grey.

At a Glance

Specification	Detail
Order code	ITR830-0501
AC brand / type	Samsung NASA (per Interra compatibility list)
Dimensions (W × H × D)	88 × 62 × 27 mm
Bus current (typ.)	10 mA
AC cable distance (max.)	300 m (F3/F4 Home Bus)
Logic / converters	4 logic blocks · 8 converters
Configuration	ETS (S-Mode)
Protection / certification	IP20 · KNX Certified · CE

Applications and KNX Integration

• Hotels & commercial NASA systems: Address one or multiple NASA indoor units per Interra coding and ETS channel setup; pair with Interra room panels such as iX3 or iX2.
• Other VRF / brand gateways on Smartanix: ITR830-0003 Daikin Sky & VRV, ITR830-0009 Gree VRF, ITR830-0014 Toshiba VRF, ITR830-0013 Midea VRF.
• Related: ITR830-1004 Mitsubishi Heavy, ITR830-0002 Daikin Split.
• Bus power: Allow for the higher 10 mA draw when sizing the line (e.g. ITR900 640 mA).

Choosing and Commissioning

Always verify indoor models against Interra’s official Compatibility List and confirm the indoor-unit capacity of the ordered coding before commissioning. Keep ACs off when switching between heating and cooling modes. Wire F3/F4 polarity and port A/B isolation as documented when using multi-unit groups. Commission with the Interra ETS application for ITR830-0501 (S-Mode). Full ratings, F3/F4 connection diagrams, channel parameters and environmental limits are in the Datasheet and Product Manual under Downloads. Installation must follow Interra wiring rules and local electrical practice.
