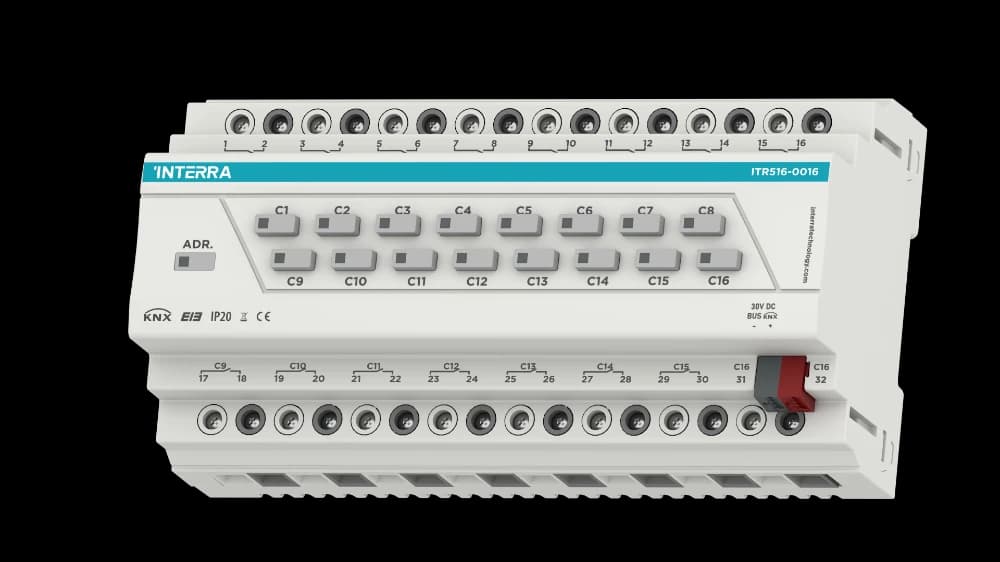

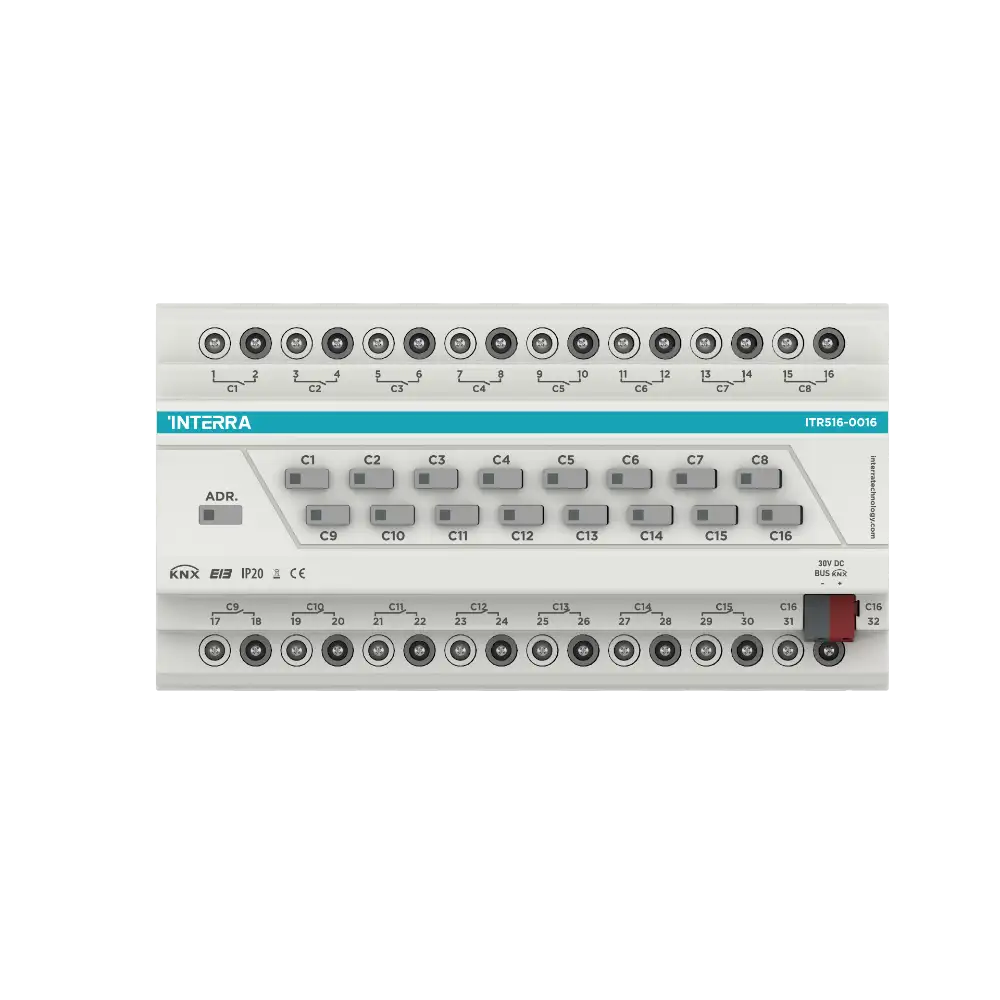

ITR516-0016 | Interra KNX 16-Channel Combo Actuator (16 A)
The Interra KNX 16-Channel Combo Actuator (ITR516-0016) is a premium, ultra-high-density control device designed for the most demanding large-scale and complex KNX automation projects. With an unparalleled sixteen independent output channels and a powerful 16 A switching current capacity per channel, it maximizes consolidation of control for all critical building systems.This Combo Actuator covers every major KNX automation requirement, including comprehensive lighting control (high inrush capacity for LEDs), AC and DC motor control (e.g., shutters, blinds), and centralized fan coil control. Its focus on safe, efficient operation guarantees superior comfort and versatility across large residential and commercial applications.The actuator ensures reliable KNX communication and seamless integration with building management systems. For robustness, it includes manual control pushbuttons on the device, offering a critical override function to control outputs directly, even if bus communication is lost. The device is powered via the KNX bus and fully configured using ETS.
1. ITR516-0016 Interra Combo Actuator: Ultra-High Channel Count and Robust Control
The maximum channel density multi-purpose actuator for the largest projects, offering 16 channels of robust control.
Technical Specifications:
- Product Code: ITR516-0016.
- Channel Count: 16 independent output channels.
- Output Current: 16 A @ 250 V AC per channel.
- Inrush Current: 120 A or 165 A (suitable for high-load LED lighting).
- Installation: 10 DIN units (171 x 90 x 64 mm).
- Bus Power: Supplied with power from the KNX bus (Max. 20 mA consumption).
Core Features:
- Multi-Mode Control: Supports Lighting Control, AC/DC Motor Control, and Fan Coil Control.
- Fail-Safe Operation: Includes manual pushbuttons for direct output control during bus communication failures.
- High-Density Integration: Consolidates 16 channels of control into a single module, drastically optimizing cabinet space.
- Configuration: Complete device setup performed via ETS software.
2. Use in Premium and Large-Scale Smart Building Projects
This high-capacity actuator guarantees the most efficient management and versatile provision of numerous rooms or large zones.
- Hotels/Large Offices: Controls lighting, shading (motors), and HVAC (Fan Coil) for an entire floor or multiple high-occupancy zones from one central module.
- Complex Automation: Ideal for projects where component count and cabinet space must be minimized without sacrificing functionality.
