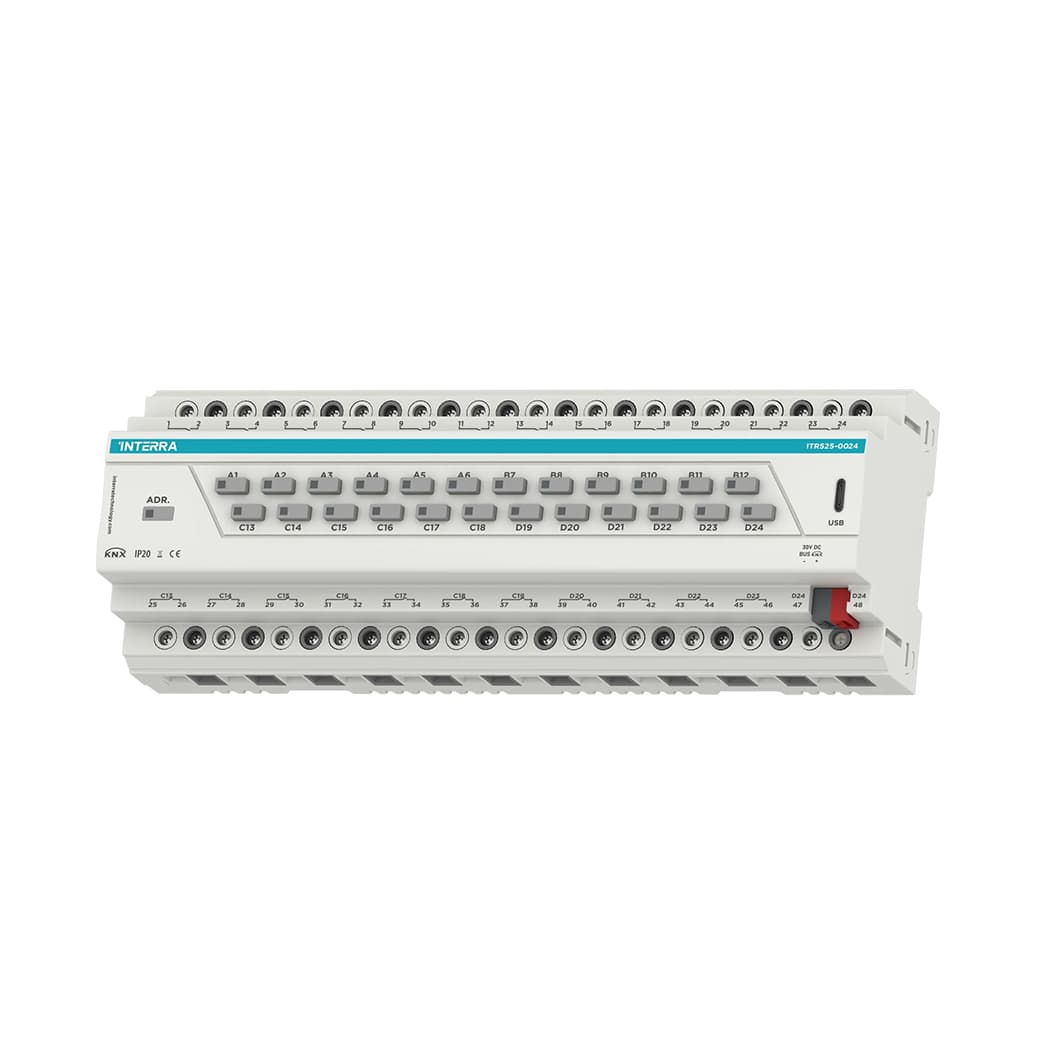

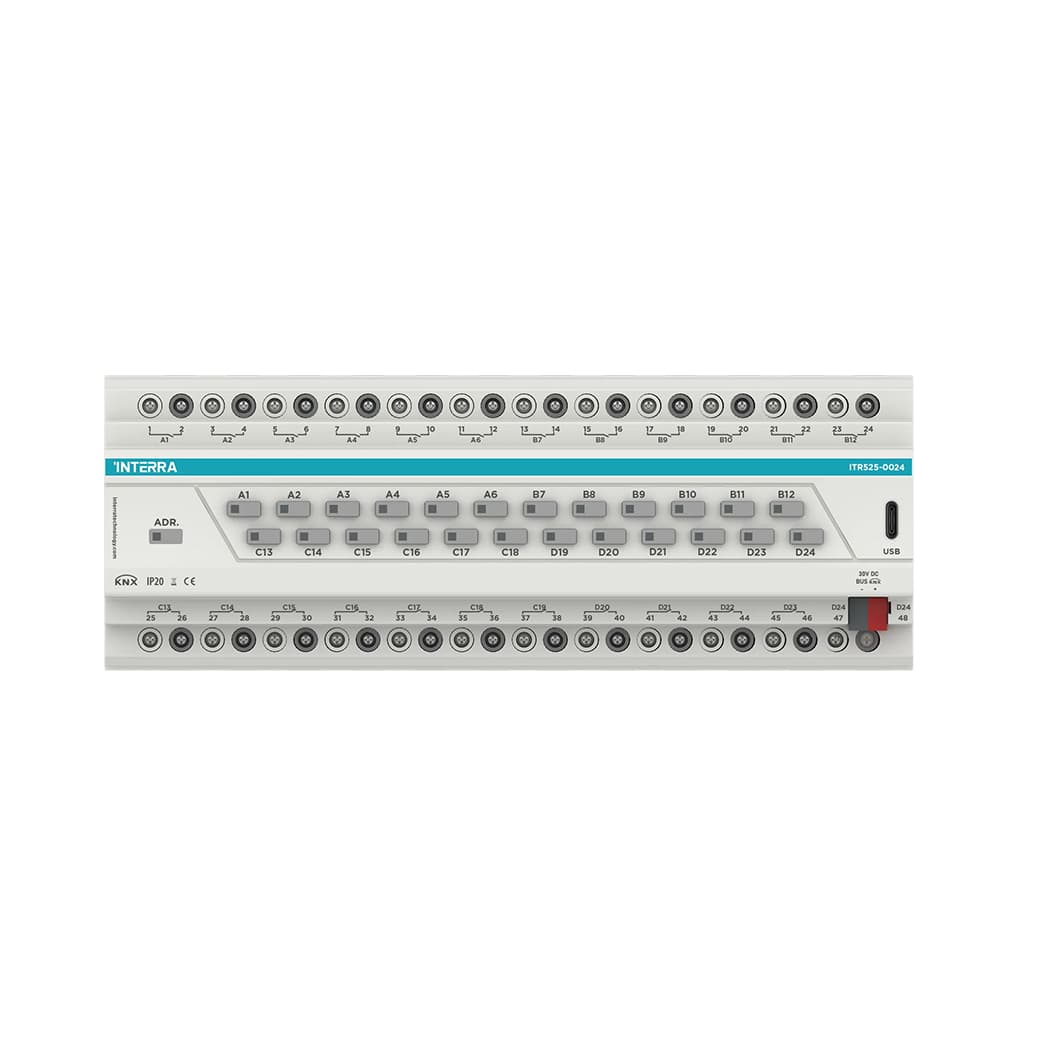

ITR524-0016 KNX Combo+ Switch Actuator: All-in-One Smart Building Control
The ITR524-0016 KNX Combo+ Switch Actuator is a truly versatile device engineered to cover every automation requirement in modern residence and hotel sectors. This single unit provides a variety of configurations, enabling safe and efficient operations for multiple functions within a smart building.This combo device simplifies project complexity by allowing outputs to be configured for: Lighting Control, Heating Control, Shutter/Blind Actuation, and various Fan Coil Systems. The actuator is supplied with power directly from the KNX bus, eliminating the need for an external power supply. Manual control of the outputs via push buttons on the device ensures resilience during bus communication failures.The ITR524-0016 is fully configured via ETS and supports a maximum of 600 group addresses. Its robust feature set includes timing functions, logic gates, scene integration, working hours counter, and last situation memory against power failure.
1. ITR524-0016 KNX Combo+ Actuator: Versatile Configurations
The core strength of the Combo+ actuator lies in its ability to adapt all its outputs to different application requirements, guaranteeing efficient management and provision of rooms.
Functional Flexibility (Configurable Outputs):
- Lighting & Heating: Every output can be configured for Lighting control or Heating control (switching).
- Shutter/Blind Control: Requires 2 consecutive outputs. Includes dedicated configuration for Shutter/blind 24 V.
- Fan Coil Systems: Supports Fan Coil 2 pipes configuration (4 outputs) and Fan Coil 4 pipes configuration (5 outputs), available in the first outputs of the modular blocks (A1-A6, B7-B12, etc.).
- Integration: Seamless communication with KNX sensors, like the Oria Thermostat Switch , and integration with a building management system.
2. Programming, Safety, and Resilience
The ITR524-0016 includes numerous features to ensure reliable, precise, and secure operation.
- Advanced Logic: Features include timing functions, logic gates, scenes, disabling function, forced, working hours counter, and configurable feedback telegrams.
- Power Resilience: Includes Last situation memory against power failure to restore status after a voltage return.
- Manual Control: Allows manual control of the outputs via push buttons on the device, maintaining operation during bus communication failures.
- ETS Programming: The complete configuration is performed via ETS, with support for up to 600 group addresses and 600 assignments.
