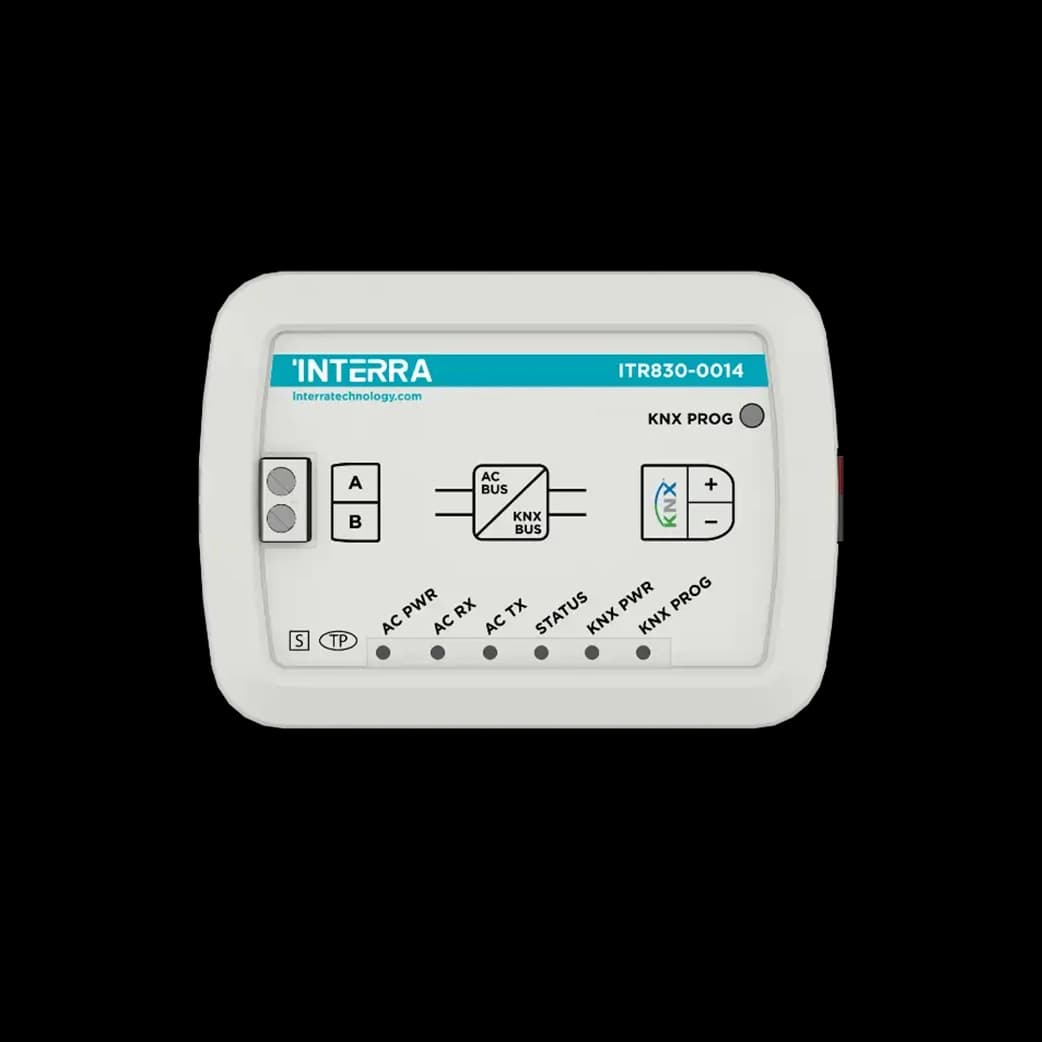

The Interra ITR830-0014 Toshiba VRF AC KNX Gateway is an air-conditioning interface for monitoring and controlling the functional parameters of Toshiba VRF indoor units over the KNX bus. One side connects to the indoor-unit electronics on the Toshiba wired-remote communication bus; the other side connects directly to the KNX twisted-pair line for bidirectional integration with ETS, visualisation and hotel / commercial BMS.

Compatible models are those classified as VRF in the Interra compatibility list (see Downloads). The gateway can be installed inside the indoor unit or at a suitable remote location on the wired-remote bus; Interra specifies a maximum AC-side cable distance of 150 m. It may operate alone or with an optional Toshiba wired remote in a documented master / slave arrangement. On-board 4 logic blocks (AND / OR / XOR, up to 4 inputs each) and 8 converters (four math operations per converter) support energy-saving routines, scenes and temperature limits without extra bus devices. The Toshiba unit reports error notifications on KNX for exceptional faults (error-code mapping is documented in the Interra datasheet).

Key Features — Toshiba VRF on KNX

• Bidirectional VRF integration: Monitor and control Toshiba VRF operating parameters from KNX (modes, setpoints, fan and related objects per ETS application). Available commands may vary by indoor model — check Toshiba/Interra technical documents.
• Wired-remote bus connection: Connects to the AC indoor wired-remote communication terminal; optional wired remote with master/slave roles per Interra connection diagrams.
• Logic & converters: 4 logical advanced parameters + 8 converter parameters for scenes, limits and energy logic in ETS.
• Fault feedback: AC error notifications published on the KNX bus, with KNX hex / remote-controller error mapping in the datasheet.
• Compact, bus-powered: 88 × 62 × 27 mm (W × H × D); typical current consumption 5 mA; IP20; KNX certified; S-Mode commissioning; light grey.
• Flexible mounting: Inside the indoor unit or remotely within the documented 150 m cable distance.

At a Glance

Specification	Detail
Order code	ITR830-0014
AC brand / type	Toshiba VRF (per Interra compatibility list)
Dimensions (W × H × D)	88 × 62 × 27 mm
Bus current (typ.)	5 mA
AC cable distance (max.)	150 m (wired-remote bus)
Logic / converters	4 logic blocks · 8 converters
Configuration	ETS (S-Mode)
Protection / certification	IP20 · KNX Certified · CE

Applications and KNX Integration

• Hotels & commercial VRF: One gateway per addressed Toshiba VRF indoor unit; pair with Interra room panels such as iX3 or iX2.
• Sister VRF gateways on Smartanix: ITR830-0009 Gree VRF, ITR830-0003 Daikin Sky & VRV, ITR830-0013 Midea VRF, ITR830-0501 Samsung NASA.
• Other brands: ITR830-1004 Mitsubishi Heavy, ITR830-0002 Daikin Split.
• Bus power: Size the line with a suitable KNX supply (e.g. ITR900 640 mA) when many gateways share a segment.

Choosing and Commissioning

Always verify the indoor model against Interra’s official Compatibility List before ordering. If a wired remote shares the bus, set gateway and remote master / slave roles as documented (when the remote is master, ambient temperature reference cannot be taken from the KNX bus). Commission with the Interra ETS application for ITR830-0014 (S-Mode; .knxprod under Downloads). Full ratings, connection diagrams, error-code tables and environmental limits are in the Datasheet and Product Manual under Downloads. Installation must follow Interra wiring rules and local electrical practice.
