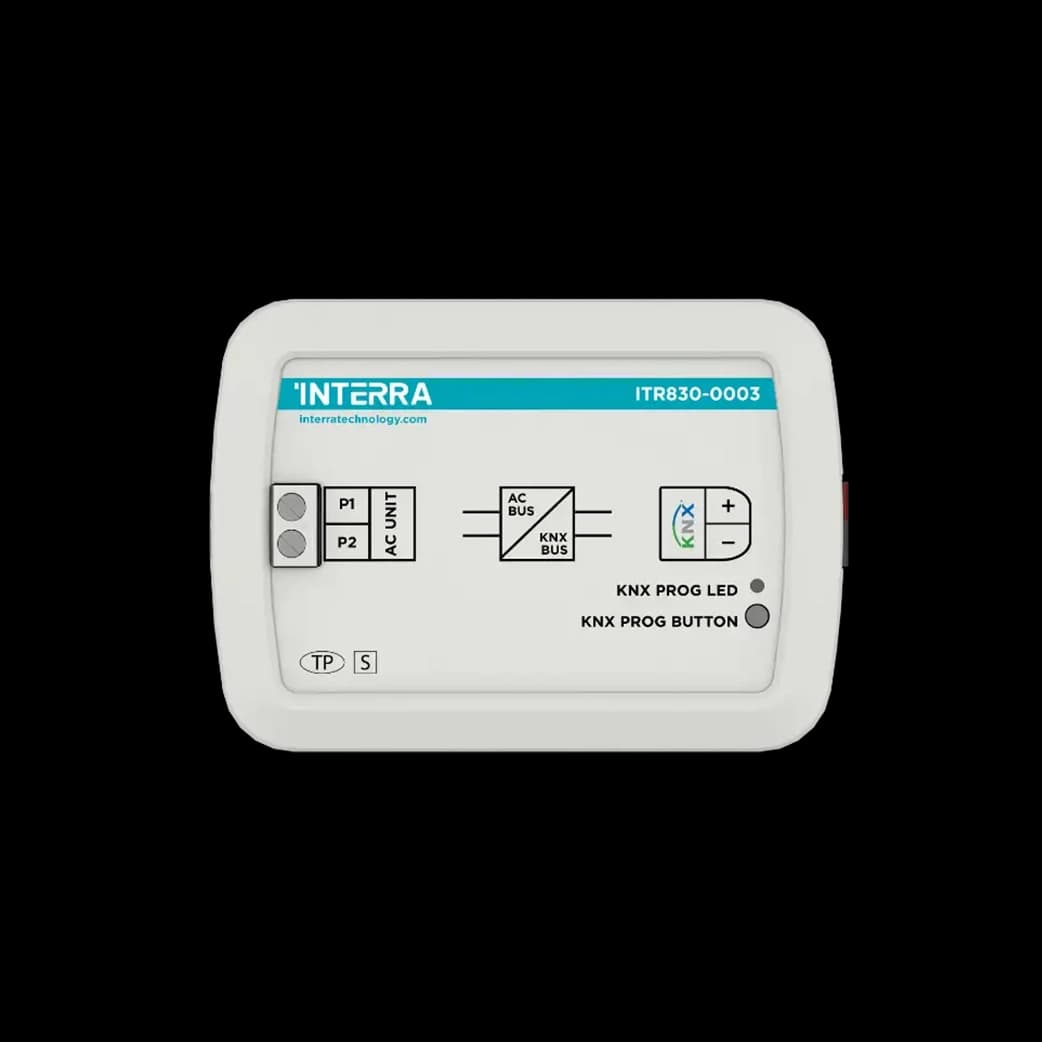

The Interra ITR830-0003 Daikin Sky & VRV AC KNX Gateway is an air-conditioning interface for monitoring and controlling the functional parameters of Daikin Sky and VRV indoor units over the KNX bus. One side connects to the indoor-unit electronics on the Daikin P1/P2 HBS bus (wired-remote / indoor Home Bus path documented by Interra); the other side connects directly to the KNX twisted-pair line for bidirectional integration with ETS, visualisation and hotel / commercial BMS.

Compatible models are those sold by Daikin and classified as Sky or VRV in the Interra compatibility list (see Downloads) — do not use this SKU for Daikin Split systems (use ITR830-0002). The gateway can be installed inside the indoor unit or at a suitable remote location on the P1/P2 bus; Interra specifies a maximum AC-side cable distance of 350 m. On-board 4 logic blocks (AND / OR / XOR, up to 4 inputs each) and 8 converters (four math operations per converter) support energy-saving routines, scenes and temperature limits without extra bus devices. The Daikin unit reports error notifications on KNX for exceptional faults.

Key Features — Daikin Sky & VRV on KNX

• Bidirectional Sky / VRV integration: Monitor and control Daikin Sky & VRV operating parameters from KNX (modes, setpoints, fan and related objects per ETS application).
• P1/P2 HBS connection: Connects to the AC indoor electronic circuit on the Daikin P1/P2 Home Bus; may share the bus with a wired remote controller as shown in Interra connection diagrams.
• Logic & converters: 4 logical advanced parameters + 8 converter parameters for scenes, limits and energy logic in ETS.
• Fault feedback: AC error notifications published on the KNX bus.
• Compact, bus-powered: 88 × 62 × 27 mm (W × H × D); typical current consumption 5 mA; IP20; KNX certified; S-Mode commissioning.
• Flexible mounting: Inside the indoor unit or remotely within the documented P1/P2 cable distance.

At a Glance

Specification	Detail
Order code	ITR830-0003
AC brand / type	Daikin Sky & VRV (per Interra compatibility list)
Dimensions (W × H × D)	88 × 62 × 27 mm
Bus current (typ.)	5 mA
AC cable distance (max.)	350 m (P1/P2 HBS)
Logic / converters	4 logic blocks · 8 converters
Configuration	ETS (S-Mode)
Protection / certification	IP20 · KNX Certified · CE

Applications and KNX Integration

• Hotels & commercial VRF: One gateway per addressed Sky / VRV indoor unit; pair with Interra room panels such as iX3 or iX2.
• Daikin Split: Use ITR830-0002 — not ITR830-0003.
• Other brands on Smartanix: ITR830-0012 Gree Split, ITR830-0013 Midea VRF, ITR830-0004 Mitsubishi Heavy.
• Bus power: Size the line with a suitable KNX supply (e.g. ITR900 640 mA) when many gateways share a segment.

Choosing and Commissioning

Always verify the indoor model against Interra’s official Compatibility List before ordering — Sky / VRV only; Split needs ITR830-0002. Commission with the Interra ETS application for ITR830-0003 (S-Mode; .knxprod under Downloads). Full ratings, P1/P2 connection diagrams and environmental limits are in the Datasheet and Product Manual under Downloads. Installation must follow Interra wiring rules and local electrical practice.
