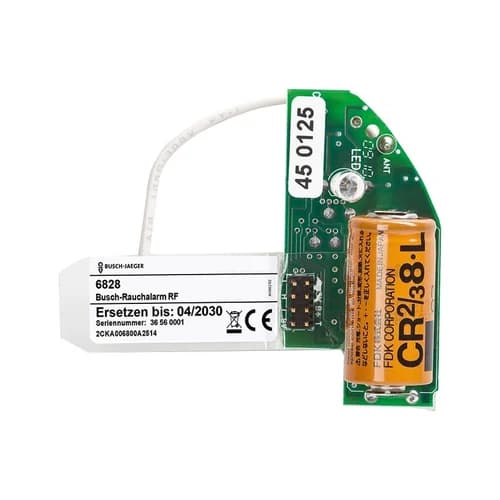

The ABB Busch-Smoke Alarm RF Radio Module (order code 6828) is a plug-in 868 MHz radio module for wireless networking of Busch-Smoke alarm and heat alarm detectors. One module per detector links up to 20 radio participants so that an alarm on any device is forwarded to the entire group.

A permanently installed lithium battery provides at least 10 years of service life. Certified by the KRIWAN Testing Center and suitable for VdS guideline 3515 applications. With the ABB-free@home® Alarm-Stick, detectors can also signal into external free@home systems.

Key Features

• Wireless networking: Links up to 20 Busch-Smoke / heat alarm radio participants.
• 868 MHz RF: Outdoor range up to 100 m; indoor range up to 30 m.
• 10-year lithium battery: Embedded non-rechargeable CR2 cell — no user replacement cycle for typical lifetime.
• free@home ready: Connect alarms to ABB-free@home® via the Alarm-Stick.
• Certified: KRIWAN Testing Center; VdS guideline 3515.
• Compact insert: Accessory module fits the detector recess (approx. 30 × 30 × 27 mm).

At a Glance

Specification	Detail
Product type	RF radio module for Busch-Smoke / heat alarms
Order code	6828
Product ID	2CKA006800A2514
Compatible detectors	6833/01-84 · 6835/01-84 (and related Busch-Smoke / heat alarm series)
Radio frequency	868 MHz
Max. participants	20
Range	Max. 100 m open · max. 30 m indoors
Battery	Embedded lithium · ≥ 10 years
Dimensions (W × H × D)	30 × 30 × 27 mm
Net weight	260 g
Catalog name	Busch-Smoke alarm detector RF

Full battery, classification, and compliance data are listed under Technical Specifications.

Applications and System Integration

• Multi-room smoke networking: Insert one module per detector so an alarm triggers every linked device.
• Residential and apartment projects: Wireless interconnection without extra bus cabling between detectors.
• free@home signalling: Use with the ABB-free@home® Alarm-Stick to forward alarms into the building system.
• Compatible detectors: Pair with 6833/01-84-500 Busch-Smoke Alarm Detector and related heat-alarm variants (e.g. 6835/01-84).
• Relay accessory: Optional RF relay modules such as 6829-84 for external switching.

Installation Notes

Remove the detector from its mounting plate, insert the radio module into the detector recess with correct plug orientation, and route the antenna cable as shown in the ABB instructions. Activate coding mode on each module to build the radio group (complete mounting within the coding window). Operating temperature 0 … +40 °C. See Downloads for installation/operating instructions, dimension drawing, and installation test protocol.
