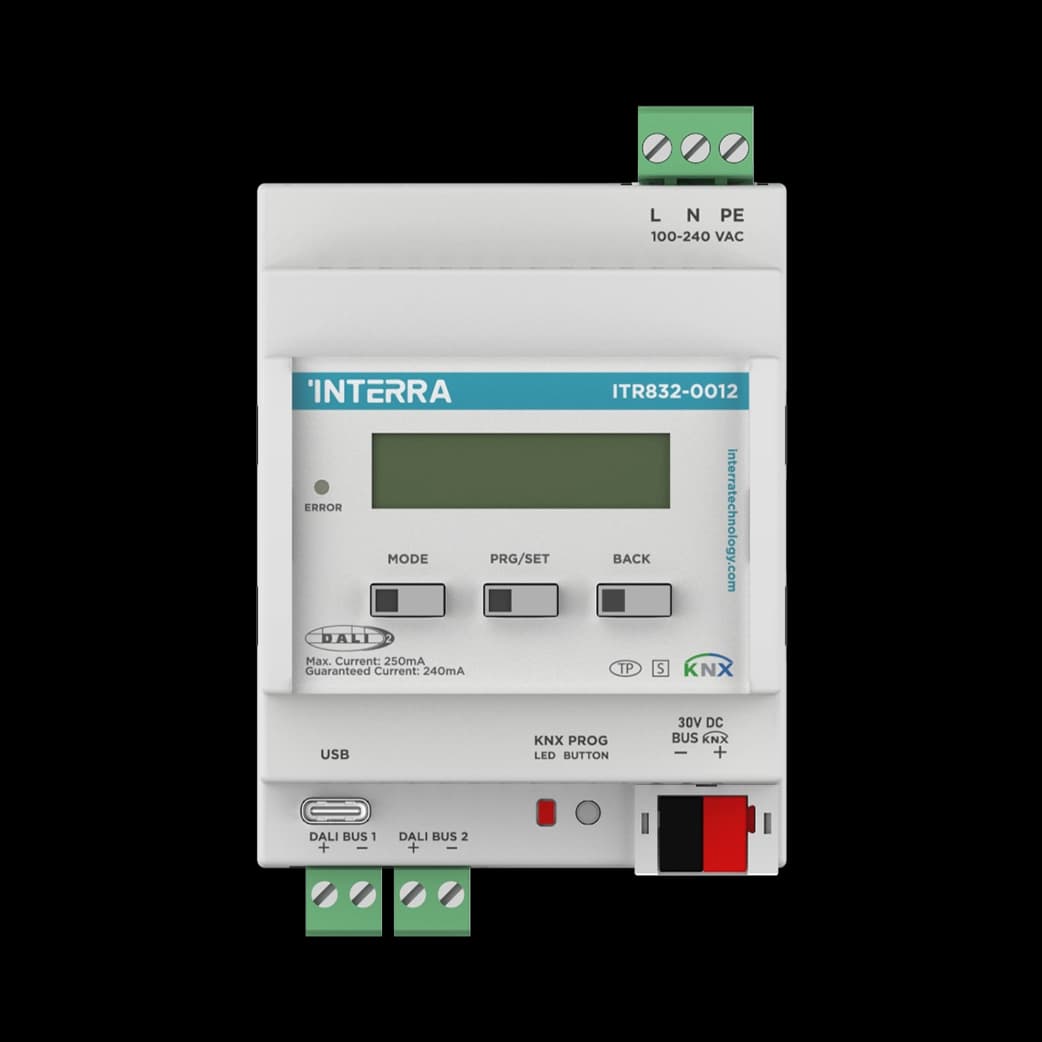

The Interra ITR832-0012 KNX–DALI Gateway is a dual-channel interface between a KNX installation and two independent DALI lighting lines — the without-Ethernet coding of the ITR832-00X2 family. An internal DALI power supply feeds each line; up to 2 × 64 DALI devices (128 total) can be addressed, with 16 groups and 16 scenes per channel. Control is individual, group or broadcast from ETS. Interra’s family datasheet states explicitly: ITR832-0011 & ITR832-0012 have no Ethernet port. USB and KNX remain available; choose ITR832-0002 when Ethernet remote update / web access is required.

Compatible device types include DT0, DT1, DT6 and DT8 (TC / RGB / RGBW). Independent emergency lighting per EN 62386-202 is supported; function and duration tests can be triggered from KNX with feedback to the bus. Addressing via ETS or front buttons, ballast group assignment in ETS, faulty ballast/lamp detection, KNX/DALI voltage status objects, and Tunable White / RGB(W) colour control follow the same Interra KNX–DALI application family as the Ethernet codings. Two separate DALI channel connectors allow independent topology on each line.

Electrical ratings below are taken from the Interra KNX–DALI Gateway family datasheet (product codes ITR832-00X1 / ITR832-00X2), which documents both Ethernet and non-Ethernet variants and names ITR832-0012 in the Ethernet footnote. Commissioning documents and certificates linked under Downloads are those published on the Interra product page for this SKU.

Key Features — 2×64 without Ethernet

• 2 × 64 DALI devices: Two DALI lines with internal supply (typical 2 × 180 mA / ~19 V DC per Interra family datasheet).
• KNX + USB (no Ethernet): ETS (S-Mode) commissioning on KNX TP; USB service port; Ethernet features of the 0002 coding are not present.
• 2×16 LCD + local buttons: Manual DALI device selection and menu helpers on the MDRC front.
• DT0 / DT1 / DT6 / DT8: Fluorescent, emergency, LED and colour (TC, RGB, RGBW).
• Emergency tests: EN 62386-202 tests triggerable from KNX with status feedback.
• Protection: Short-circuit and overvoltage proof DALI outputs; IP20; DIN-rail (TH 35), up to 4 modules wide.

At a Glance

Specification	Detail
Order code	ITR832-0012
DALI channels	2 × 64 (dual channel · 128 max)
Variant	Without Ethernet (USB + KNX)
Mains / consumption	110–240 V AC 50/60 Hz · typ. 13 W
KNX current	8 mA
DALI supply	2 × 180 mA · typ. 19 V DC (12…20.5 V)
Dimensions (H × W × D)	90 × 70 × 64.5 mm
Mounting / protection	DIN rail (MDRC) · IP20 · KNX Certified

Applications and KNX Integration

• Two-zone lighting without Ethernet service: Same dual-line capacity as ITR832-0002 when Ethernet is not required on the gateway.
• Sister Interra gateways: With Ethernet ITR832-0002; single without Ethernet ITR832-0011; single with Ethernet ITR832-0001.
• Alternatives on Smartanix: ABB DG/S2.64.1.1, EAE DA110; ballast-only ITR500-0001.
• KNX line power: Allow for 8 mA bus draw (e.g. ITR900 640 mA).

Choosing and Commissioning

Choose ITR832-0012 for two DALI lines without Ethernet. If you need Ethernet remote update / web commissioning, order ITR832-0002 instead. Commission with the Interra ETS application for this coding (S-Mode; .knxprod files under Downloads — two ETS packages are published on the Interra page). Wire each DALI channel with correct polarity; supply the gateway from 110–240 V AC (L/N/PE) and mount on a dry-location DIN rail. Full family ratings and dual-channel connection diagrams are in the Interra KNX–DALI Gateway datasheet / Product Manual set; certificates linked under Downloads are those listed on this SKU’s Interra product page.
