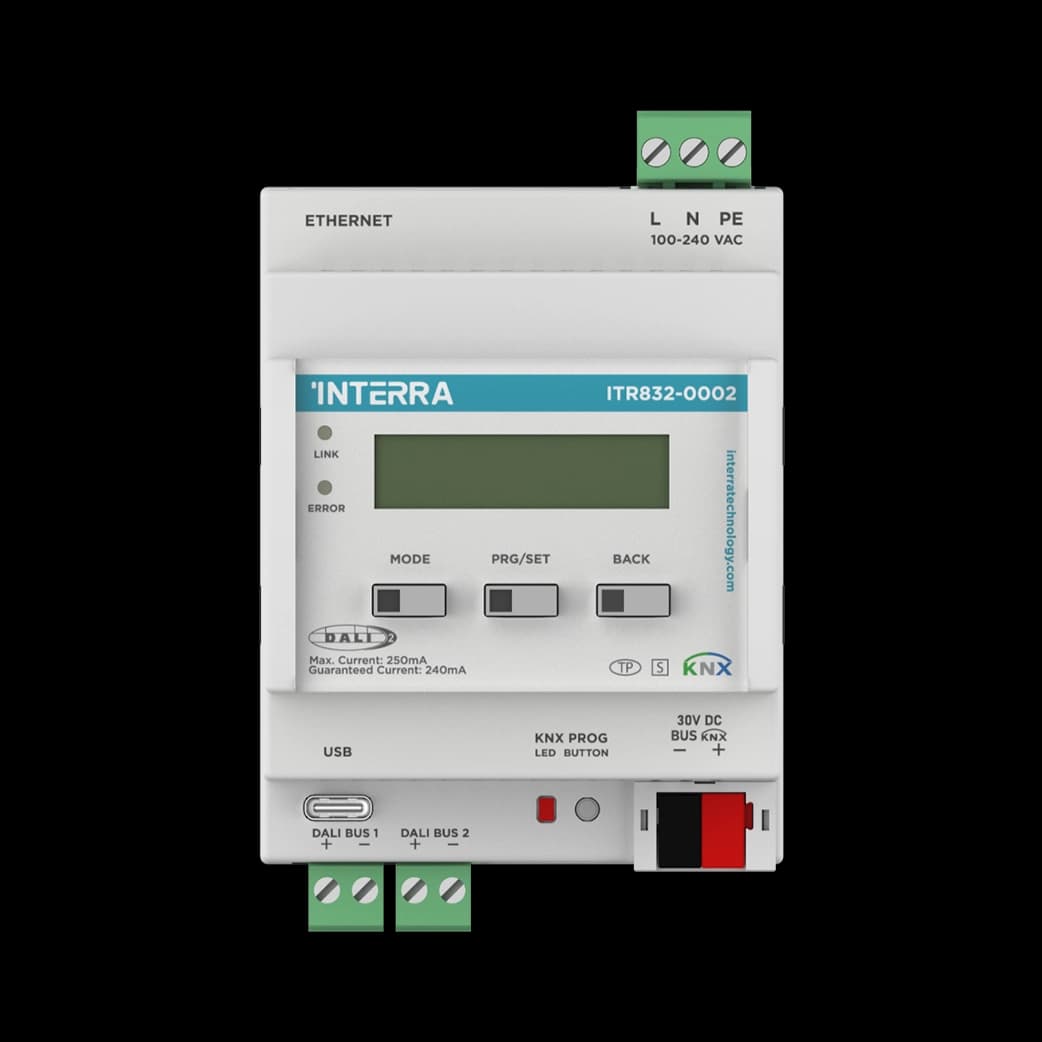

The Interra ITR832-0002 KNX–DALI Gateway is a dual-channel interface between a KNX installation and two independent DALI lighting lines. An internal DALI power supply feeds each line; up to 2 × 64 DALI devices (128 total) can be addressed, with 16 groups and 16 scenes per channel. Control is individual, group or broadcast from ETS. This coding includes the Ethernet port (family coding ITR832-00X2 with X=0) plus USB — unlike ITR832-0012, which has no Ethernet.

Compatible device types include DT0, DT1, DT6 and DT8 (TC / RGB / RGBW). Independent emergency lighting per EN 62386-202 is supported; function and duration tests can be triggered from KNX with feedback to the bus. Addressing via ETS or front buttons, ballast group assignment in ETS, faulty ballast/lamp detection, KNX/DALI voltage status objects, and Tunable White / RGB(W) colour control are documented in the Interra family datasheet. Two separate DALI channel connectors allow independent topology on each line.

Key Features — 2×64 with Ethernet

• 2 × 64 DALI devices: Two DALI lines with internal supply (typical 2 × 180 mA / ~19 V DC per Interra datasheet).
• Ethernet + USB + KNX: Remote software update and embedded web commissioning options for Ethernet variants; USB service; KNX TP for ETS (S-Mode).
• 2×16 LCD + local buttons: Manual DALI device selection and menu helpers on the MDRC front.
• DT0 / DT1 / DT6 / DT8: Fluorescent, emergency, LED and colour (TC, RGB, RGBW).
• Emergency tests: EN 62386-202 tests triggerable from KNX with status feedback.
• Protection: Short-circuit and overvoltage proof DALI outputs; IP20; DIN-rail (TH 35), up to 4 modules wide.

At a Glance

Specification	Detail
Order code	ITR832-0002
DALI channels	2 × 64 (dual channel · 128 max)
Variant	With Ethernet (+ USB + KNX)
Mains / consumption	110–240 V AC 50/60 Hz · typ. 13 W
KNX current	8 mA
DALI supply	2 × 180 mA · typ. 19 V DC (12…20.5 V)
Dimensions (H × W × D)	90 × 70 × 64.5 mm
Mounting / protection	DIN rail (MDRC) · IP20 · KNX Certified

Applications and KNX Integration

• Larger floors & multi-zone lighting: Two independent DALI lines from one MDRC gateway with shared KNX visualisation.
• Sister Interra gateways: Single-channel with Ethernet ITR832-0001; dual without Ethernet ITR832-0012; single without Ethernet ITR832-0011.
• Alternatives on Smartanix: ABB DG/S2.64.1.1, EAE DA110; ballast-only channels ITR500-0001.
• KNX line power: Allow for 8 mA bus draw (e.g. ITR900 640 mA).

Choosing and Commissioning

Choose ITR832-0002 when you need two DALI lines and the Ethernet service path. For one line use ITR832-0001; without Ethernet use 0011 / 0012. Commission with the Interra ETS application (S-Mode; .knxprod under Downloads). Wire each DALI channel with correct polarity; supply the gateway from 110–240 V AC (L/N/PE) and mount on a dry-location DIN rail. Full ratings, dual-channel connection diagram and connector map are in the Datasheet and Product Manual under Downloads.
