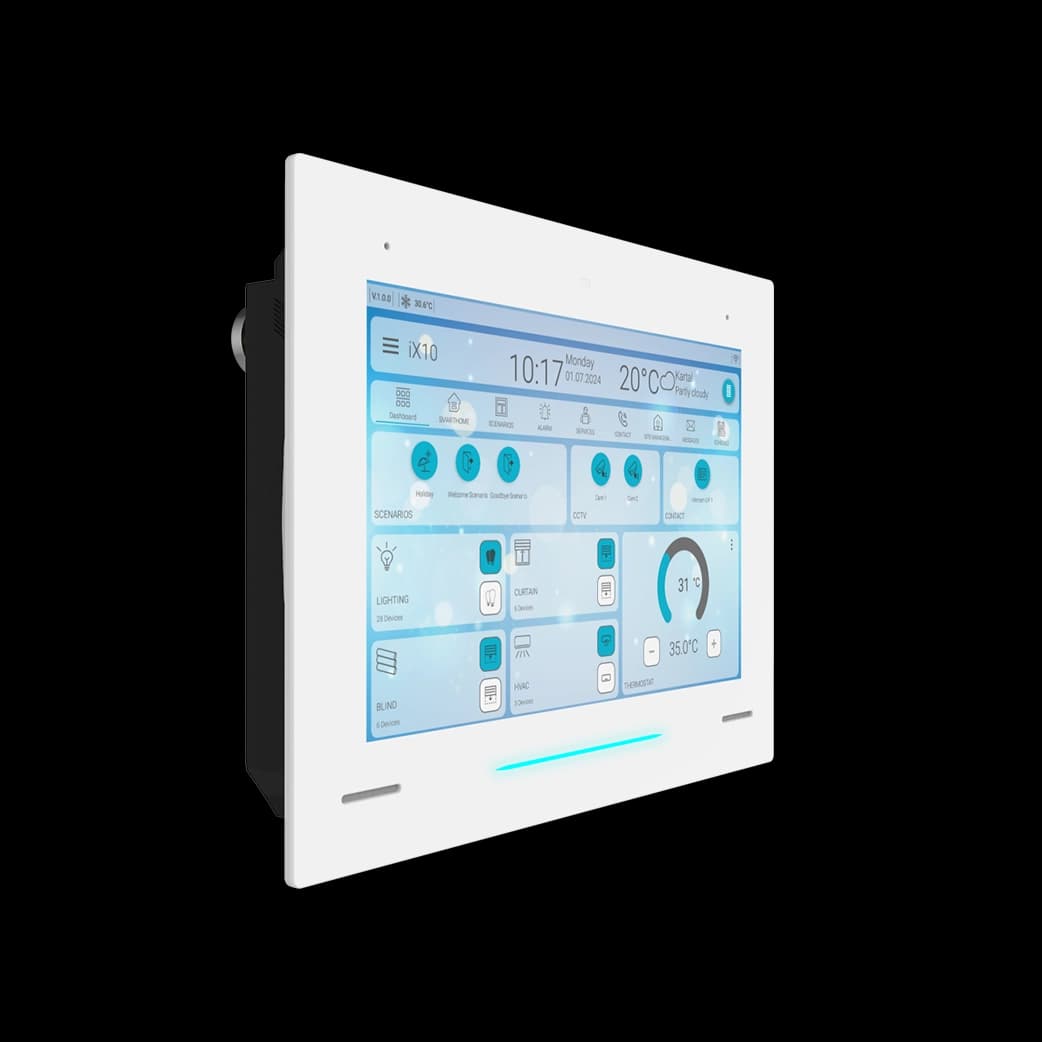

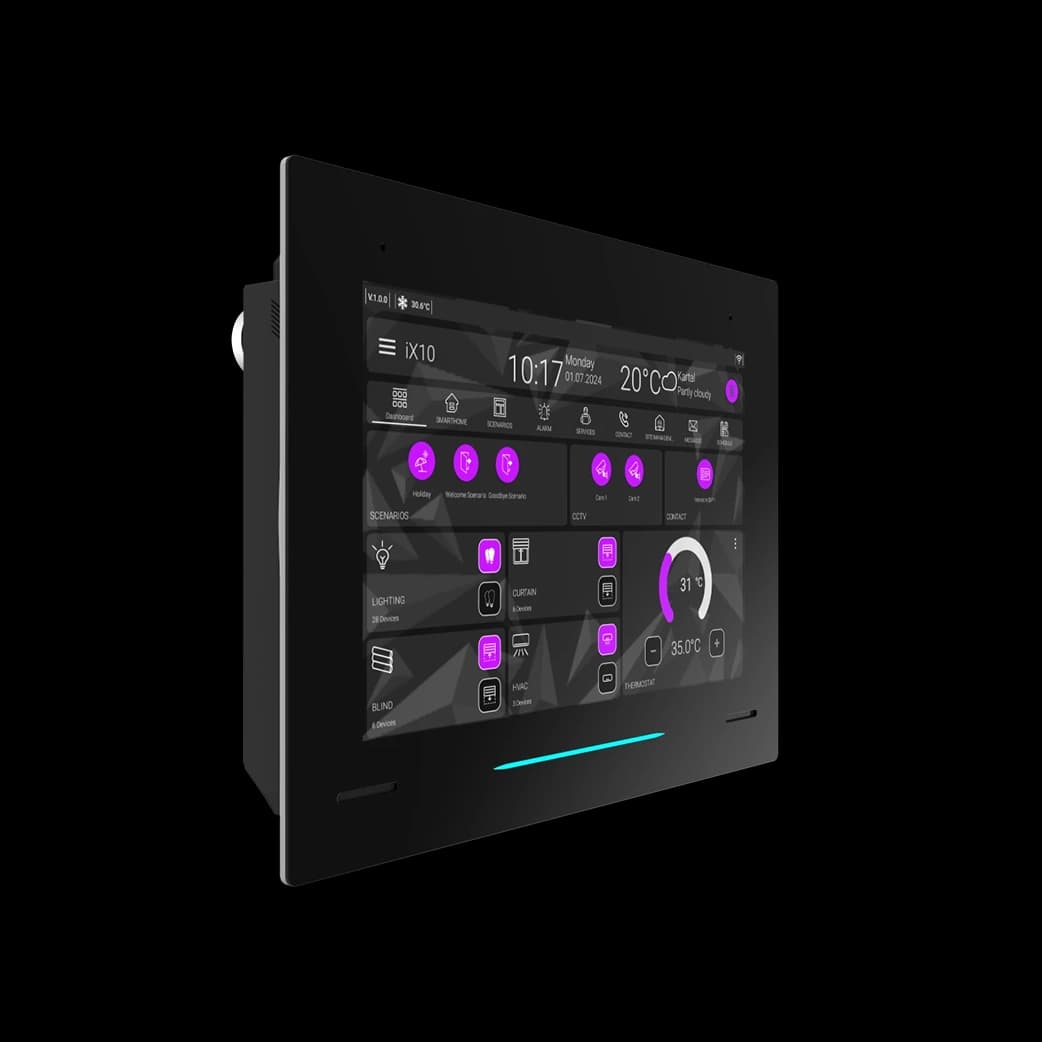

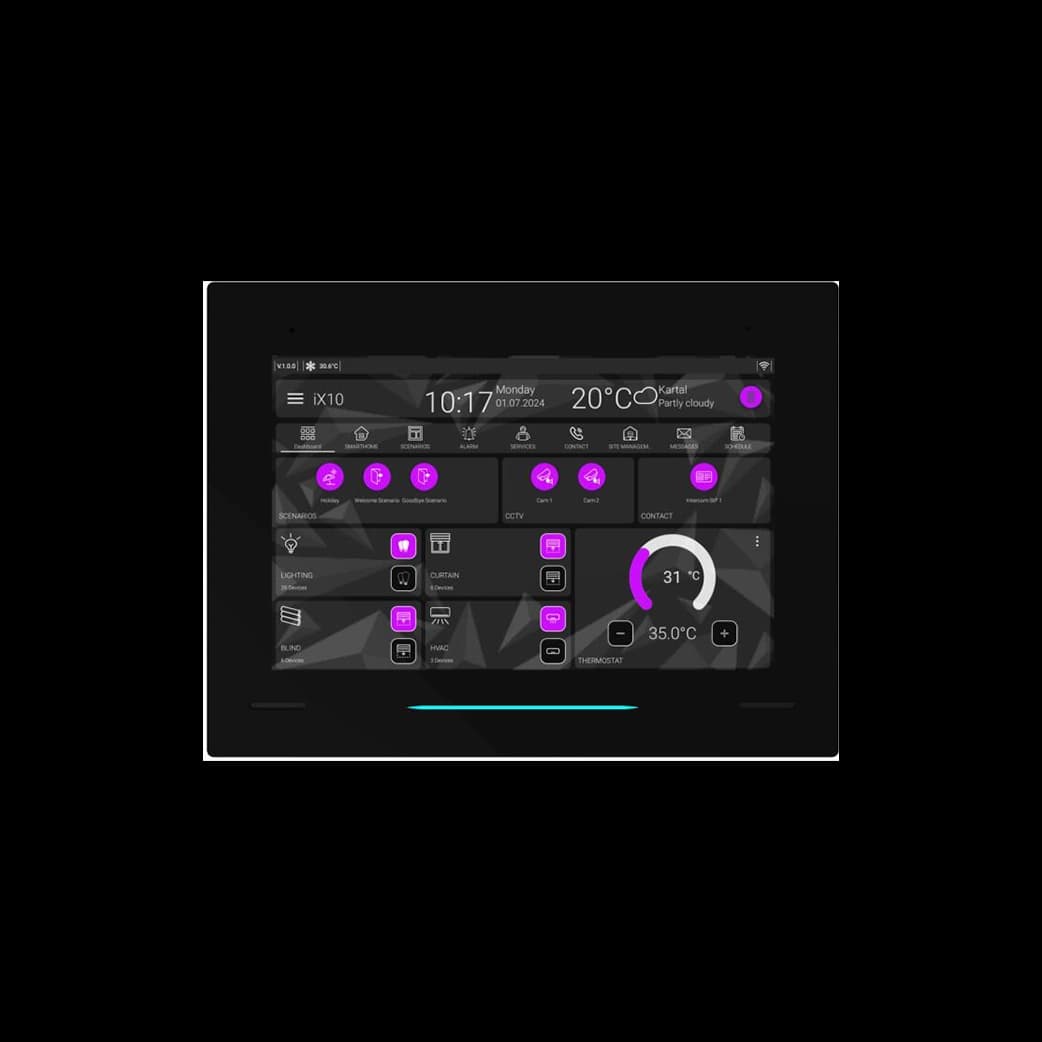

The Interra iX10 is a 10.1″ multitouch building-control panel (1280×800) for lighting, HVAC, cameras, alarms, EIO and KNX from one wall point. Family coding is ITR110-X1 4 X2 X3: this Smartanix range covers full-screen panels (X2=0) in black (X3=0) or white (X3=1), with KNX (X1=1 → ITR110-14xx) or KNX + PoE+ (X1=3 → ITR110-34xx). Configure with Interra Configurator; control remotely via the Interra Pro mobile app.

Hardware includes Quad-Core Cortex-A53, 2 GB RAM, 8 GB eMMC, AOSP 7.1-based OS, 100 Mbps Ethernet, 2× USB 2.0, temp/humidity sensing, MEMS microphone and Hey Interra offline voice assist. On-board I/O: 6 dry-contact inputs and 6 relays (250 V AC / 5 A resistive). Supply is 12–30 V DC and/or PoE+ per coding; KNX bus draw is about 5 mA. Flush box ITR110-9400 (magnets) is typically ordered with the panel — see Accessories PDF under Downloads. Related 10.1″ Interra 4 platform: ITR110-0104.

Key Features — iX10 Full Screen

• 10.1″ central UI: Scenes, timers, logic, security/cameras, IoT and push notifications.
• Four stocked SKUs: Black/white × KNX or KNX+PoE+ (full-screen family).
• Local I/O: 6× dry contact + 6× relay on the panel.
• Voice & climate: Hey Interra assistant; integrated thermostat control in the UI.
• Magnetic flush mount: Pair with ITR110-9400 mounting box.
• Configurator + app: Interra Configurator on PC; Interra Pro on iOS/Android.

Order Codes (this product)

Options	Color	Order code
KNX	Black	ITR110-1400
KNX	White	ITR110-1401
KNX+PoE	Black	ITR110-3400
KNX+PoE	White	ITR110-3401

Framed models (X2=1) and extra frame colours (ITR110-84xx) are documented in Interra’s accessories PDF but are not the variants stocked on this page.

At a Glance

Specification	Detail
Display	10.1″ multitouch · 1280×800
Power	12–30 V DC and/or PoE+ (per SKU) · max 18 W
CPU / memory	Cortex-A53 quad · 2 GB · 8 GB eMMC
Network	100 Mbps Ethernet
GPIO	6 dry contacts · 6 relays (250 V AC / 5 A)
Panel size (W × L × H)	205 × 273 × 36 mm (datasheet)
Protection	IP20 · −20…70 °C operation
Configuration	Interra Configurator (not ETS application)

Applications and Related Products

• Main residence / lobby UI: Single-point control with cloud mobile access.
• Compact room panels: iX3, iX4, iX2.
• Wall keypads: iXM Switch / iXM Thermostat.
• Logic servers: iS1 or iBMS.

Choosing and Commissioning

Pick colour and whether you need PoE+ (ITR110-34xx) or DC-only KNX (ITR110-14xx). Order flush box ITR110-9400 for magnetic install; mount only after wall finishing. Never inject 230 V onto the KNX bus. Black and white Interra pages each publish their own datasheet/CAD/CE links — both are listed under Downloads together with the shared manuals and accessories code list.
