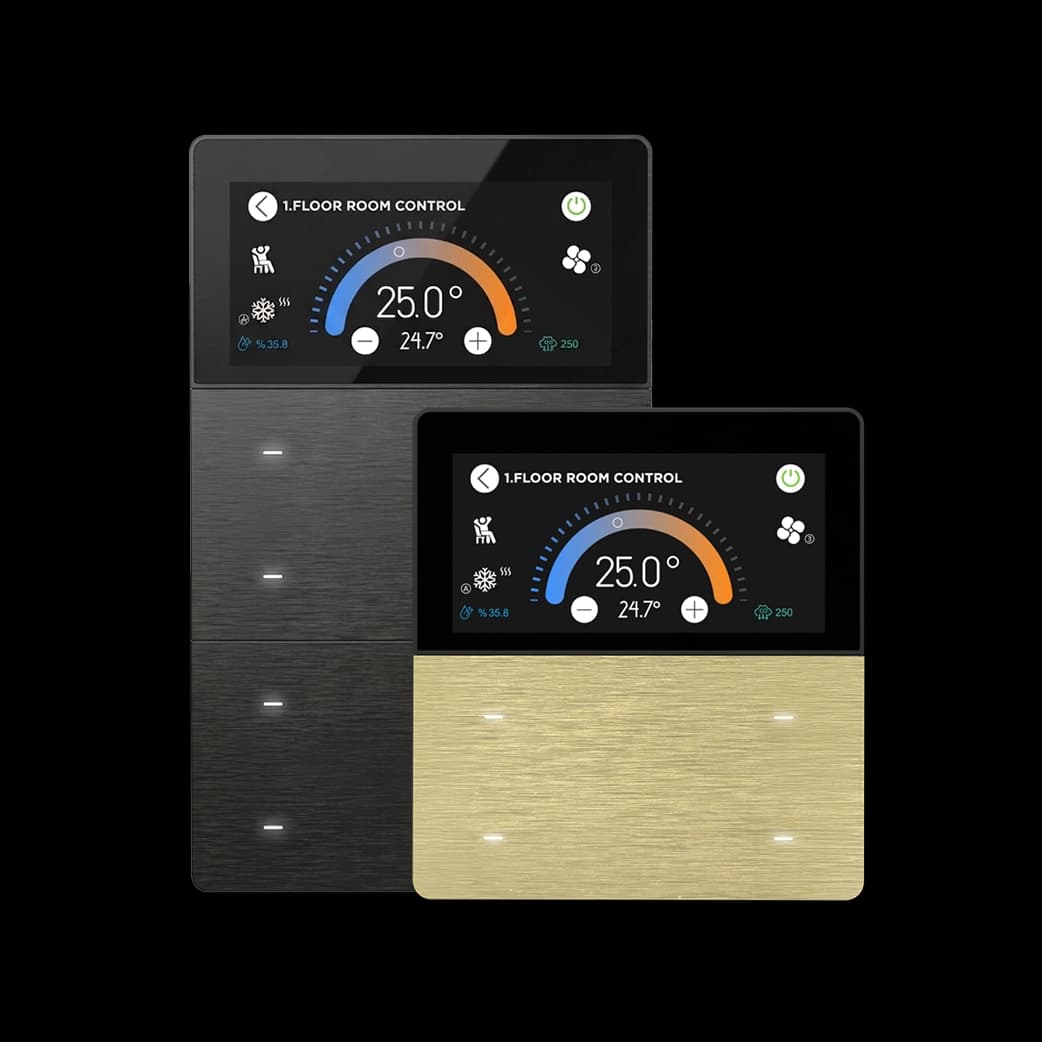

The Interra iXM Thermostat is the LCD / IPS touch branch of the ITR333 KNX Secure family (Interra title: iX-M 3″ Touch Panel). Coding uses X1=1 (LCD, no AQI), aluminium X3=1, and button digit X2=4 → ITR333-141x or X2=8 → ITR333-181x, plus finish X4. The IPS screen adds thermostat pages, AC control, up to 96 functions across 16 pages, meters/sensors/weather views, timers, alarms, passwords and themes — beyond the mechanical buttons alone.

Bus current rises to about 80 mA for LCD models (ITR333-1XXX). Integrated sensors: temperature (±0.2 °C), humidity (±2 %RH), ambient light (to 1800 lux) and proximity; HVAC modes comfort / standby / economy / protection with 2-point, PWM or continuous PI. Up to 13 languages. Same ETS database as the no-LCD iXM Switch. Typical LCD outline 86 × 141 × 11.7 mm.

Key Features — iXM LCD Thermostat (4 / 8)

• 3″ IPS + buttons: Touch UI plus 4 or 8 mechanical keys.
• Room thermostat: 2-point / PWM / continuous PI; weekly mode switching.
• Up to 96 functions: Dedicated pages for climate, AC, RGB, music, shutters, dimming…
• KNX Secure: Shared family .knxprod with switch-only siblings.
• ~80 mA bus: LCD class current; six aluminium finishes stocked here.
• Variant docs: Separate Interra datasheet links for 4-btn vs 8-btn LCD pages.

Order Codes

Select finish and button count above for the live SKU. All variants below are aluminium LCD (X1=1, X3=1).

Finish (X4)	4 buttons (141x)	8 buttons (181x)

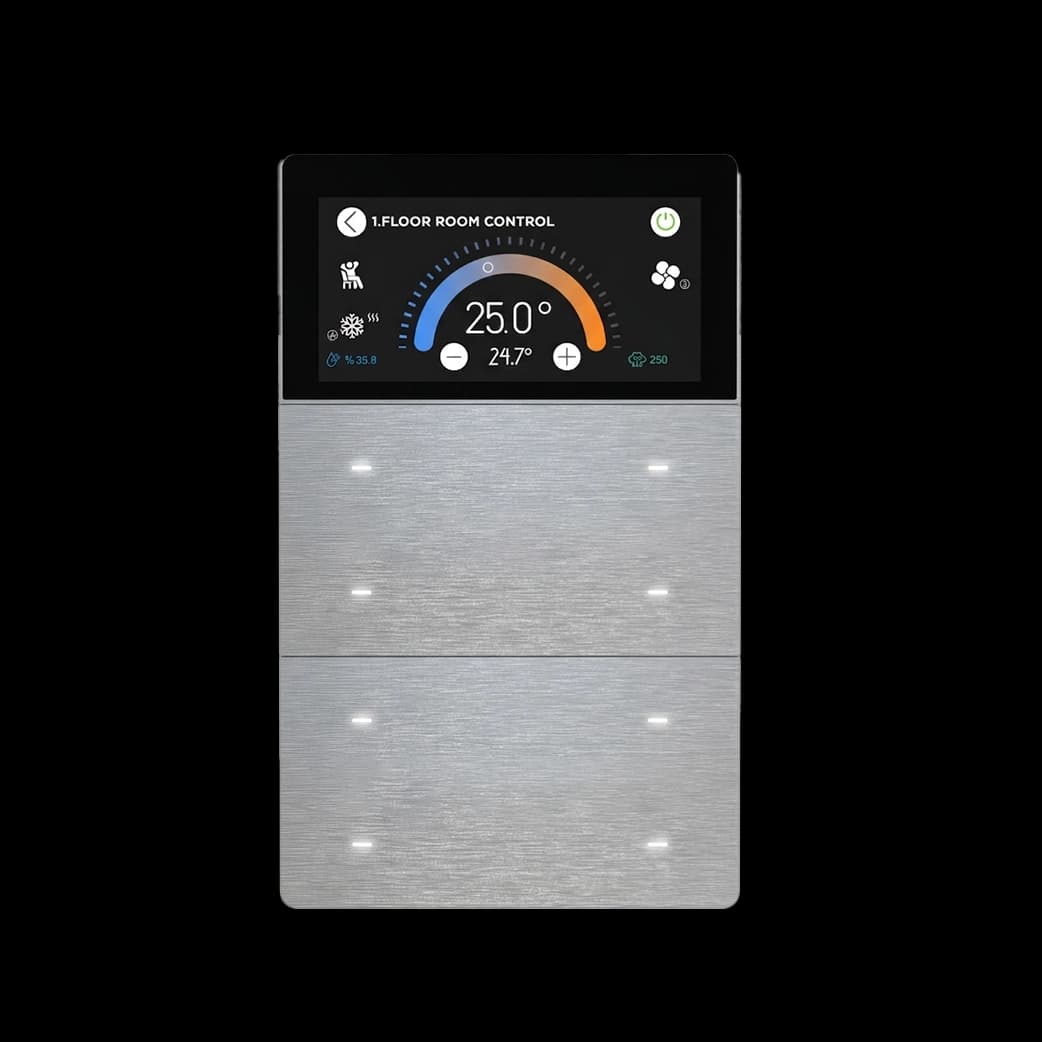

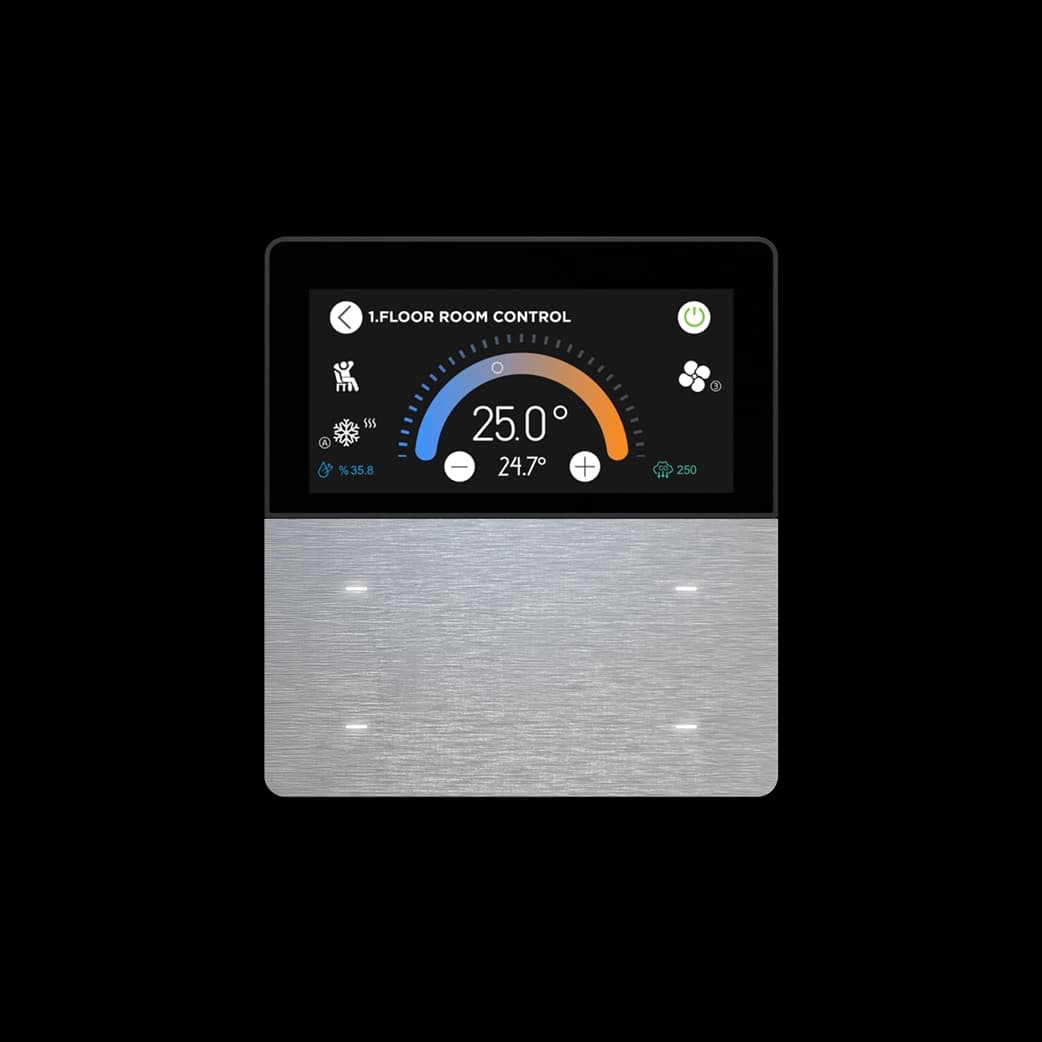

Aluminium Natural	ITR333-1410	ITR333-1810

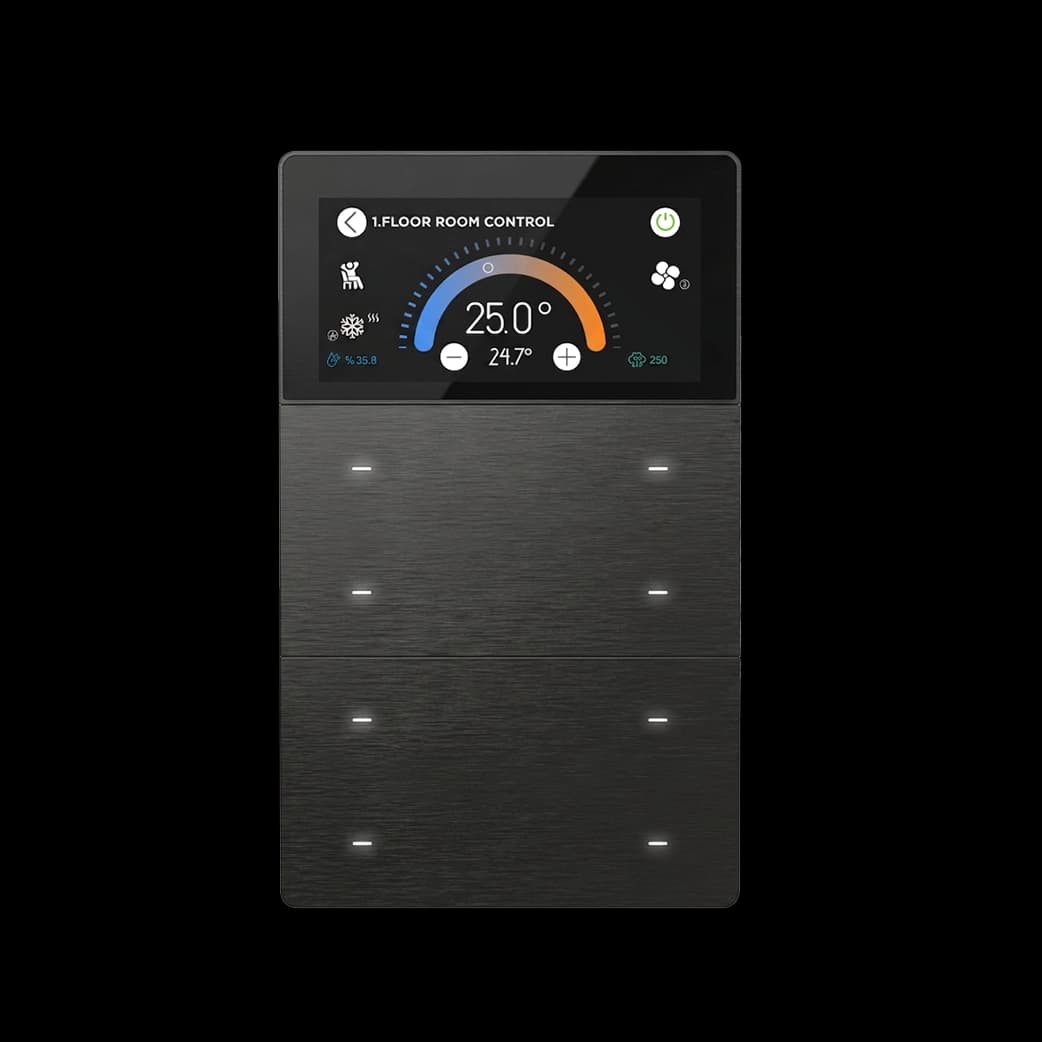

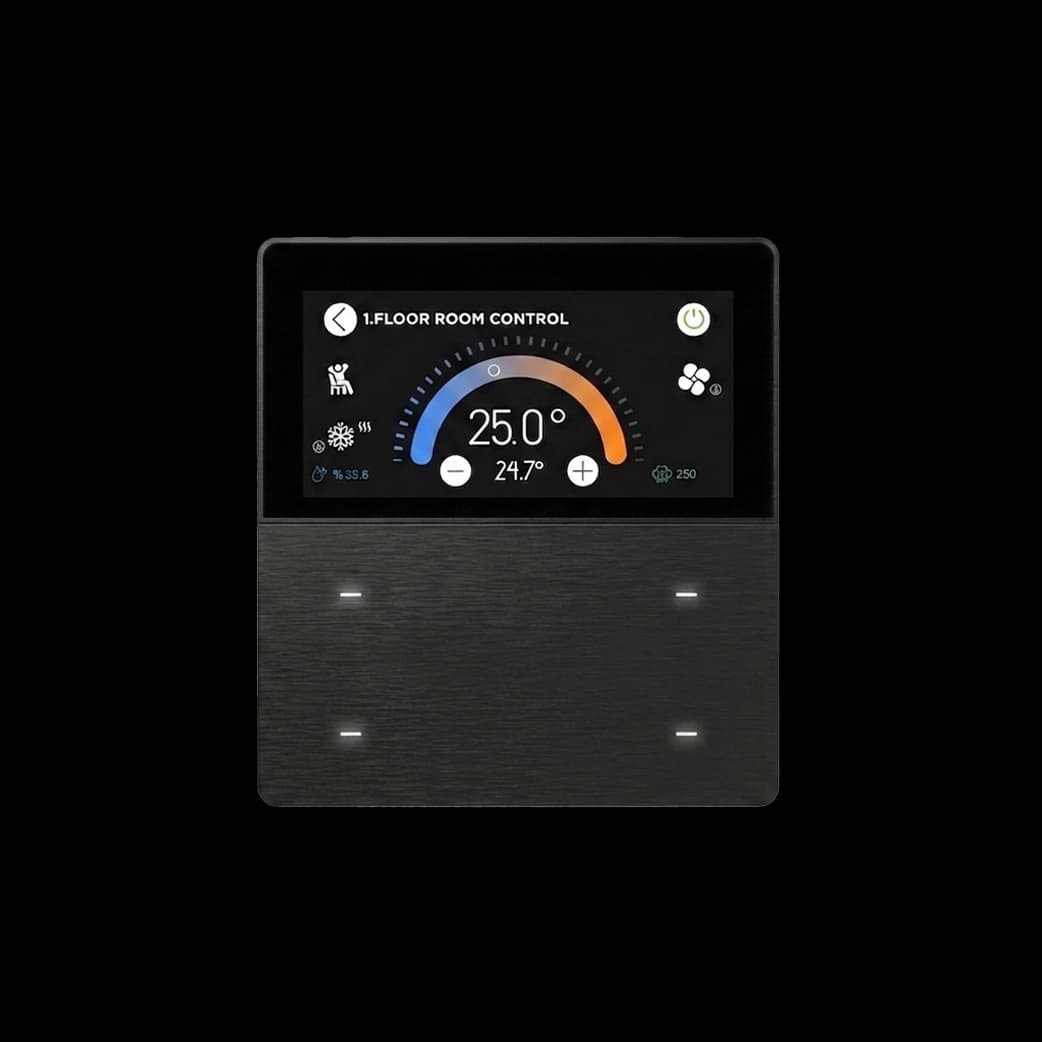

Aluminium Black	ITR333-1411	ITR333-1811

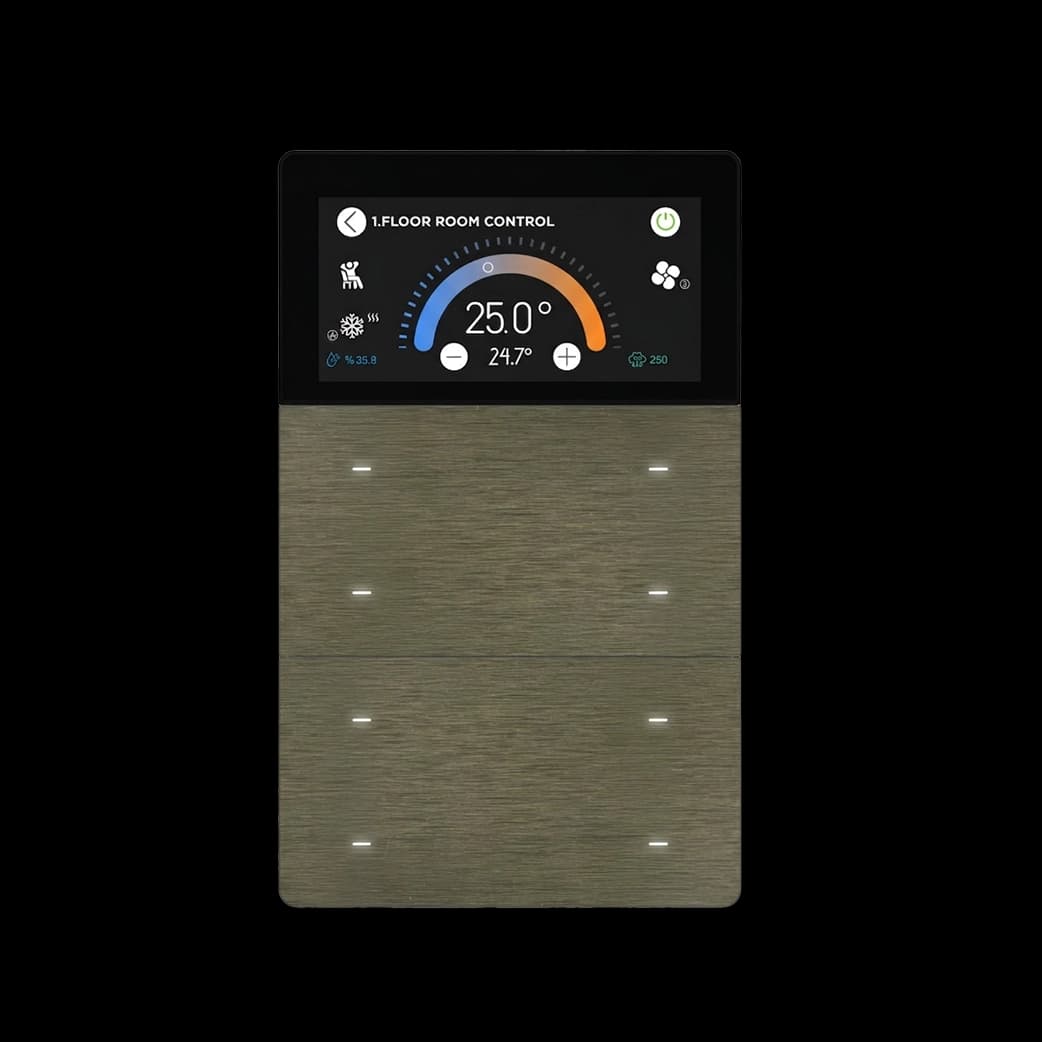

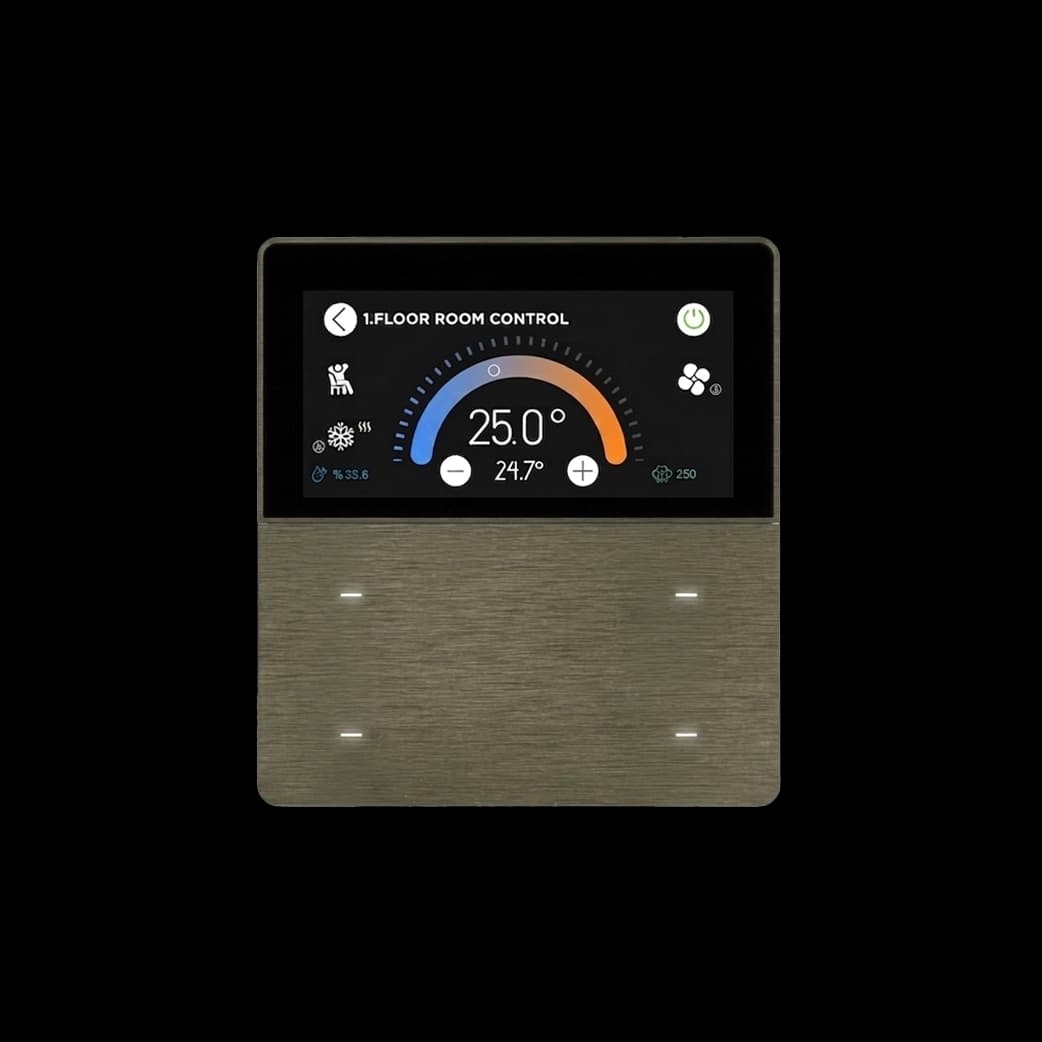

Aluminium Bronze	ITR333-1412	ITR333-1812

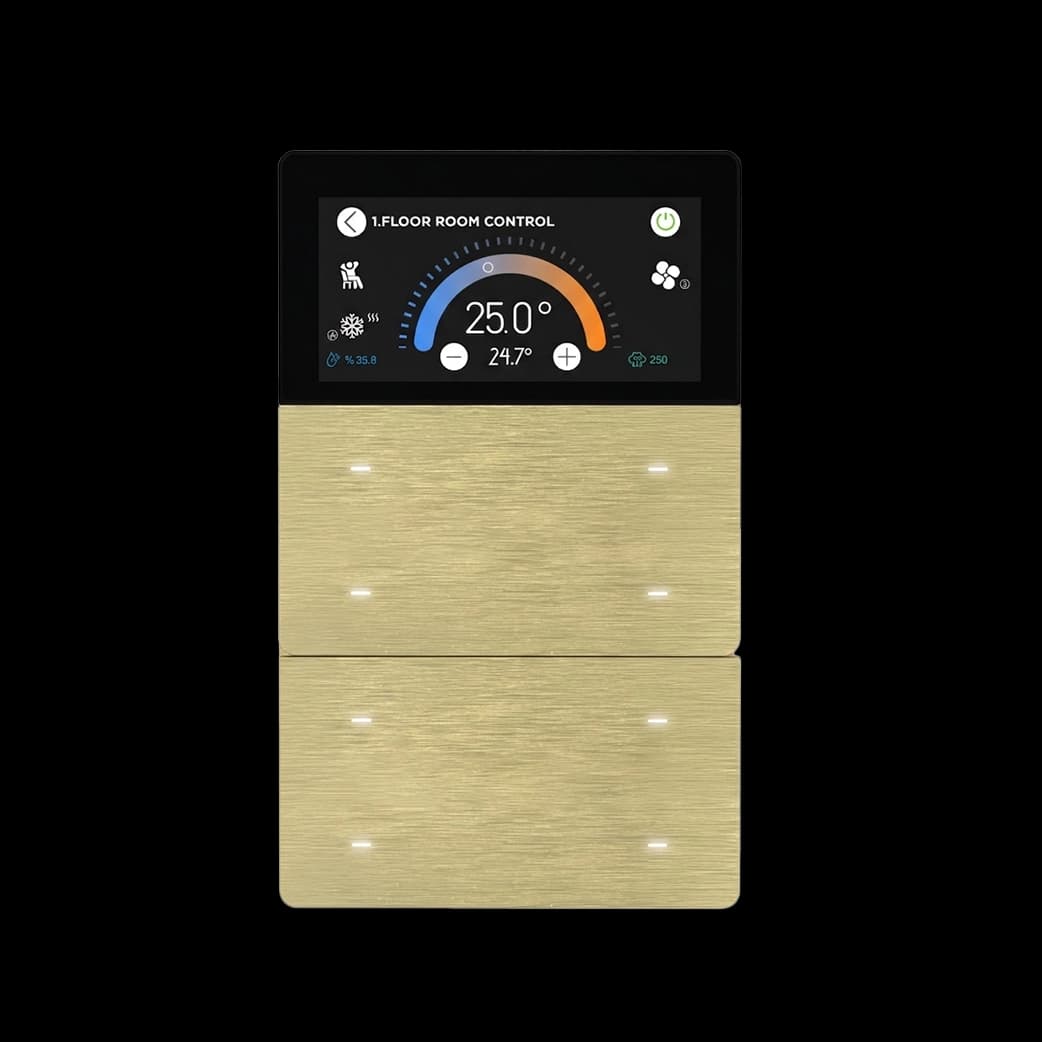

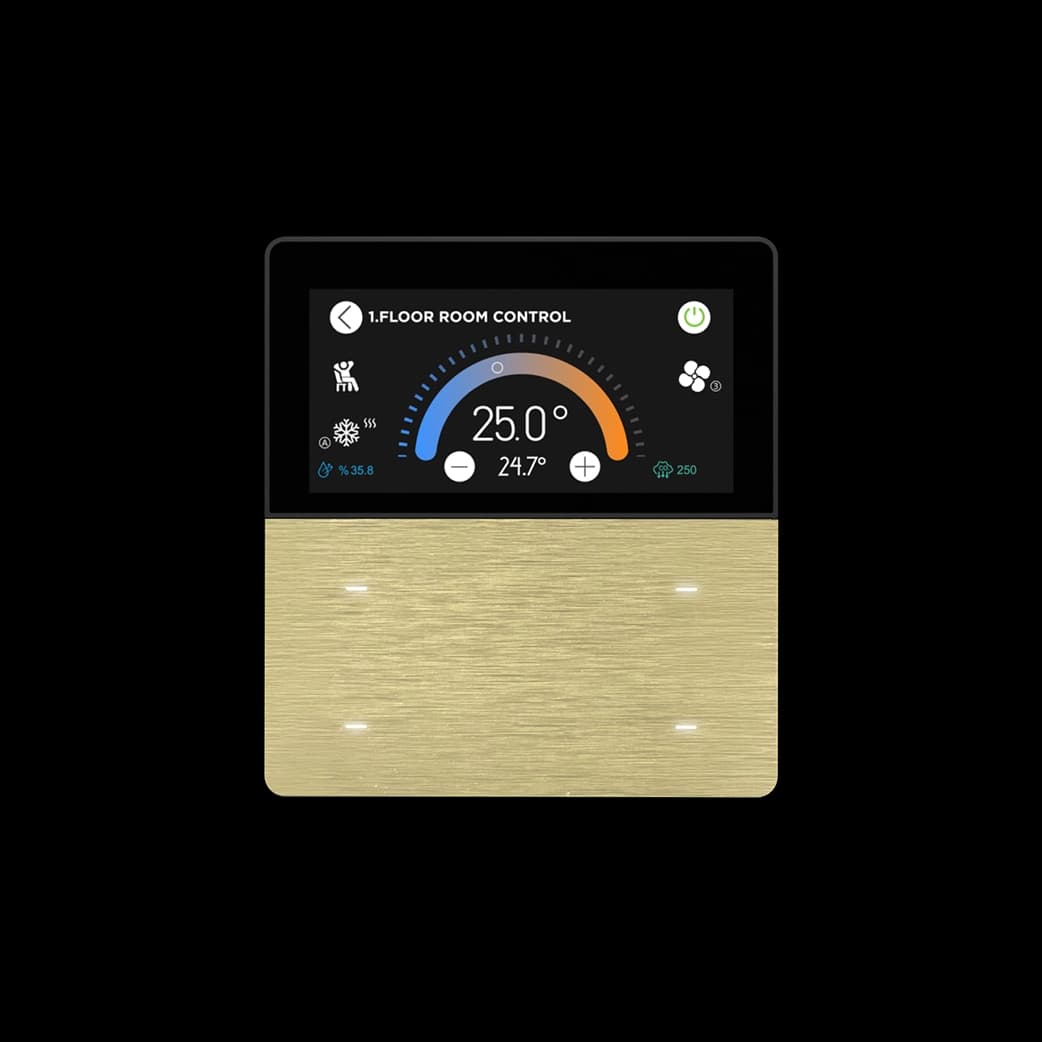

Aluminium Gold	ITR333-1413	ITR333-1813

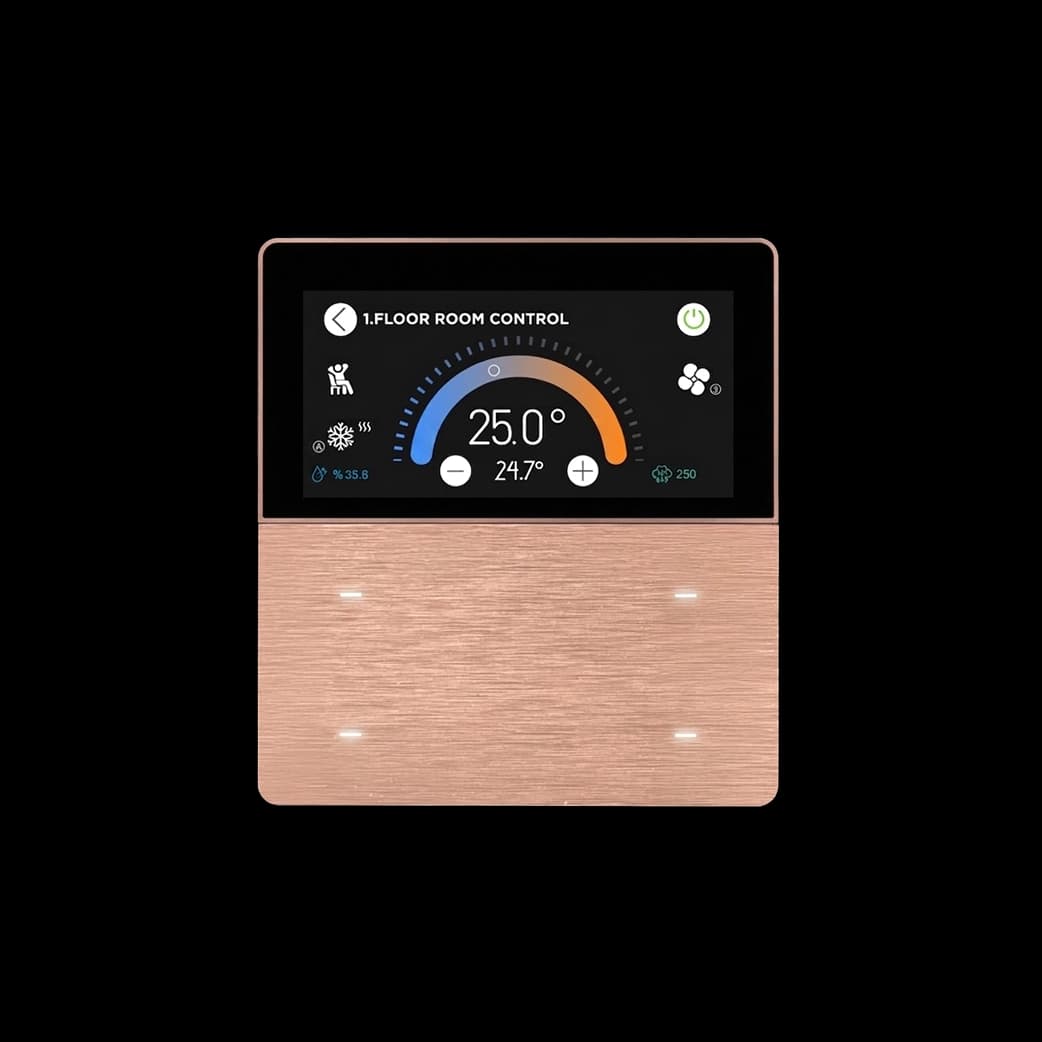

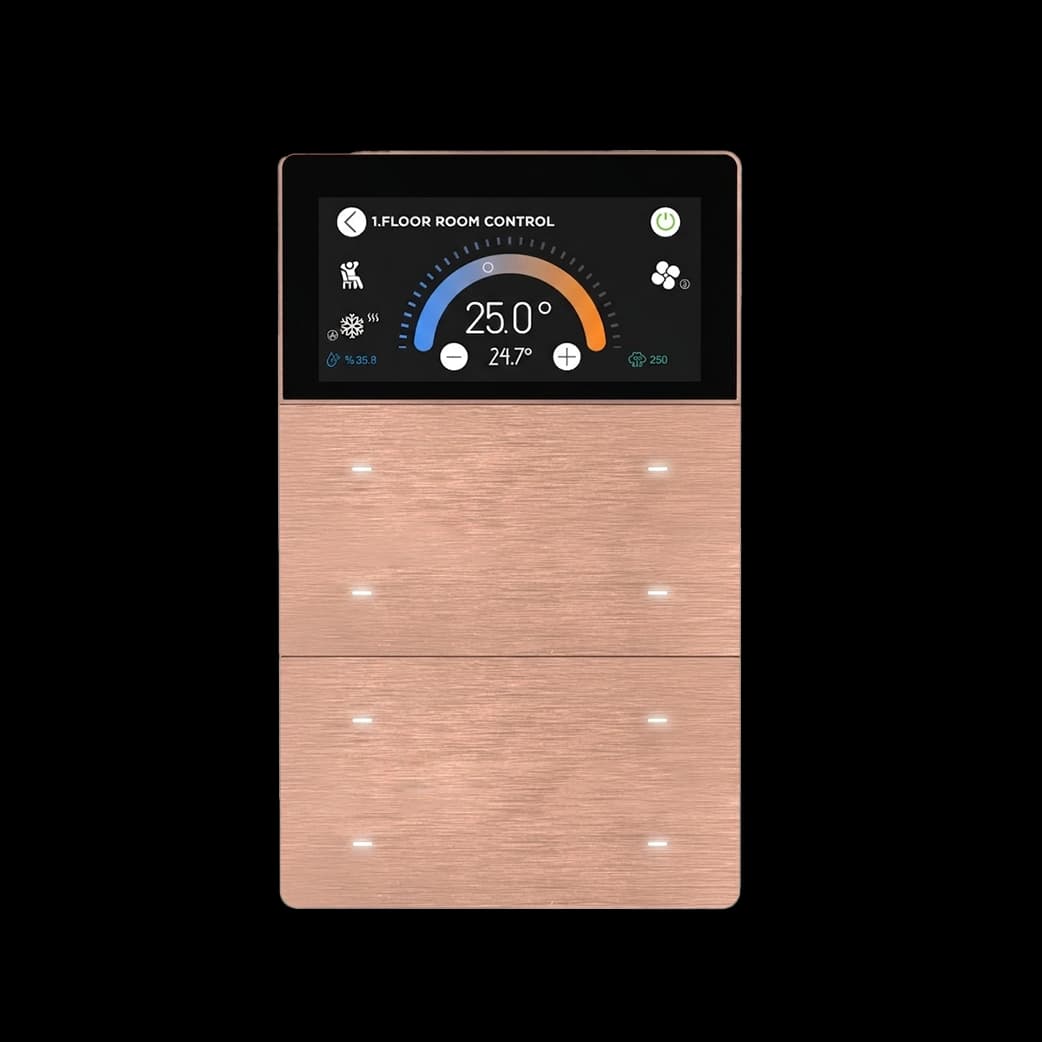

Aluminium Rose Gold	ITR333-1414	ITR333-1814

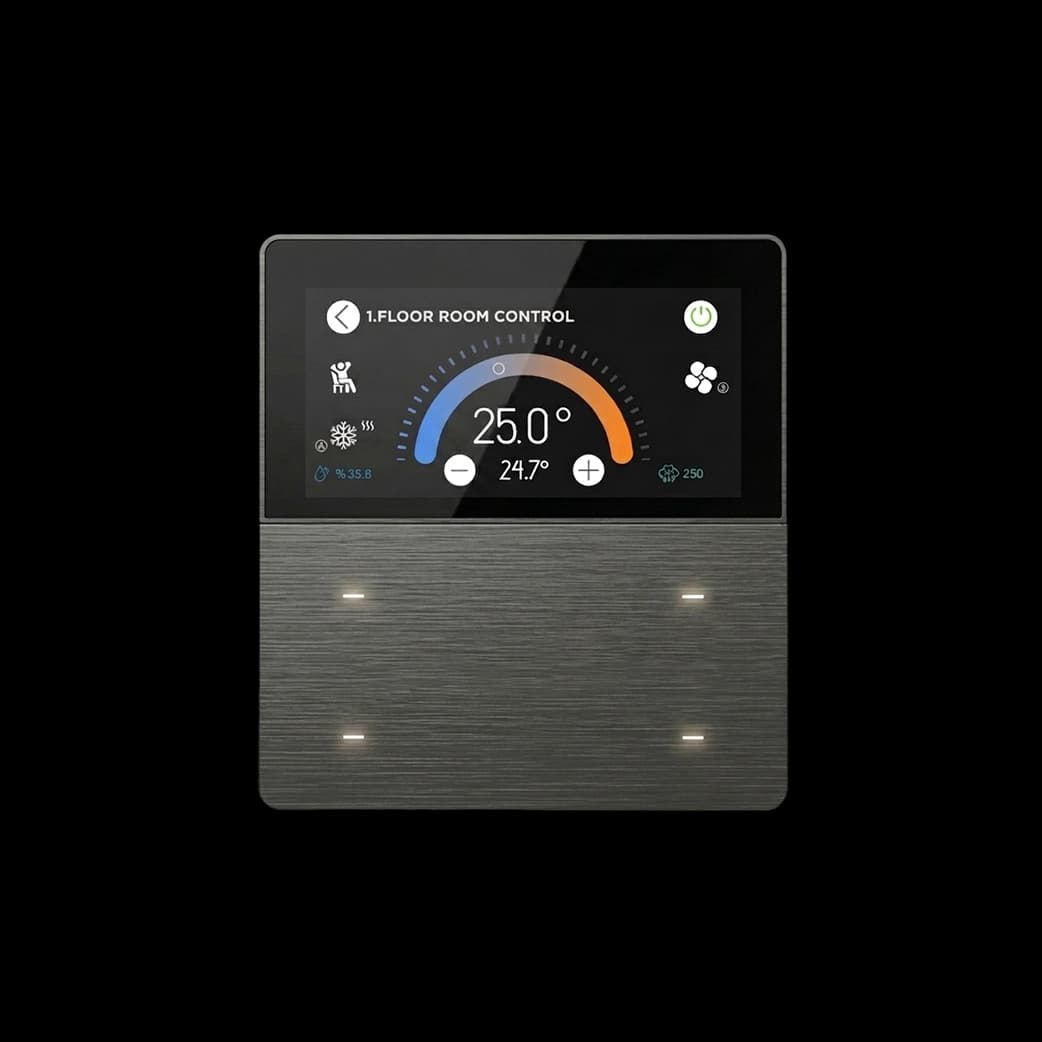

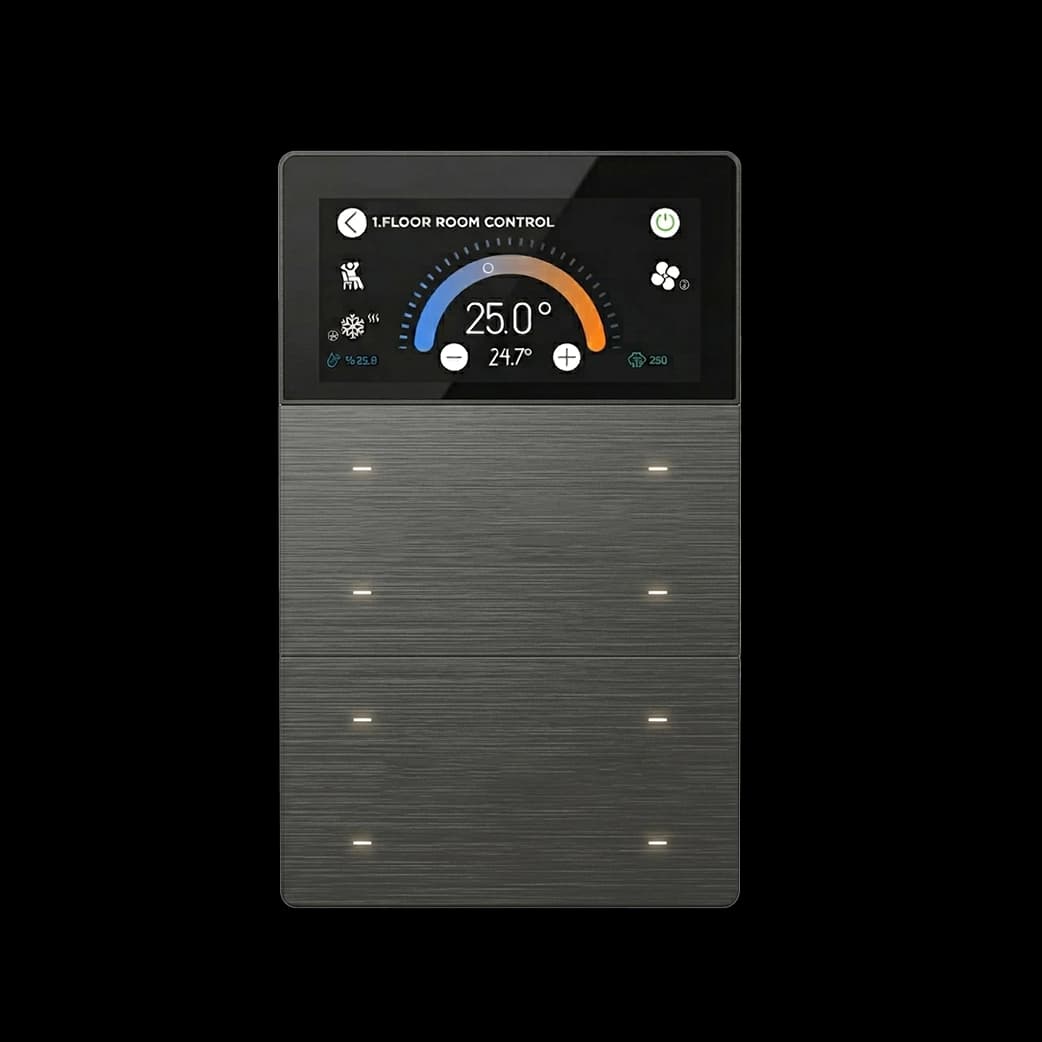

Aluminium Anthracite	ITR333-1415	ITR333-1815

At a Glance

Specification	Detail
Family	ITR333 iXM — LCD touch (thermostat)
Buttons + UI	4 or 8 keys + IPS touch · up to 96 functions
Bus current	~80 mA (ITR333-1XXX)
Sensors	Temp, humidity, lux, proximity
Languages	Up to 13
Dimensions	86 × 141 × 11.7 mm (LCD outline)
Protection	IP20 · −5…45 °C
Configuration	ETS S-Mode · KNX Secure · shared database

Applications and Related Products

• Hotel / apartment room controller: Setpoint UI plus scenes on one Secure device.
• No-LCD keypad: iXM Switch 8/12 when only tactile buttons are needed.
• Larger panels: iX3, iX4, iX10.
• AC gateways: Pair HVAC pages with Interra KNX AC gateway SKUs on the same line.

Choosing and Commissioning

Pick 4 vs 8 buttons and aluminium finish. Use the Interra datasheet link that matches the button count (4-btn vs 8-btn LCD pages), then the shared manual and .knxprod under Downloads. Same ETS application covers switch-only iXM units. Mount indoors (IP20); enable Secure and set passwords/screensaver in the LCD UI as required.
