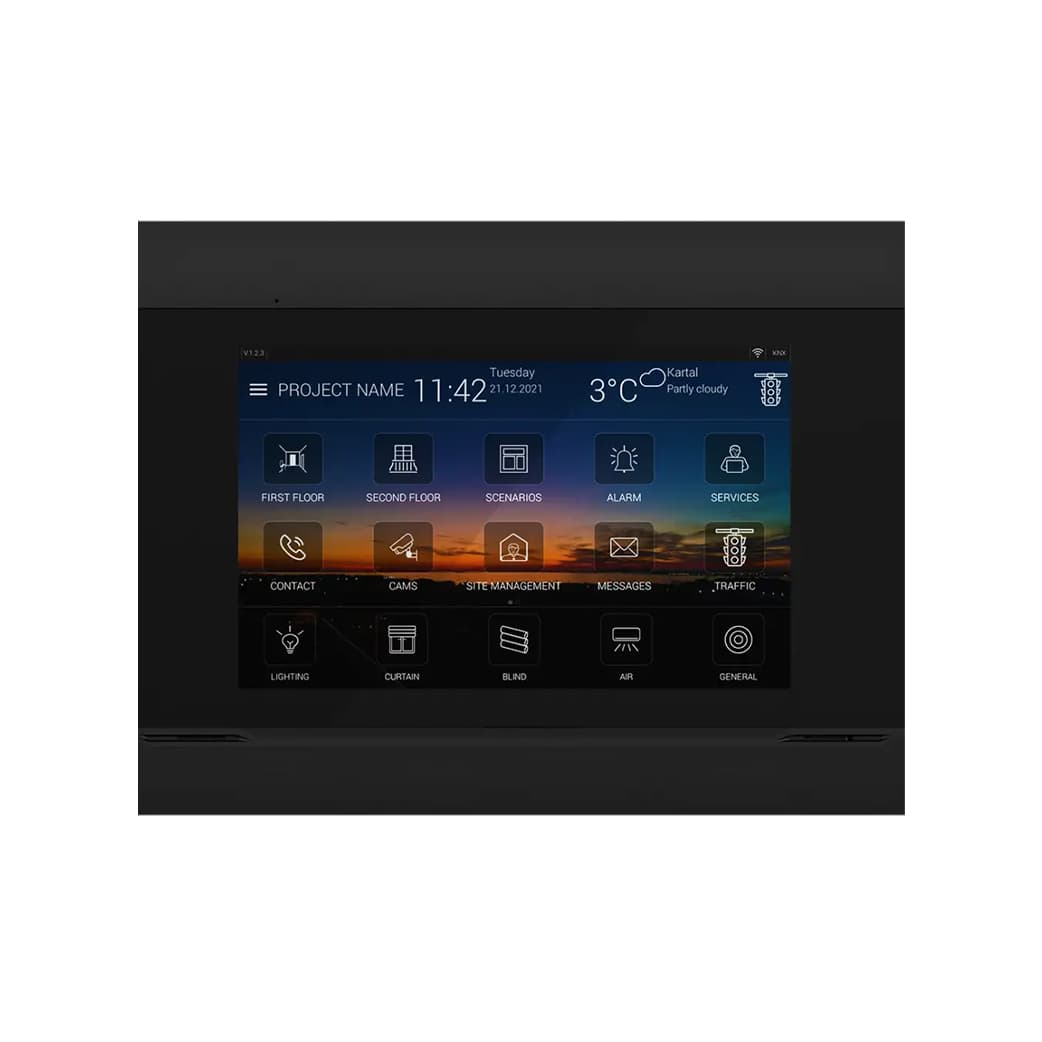

The Interra ITR110-0104 is a 10.1″ KNX touch panel for centralized control of building functions such as lighting, blinds, HVAC, scenes, cameras, and alarms. It is part of Interra’s 10″/7″ touch-panel platform and is configured with Interra Configurator for room pages and integrations.

The panel includes 3 relay outputs (5 A) and 3 inputs, plus KNX and IP connectivity for local and remote control. InterraPro mobile integration, timer-based automation, intercom support, and camera viewing are supported at platform level (per Interra product page and manual).

Key Features — Interra 4 10.1″

• Display class: 10.1″ touch panel (Interra 4 series).
• Control scope: Switches, sensors, lighting, heating, AC, scenes, cameras, and alarms.
• Local I/O: 3 × relay outputs (5 A), 3 × input connectors.
• Mobile control: InterraPro app support (iOS/Android).
• Automation: Timer-based schedules and centralized room pages.

At a Glance

Specification	Detail
Order code	ITR110-0104
Panel class	Interra 4 — 10.1″ KNX touch panel
Power supply	12 V DC
Supply current	Approx. 1 A (10″ model)
KNX communication current	Approx. 2.5 mA
Dimensions (W × H × D)	345 × 232 × 36 mm

Applications and KNX Integration

• Main room controller: Single-panel control for high-end residences and hospitality spaces.
• Interra ecosystem: Works with Interra gateways and actuators on the same KNX backbone.
• Related panels: Compare with iX4 and iX3 for 4″ class devices.

Choosing Interra Touch Panels

ITR110-0104 targets projects requiring a larger 10.1″ user interface with local relay/input flexibility. For compact wall points, use smaller iX-series panels.
