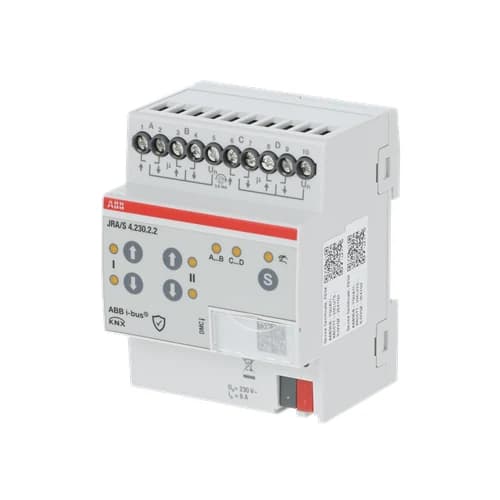

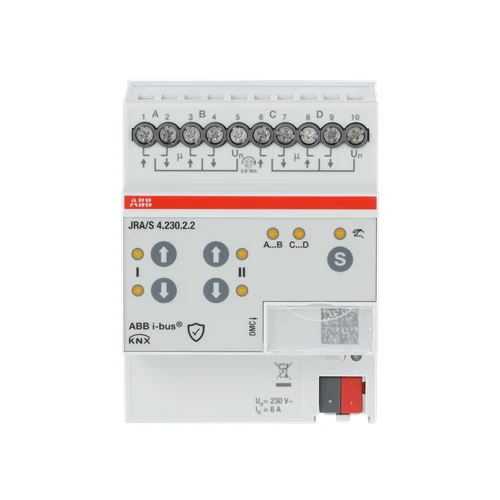

The ABB JRA/S4.230.2.2 Blind/Shutter Actuator controls 4 independent 230 V AC motors for blinds, roller shutters, awnings, doors, windows, or ventilation flaps. It provides basic positioning with front manual operation (no travel-time measurement).

Same channel count: JRA/S4.230.4.2 (Travel Detection + Binary Inputs), JRA/S4.230.5.2 (Travel Detection), JRA/S4.230.7.2 (Travel Det + 3 End Positions + Binary Inputs). Voltage sibling: JRA/S4.24.2.2. Bus-powered MDRC — no separate electronics supply. Related SMI option: JA/S4.SMI.1M.

Key Features

• 4 channels: Independent blind / shutter / awning motors.
• 230 V AC motors: Tubular AC drives with electromechanical interlocking.
• Manual operation: Front push-buttons + status LEDs.
• KNX Data Secure: Supported on this generation.

At a Glance

Specification	Detail
Product type	KNX Blind/Shutter Actuator, MDRC
Order code	JRA/S4.230.2.2
Product ID	2CDG110285R0011
Channels	4
Motor voltage	230 V AC
Feature set	Basic
Manual operation	Yes
Width	4 MW
Supply	KNX bus only

Technical data, installation instructions, ETS .knxprod, drawings, EPLAN, and declarations are under Downloads.

Applications

• Façade shading: Blinds, shutters, and awnings with interlocking motor outputs.
• Openings: Windows, doors, and ventilation flaps on KNX.
• Cost-effective shading: Manual commissioning without travel measurement.

Installation Notes

Mount on a 35 mm DIN rail (4 MW). Connect KNX and 230 V AC motor circuits per the connection diagram. Import the matching JRA/S .knxprod (feature family .2.2) from Downloads when available and select the channel application in ETS.
