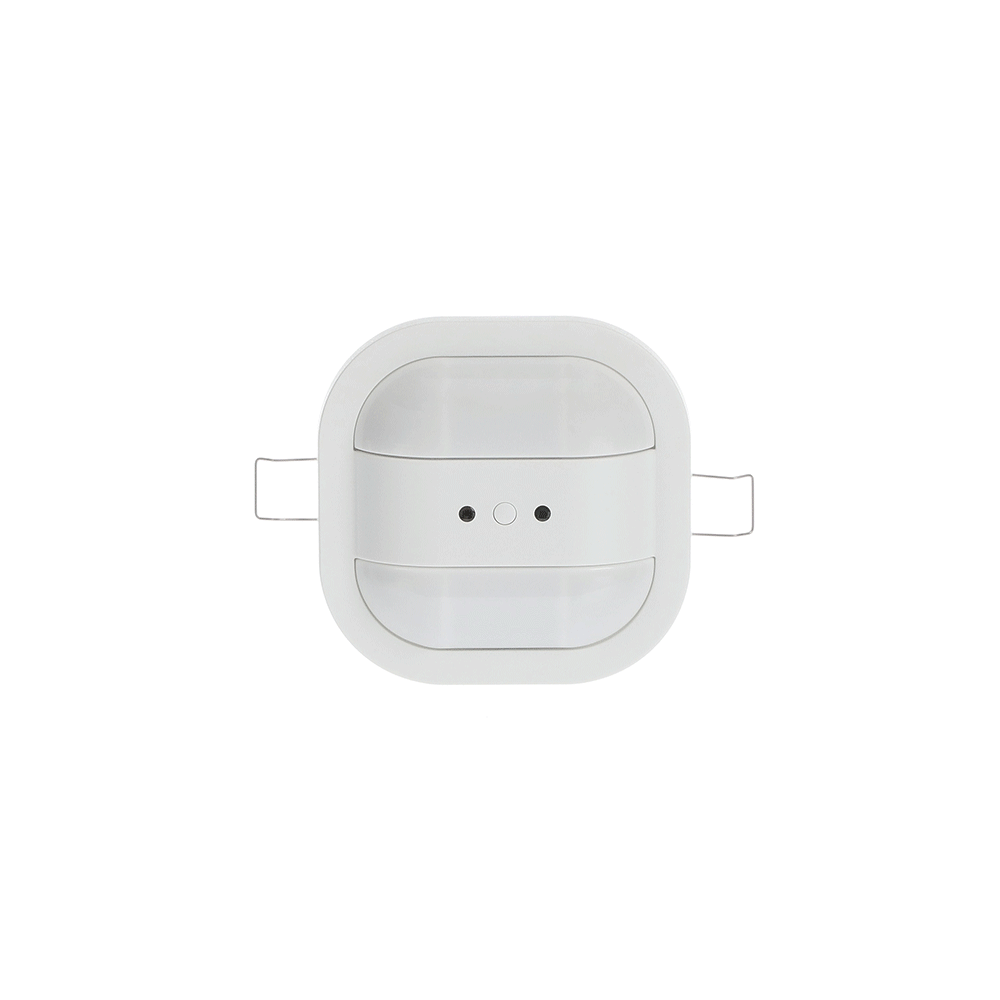

The ABB KNX Presence Detector Mini (series 6131/20-xxx-500) is a compact ceiling-mounted presence and movement detector for ABB i-bus® KNX projects. With 360° detection, 2 independent channels, and integrated constant light control, it manages up to two lighting zones based on occupancy and measured room brightness — ideal for energy-efficient office, corridor, and meeting-room automation.

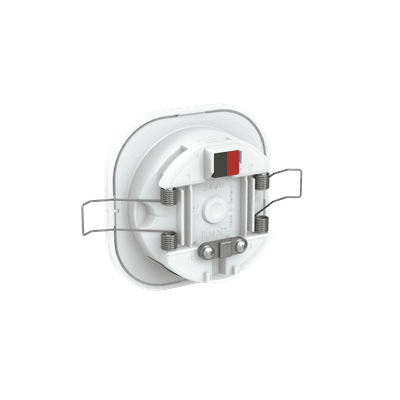

The discreet matt housing suits surface mounting or false-ceiling installation with a Ø 68 mm cut-out. An integrated KNX bus coupler eliminates the need for a separate coupler unit. Available in white, aluminium, and black finishes.

Key Features and Detection Capabilities

The Presence Mini combines PIR presence detection with dual-channel constant-light regulation in a low-profile 80 × 80 mm form factor.

Detection and Control

• 360° sensor range: Circular detection pattern; usable as presence and/or movement detector.
• 2 channels: Independent control of two light bands with brightness-dependent switching and regulation.
• Constant light control: Maintains target illuminance via up to two independent outputs.
• 2 power-off stages: Multi-level switching for staged energy reduction.
• Integrated monitoring: Detector application with built-in monitoring function.
• Fast response: Minimum switch-on time of 10 seconds.
• Three finishes: White (6131/20-24-500), aluminium (6131/20-183-500), black (6131/20-885-500).

Detection Range by Mounting Height

Circular detection diameter (Ø) varies with ceiling height:

• At 2.5 m: Seated persons up to Ø 5 m; walking persons up to Ø 6.5 m.
• At 3 m: Seated persons up to Ø 6.5 m; walking persons up to Ø 8 m.
• At 4 m: Seated persons up to Ø 9 m; walking persons up to Ø 10.5 m.

At a Glance

Specification	Detail
Product type	KNX presence detector, 2-channel, constant light
Order codes	6131/20-24-500 · 6131/20-183-500 · 6131/20-885-500
Detection angle	360°
Channels	2 independent
Mounting	Ceiling — surface or false ceiling (9 … 25 mm board)
Cut-out	Ø 68 mm
Dimensions (W × H × D)	80 × 80 × 45 mm (visible height 16 mm)
Finishes	White · Aluminium · Black
Protection	IP20
Bus system	KNX twisted pair (TP)

Select a finish below for the exact manufacturer order code (SKU) and pricing. Full installation constraints and classification codes are listed under Technical Specifications.

Order Codes — Finish Variants

Finish	Order code	Product ID
White (RAL 9016 matt)	6131/20-24-500	2CKA006132A0342
Aluminium	6131/20-183-500	2CDG110111R0011
Black	6131/20-885-500	2CKA006132A0436

Applications and KNX Integration

• Office and meeting rooms: Dual-zone constant-light control for desk and presentation areas from one detector.
• Corridors and circulation: Movement-triggered switching with staged power-off for overnight energy savings.
• False-ceiling fit-out: Low 16 mm visible profile integrates cleanly into suspended ceilings.
• Dimming integration: Pair with KNX dimming actuators such as UD/S4.210.2.1, UD/S6.210.2.1, or UD/S4.315.2.1 for occupancy- and daylight-linked dimming.
• ETS configuration: Import the official .knxprod application (Downloads), set detection zones, brightness thresholds, and channel assignments.

Installation Notes

Suitable for surface mounting or false ceilings with board thickness 9 … 25 mm and hole size Ø 68 mm. Optimum mounting height is 2 m. Not suitable for British Standard or VDE flush-mounted boxes — ABB recommends a dedicated installation housing for flush-mount applications.
