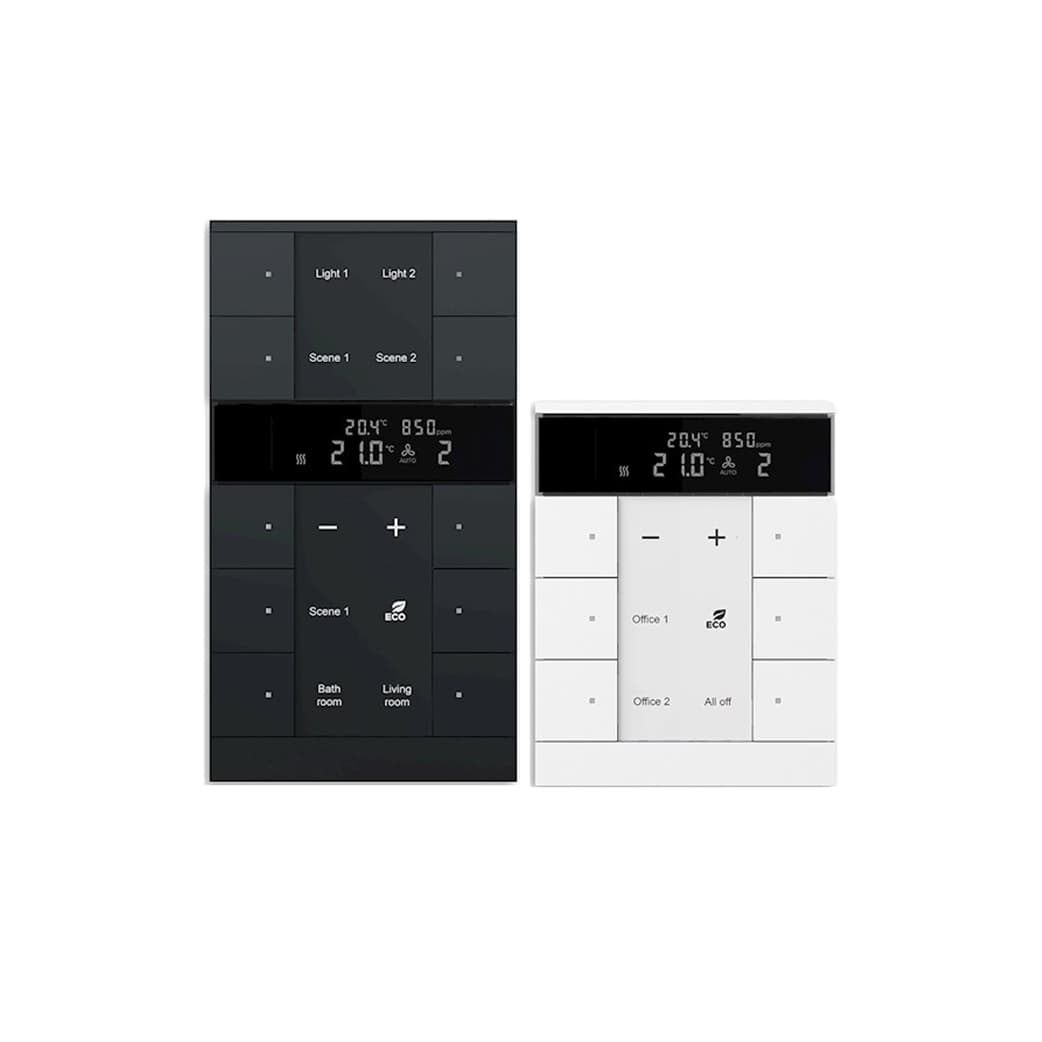

The ABB KNX Tenton SBS/U Slave Thermostat is a freely configurable 6-fold or 10-fold push-button control element with integrated room temperature controller (RTC) for ABB i-bus® KNX. Each device includes an integrated KNX bus coupler, temperature sensor, and labelling field, sharing the Tenton industrial design and innovative colour-concept LED feedback (orange = RTC, yellow = lighting, blue = blind, magenta = scene).

Unlike the SBR/U master thermostat, the SBS/U operates exclusively as an RTC slave or controller extension: it displays actual and set-point temperature, provides local setpoint adjustment, and coordinates with a master RTC elsewhere in the zone. It cannot be configured as an RTC master — primary HVAC logic remains on the master device.

Key Features — Slave RTC and Push-Button Control

Room Temperature Control (Slave)

• RTC slave / controller extension: Local temperature display and setpoint interface within a Master/Slave HVAC strategy.
• Integrated temperature sensor — no separate room sensor required for auxiliary regulation points.
• Fan-coil and conventional HVAC: Supports switching, dimming, blind/shutter, value sending, light scenes, and fan functions on adjacent rockers.
• Actual and set-point display on the device face for clear user feedback.

Push-Button Interface

• 6-fold and 10-fold layouts: Freely configurable multifunction control elements with transparent labelling sheet included.
• Status LEDs: Multi-colour feedback per the Tenton colour concept or standard red/green illumination.
• Finishes: Studio white matt (-884) and matt black (-885).
• Mounting: Flush mounted or surface mounted installation.

At a Glance

Specification	Detail
Product family	ABB i-bus® KNX Tenton SBS/U — RTC slave control element
Layouts	6-fold (SBS/U6.0.1) and 10-fold (SBS/U10.0.1)
Finishes	Studio white matt (-884) and matt black (-885)
RTC scope	Slave / controller extension only — pairs with SBR/U master or other primary RTC
Integrated bus coupler	Yes — 1 bus subscriber per device
Mounting	Flush mounted or surface mounted
Bus	KNX twisted pair (TP)
Protection	IP20; operation −5 … +45 °C

Select your layout and finish below to see the exact manufacturer order code (SKU) and EAN. Per-layout dimensions are listed under Technical Specifications; product manual, installation instructions, ETS application, CAD, and EPLAN data are under Downloads.

Manufacturer Order Codes (FM)

This product line uses four order codes: two layouts × two finishes. Suffix -884 is studio white matt; -885 is matt black.

Configuration	Studio white matt (-884)	Matt black (-885)
6-fold	SBS/U6.0.1-884	SBS/U6.0.1-885
10-fold	SBS/U10.0.1-884	SBS/U10.0.1-885

Applications and KNX Integration

• Multi-zone hotel rooms: Slave thermostat at a secondary wall position while the master SBR/U owns primary fan-coil logic.
• Office perimeter zones: Auxiliary setpoint and temperature display with lighting/blind control on the same Tenton plate.
• Residential extensions: Consistent Tenton aesthetics across master and slave climate points in open-plan layouts.
• ETS configuration: Import the official .knxprod RTC family application (Downloads), assign the device as RTC slave, and link to the master controller group.
• Related products: For the master thermostat with full RTC logic, see the Tenton SBR/U Control Element Series. For control without RTC, see the Tenton SB/U Control Element.
