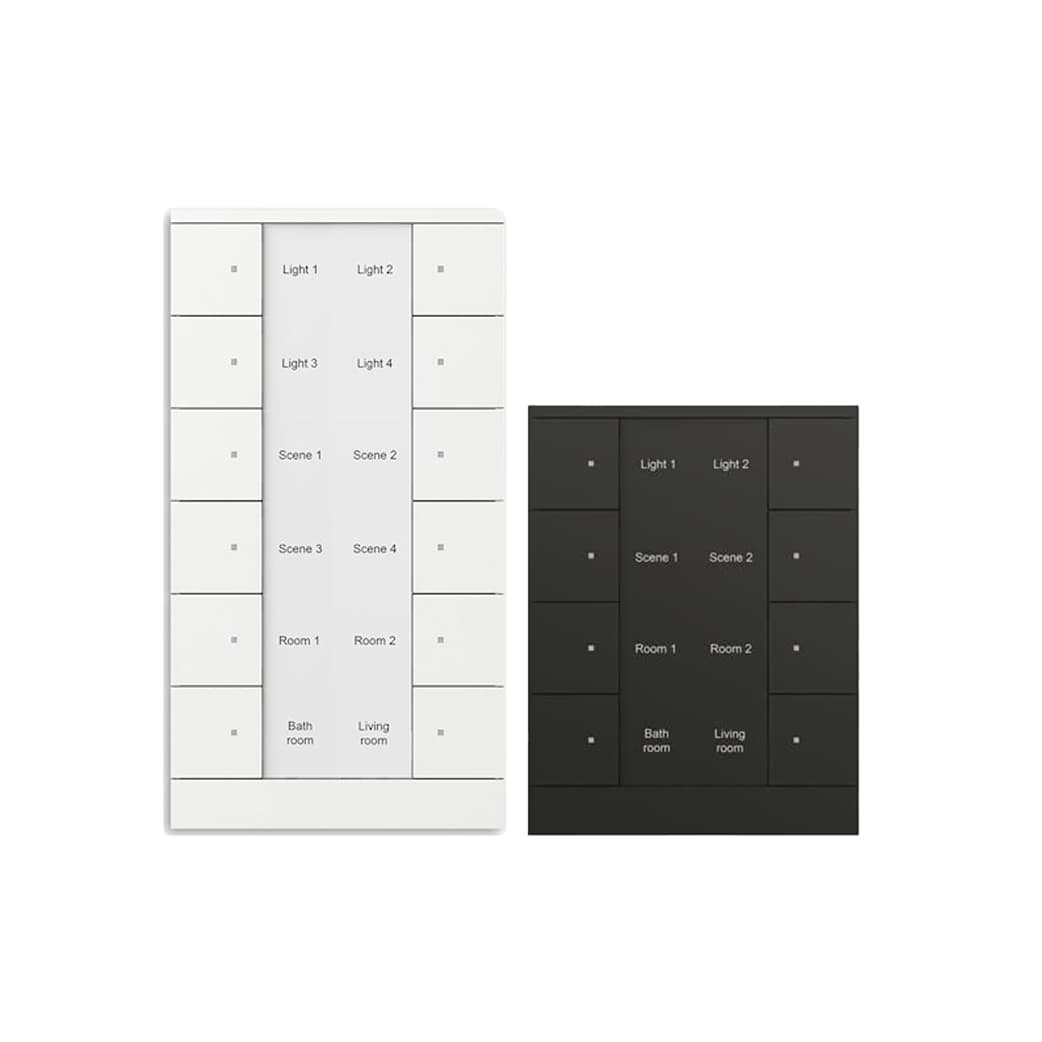

The ABB KNX Tenton SB/U Control Element Series is a high-density push-button interface for ABB i-bus® KNX projects — dedicated to transmitting control commands without an LCD display or room temperature controller. Available as 8-fold (SB/U8) and 12-fold (SB/U12) variants in Studio White or Matt Black, it suits robust, cost-effective lighting and shading control where visual feedback via LEDs is sufficient.

Part of the Tenton design range, each device includes an integrated KNX bus coupler, a labelling field, and the distinctive innovative colour concept (yellow = lighting, blue = blind, magenta = scene, white = unassigned) for unambiguous function identification at a glance.

Key Features — Control and Feedback

Push-Button Control

• 8-fold and 12-fold layouts: Freely configurable control elements with 8 or 12 independent actuation points.
• Core KNX functions: Switching, dimming, blind/shutter operation, value sending, and scene recall.
• No RTC / no display: Pure command interface — ideal where HVAC setpoint control is handled elsewhere.
• Labelling field: On-device space for room or function identification.

Design and Visual Feedback

• Tenton design line: Lacquered thermoplastic in studio white matt or black matt (RAL 9005 similar).
• Status LEDs: Multi-colour programmable feedback per button via the innovative colour concept or standard red/green illumination.
• Mounting: Flush mounted or surface mounted installation.

At a Glance

Specification	Detail
Product family	ABB i-bus® KNX Tenton SB/U control element
Layouts	8-fold (SB/U8.0.1) and 12-fold (SB/U12.0.1)
Finishes	Studio white matt (-884) and matt black (-885)
Functions	Switching, dimming, blinds, value sending, scenes — no RTC
Mounting	Flush mounted or surface mounted
Bus	KNX twisted pair (TP)
Protection	IP20

Select your layout and finish below to see the exact manufacturer order code (SKU) and EAN. Per-layout dimensions are listed under Technical Specifications; product manual, installation instructions, ETS application, CAD, and EPLAN data are under Downloads.

Manufacturer Order Codes

This product line uses four order codes: two layouts × two finishes. Suffix -884 is studio white matt; -885 is matt black.

Configuration	Studio white matt (-884)	Matt black (-885)
8-fold	SB/U8.0.1-884	SB/U8.0.1-885
12-fold	SB/U12.0.1-884	SB/U12.0.1-885

Applications and KNX Integration

• Corridor and utility lighting: High button density for switching and scene recall without display overhead.
• Meeting room shading: Dedicated blind/shutter buttons with blue LED feedback per the Tenton colour concept.
• Commercial fit-out: Cost-effective multi-function wall plate replacing banks of conventional switches.
• ETS configuration: Import the official .knxprod application (Downloads), assign group addresses, LED colours, and scene objects.
• Related products: For integrated room temperature control on the same Tenton platform, see the Tenton SBR/U Control Element Series. For a premium PEONIA interface with TFT display and RTC, see the PEONIA Thermostat Panel 2/4/10-fold.
