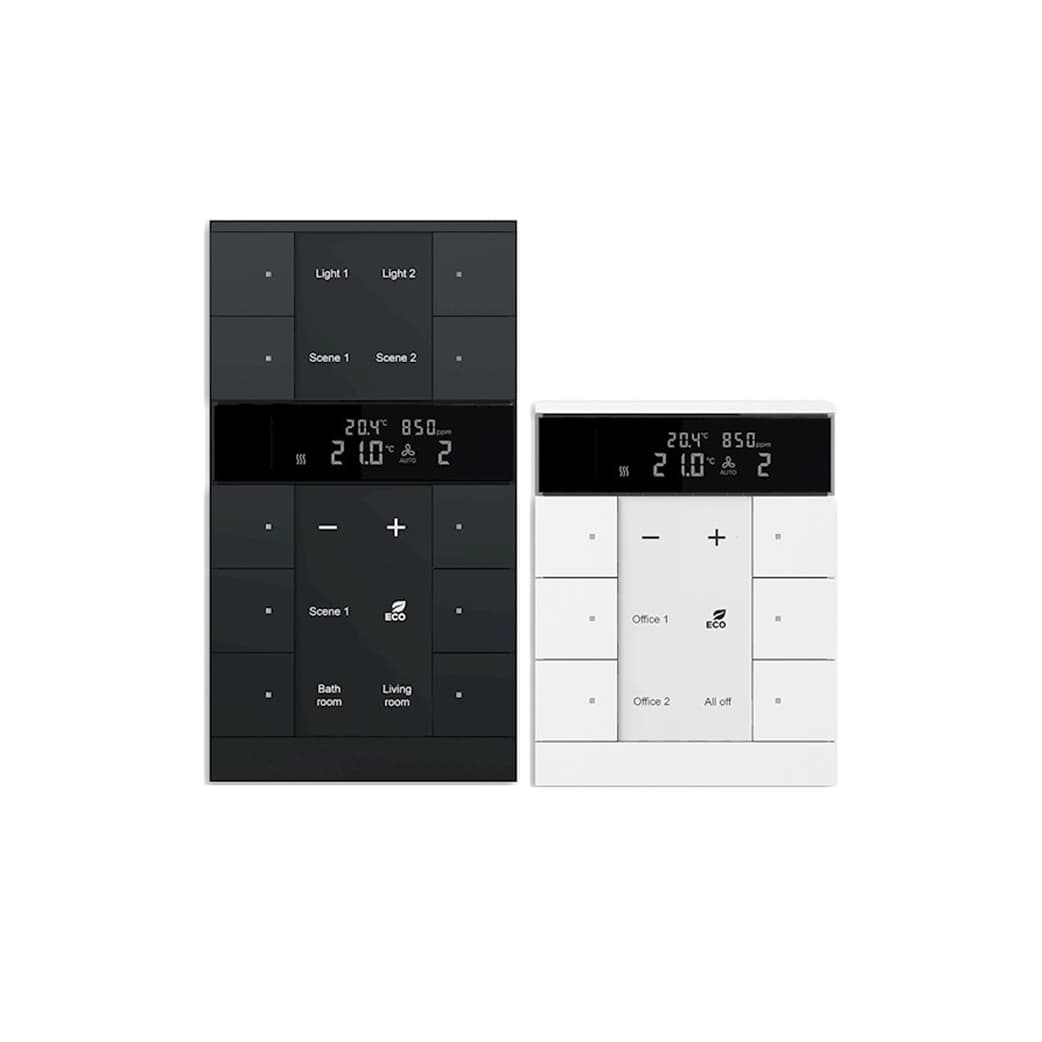

The ABB KNX Tenton SBR/U Control Element Series combines a freely configurable push-button interface with an integrated Constant Room Temperature Controller (RTC) for ABB i-bus® KNX HVAC projects. Available as 6-fold (SBR/U6) and 10-fold (SBR/U10) variants in Studio White or Matt Black, each device includes an integrated KNX bus coupler, temperature sensor, and labelling field.

The SBR/U excels as a Class 1 temperature controller (1.0% contribution to space heating energy efficiency) for 2-pipe and 4-pipe fan-coil systems and conventional heating/cooling. Beyond HVAC, rockers handle switching, dimming, blind control, value sending, and scene recall — with the Tenton innovative colour concept (orange = RTC, yellow = lighting, blue = blind, magenta = scene) for clear visual feedback.

Key Features — RTC and Room Control

Room Temperature Control

• Constant room temperature controller for fan-coil (2/4-pipe) and conventional heating/cooling actuators.
• Master / Slave configuration for coordinated control across multiple rooms or zones.
• Fan stage switching: Manual or automatic mode; base-load operation supported.
• Class 1 controller: 1.0% contribution to space heating energy efficiency per ABB classification.
• Integrated temperature sensor — no separate room sensor required for basic RTC operation.

Push-Button Interface

• 6-fold and 10-fold layouts: Freely configurable multifunction control elements.
• Core KNX functions: Switching, dimming, blind/shutter, value sending, and scene recall alongside RTC.
• Status LEDs: Multi-colour feedback per button via the innovative colour concept or standard red/green.
• Mounting: Flush mounted or surface mounted installation.

At a Glance

Specification	Detail
Product family	ABB i-bus® KNX Tenton SBR/U — RTC control element
Layouts	6-fold (SBR/U6.0.1) and 10-fold (SBR/U10.0.1)
Finishes	Studio white matt (-884) and matt black (-885)
RTC scope	Fan-coil (2/4-pipe), conventional HVAC; Master/Slave capable
Temperature controller class	Class 1 — 1.0% space heating efficiency contribution
Mounting	Flush mounted or surface mounted
Bus	KNX twisted pair (TP)
Protection	IP20

Select your layout and finish below to see the exact manufacturer order code (SKU) and EAN. Per-layout dimensions are listed under Technical Specifications; product manual, installation instructions, ETS application, CAD, and EPLAN data are under Downloads.

Manufacturer Order Codes

This product line uses four order codes: two layouts × two finishes. Suffix -884 is studio white matt; -885 is matt black.

Configuration	Studio white matt (-884)	Matt black (-885)
6-fold	SBR/U6.0.1-884	SBR/U6.0.1-885
10-fold	SBR/U10.0.1-884	SBR/U10.0.1-885

Applications and KNX Integration

• Hotel guest rooms: Combined RTC and lighting/blind control from one Tenton plate.
• Office fan-coil zones: 2-pipe or 4-pipe RTC with scene recall on adjacent buttons.
• Residential HVAC: Class 1 efficiency-rated controller with integrated sensor for simplified wiring.
• ETS configuration: Import the official .knxprod application (Downloads), configure RTC parameters, Master/Slave groups, and LED colour assignments.
• Related products: For RTC slave/extension points in the same Tenton family, see the Tenton SBS/U Slave Thermostat. For control without RTC, see the Tenton SB/U Control Element. For a premium PEONIA interface with TFT display, see the PEONIA Thermostat Panel 2/4/10-fold.
