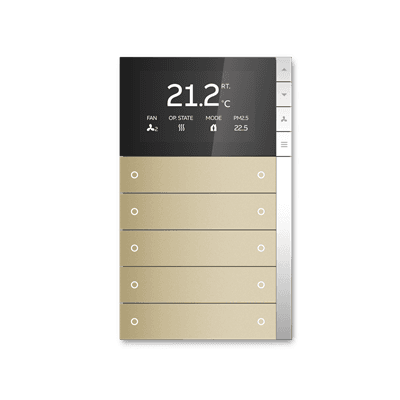

The ABB i-bus® KNX PEONIA thermostat panel is a premium flush-mounted (FM) room interface combining a 2/4/10-fold rocker line (order as 4-fold, 6-fold, or 10-fold — types U2, U3, U5) with an integrated room temperature controller (RTC), 3.5″ TFT display, and capacitive RTC touch button with vibration feedback.

Beyond HVAC setpoint control, rockers support switching, dimming, blind/shutter operation, value sending, step-type switching, light scenes, and fan functions. The display shows operating mode, room temperature, and optional environmental data (time, PM2.5, CO₂, humidity, VOC) where configured. A proximity sensor enables wake-up and energy-saving behaviour when the panel is not in use.

Key Features — Display, RTC, and Control

Room Temperature Control

• Constant room temperature controller for 2-pipe and 4-pipe fan-coil systems and conventional heating/cooling.
• Fan stage control: Manual or automatic fan-speed switching; base-load operation supported.
• Single / Master / Slave configuration for coordinated temperature control across larger zones.
• Integrated temperature sensor and bus coupler — one MDRC position for control and sensing.

Display and Rocker Interface

• 3.5″ TFT display: Operating mode, temperature, and dynamic animations for dimming, blinds, and scenes.

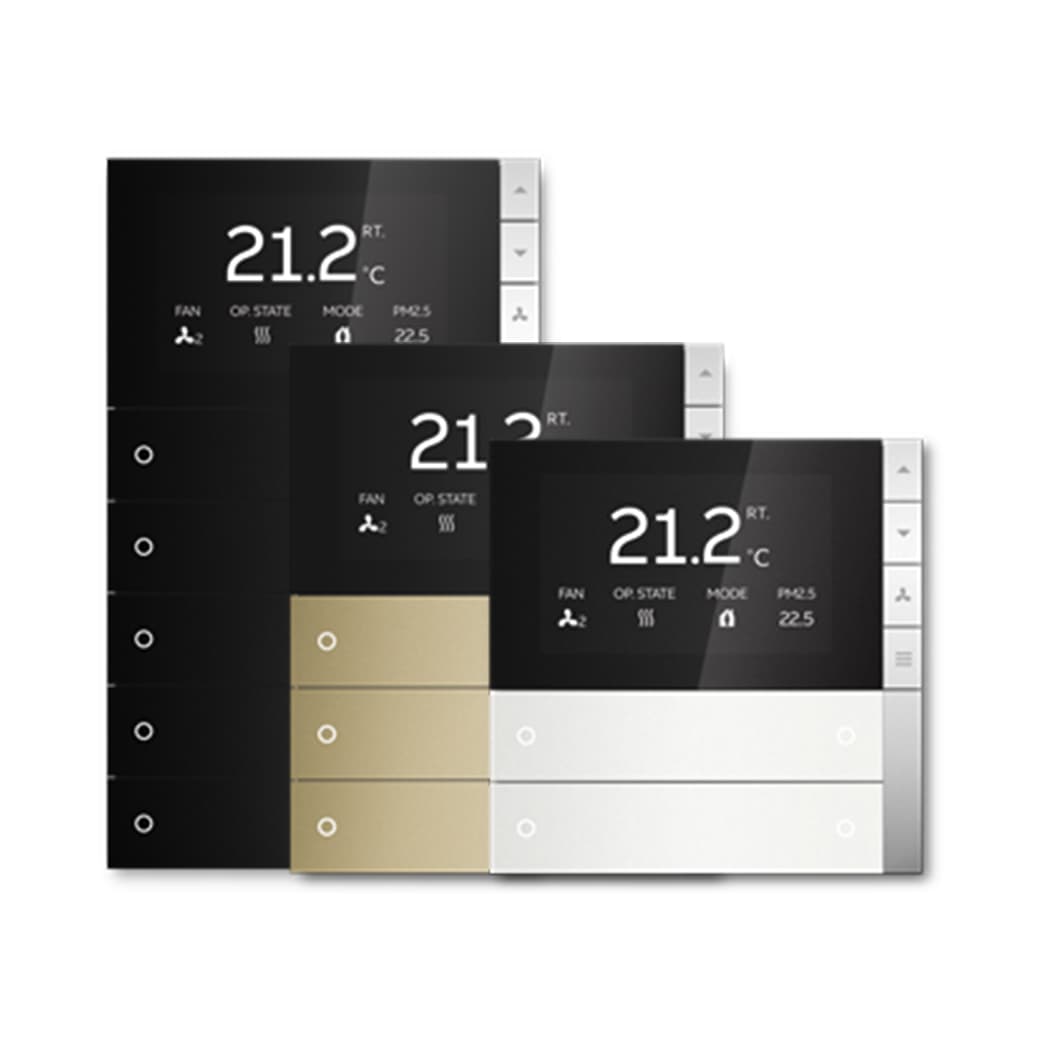

• 2/4/10-fold layouts: 4-fold (2 rockers), 6-fold (3 rockers), or 10-fold (5 rockers — up to 10 functions).
• Replaceable rockers without icons; programmable LED per rocker plus top/bottom ambient LED strips (seven colours).
• Capacitive RTC button with haptic vibration feedback for intuitive setpoint adjustment.

At a Glance

Specification	Detail
Product family	ABB i-bus® KNX PEONIA thermostat panel (PEBR/U)
Layouts	4-fold (U2), 6-fold (U3), 10-fold (U5)
Finishes	6 surface options (Matt White, Gloss White, Matt Silver, Matt Platinum, Matt Black, Matt Champagne Gold)
Display	3.5″ TFT with RTC touch button and vibration feedback
RTC scope	Fan-coil (2/4-pipe), conventional heating/cooling; Master/Slave capable
Mounting	Flush mounted (FM) — integrated bus coupler and temperature sensor
Bus	KNX twisted pair (TP)
Protection	IP20

Select your layout and finish below to see the exact manufacturer order code (SKU) and EAN. Per-layout dimensions are listed under Technical Specifications; datasheets, RTC installation instructions, ETS application, and brochures are under Downloads.

Manufacturer Order Codes (FM)

This product line uses 18 order codes: three rocker layouts × six finishes. The type prefix is PEBR (Peonia with room temperature controller). U2 / U3 / U5 identifies the layout; the suffix identifies the finish.

Color / finish	4-fold (PEBR/U2.0.1)	6-fold (PEBR/U3.0.1)	10-fold (PEBR/U5.0.1)
Matt White	PEBR/U2.0.1-001	PEBR/U3.0.1-001	PEBR/U5.0.1-001
Gloss White	PEBR/U2.0.1-002	PEBR/U3.0.1-002	PEBR/U5.0.1-002
Matt Silver	PEBR/U2.0.1-131	PEBR/U3.0.1-131	PEBR/U5.0.1-131
Matt Platinum	PEBR/U2.0.1-151	PEBR/U3.0.1-151	PEBR/U5.0.1-151
Matt Black	PEBR/U2.0.1-201	PEBR/U3.0.1-201	PEBR/U5.0.1-201
Matt Champagne Gold	PEBR/U2.0.1-411	PEBR/U3.0.1-411	PEBR/U5.0.1-411

Applications and KNX Integration

• Hotel guest rooms: Combined RTC, lighting, and blind control from one PEONIA plate with proximity wake-up.
• Office perimeter zones: Fan-coil RTC with scene recall and dimming on adjacent rockers.
• Residential living areas: TFT status display and ambient LED feedback for premium interiors.
• ETS configuration: Import the official .knxprod application (Downloads), configure RTC parameters, Master/Slave groups, display pages, and LED colours.
• Related products: For control without RTC and display, see the PEONIA Control Element 2/4/10-fold. For a compact Tenton RTC without TFT, see the Tenton SBR/U Control Element Series.
