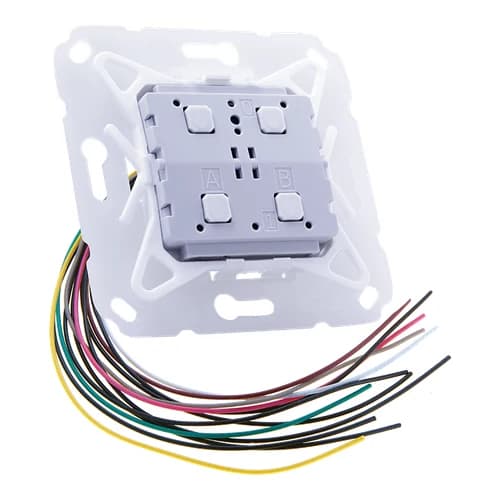

The Weinzierl 24 V Push Button 436 (Art. 5524 insert with mounting kit, SKU W 436; optional terminal block Art. 5413) is a MATCH 55 conventional wall button for extra-low-voltage circuits. Wire it to push-button inputs of smart panels, PLCs or bus binary inputs — it is not a KNX TP device by itself. Available with one or two rockers (two pressure points each, up/down); soft quiet action; white rocker without label.

Contacts are rated max. 30 V / 25 mA; two green LEDs behind the rocker take 5…30 V DC at ~2 mA. A 150 mm pluggable cable is included; max. connection length 30 m. Optional screwless terminal block accepts 0.2…0.75 mm². Mechanically fits many 55 mm frame ranges via the supplied kit. Bring contacts onto KNX Secure with 411.1 (dry) or choose native Secure wall control 420.1.

Key Features — 436 24 V

• Conventional MATCH 55: Fits 55×55 mm frame ecosystems.
• 1 or 2 rockers: Up to four pressure points.
• ELV contacts: Max. 30 V / 25 mA · LED feedback 5…30 V.
• Quiet tactile feel: Soft press for residential walls.
• Optional 5413 block: Screwless termination up to 0.75 mm².
• No bus stack: Pair with binary inputs for KNX.

At a Glance

Specification	Detail
Order / Art.	W 436 · Art. 5524 (+ optional 5413)
Series	MATCH 55 · white rocker
Contacts	Max. 30 V · max. 25 mA
LEDs	2× green · 5…30 V DC · ~2 mA
Cable	150 mm pluggable · max. run 30 m
Plate	71 × 71 mm · flush box 68 mm · no install depth

Applications and Related Products

• Non-bus walls: Same look as 420.1 family with conventional wiring.
• Onto KNX: 411.1 dry-contact Secure input.
• Native KNX Secure: 420.1.

Choosing and Commissioning

No ETS database — commission the binary input or controller that reads the contacts. Check MATCH 55 frame compatibility PDF under Downloads. Indoor dry locations only; qualified installation.
