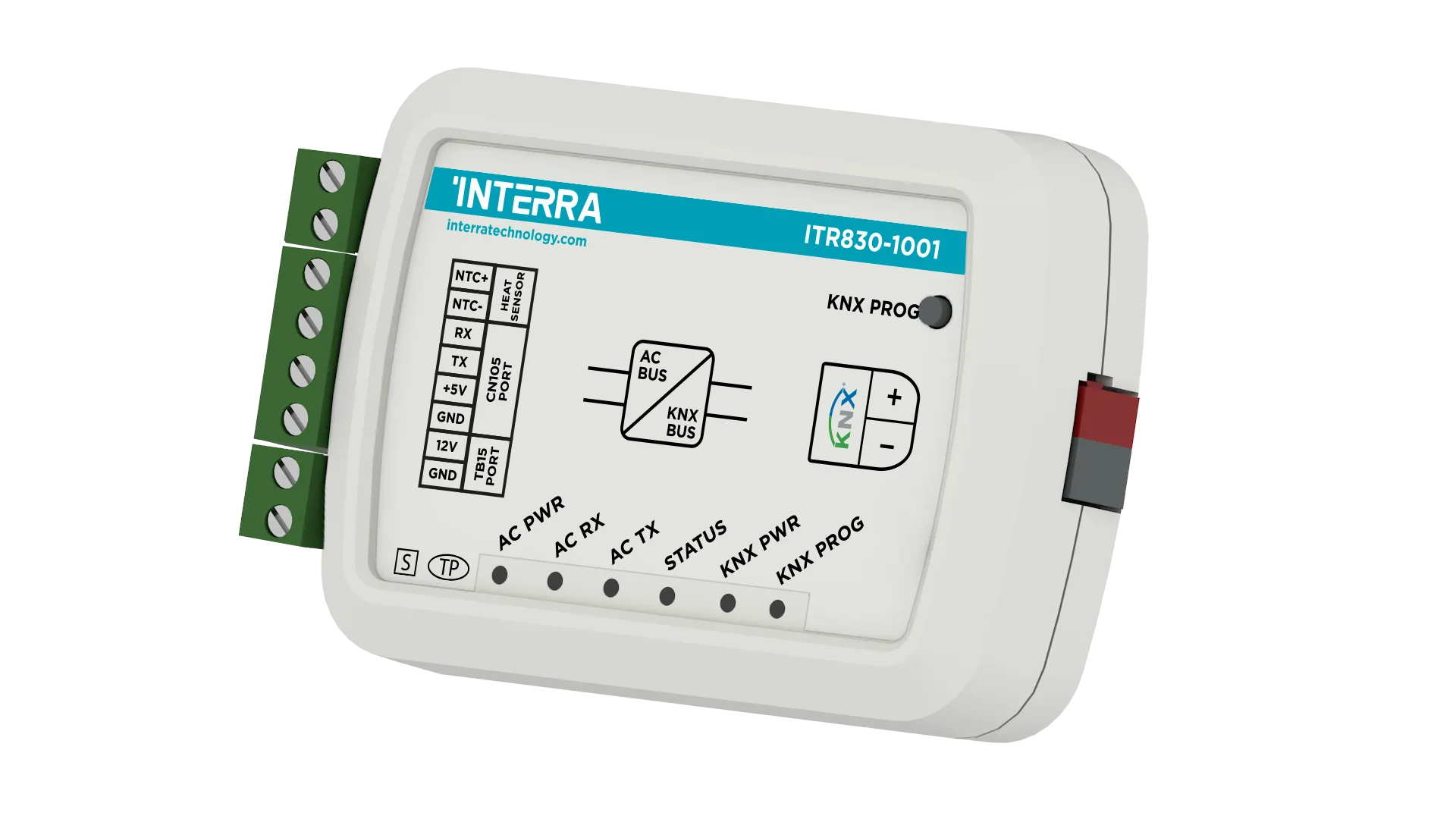

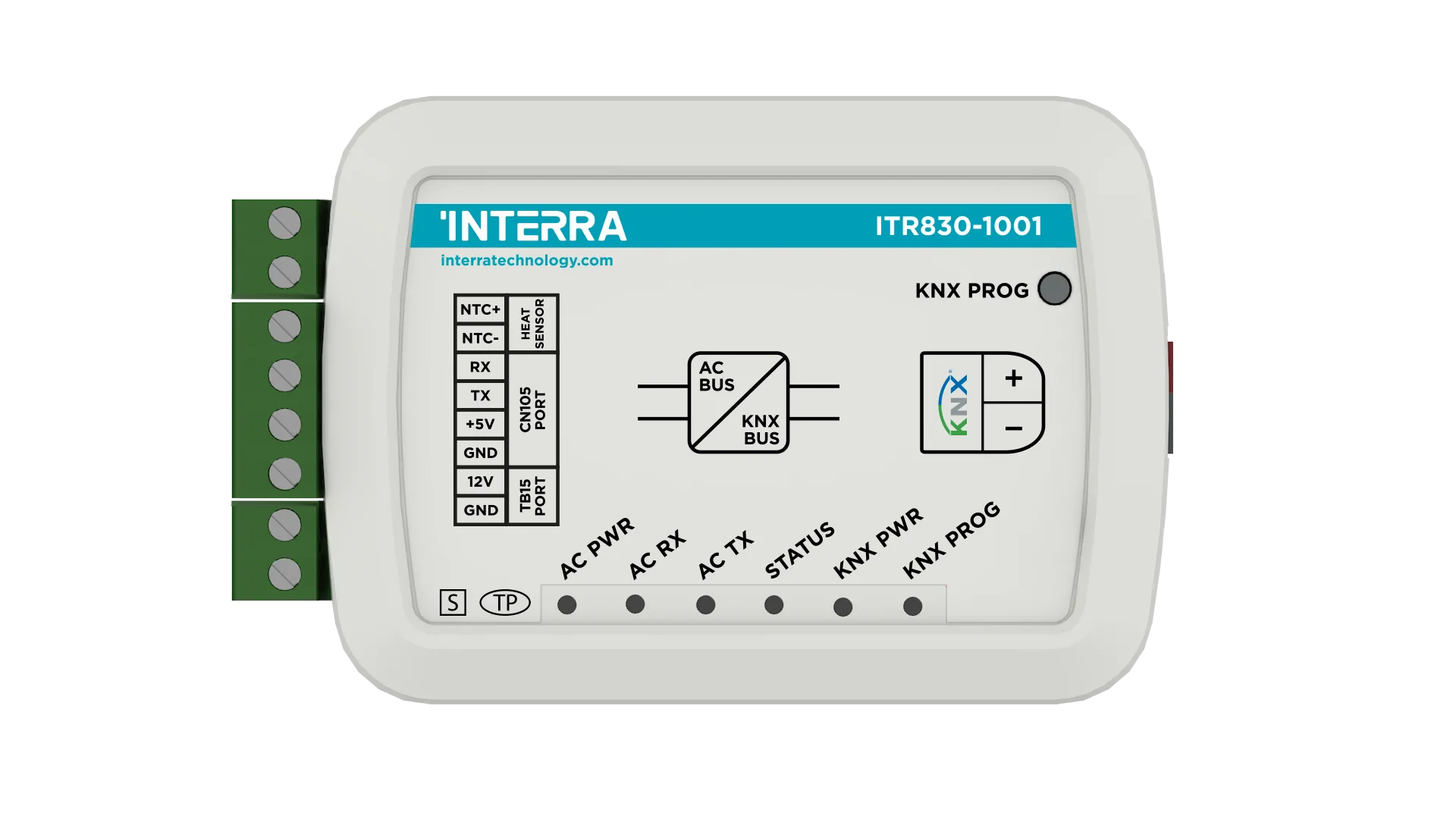

The Interra ITR830-1001 is the v2 Mitsubishi Electric AC KNX gateway for bidirectional integration of Mitsubishi Electric indoor units with KNX. Supported lines include PAC, RAC, City Multi VRF, and industrial types in Interra’s compatibility list.

The gateway mounts in the indoor unit, connecting to the ME communication interface and KNX. 3 binary inputs integrate window contacts or occupancy sensors. 4 logic gates and 8 converters support energy management, scenes, and temperature limits. Extra communication objects provide flexible HVAC mapping in ETS.

Key Features — Mitsubishi Electric v2

• City Multi / VRF ready: Full status and command set on KNX (per compatibility).
• Binary inputs: 3 for external interlocks.
• Diagnostics: AC fault telegrams to the bus.
• Bus-powered: 88 × 62 × 27 mm enclosure.

At a Glance

Specification	Detail
Order code	ITR830-1001
AC brand	Mitsubishi Electric
System types	PAC, RAC, City Multi VRF, industrial
Binary inputs	3
Dimensions (W × H × D)	88 × 62 × 27 mm

Applications and KNX Integration

• Commercial VRF: City Multi plants supervised from KNX visualization.
• Not Mitsubishi Heavy: For MHI FD/VRF use ITR830-0004 instead.
• Touch UI: iX4 AC control pages; ITR415 for occupancy logic.
• Other OEM gateways: ITR830-0013 Midea, ITR830-0006 LG.

Choosing Interra AC Gateways

ITR830-1001 is the current Mitsubishi Electric v2 gateway. Always cross-check indoor unit model numbers with the compatibility PDF; Mitsubishi Heavy (ITR830-0004) uses a different protocol and must not be substituted.
