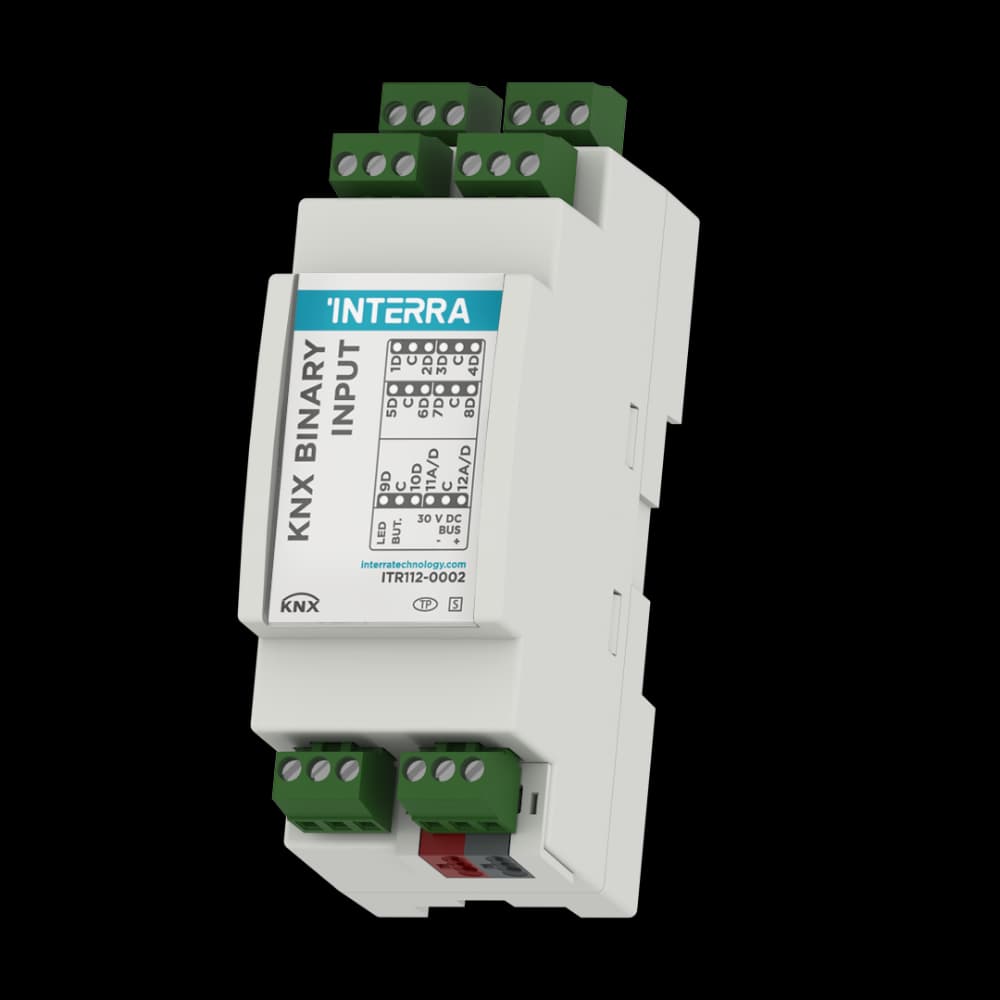

The Interra ITR112-0002 is a 12-channel KNX binary/analog input module with integrated thermostat capability for two zones. It is intended for high-density KNX projects where many dry contacts and analog points must be integrated in one device.

Channels can be configured in ETS5 or higher as binary or analog inputs. The module supports control and logic functions such as switching, dimming, shutters, scenes, RGB/RGBW control, and sequencing. Analog inputs can be used as temperature probes, and one probe can serve both thermostat channels when required.

Key Features — 12 Ch Input + 2 Thermostat

• 12 configurable channels (binary/analog assignment by ETS).
• 2 thermostat channels for heating/cooling management.
• High input consolidation for dense KNX panels.
• Broad function map including scenes and RGB/RGBW control.

At a Glance

Specification	Detail
Order code	ITR112-0002
Channels	12 binary/analog inputs
Thermostats	2 independent channels
Configuration	ETS5 or higher

Applications and KNX Integration

• Large input clusters: Integrate many contacts/sensors with fewer modules.
• Mixed control + HVAC: Combine wall inputs and thermostat objects in one KNX node.
• Related modules: ITR106-0011, ITR108-0010.

Choosing Interra Input Modules

Use ITR112-0002 when the project requires the highest input count with dual thermostat support. For 6 thermostat channels, select ITR106-0011.
