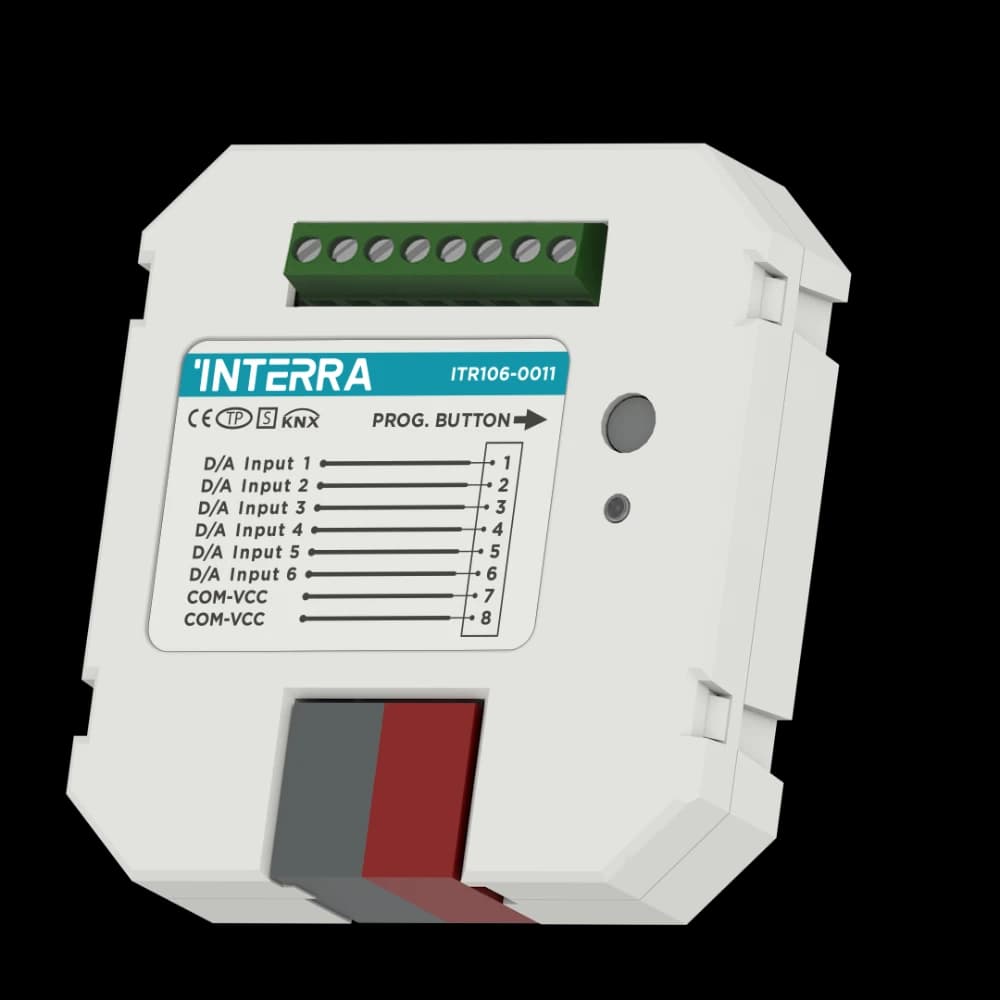

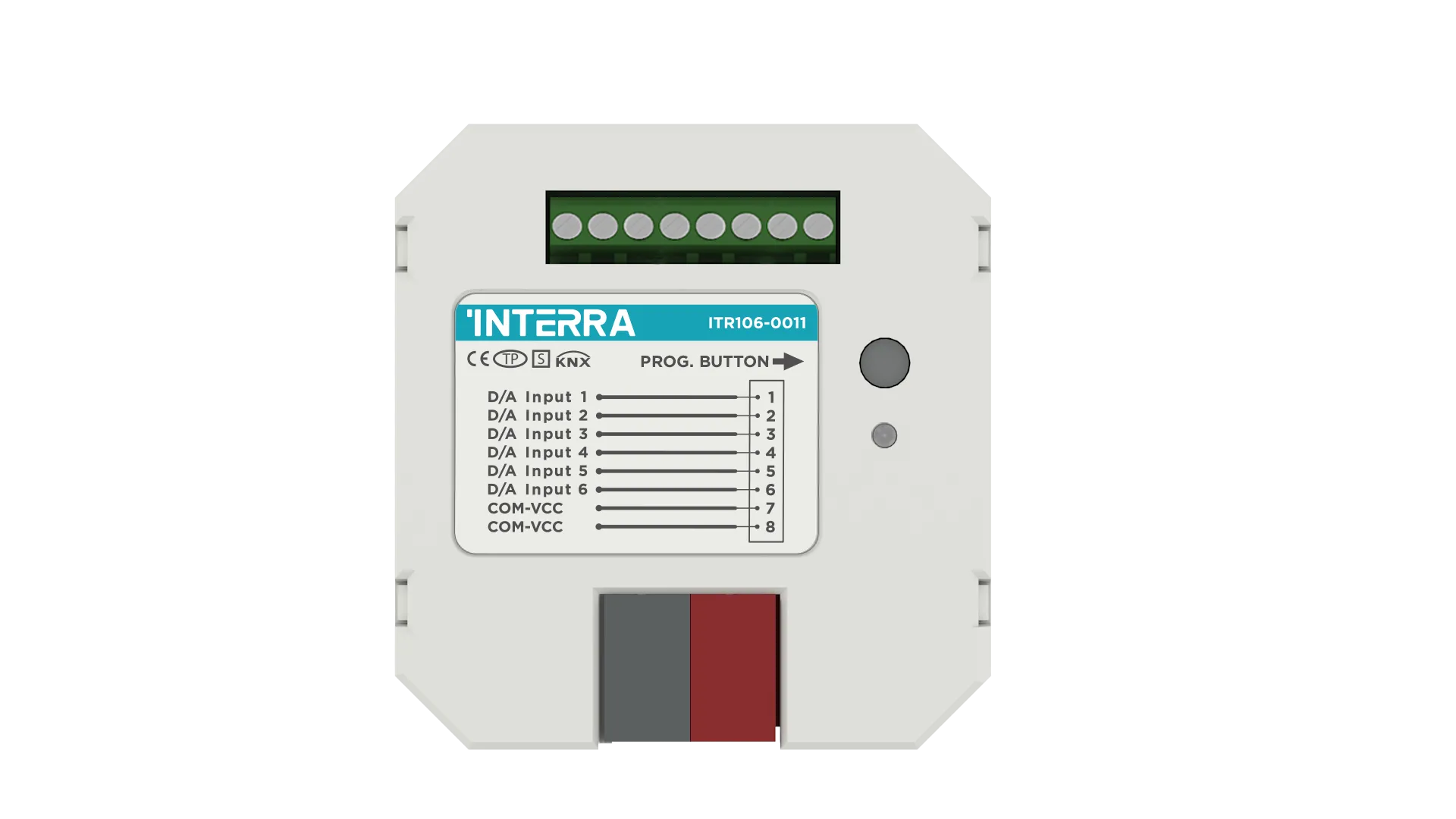

The Interra ITR106-0011 is a 6-channel binary/analog KNX input module with integrated thermostat capability. It combines push-button/contact interfacing and analog sensing in one DIN module for compact room and HVAC integration.

Each channel can be configured via ETS5 or higher as binary or analog input, and the device supports up to 6 independent thermostat functions using internal/external temperature references. It is suited to projects requiring mixed lighting, blind, HVAC, and sensor logic from one module.

Key Features — 6 Ch Binary/Analog + Thermostat

• 6 configurable channels as binary and/or analog inputs.
• 6 thermostat objects for multi-zone HVAC control.
• Input support: Push-buttons, dry contacts, temperature and brightness sources.
• ETS commissioning with mixed function assignment per channel.

At a Glance

Specification	Detail
Order code	ITR106-0011
Channels	6 (binary/analog configurable)
Thermostats	Up to 6 independent
Configuration	ETS5 or higher

Applications and KNX Integration

• HVAC + input consolidation: Mixed analog and binary points in one KNX node.
• Room retrofits: Add temperature/brightness sensing while retaining conventional wall controls.
• Related modules: ITR102, ITR104, ITR108.

Choosing Interra Input Modules

ITR106-0011 is the preferred choice when analog sensing and thermostat control are required alongside binary inputs. For binary-only interfaces, choose ITR102/104/108 according to channel count.
