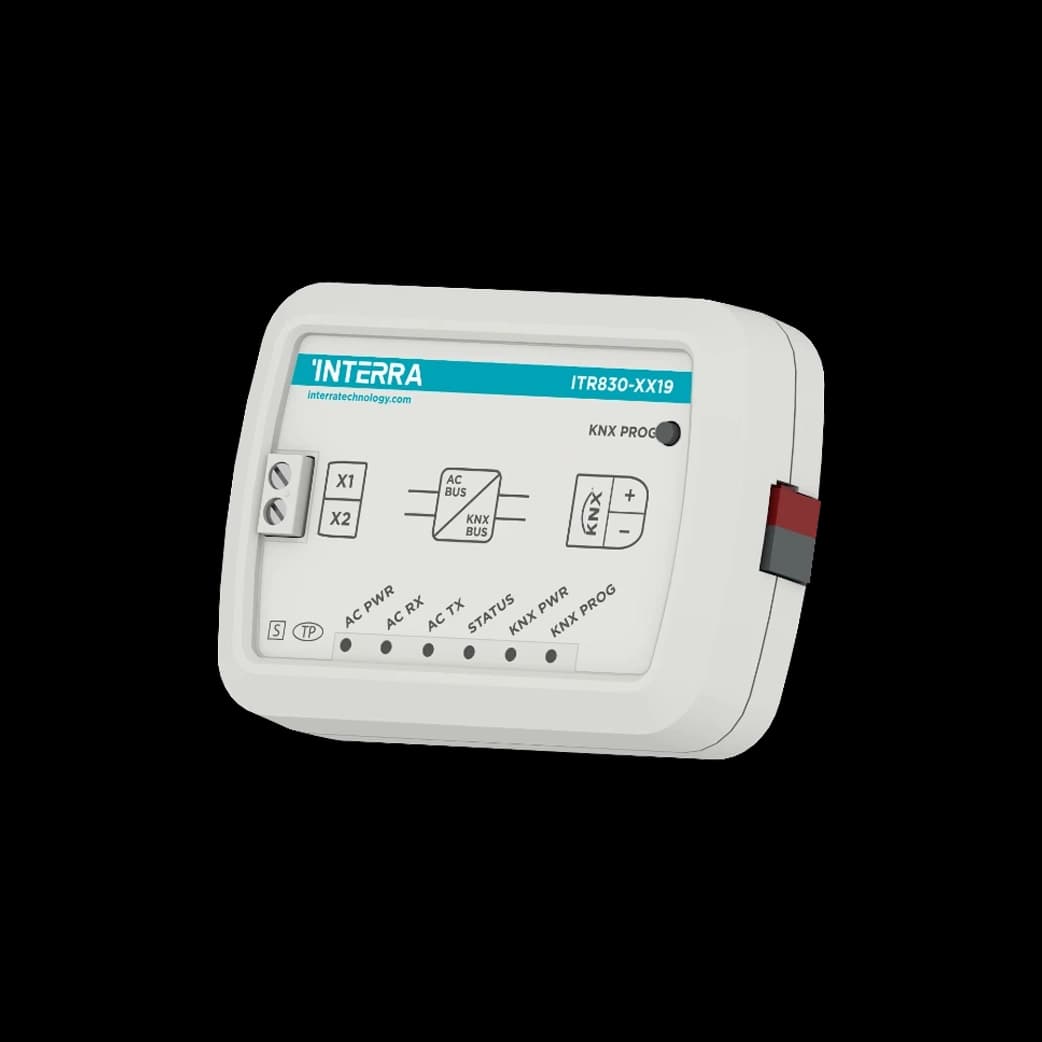

The Interra ITR830-XX19 is a Carrier VRF AC KNX gateway that delivers bidirectional monitoring and control between Carrier indoor units and the KNX bus. It exposes AC operating parameters (mode, setpoint, fan and status feedback) to KNX room controllers and supervisory systems.

Installation is inside the indoor unit or at a nearby location. The gateway connects to the Carrier wired-remote communication bus and to KNX. With no wired remote it operates as master; with a Carrier wired remote, master/slave role is selectable in ETS. Built-in 4 logic parameters (AND/OR/XOR, up to 4 inputs each) and 8 converters support energy routines, scene logic and temperature-limit handling without extra logic hardware.

Key Features — Carrier VRF on KNX

• Bidirectional integration: Full command and feedback path between Carrier VRF and KNX.
• Compatibility workflow: Indoor models must be verified against Interra’s Carrier compatibility list.
• On-board automation: 4 logic blocks + 8 converters for advanced HVAC control objects.
• Fault handling: Exception/error notifications are transmitted to KNX.
• Compact module: 88 × 62 × 27 mm housing; KNX bus powered.

At a Glance

Specification	Detail
Order code	ITR830-XX19
AC brand / type	Carrier VRF
Dimensions (W × H × D)	88 × 62 × 27 mm
Power	KNX bus
Configuration	ETS (S-mode)

Applications and KNX Integration

• Hotel and office VRF: Central control and monitoring of Carrier indoor units from KNX BMS dashboards.
• Room interfaces: Pair with iX4, iX3, or iSwitch+ thermostatic controls.
• Other OEM gateways: ITR830-0013 Midea, ITR830-0006 LG, ITR830-1001 Mitsubishi Electric.

Choosing Interra AC Gateways

ITR830-XX19 is the dedicated Carrier VRF integration SKU. Confirm indoor unit models in the official compatibility list before procurement and commissioning.
