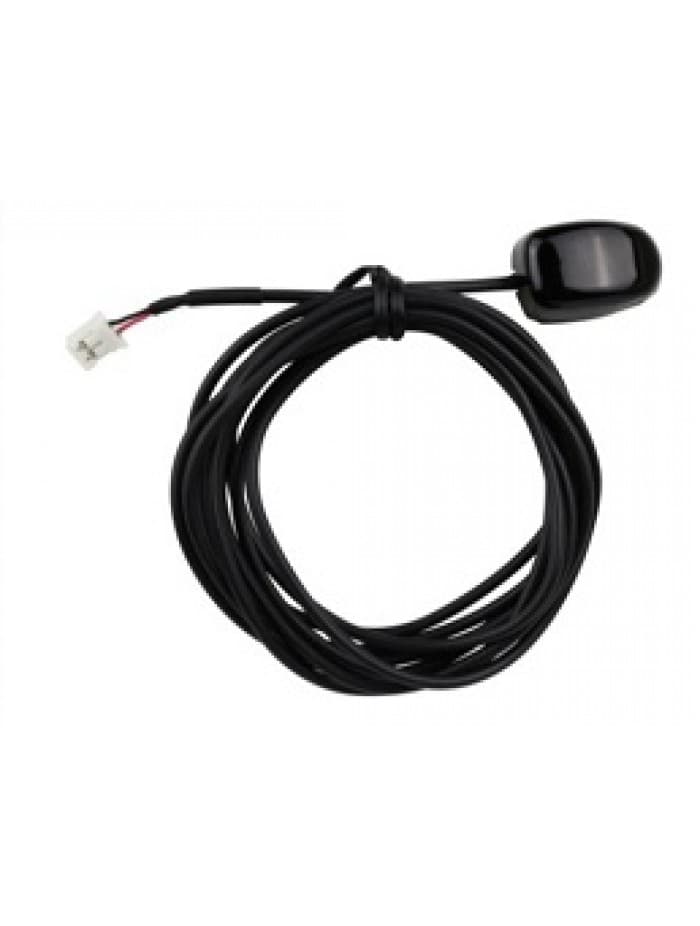

The HDL Infrared Emission Probe is a compact IR blaster accessory for the HDL M/IRAC.1 KNX Infrared Emitter. It extends infrared coverage by placing the emitting LED close to TVs, set-top boxes, air conditioners, and AV equipment while the emitter module remains in the distribution area or wall box.

The M/IRAC.1 ships with one emission tube; additional HDL IR probes are used when multiple zones or cabinets need targeted IR — for example, one probe per display stack or HVAC indoor unit. Install the probe within the emitter's effective range per the M/IRAC.1 datasheet (7 m emission distance, 38 kHz carrier).

Key Features — IR Extension for M/IRAC.1

• Compatible host: Designed for HDL-M/IRAC.1 KNX infrared emitter.
• Flexible placement: Route the probe to equipment IR windows away from the main module.
• Multi-equipment rooms: Add probes for separate AV racks or AC units controlled from one emitter.
• 38 kHz IR: Matches M/IRAC.1 transmitting carrier (38 kHz ± 20 %).

At a Glance

Specification	Detail
Product type	Infrared emission probe (accessory)
Host device	HDL-M/IRAC.1 KNX Infrared Emitter
Typical dimensions (W × H × D)	14 × 9 × 20 mm (per HDL partner data)
Typical weight	50 g
Bus power	None — powered/signal via M/IRAC.1 connection

Exact cable length and connector are shown in the M/IRAC.1 wiring diagram under Downloads (emitter datasheet).

Applications and Integration

• Media cabinets: Stick probes on glass doors facing TV, soundbar, and Blu-ray IR sensors.
• Hotel rooms: One M/IRAC.1 with multiple probes for TV + AC + set-top box.
• Code workflow: Learn codes with MIR01L.01 IR Learner, download to the emitter, then verify at each probe position.
• KNX control: Trigger IR macros from Granite Display or sensor logic on the same KNX line powered by M/P960.1.

Choosing HDL IR Accessories

Order the IR Probe when one bundled tube on M/IRAC.1 is not enough. The emitter stores 960 IR codes (150 general + 810 AC); probes only extend physical reach. For learning new codes, use the HDL-MIR01L.01 with HDL KNX Assistant Software.
